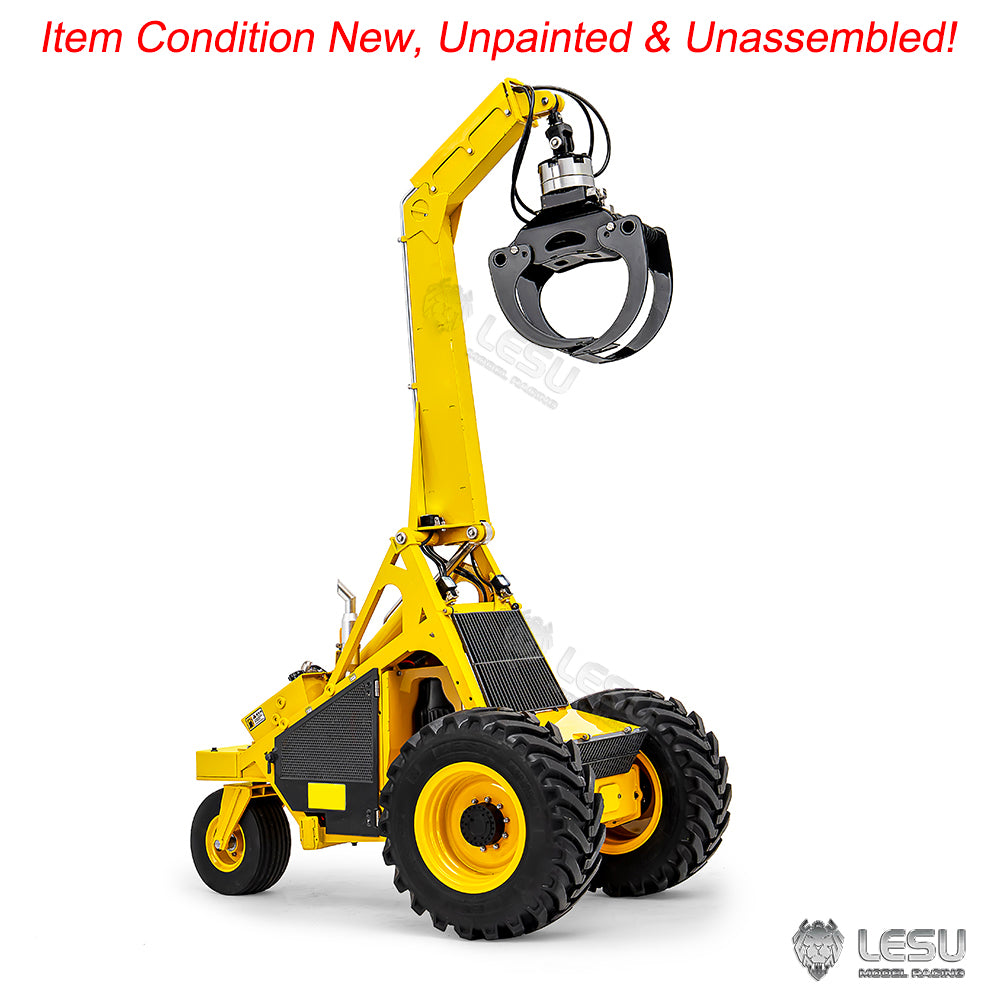

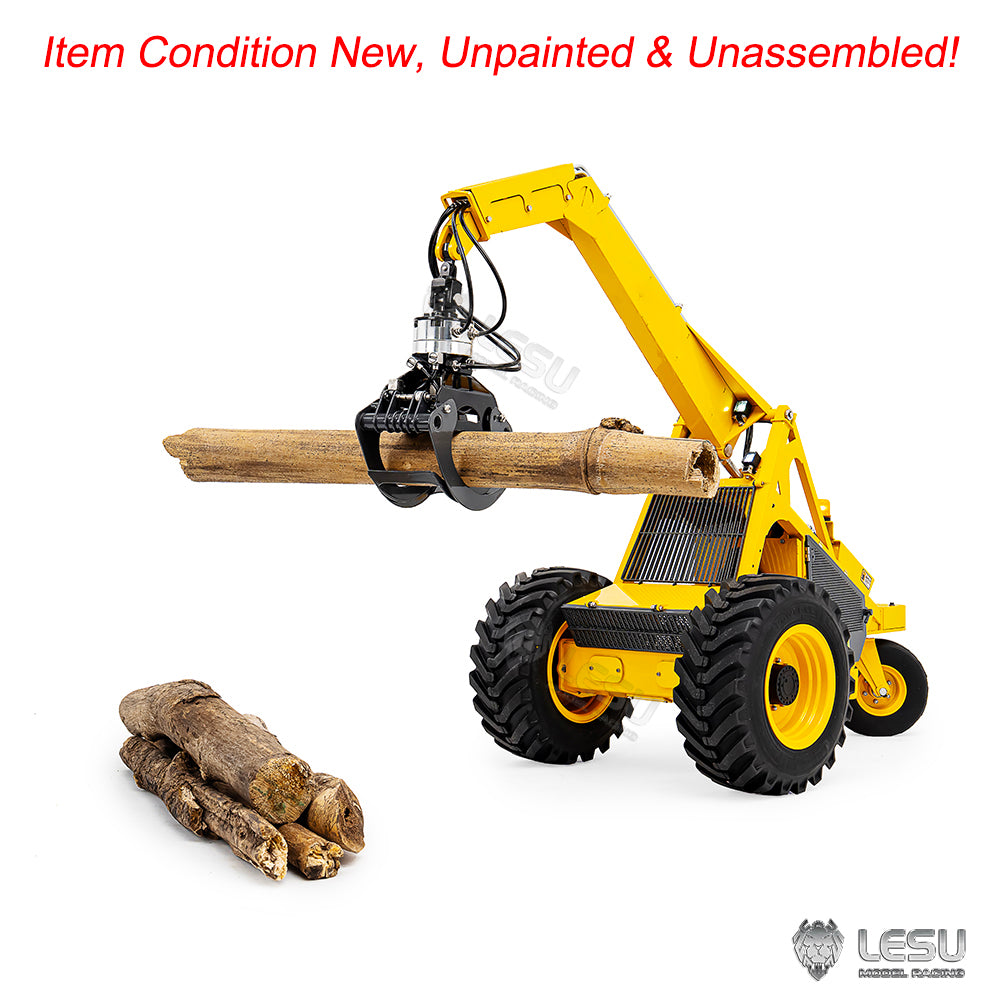

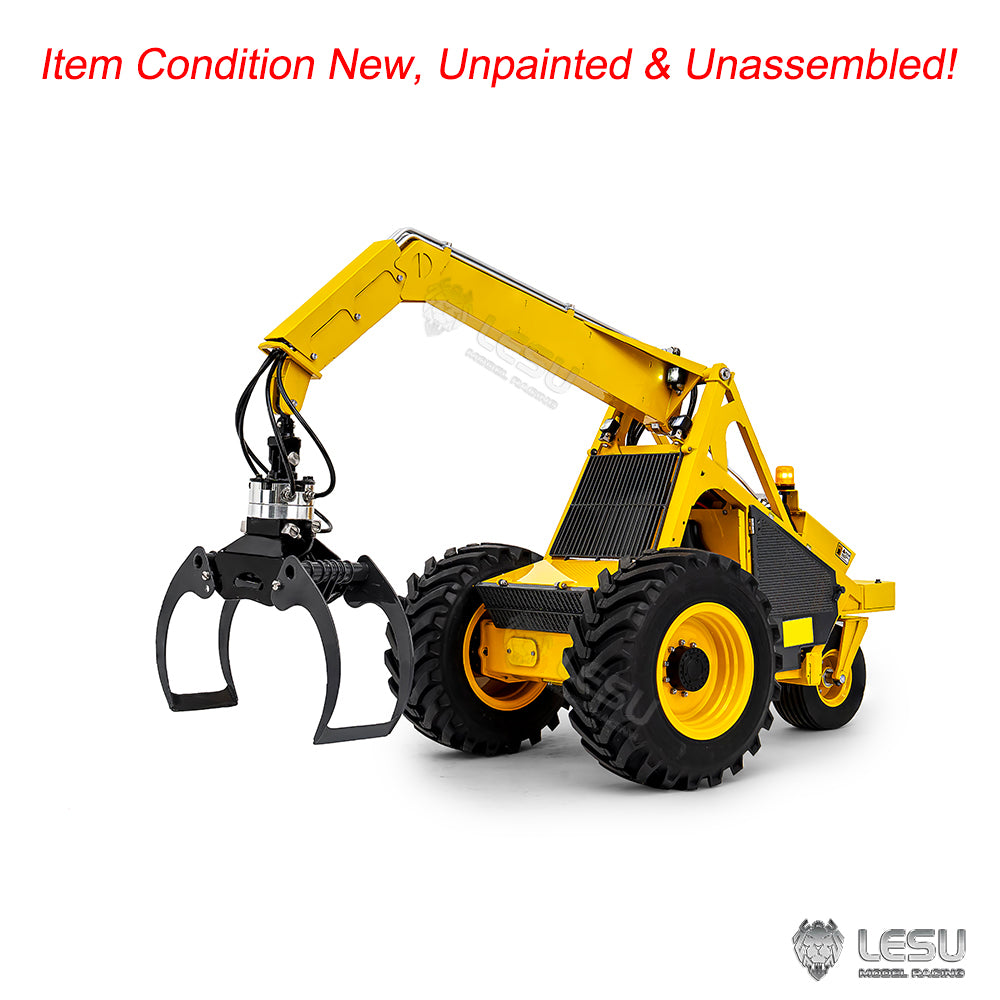

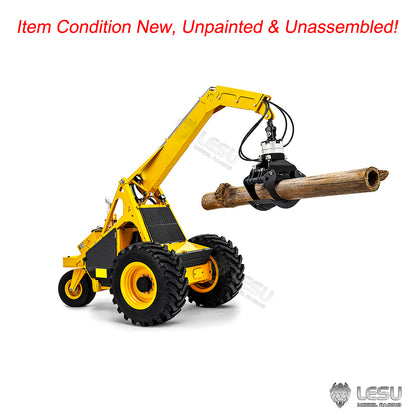

Unassembled Kit Model LESU Metal 1/14 Remote Control Hydraulic Log Loader AOUE 225A RC Sugarcane Loader Grabber 4CH Valve Light

#Unassembled Kit Model LESU Metal 1/14 Remote Control Hydraulic Log Loader AOUE 225A RC Sugarcane Loader Grabber 4CH Valve Light

#This product is only suitable for toy models and is not suitable for real vehicles

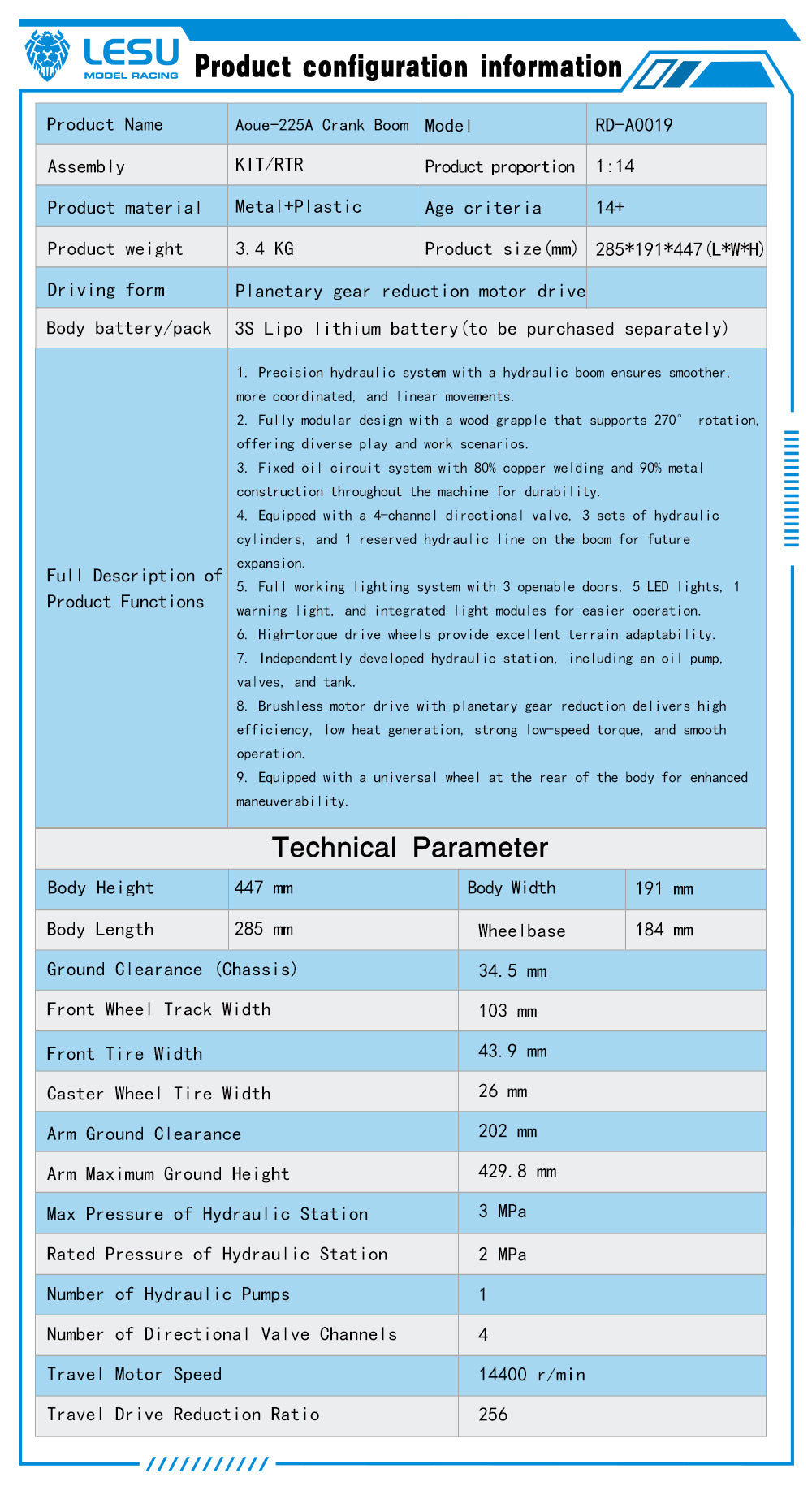

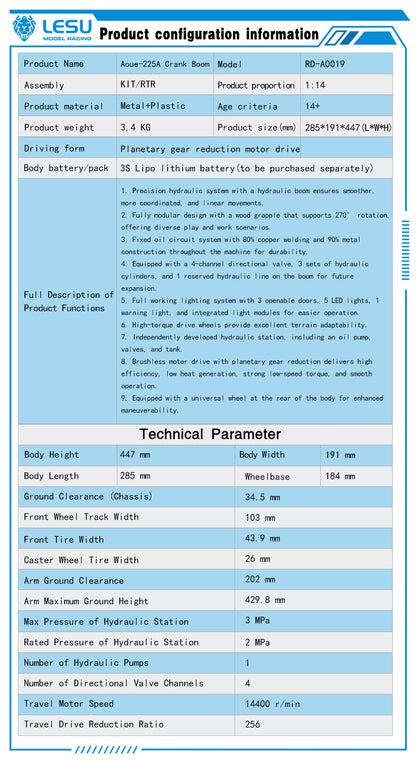

#Specification:
Manufacturer: LESU
Item Condition: New, Unpainted and Unassembled
Scale: 1/14
Material: Metal, Rubber
Net Weight: 3.4KG
Size: 285*197*447
Hydraulic Valve: 4CH
Body Height/mm: 447
Body Width/mm: 191
Ground Clearance of the Chassis/mm: 34.5
Body Length/mm: 285
Wheelbase/mm: 184
Height of the Arm From the Ground/mm: 202
Track Width of the Front Wheels/mm: 103
Maximum Height of the Arm From the Ground/mm: 429.8
Width of the Front Wheel Tires/mm: 43.9
Width of the Caster Tires/mm: 26
Maximum Pressure of the Hydraulic Workstation/MPa: 3
Rated Pressure of the Hydraulic Workstation/MPa: 2
Number of Hydraulic Pumps: 1
Rotational Speed of the Traveling Motor (r/min): 14400
Reduction Ratio of the Traveling Drive: 256
ID: LS-RD-A0019-KIT

#The Package Includes:
1/14 Unpainted and Unassembled Metal Hydraulic Log Loader
Motor
Servo
ESC
Light System

#The Package Does Not Include:
ST8 Radio System
Battery
Sound System
Charger
Hydraulic Oil

#Features:
1, Precision hydraulic system with a hydraulic boom, enabling more coordinated, smooth, and linear movements.
2, The whole machine features a modular design and is equipped with a timber grapple. The timber grapple can rotate 270¡ã, offering diverse playing methods.
3, 80% of the fixed oil - way system is welded with pure copper, and 90% of the whole machine is made of metal.
4, It is equipped with a 4 - channel directional valve and 3 sets of hydraulic cylinders. Moreover, the boom has a reserved oil - way for expansion.
5, The whole machine has 3 openable doors, 5 LED lights, 1 warning light, and is equipped with a light set, making operation more convenient.
6, It is equipped with high - torque drive wheels, which can better handle various terrains.
7, An independently developed and innovative hydraulic station (including an oil pump, oil valve, oil tank, etc.).
8, Driven by a brushless motor with planetary reduction, it features high efficiency, low heat generation, high torque at low speed, and smooth operation.
9, The rear of the fuselage is equipped with casters, allowing for more flexible steering.

#If you have any questions or are not sure whether it is the correct item you want, pls feel free to contact me before purchasing.
