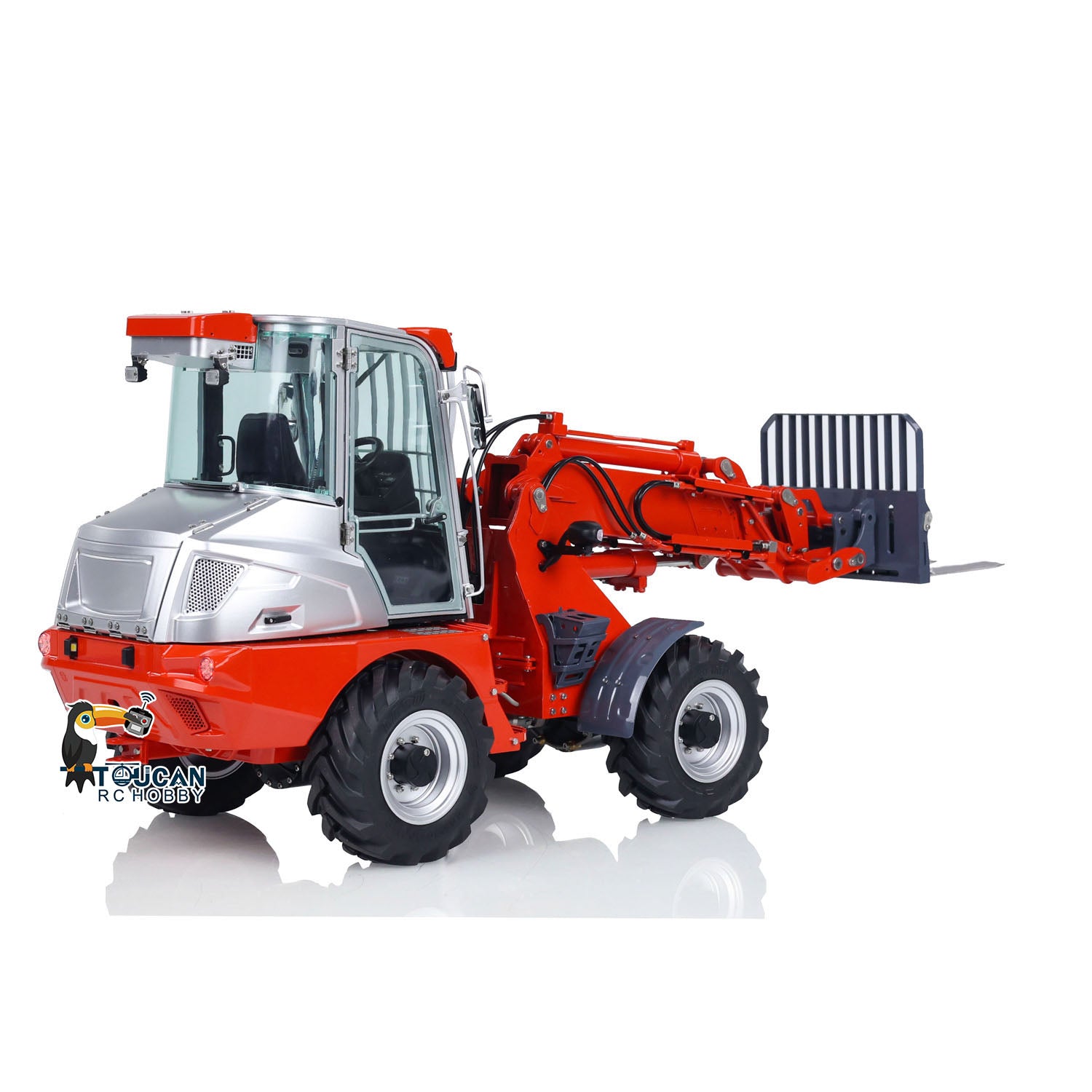

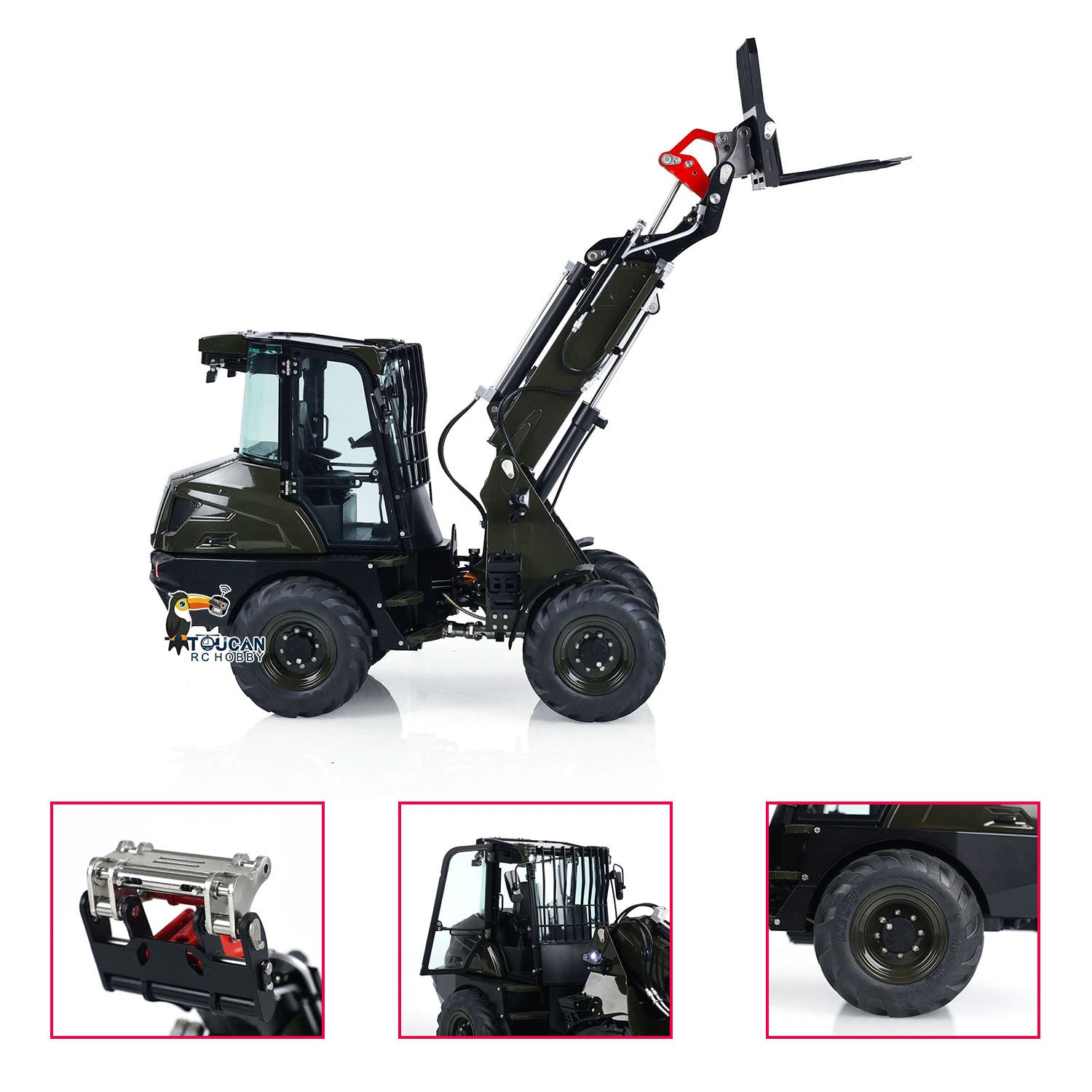

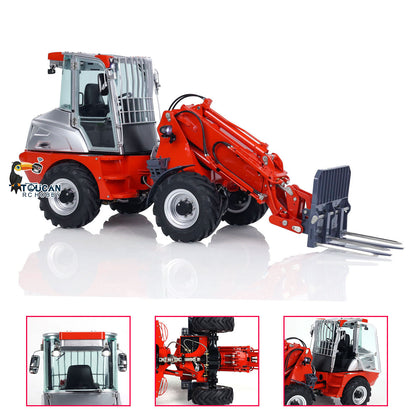

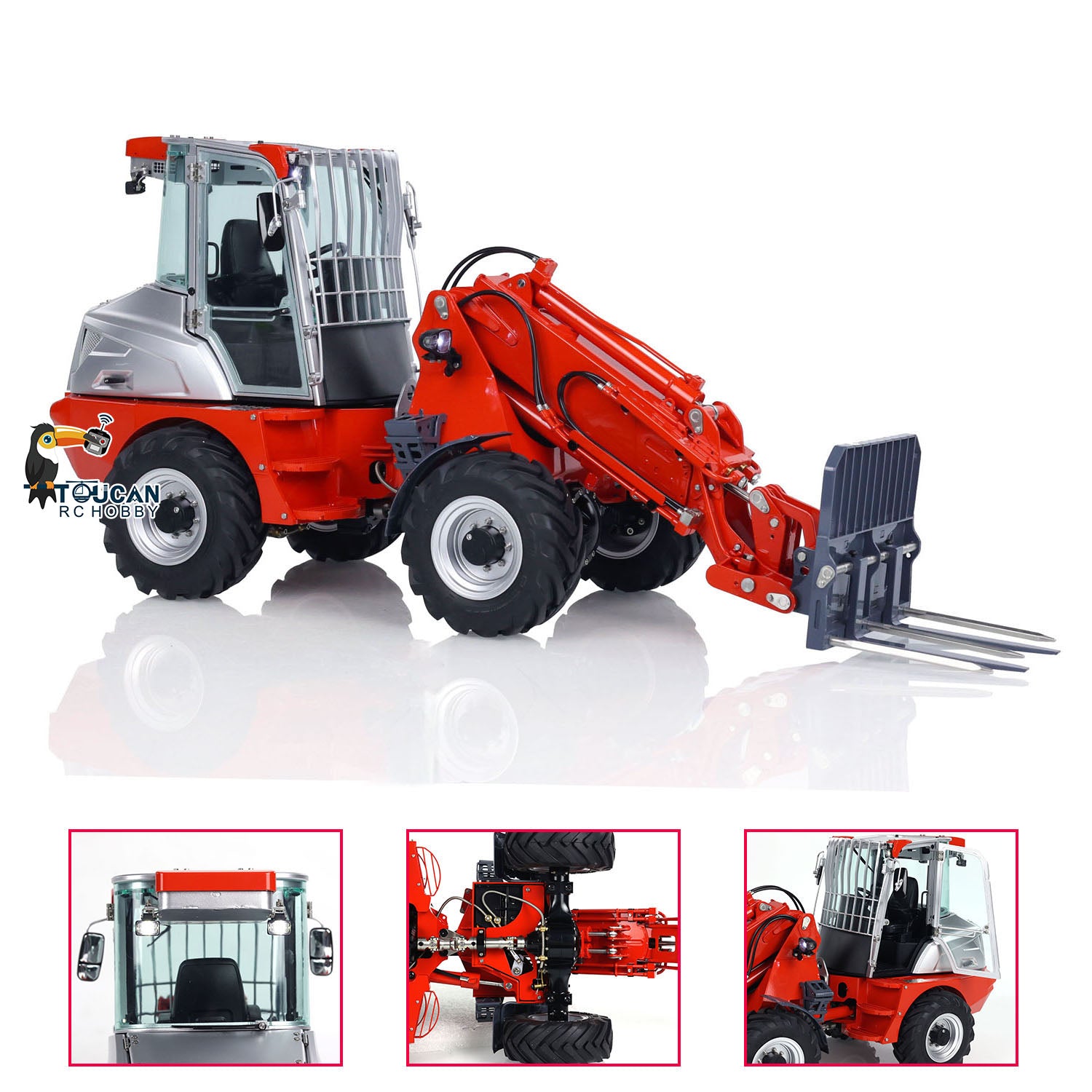

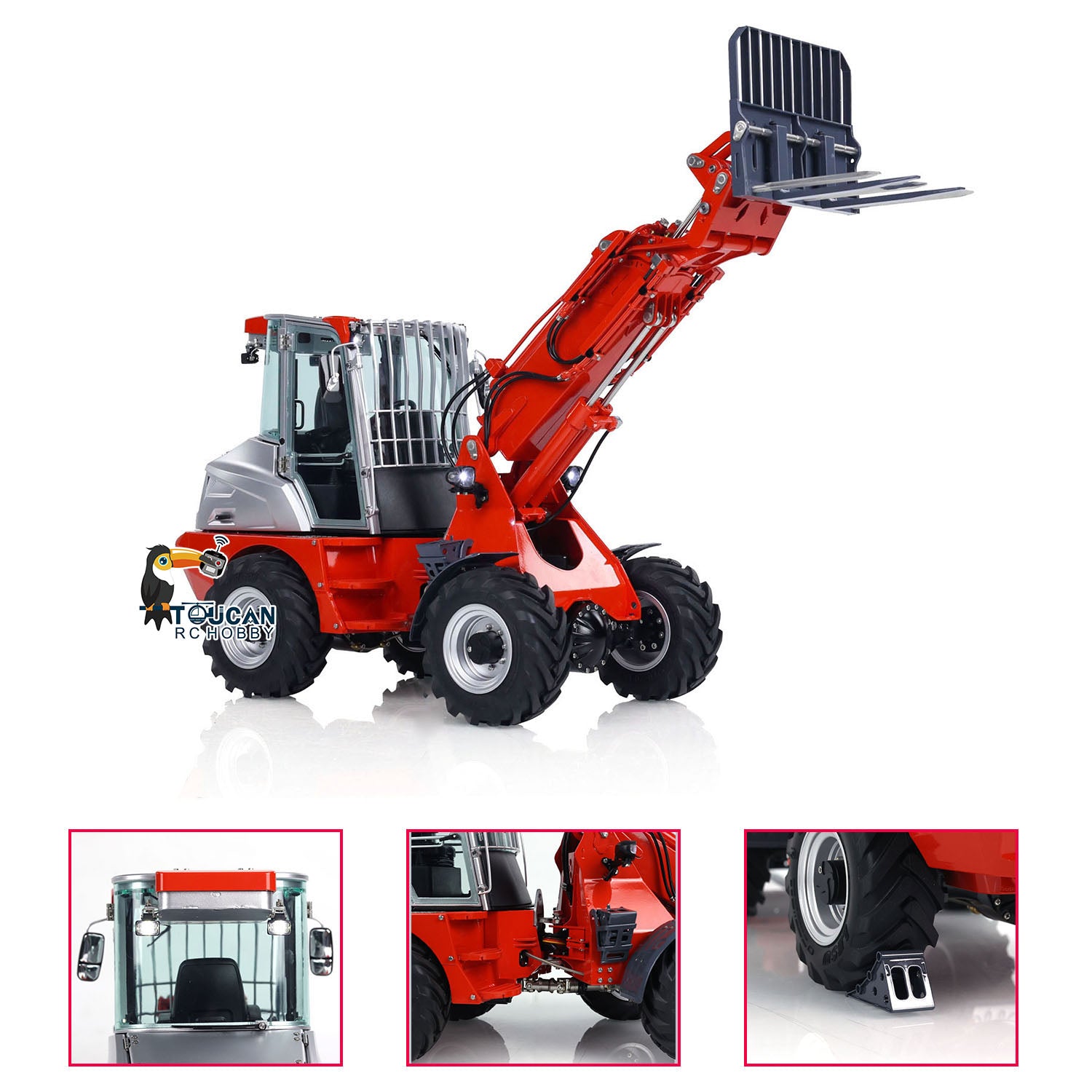

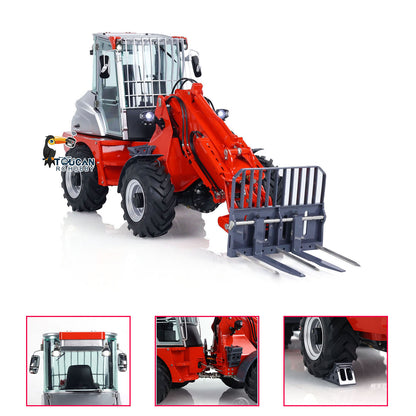

IN STOCK Customized LESU AT1050 1/14 Scale Hydraulic RC Telescopic Arm Fork Truck Loader Painted Car PNP Assembled Simulation Model
IN STOCK Customized LESU AT1050 1/14 Scale Hydraulic RC Telescopic Arm Fork Truck Loader Painted Car PNP Assembled Simulation Model
LESU
SKU:LS-RD-A0016-PNP-PAINTING-RGYS-QC-DZN1
Specification:
Manufacturer: LESU
Item Condition: New, Assembled and Painted.
Scale: 1/14
Size: 478*165*221
Net Weight: About 4KG
ID: LS-RD-A0016-PNP-PAINTING-RGYS
The Package Includes:

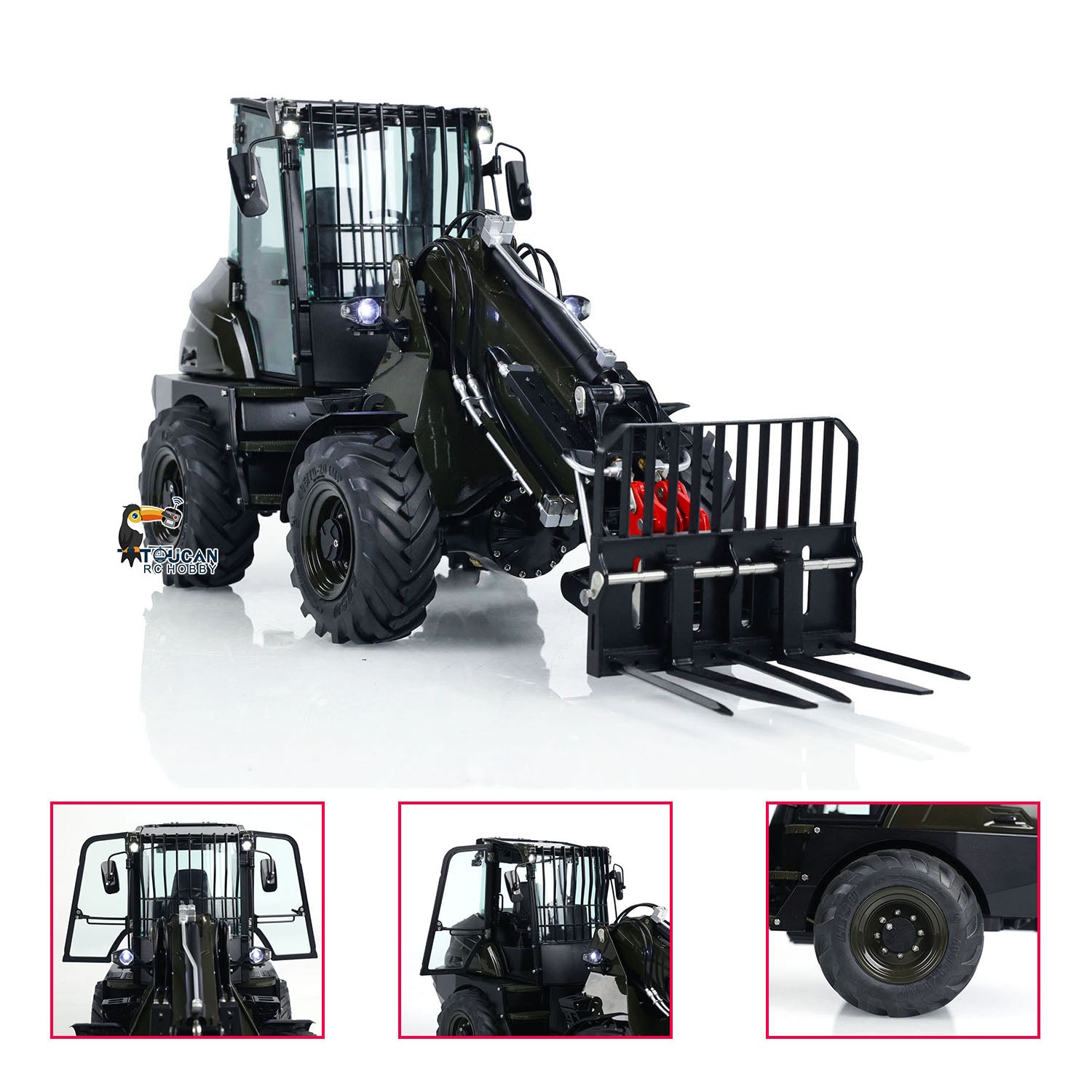

1/14 RC Telescopic Arm Fork Loader Model
ESC
Motor
Servo
Hydraulic System
Light System
Sound System
The Package Does Not Include:
Remote Controller and Receiver
Battery
Charger
Hydraulic Oil
Features:
1. Precision Hydraulic System: More coordinated, smooth, and linear movements.

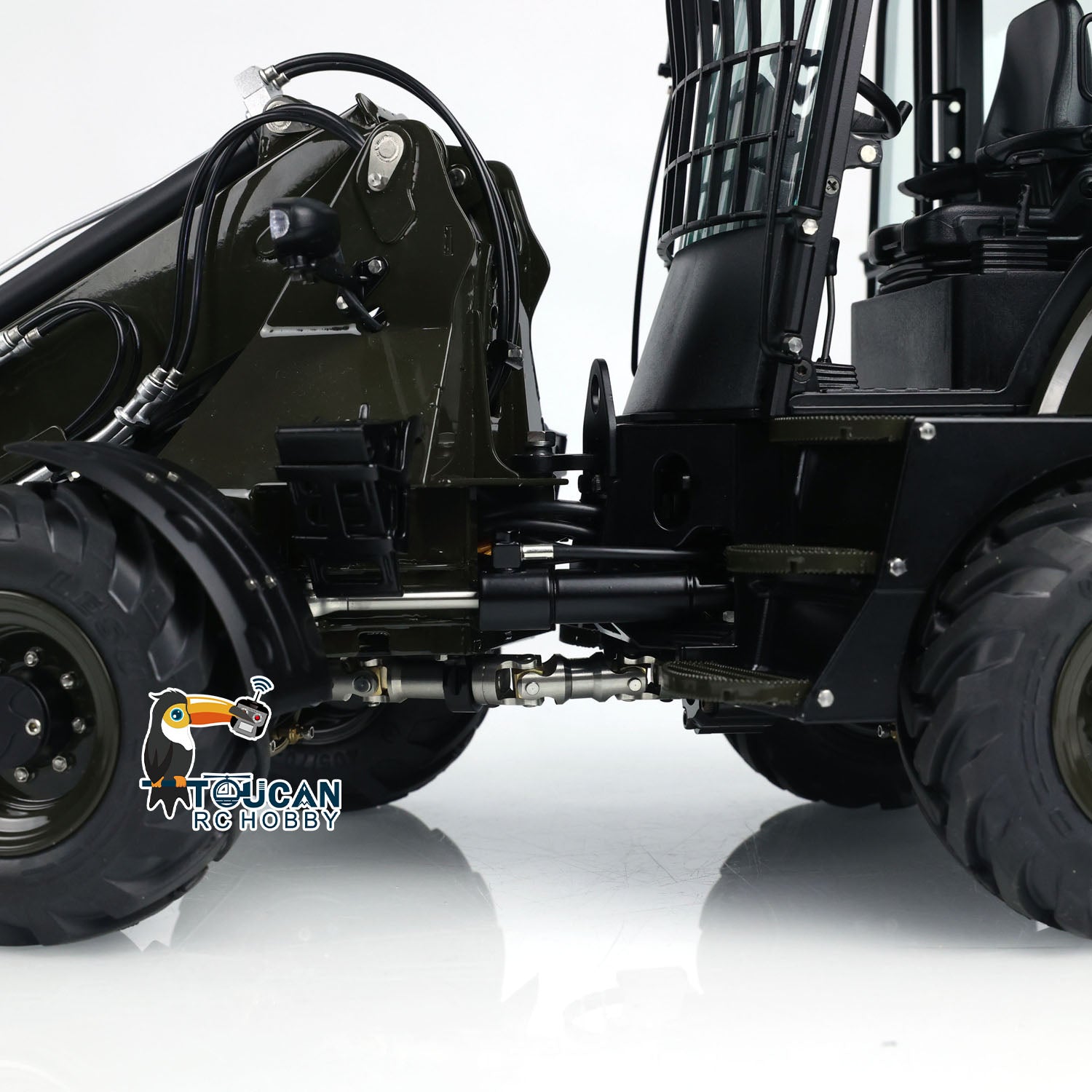

2. Hydraulic Steering: Precise steering, more stable operation.

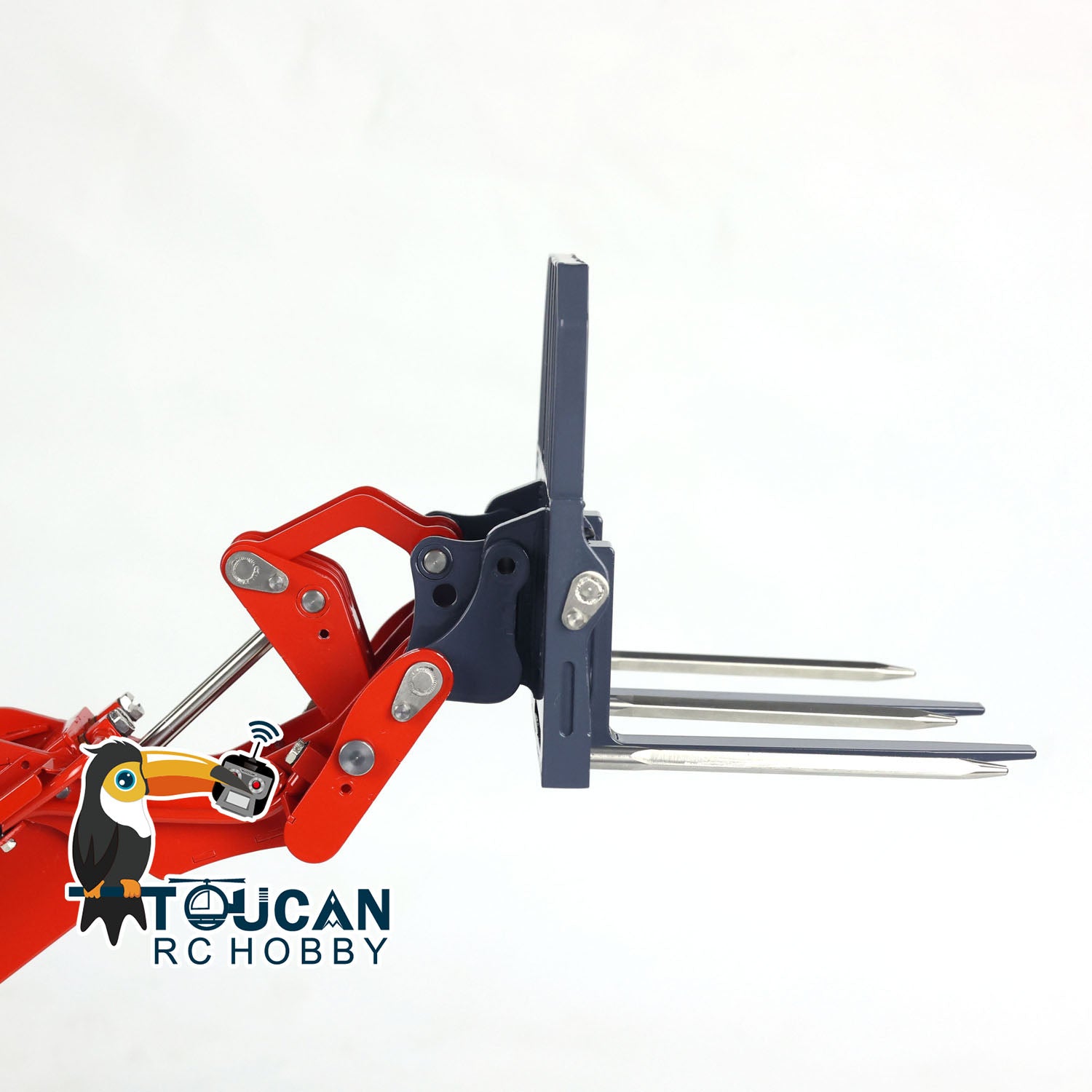

3. Hydraulic Fork Bucket: More flexible and convenient operation.

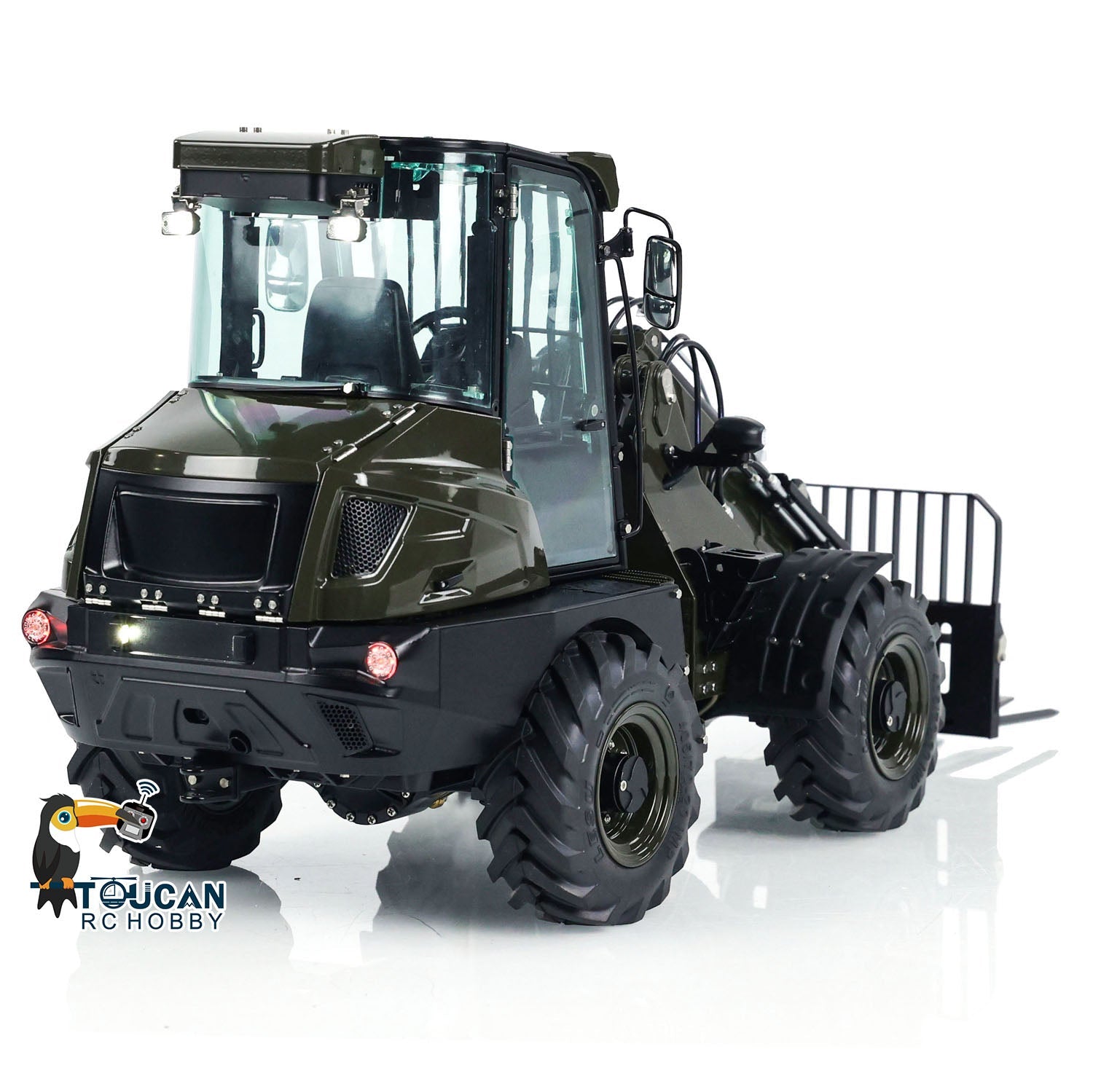

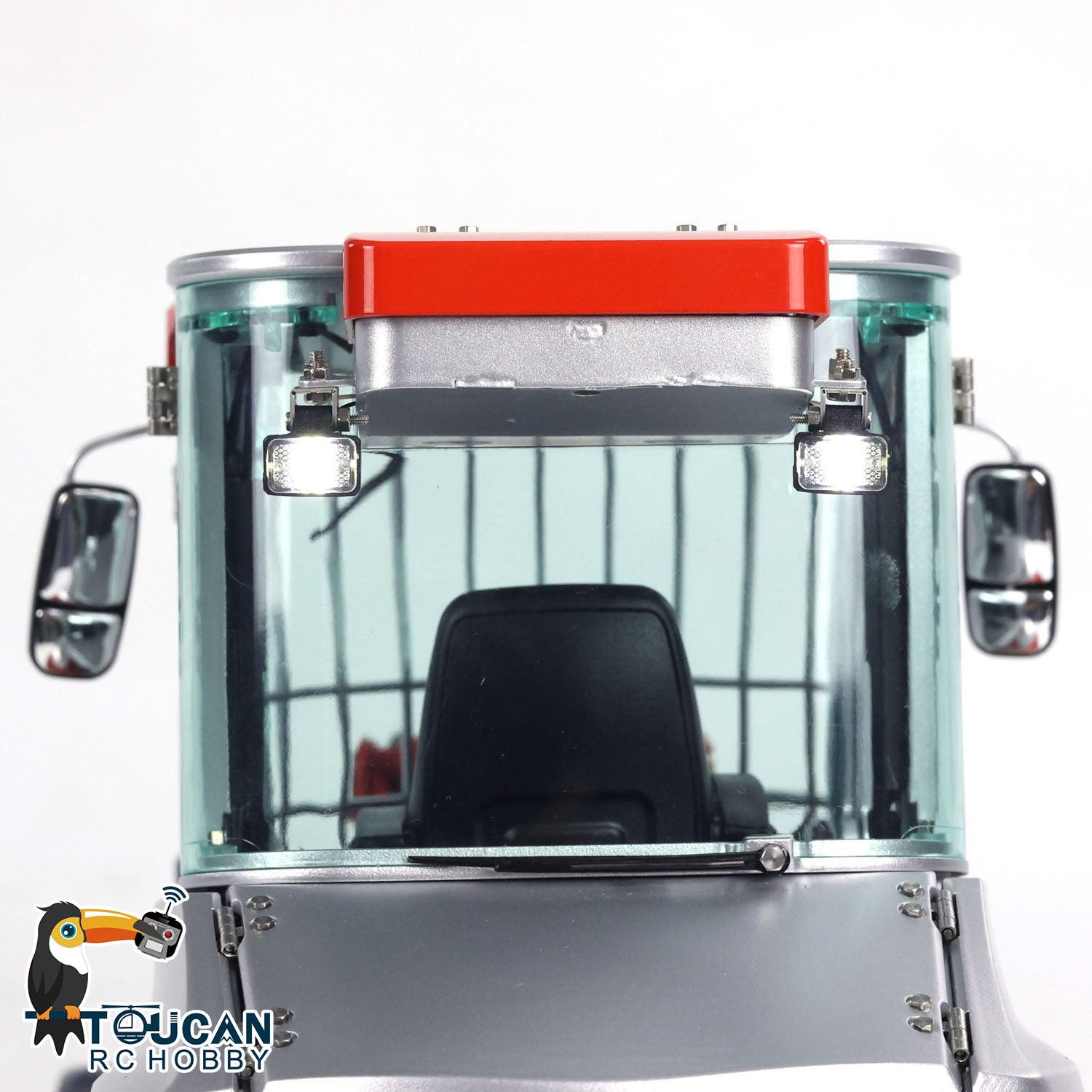

4. Equipped with a Flip-open Cab: The entire machine has 5 openable doors.

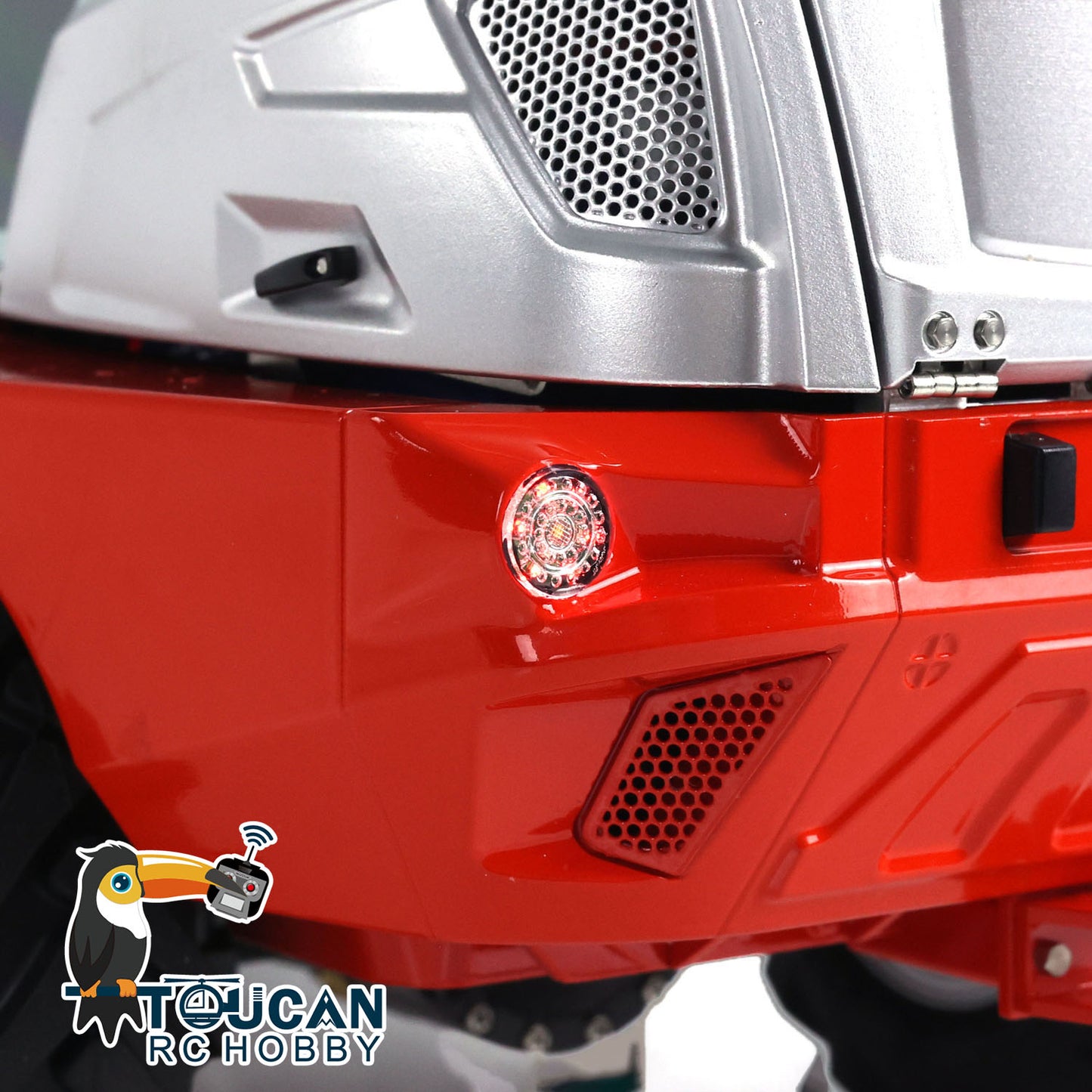

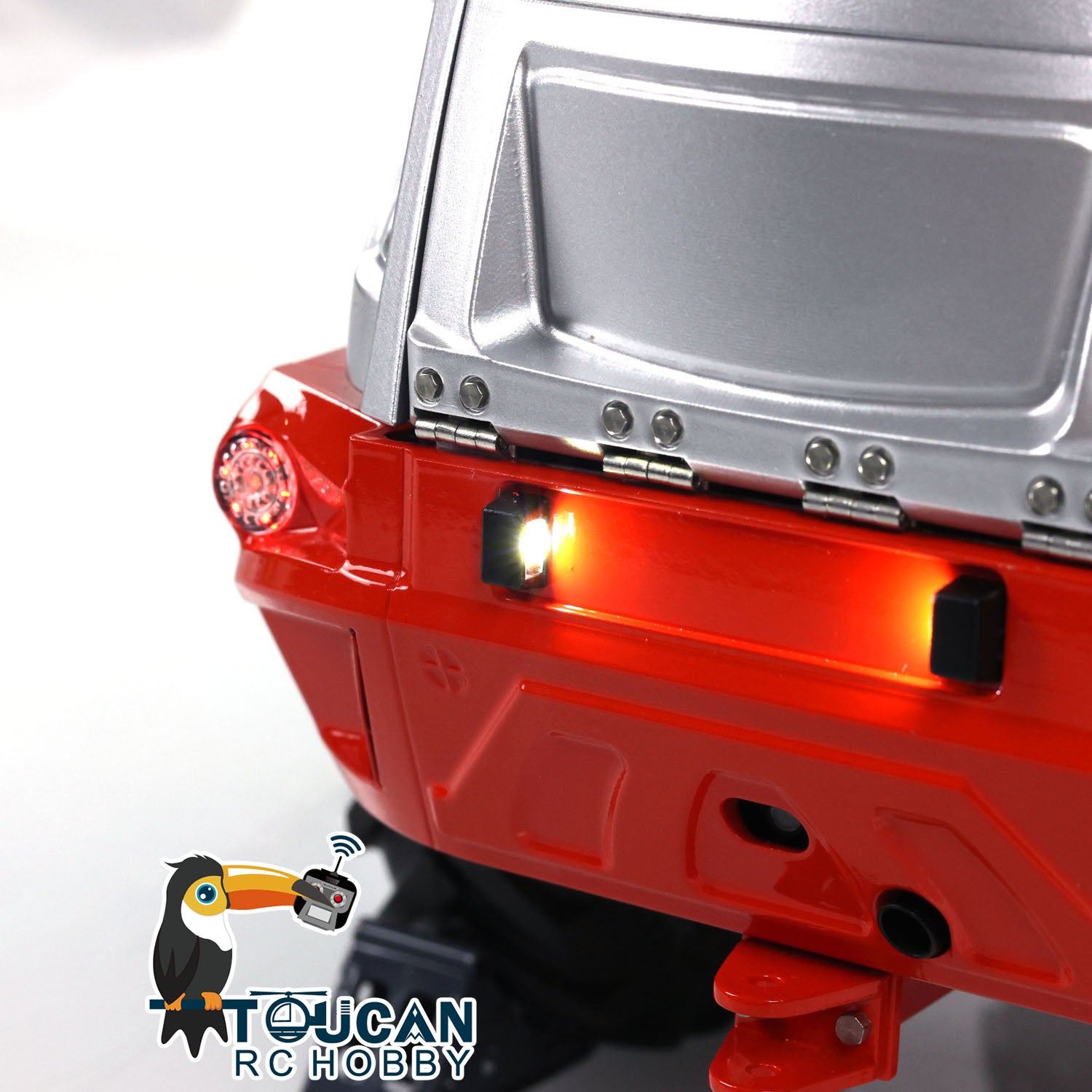

5. Full Vehicle Lighting and Simulated Sound: Equipped with a light and sound group for easier control.

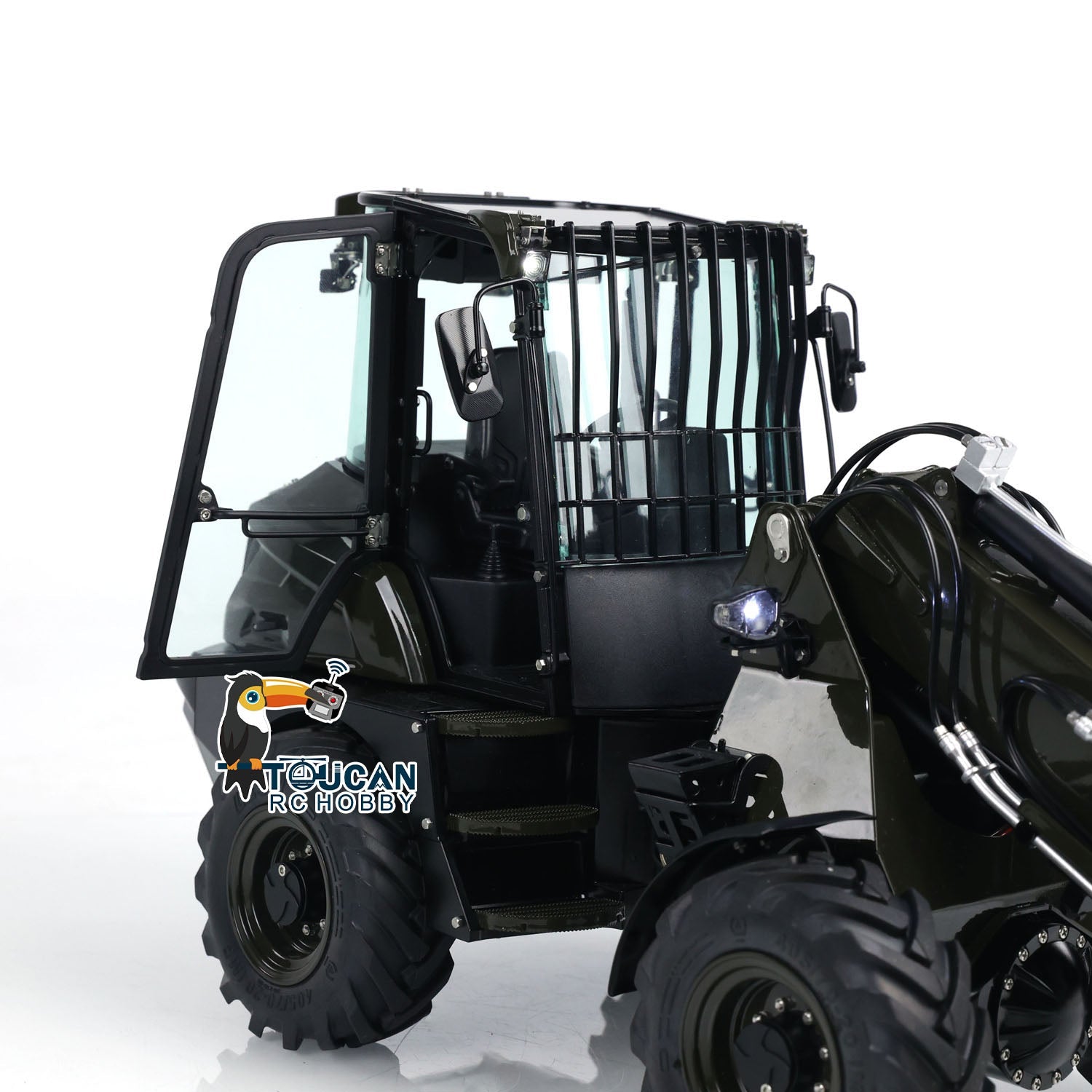

6. Equipped with Simulated Stainless Steel Cab Guard: The machine is made of 90% metal materials.
Technical Parameters:
- Total Length of Loader (mm): 478
- Ground Clearance at Bottom of Fork Bucket (mm): 361.8
- Total Length to Chain Pin of Fork Bucket (m): 374.8
- Maximum Ground Clearance at Hinge Pin (mm): 373.4
- Length from Front Wheel to Fork Bucket Mounting Hole (mm): 118.4

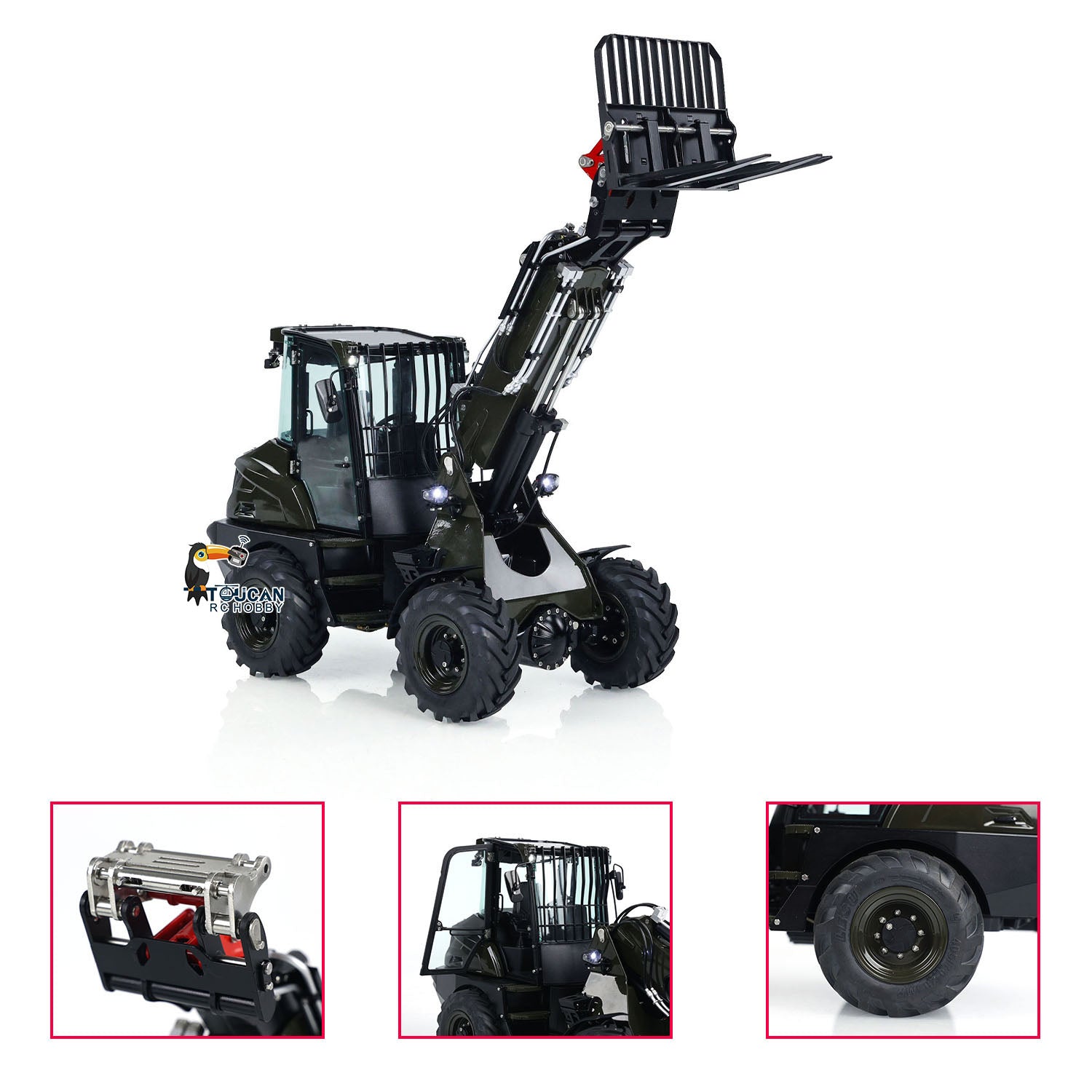

- Maximum Operating Height (mm): 461.2
- Wheelbase (mm): 161
- Track Width (mm): 135.1
- Length from Rear Wheel to Rear of Body (m): 95.4
- Tire Outer Width (mm): 164.7
- Cab Ground Clearance (mm): 221.4
- Ground Clearance of Drive Shaft (mm): 33
- Work Station Ground Clearance (mm): 129.6
- Distance from Fork Teeth to Bucket Linkage Rod (mm): 52.5
- Maximum Unloading Height (mm): 287
- Number of Control Valve Ports: 2+3
- Maximum Pressure of Hydraulic Work Station (MPa): 3
- Number of Hydraulic Pumps: 1
- Rated Pressure of Hydraulic Work Station (MPa): 2
- Number of Hydraulic Cylinders: 5
- Hydraulic Hose Specifications (Outer Diameter x Inner Diameter) (mm): 2.5x1.5, 2x1
- Body Material: Aluminum Alloy + Stainless Steel
If you have any questions or are not sure whether it is the correct item you want, pls feel free to contact me before purchasing.
