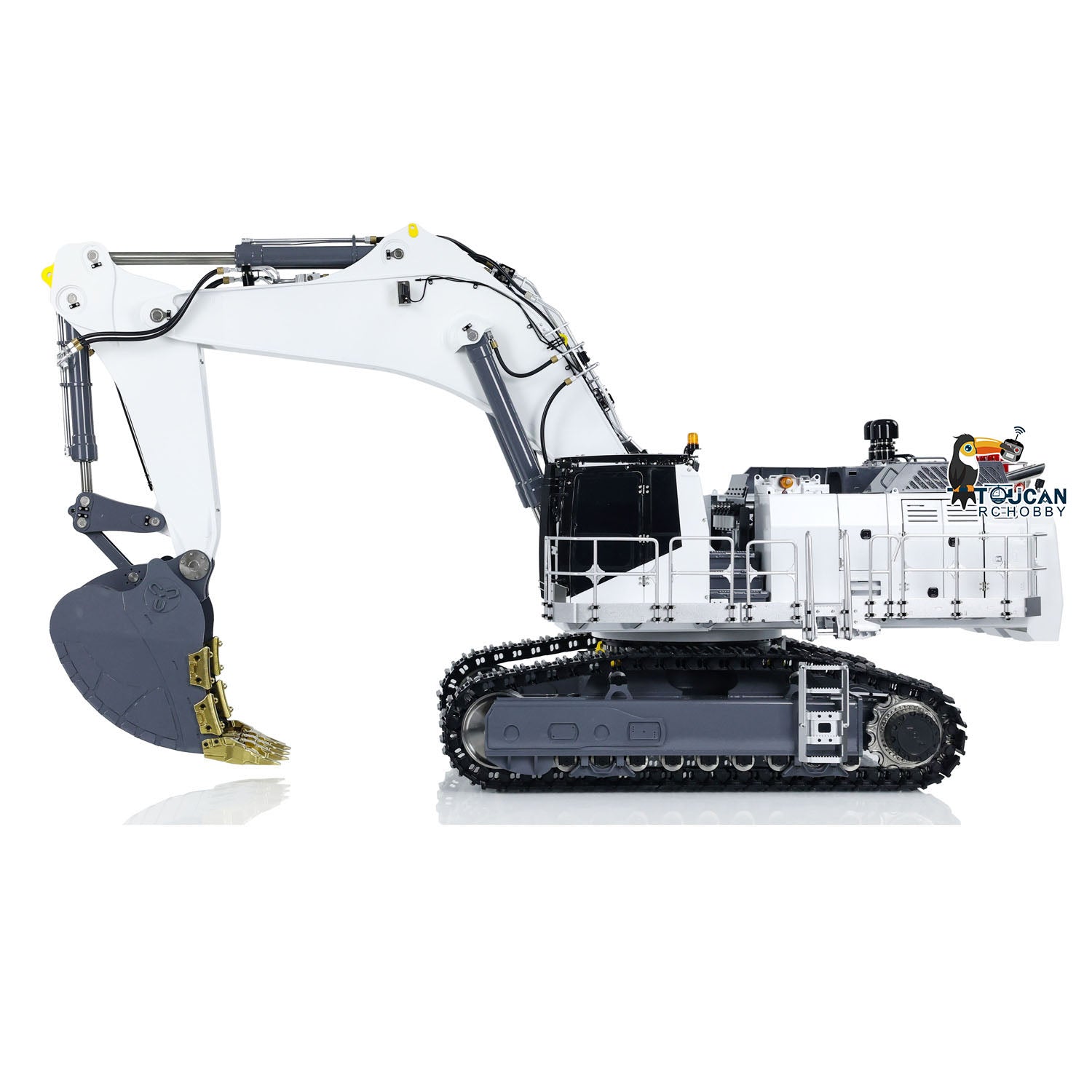

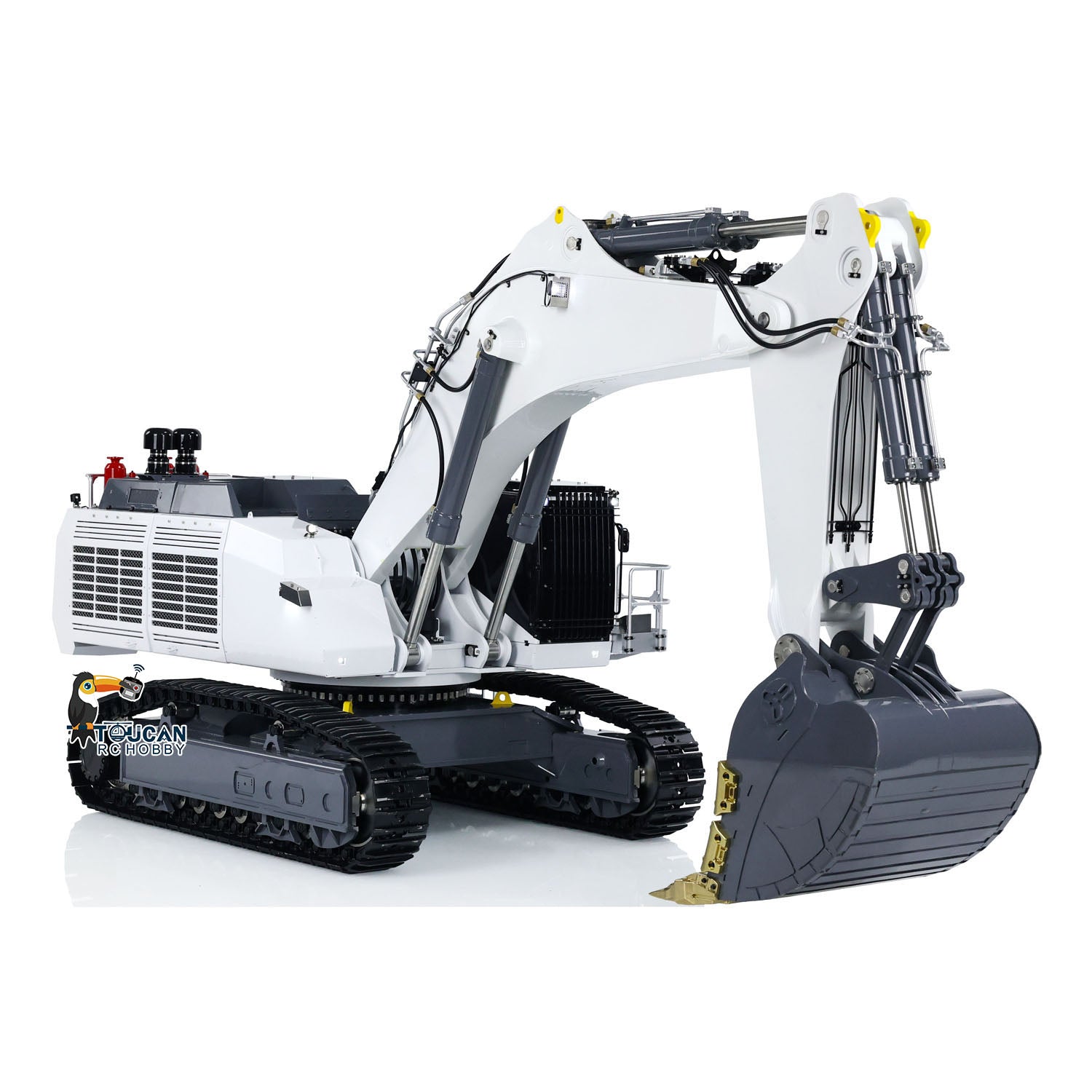

LESU 1/14 9150 Metal RC Hydraulic Excavator RTR Remote Control Digger Painted Contrcution Vehicle Hobby Model ESC

LESU 1/14 9150 Metal RC Hydraulic Excavator RTR Remote Control Digger Painted Contrcution Vehicle Hobby Model ESC



Regular price $6,892.90 USD
Regular price Sale price $6,892.90 USD
Sale Sold out

Manufacturer: LESU
Item Condition: New, Painted and Assembled
Scale: 1/14
Net Weight: 55KG
Excavator Size: 1040*415*470mm
Material: Stainless Steel, Aluminum Alloy, Brass, Plastic

The Package Includes:

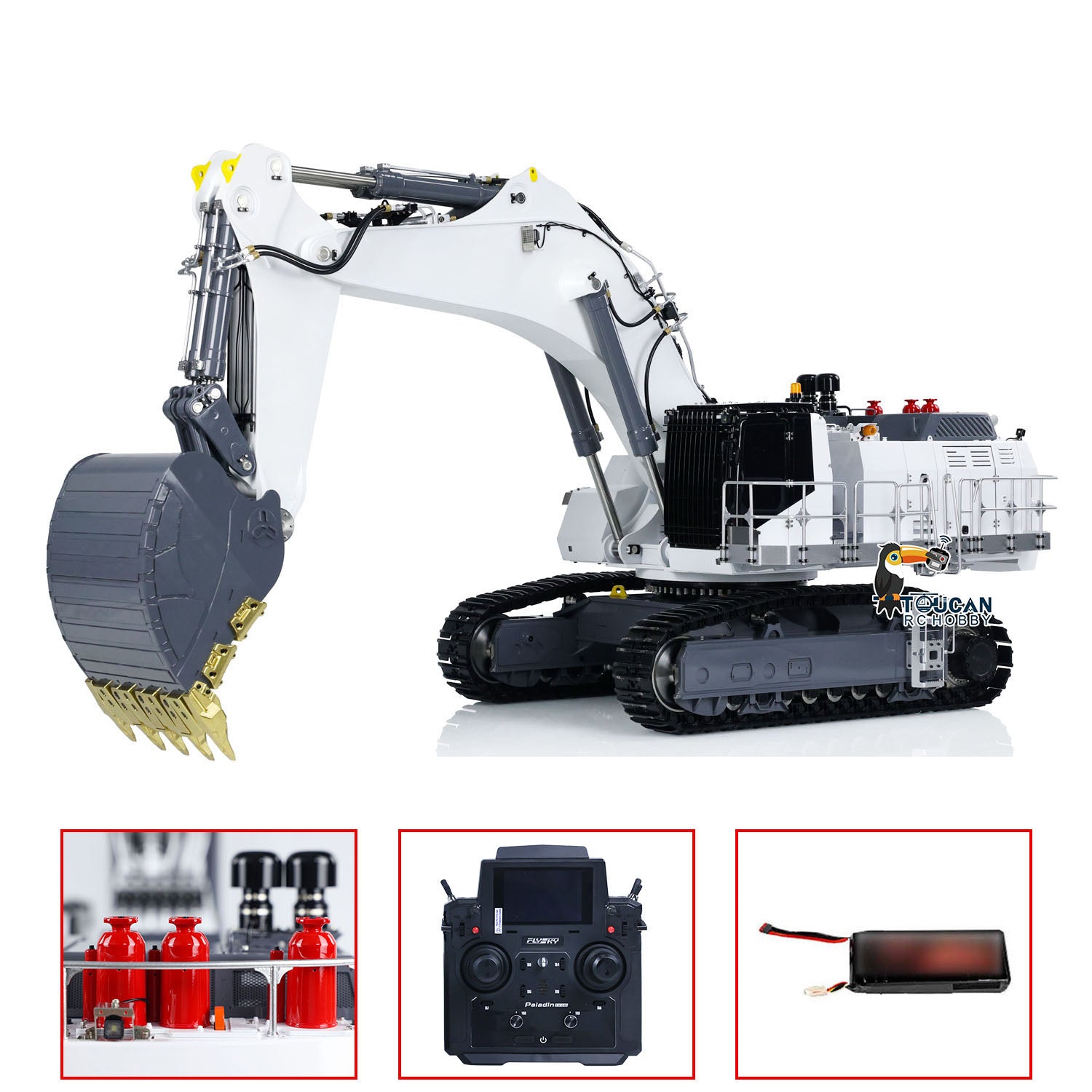

1PC 1/14 Aoue 9150 RC Excavator
Light System
Hydraulic System
FlySky PL18EV Lite Remote Controller and Receiver

The Package Does Not Include:
Sound System
Hydraulic Oil

1. Double oil pump hydraulic system, super large flow.

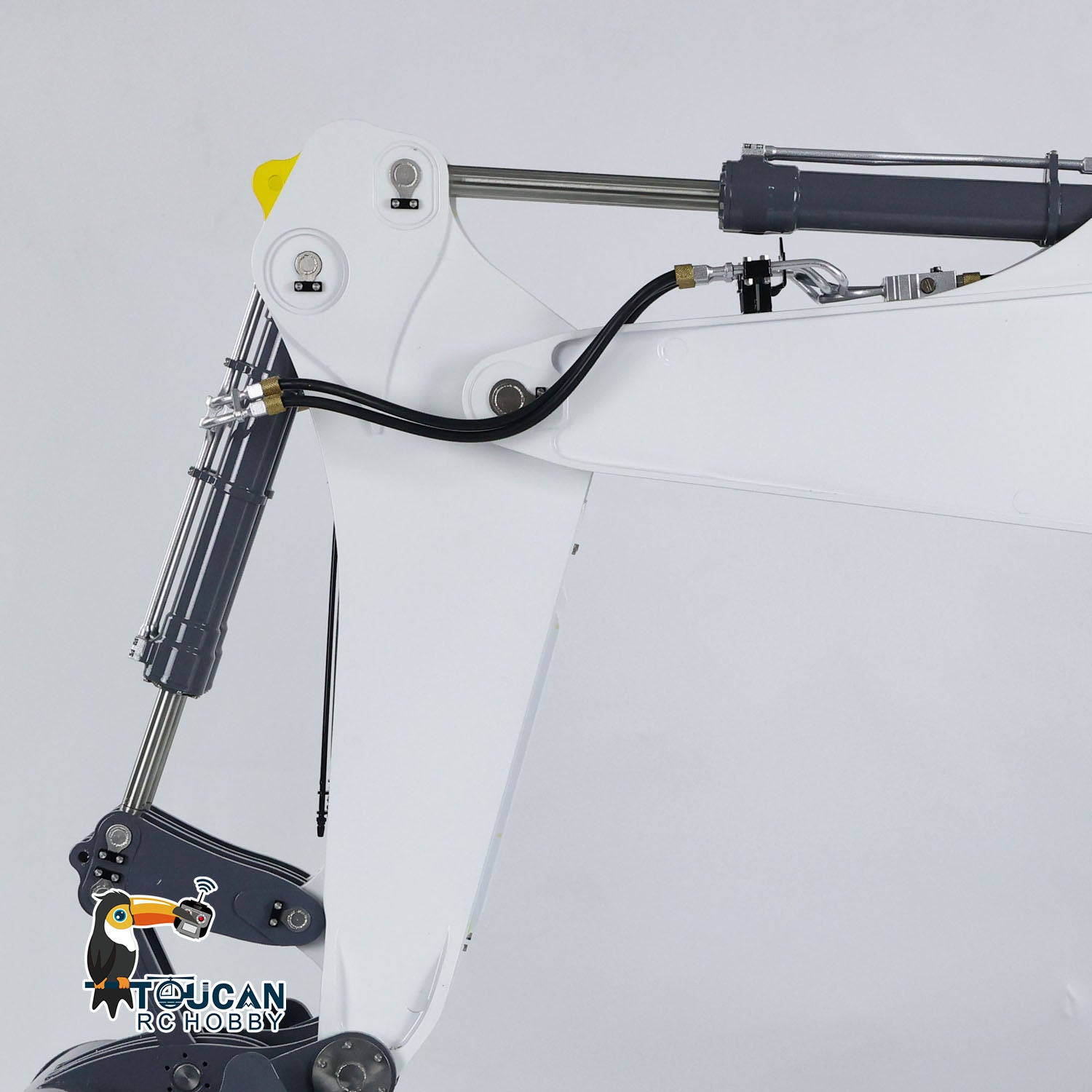

2. Double hydraulic cylinder digging arm, large cylinder design.
3. The oil circuit system is more reliable with the newly designed overflow valve.
4. 80% of the oil circuit system is welded with copper, and 90% of the whole machine is made of metal.
5. Modular design of the whole machine, and the arm can be replaced with the forward shovel.
6. Full machine lighting, equipped with analog electronic display, and one key switch of the whole machine circuit.
7. The precise hydraulic system makes the action of the excavator more coordinated, smooth and linear.
8. Pure copper carved bucket teeth (big gold teeth), aluminum alloy excavator arm and counterweight are processed by CNC.

Height from top of the cab to ground/mm: 333.3
Height from the top of the air filter to the ground/mm: 352.9
Total length of track/mm: 485.2
Wheel base (center distance between the driving wheel and idler)/mm: 379
Height from the bottom of X frame to the ground/mm: 62.4
Minimum turning radius/mm: 478.8
Maximum excavation height/mm: 895.2
Rotating speed (r/mim): 6
Rotary drive reduction ratio: 1:256
Rotating motor speed (r/min): 10,878; 11.1V
Maximum pressure of hydraulic workstation/mpa: 5
Rated pressure of hydraulic workstation/mpa: 4
Maximum unloading height/mm: 600.5
Maximum excavation depth/mm: 538.5
Maximum excavation radius/mm: 978.6
Maximum ground excavation radius/mm: 950.5
Gauge/mm: 302
Track width/mm: 53.5
Total width of excavator/mm: 415.4
Walking driving wheel speed (r/mim): 26
Walking drive reduction ratio: 1:576
Walking motor speed (r/min): 13875; 11.1V
Directional valves quantity: 4
Hydraulic pumps quantity: 2

If you have any questions or are not sure whether it is the correct item that you want, pls feel free to contact me before purchasing.
