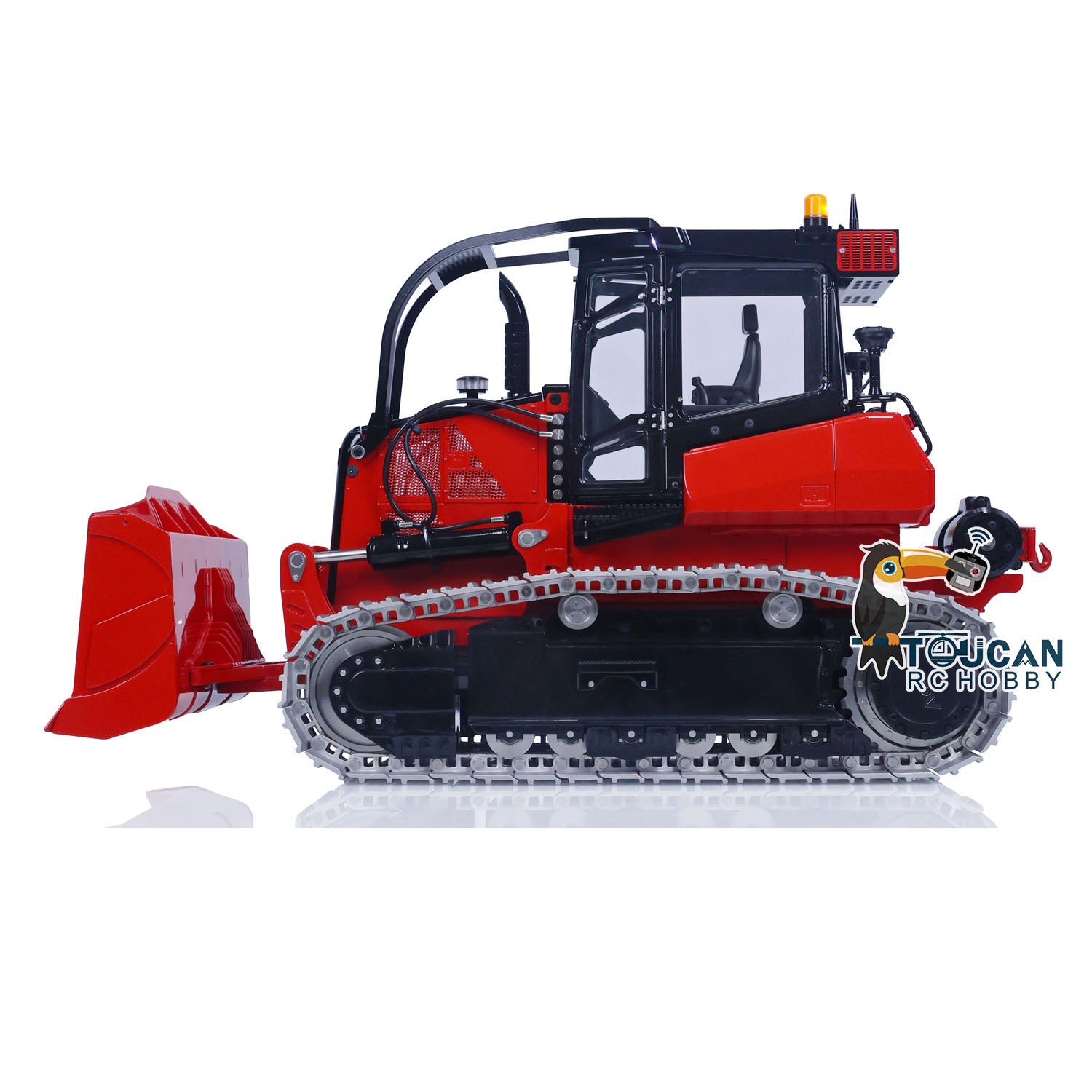

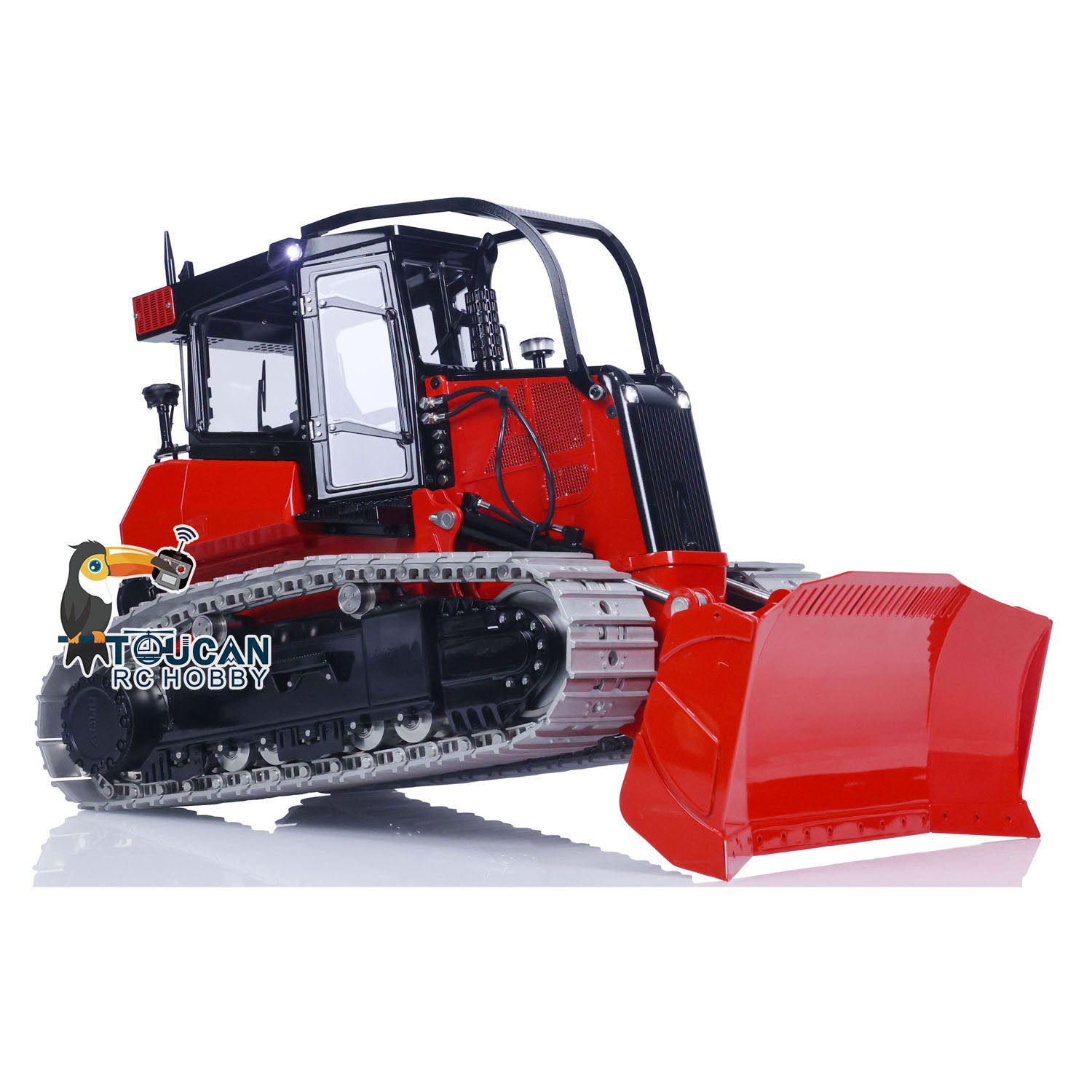

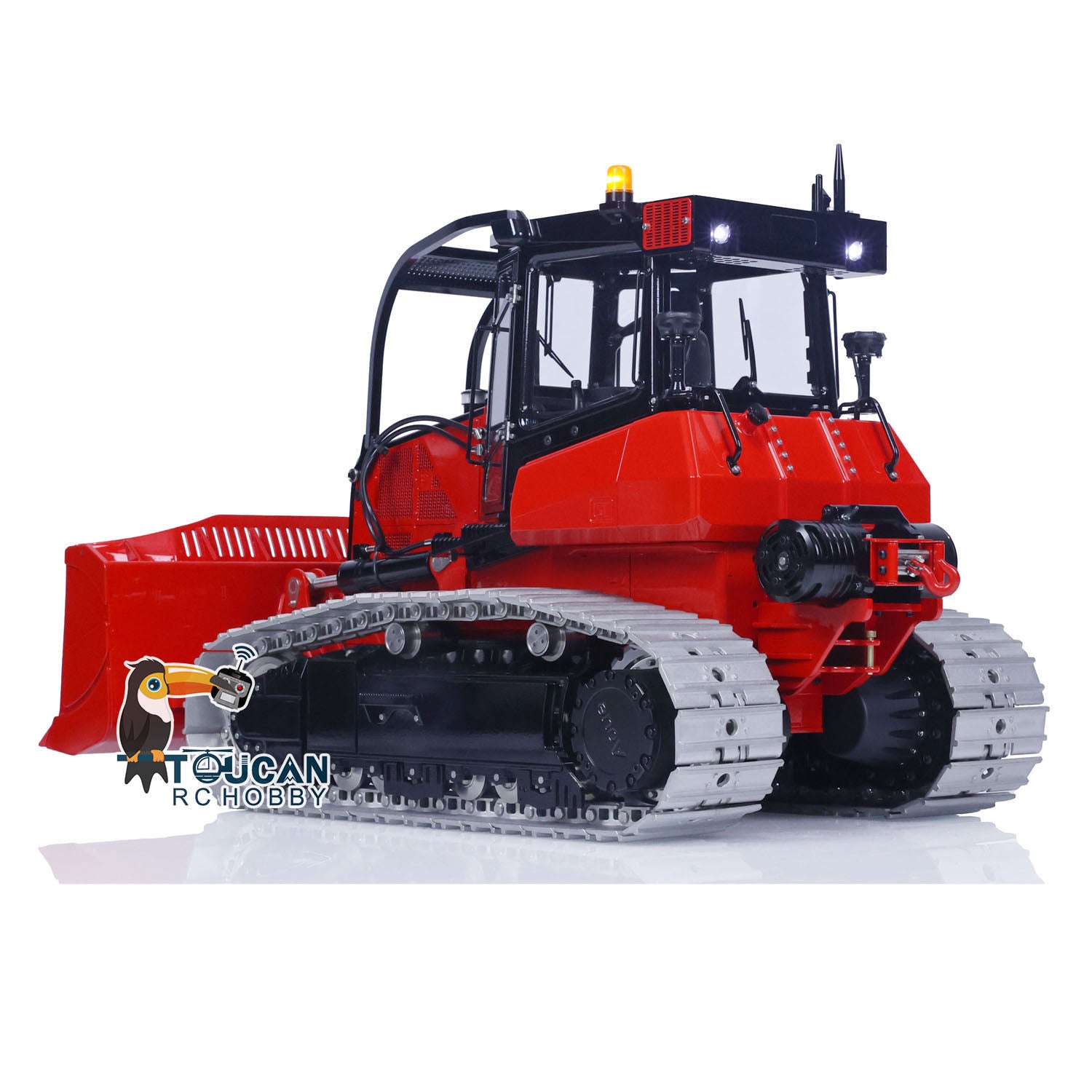

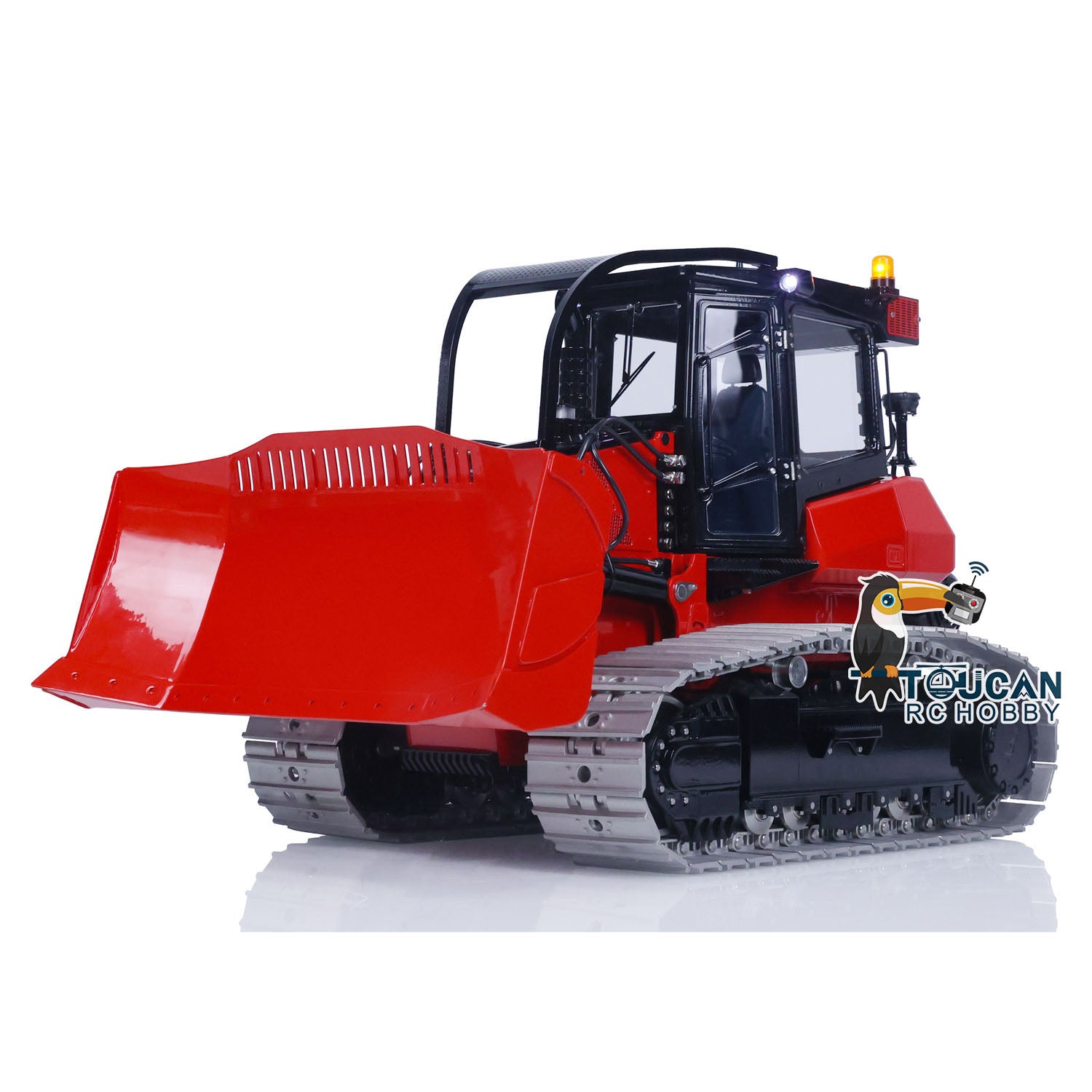

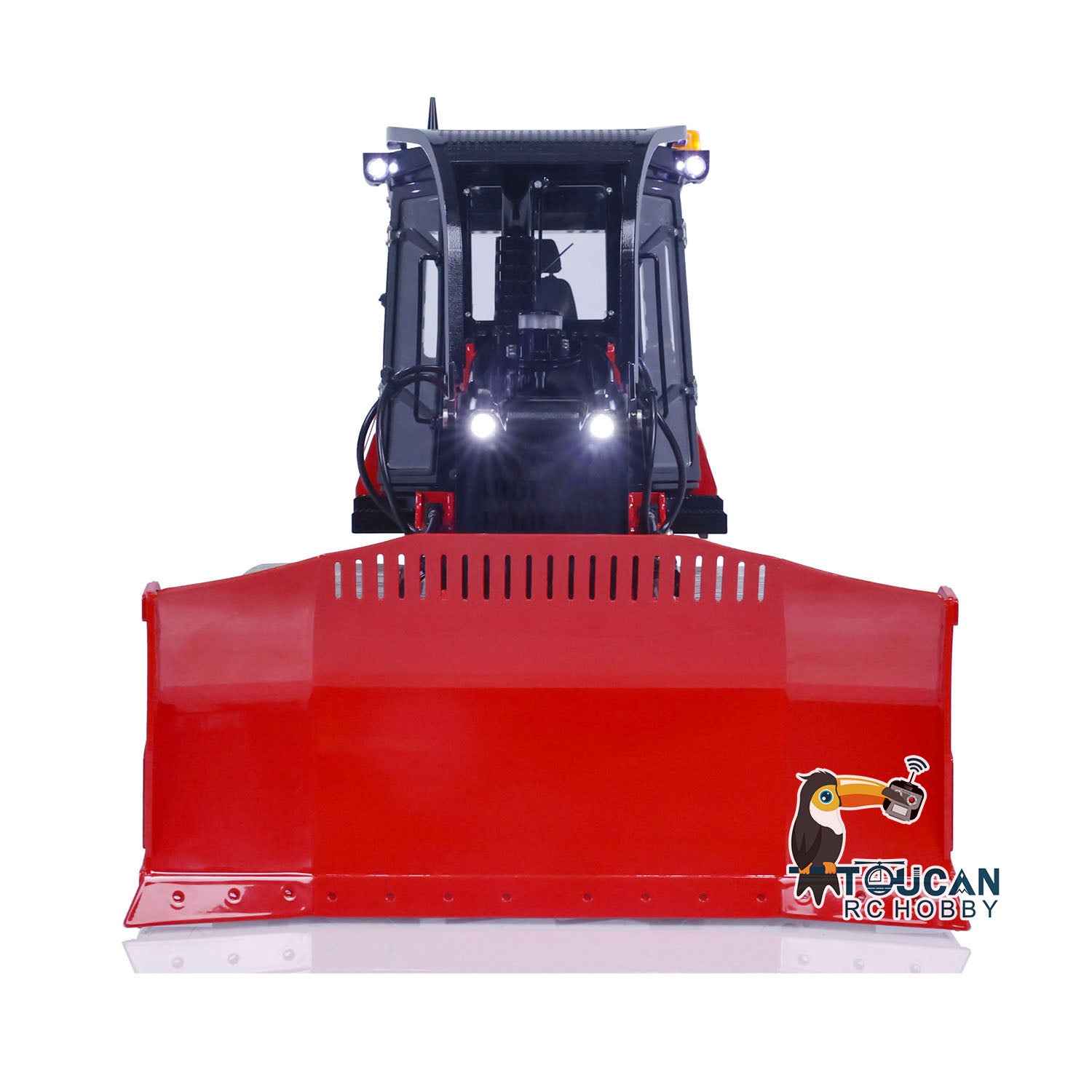

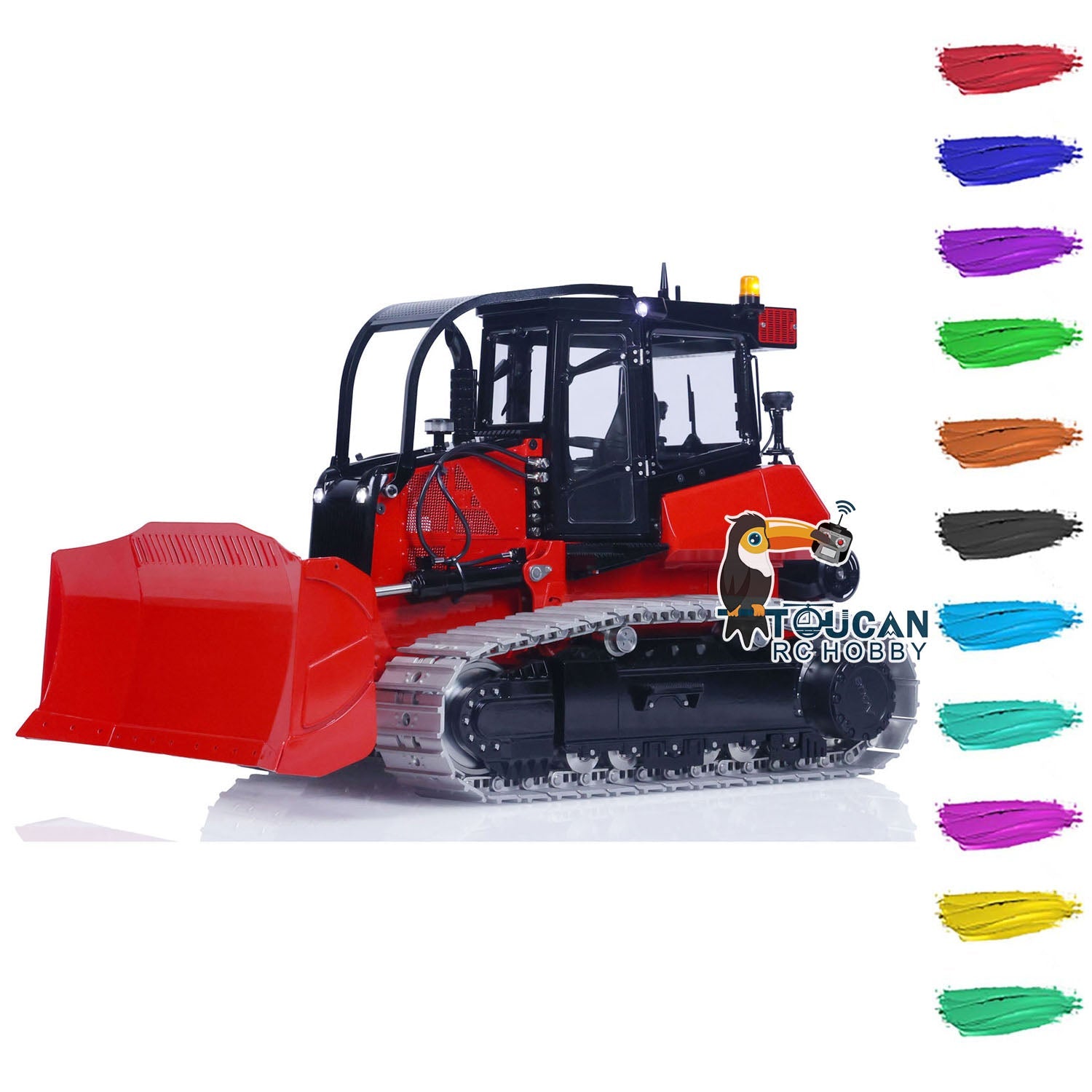

LESU Metal 1/14 Hydraulic RC Bulldozer Aoue 850K RTR Remote Control Dozer Hobby Model Electric Car Painted Assembled

LESU Metal 1/14 Hydraulic RC Bulldozer Aoue 850K RTR Remote Control Dozer Hobby Model Electric Car Painted Assembled

LESU

SKU:LS-BA-B0005-MTrack-PNP-PAINTING-BodyRCabBK-CX-DZN1

Regular price $2,636.90 USD
Regular price $3,264.90 USD Sale price $2,636.90 USD
Sale Sold out
Shipping calculated at checkout.
Specification:
Manufacturer: LESU
Item Condition: New, Painted and Assembled
Material: Stainless Steel, Aluminum alloy, Brass, Plastic
Net Weight of Product/KG: 13
Product Size/mm: 440*241*247
Recommended Bulldozer Battery (Not Included): 3S Lithium/Li-polymer/LiPo Battery (Please contact me if you want to buy the battery)
Battery Compartment: 136*43*28mm
ID: LS-BA-B0005-MTrack-PNP-PAINTING-BodyRCabBK

The Package Includes:
1/14 RC Hydraulic Bulldozer Model
ESC
Motor
Servo
Hydraulic System
Light System
Sound System

?

There are some attachments for optional upgrade, the package option is selected by yourself.
RC Controller and Receiver
Charger
Battery


The Package Does Not Include:
Hydraulic Oil

Features:

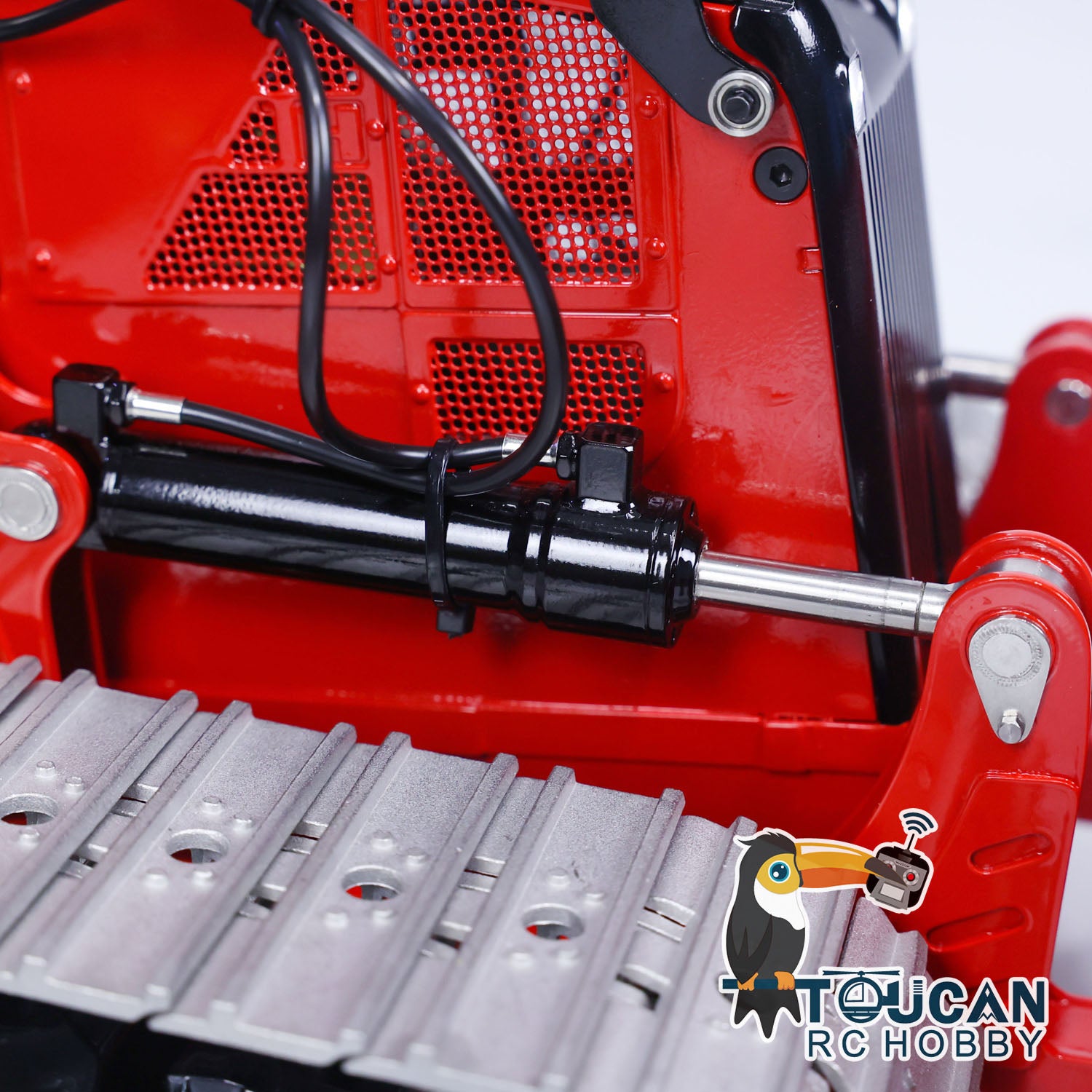

1. Hydraulic Front Shovel: The model is equipped with a hydraulic front shovel that provides enhanced flexibility and improved maneuverability. The hydraulic system allows for smooth and precise control over the shovel's movements.
2. New Design Overflow Valve: The bulldozer incorporates a newly designed overflow valve, ensuring a more reliable oil circuit system. This valve helps regulate the hydraulic pressure, preventing any potential damage to the system and enhancing overall performance.
3. 80% Copper Welding in the Oil Circuit System: The oil circuit system of the bulldozer is constructed using 80% copper welding, ensuring excellent durability and reliability. Copper welding provides superior strength and resistance to wear and tear.

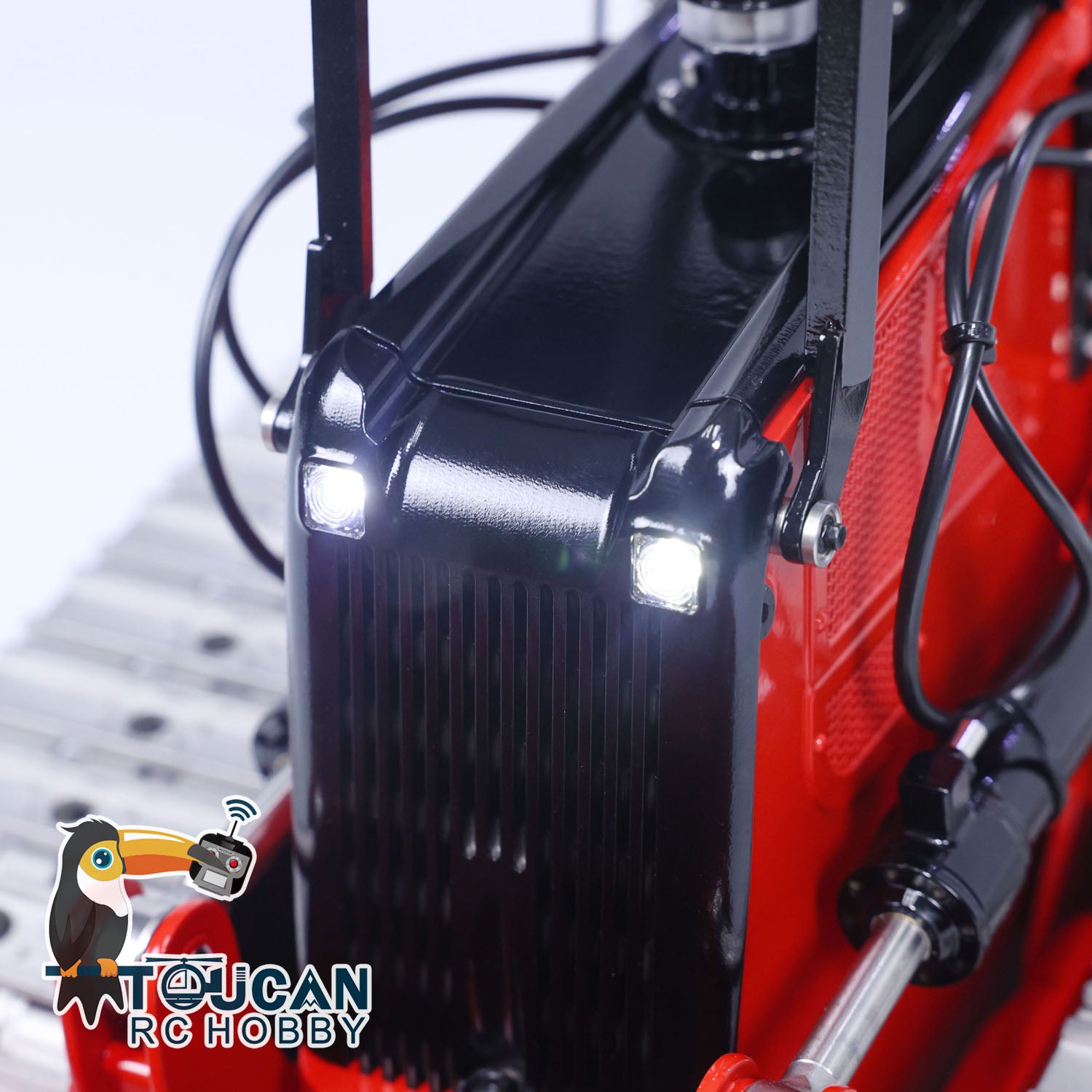

4. Modular Design with Full Machine Lighting: The entire bulldozer is designed with a modular approach, allowing for easy assembly and maintenance. Additionally, the model features comprehensive machine lighting, adding a realistic touch to the overall appearance.
5. Precision Hydraulic System: The bulldozer boasts a high-precision hydraulic system that enables coordinated, smooth, and linear movements. This system ensures that the actions of the model are accurately replicated, providing a realistic and immersive experience.

Technical Parameters:
Product Specifications:
Cabin Top Height from Ground/mm: 247.1
Total Track Length/mm: 318.4
Wheelbase (Center of Drive Wheel to Idler Wheel)/mm: 240.9
Gauge/mm: 154.5
Track Width/mm: 55
Maximum Pressure of Hydraulic Workstation/MPa: 3
Rated Pressure of Hydraulic Workstation/MPa: 2
Travel Drive Wheel Speed (r/min): 26
Bulldozer Total Width/mm: 241.9
Bulldozer Total Length/mm: 440.8
Front Shovel Lifting Height/mm: 94.9
Front Shovel Digging Depth/mm: 60.3
Front Shovel Height/mm: 112.3
Number of Directional Valves: 1
Number of Hydraulic Pumps: 1
Travel Drive Gear Ratio: 1:576
Travel Motor Speed (r/min): 13875????11.1V

If you have any questions or are not sure whether it is the correct item that you want, pls feel free to contact me before purchasing.
