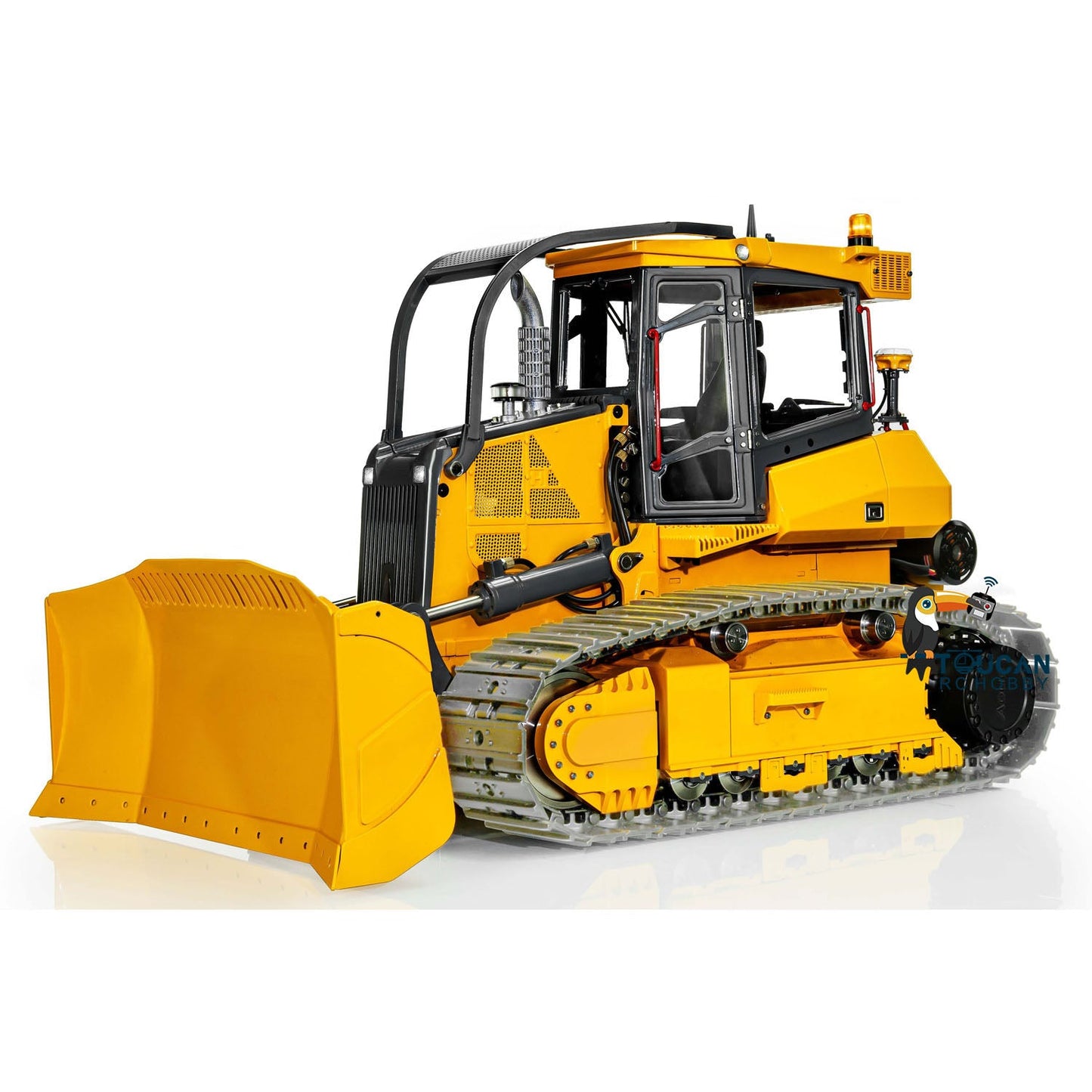

New Arrival LESU 1/14 Aoue-850K RC Hydraulic Dozer Bulldozer 850K Radio Controlled Truck Front Shovel Pump Light System Model
New Arrival LESU 1/14 Aoue-850K RC Hydraulic Dozer Bulldozer 850K Radio Controlled Truck Front Shovel Pump Light System Model
SKU:LS-BA-B0005-MTrack-KIT-DZN1
Couldn't load pickup availability
Specification:
Manufacturer: LESU
Item Condition: New
Material: Stainless Steel, Aluminum alloy, Brass, Plastic
Net Weight of Product/KG: 13
Product Size/mm: 440*241*247
Recommended Bulldozer Battery (Not Included): 3S Lithium/Li-polymer/LiPo Battery (Please contact me if you want to buy the battery)
Battery Compartment: 136*43*28mm
ID: LS-BA-B0005-MTrack-KIT
The Package KIT Version Includes:

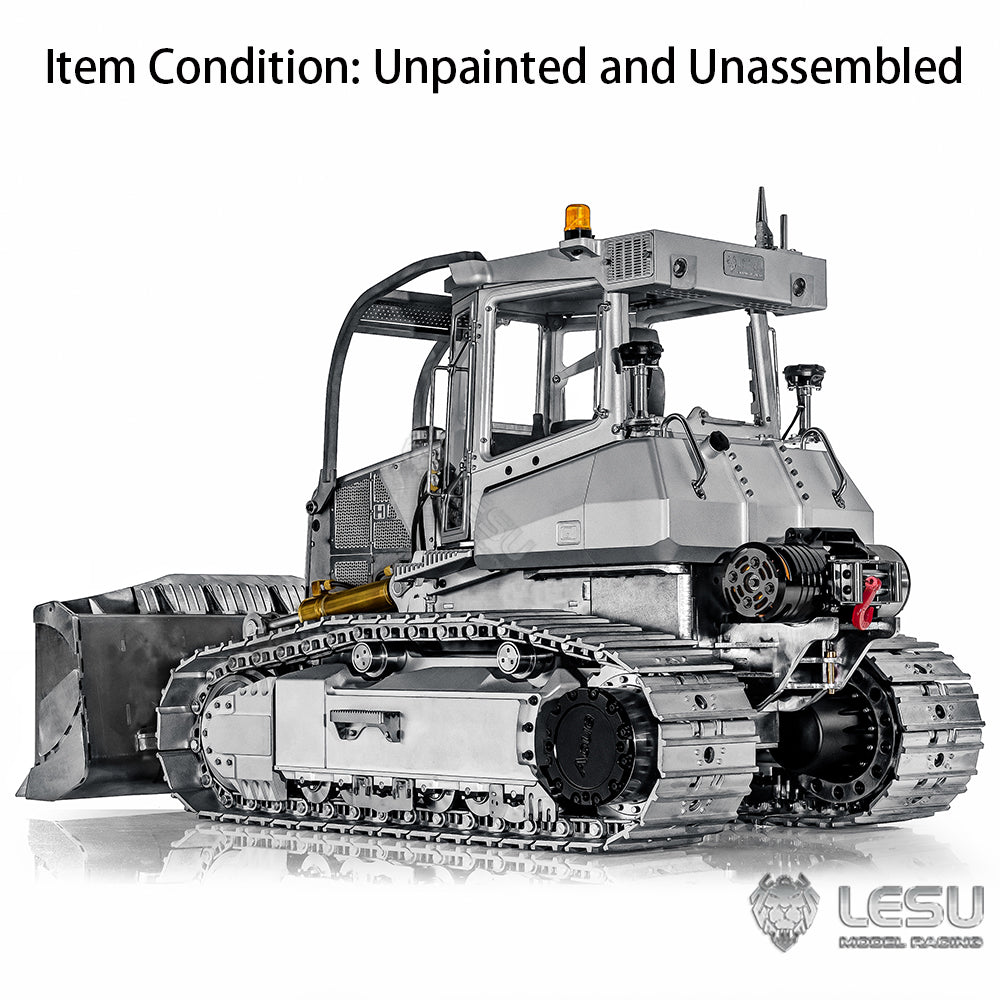

1/14 RC Hydraulic Unpainted&Unassembled Bulldozer Model Body Parts ¡ꡧThe tracks are metallic color)
ESC
Motor
Servo
Hydraulic System
Sound System
Light System
The Package KIT Version Doesn't Include:
Remote Controller and Receiver
Battery
Charger
Hydraulic Oil
The Package PNP Version Includes:
1/14 RC Hydraulic Painted&Assembled Bulldozer Model¡ꡧThe tracks are metallic color)
ESC
Motor
Servo
Hydraulic System
Sound System
Light System
The Package PNP Version Doesn't Include:
Remote Controller and Receiver
Battery
Charger
Hydraulic Oil

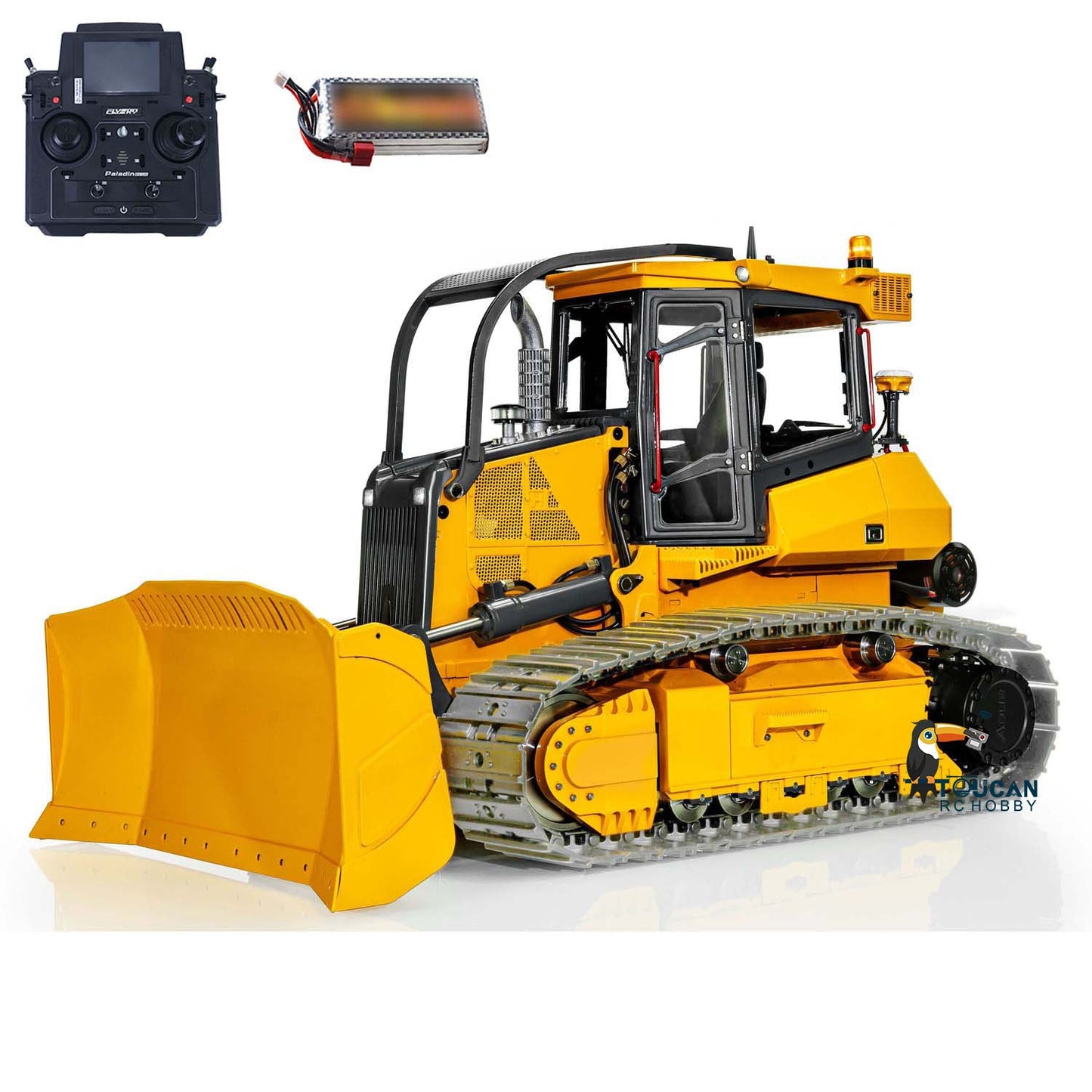

The Package RTR Version Includes:
1/14 RC Hydraulic Painted&Assembled Bulldozer Model¡ꡧThe tracks are metallic color)
ESC
Motor
Servo
Hydraulic System
Sound System
Light System
FlySky PL18EV Lite Remote Controller and Receiver
Battery
The Package RTR Version Doesn't Include:
Charger
Hydraulic Oil
Features:
1. Hydraulic Front Shovel: The model is equipped with a hydraulic front shovel that provides enhanced flexibility and improved maneuverability. The hydraulic system allows for smooth and precise control over the shovel's movements.
2. New Design Overflow Valve: The bulldozer incorporates a newly designed overflow valve, ensuring a more reliable oil circuit system. This valve helps regulate the hydraulic pressure, preventing any potential damage to the system and enhancing overall performance.
3. 80% Copper Welding in the Oil Circuit System: The oil circuit system of the bulldozer is constructed using 80% copper welding, ensuring excellent durability and reliability. Copper welding provides superior strength and resistance to wear and tear.
4. Modular Design with Full Machine Lighting: The entire bulldozer is designed with a modular approach, allowing for easy assembly and maintenance. Additionally, the model features comprehensive machine lighting, adding a realistic touch to the overall appearance.
5. Precision Hydraulic System: The bulldozer boasts a high-precision hydraulic system that enables coordinated, smooth, and linear movements. This system ensures that the actions of the model are accurately replicated, providing a realistic and immersive experience.
Technical parameters:
Product Specifications:
Cabin Top Height from Ground/mm: 247.1
Total Track Length/mm: 318.4
Wheelbase (Center of Drive Wheel to Idler Wheel)/mm: 240.9
Gauge/mm: 154.5
Track Width/mm: 55
Maximum Pressure of Hydraulic Workstation/MPa: 3
Rated Pressure of Hydraulic Workstation/MPa: 2
Travel Drive Wheel Speed (r/min): 26
Bulldozer Total Width/mm: 241.9
Bulldozer Total Length/mm: 440.8
Front Shovel Lifting Height/mm: 94.9
Front Shovel Digging Depth/mm: 60.3
Front Shovel Height/mm: 112.3
Number of Directional Valves: 1
Number of Hydraulic Pumps: 1
Travel Drive Gear Ratio: 1:576
Travel Motor Speed (r/min): 13875¡ê?11.1V
If you have any questions or are not sure whether it is the correct item that you want, pls feel free to contact me before purchasing.
After Sale Services
After Sale Services
We have the ability to handle any trouble of these items and refitting.
We can provide upgrading parts but you must have the ability to install.
Warranty
Warranty
All products warranty keeps compliance with the factory policies.
All products that you have bought for a long time could still get help from Toucanhobby.
All shipping breakage situation(pictures&videos) could be sent to Toucanhobby, we will help customers.
All malfunctions that you feel too hard to solve could get help from Toucanhobby. Sometimes we need some time to edit aftersale documents.
Accessories of most products could be collected for you by Toucanhobby, we try our best, you'd better directly provide a picture.
If we did something wrong in shipping, or product inconsistance, Toucanhobby should be responsible for the deal to the end.
We have some requirements for customers who bought PROFESSIONAL RC HOBBY PRODUCTS, especially concerning hydraulic system or relatively complicated electrionic and radio system setting, we require our customer to be patient and be able to communicate with us, and be capable of handling modeling problems.
