LESU 850K Metal 1/14 RC Hydraulic Bulldozer Remote Control Dozer Construction Vehicle PNP RTR Painted Hobby Model DIY Cars

LESU 850K Metal 1/14 RC Hydraulic Bulldozer Remote Control Dozer Construction Vehicle PNP RTR Painted Hobby Model DIY Cars

LESU

SKU:LS-BA-B0005-BKTrack-PNP-PAINTING-YGRBladeW-WR-CX-DZN1

Regular price $2,636.90 USD
Regular price $3,264.90 USD Sale price $2,636.90 USD
Sale Sold out
Shipping calculated at checkout.

Specification:
Manufacturer: LESU
Item Condition: New, Painted and Assembled
Material: Stainless Steel, Aluminum alloy, Brass, Plastic
Net Weight of Product/KG: 13
Product Size/mm: 440*241*247
Recommended Bulldozer Battery (Not Included): 3S Lithium/Li-polymer/LiPo Battery (Please contact me if you want to buy the battery)
Battery Compartment: 136*43*28mm
ID: LS-BA-B0005-BKTrack-PNP-PAINTING-YGRBladeW-WR

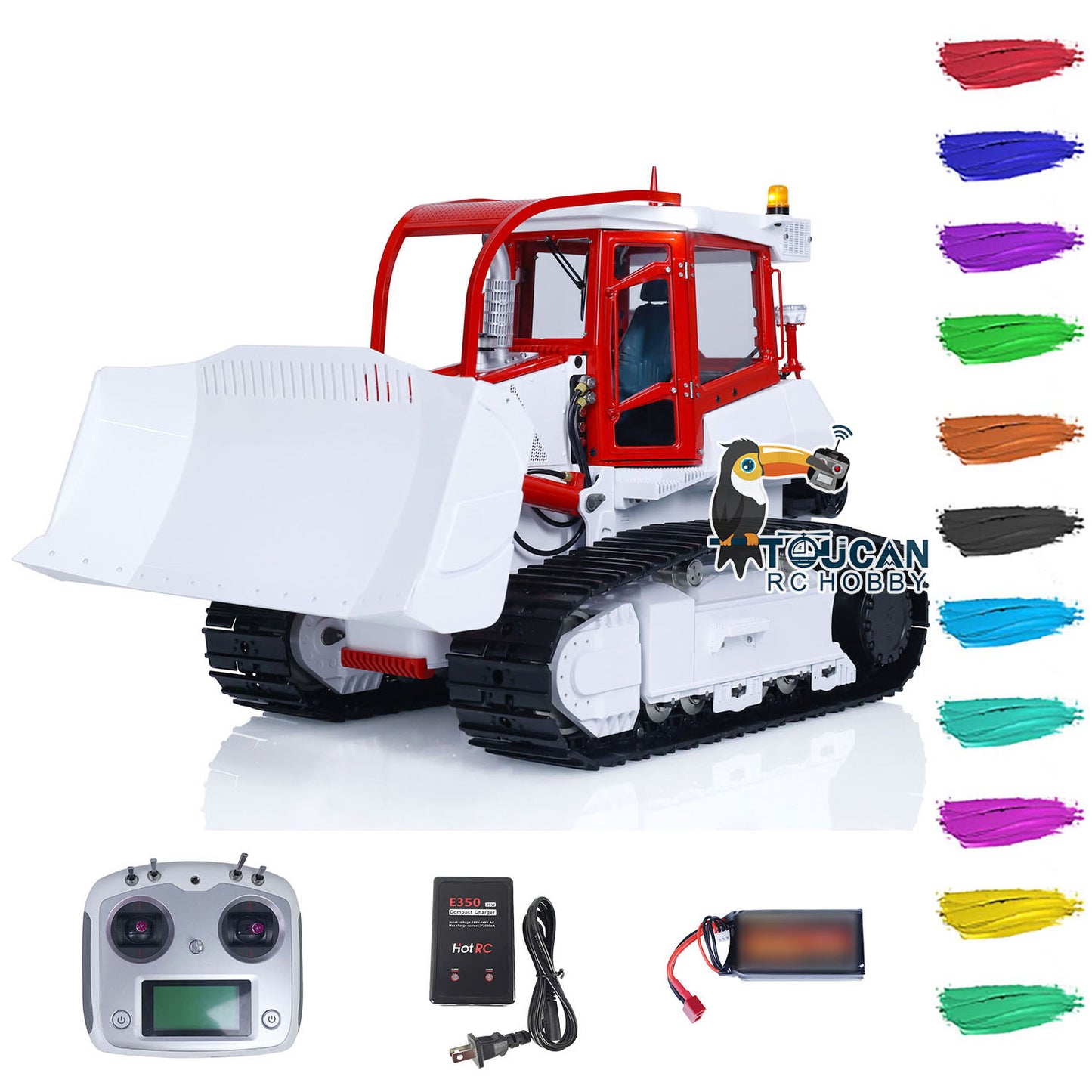

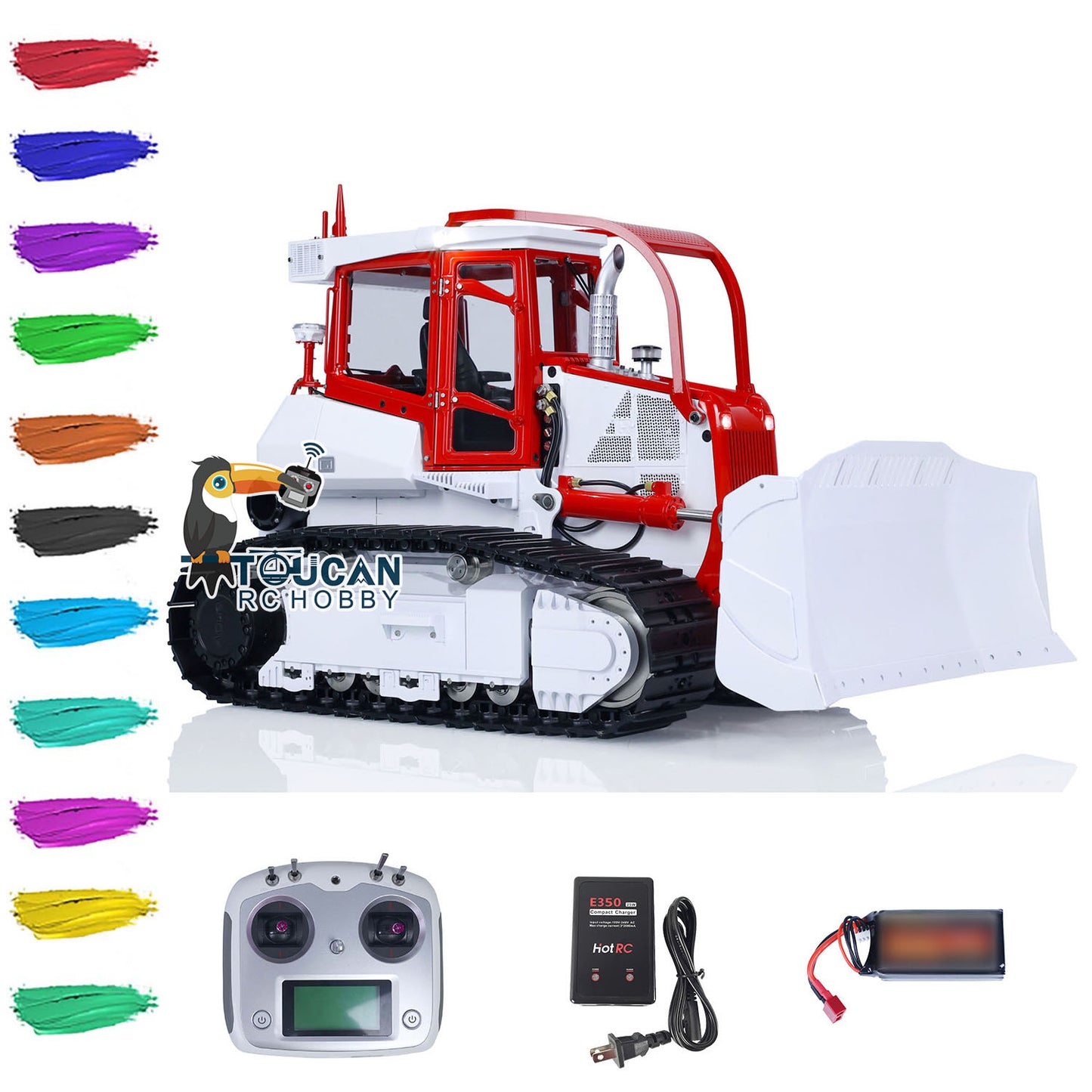

The Package Includes:
1/14 RC Hydraulic Bulldozer Model
ESC
Motor
Servo
Hydraulic System
Light System
Sound System

There are some attachments for optional upgrade, the package option is selected by yourself.
RC Controller and Receiver
Charger
Battery

The Package Does Not Include:
Hydraulic Oil

Features:

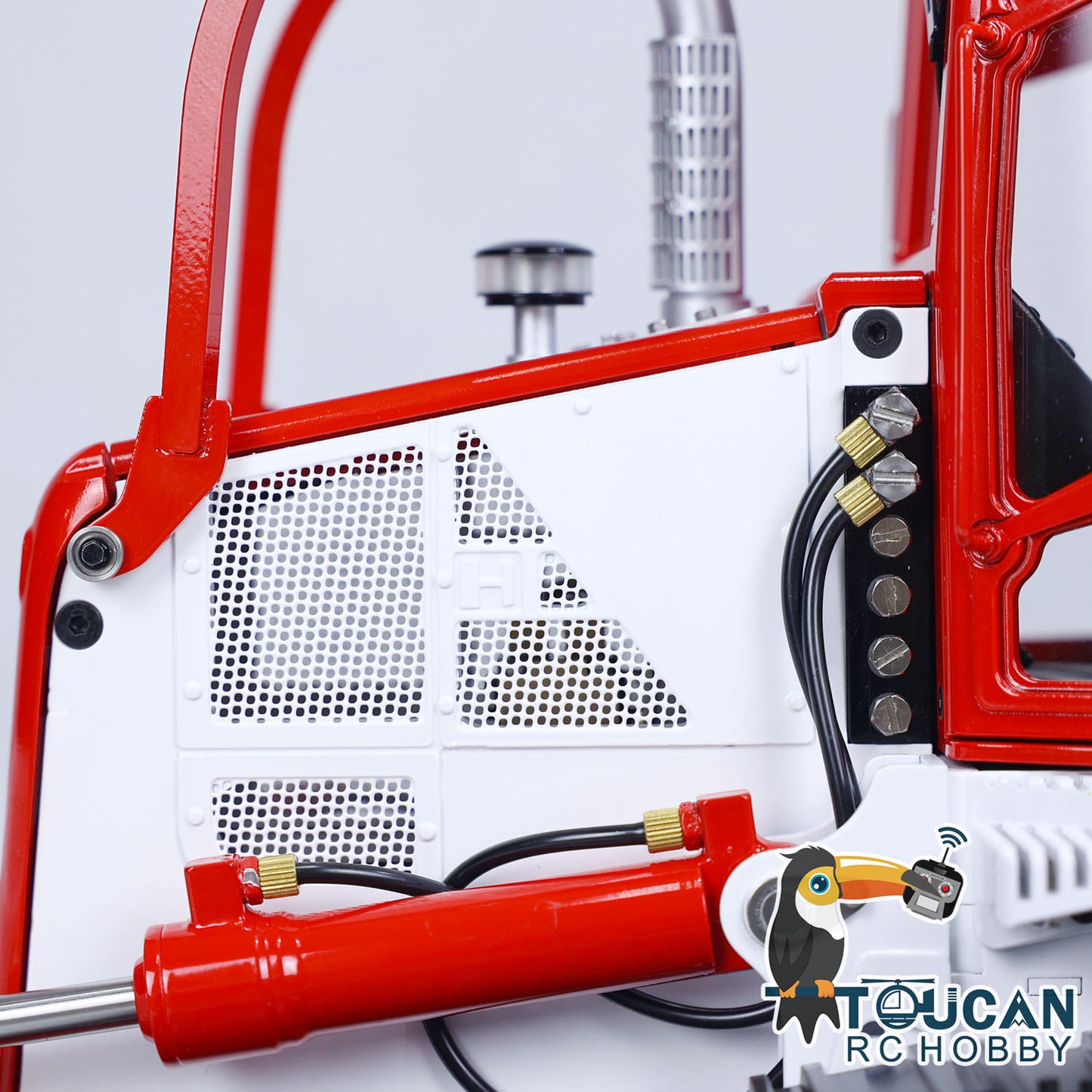

1. Hydraulic Front Shovel: The model is equipped with a hydraulic front shovel that provides enhanced flexibility and improved maneuverability. The hydraulic system allows for smooth and precise control over the shovel's movements.
2. New Design Overflow Valve: The bulldozer incorporates a newly designed overflow valve, ensuring a more reliable oil circuit system. This valve helps regulate the hydraulic pressure, preventing any potential damage to the system and enhancing overall performance.
3. 80% Copper Welding in the Oil Circuit System: The oil circuit system of the bulldozer is constructed using 80% copper welding, ensuring excellent durability and reliability. Copper welding provides superior strength and resistance to wear and tear.
4. Modular Design with Full Machine Lighting: The entire bulldozer is designed with a modular approach, allowing for easy assembly and maintenance. Additionally, the model features comprehensive machine lighting, adding a realistic touch to the overall appearance.
5. Precision Hydraulic System: The bulldozer boasts a high-precision hydraulic system that enables coordinated, smooth, and linear movements. This system ensures that the actions of the model are accurately replicated, providing a realistic and immersive experience.

Technical Parameters:
Product Specifications:
Cabin Top Height from Ground/mm: 247.1
Total Track Length/mm: 318.4
Wheelbase (Center of Drive Wheel to Idler Wheel)/mm: 240.9
Gauge/mm: 154.5
Track Width/mm: 55
Maximum Pressure of Hydraulic Workstation/MPa: 3
Rated Pressure of Hydraulic Workstation/MPa: 2
Travel Drive Wheel Speed (r/min): 26
Bulldozer Total Width/mm: 241.9
Bulldozer Total Length/mm: 440.8
Front Shovel Lifting Height/mm: 94.9
Front Shovel Digging Depth/mm: 60.3
Front Shovel Height/mm: 112.3
Number of Directional Valves: 1
Number of Hydraulic Pumps: 1
Travel Drive Gear Ratio: 1:576
Travel Motor Speed (r/min): 13875???o?11.1V

If you have any questions or are not sure whether it is the correct item that you want, pls feel free to contact me before purchasing.
