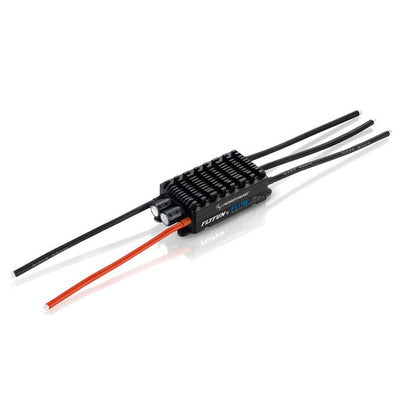

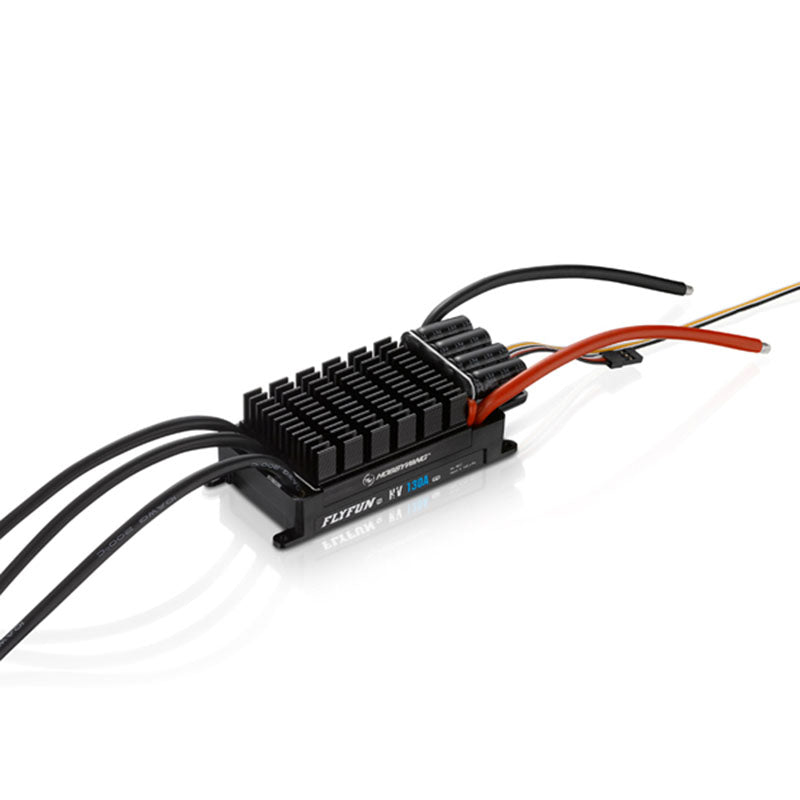

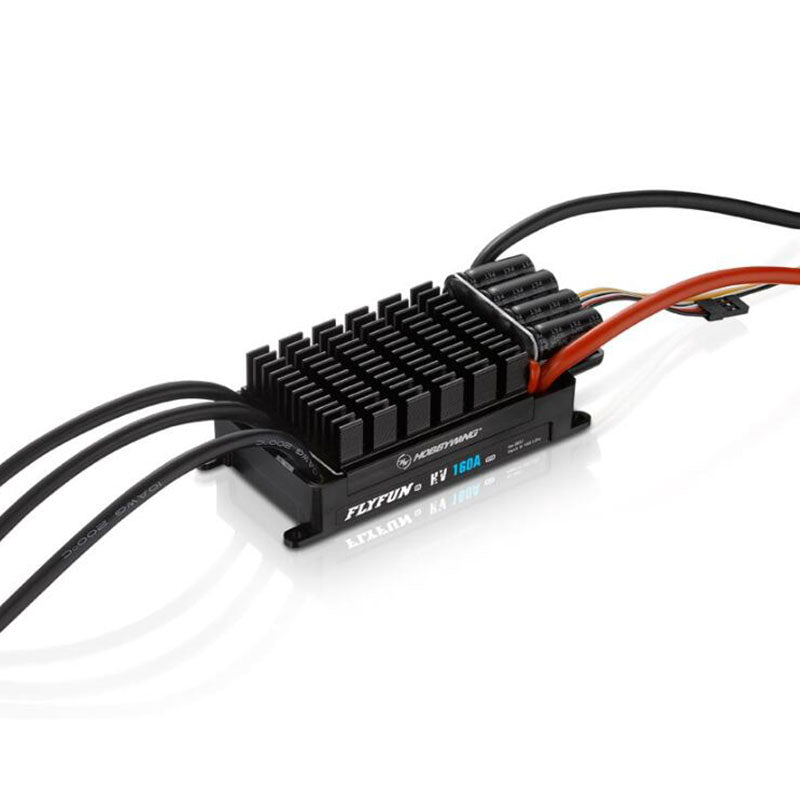

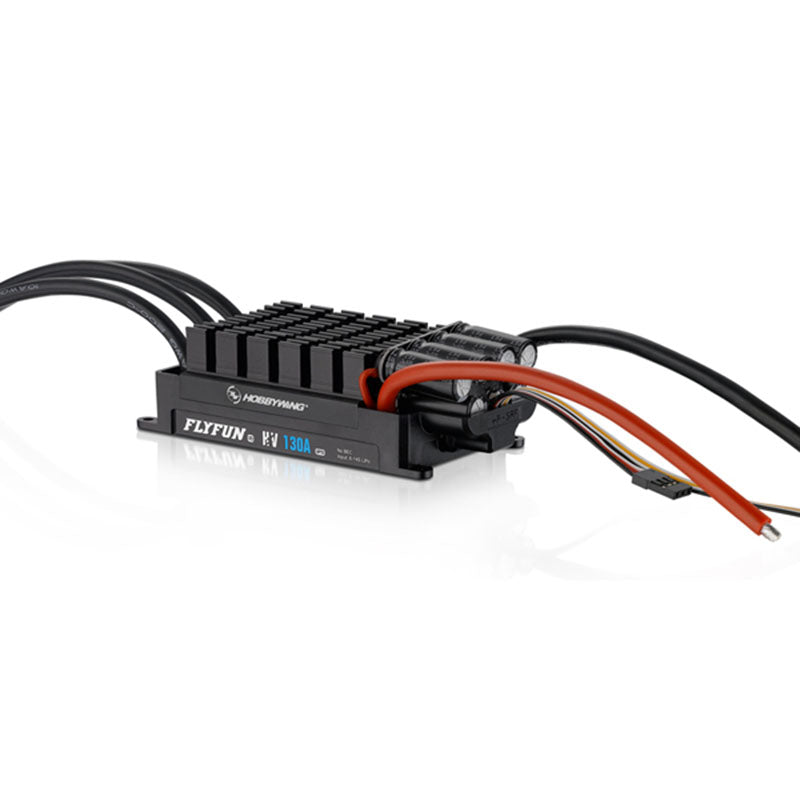

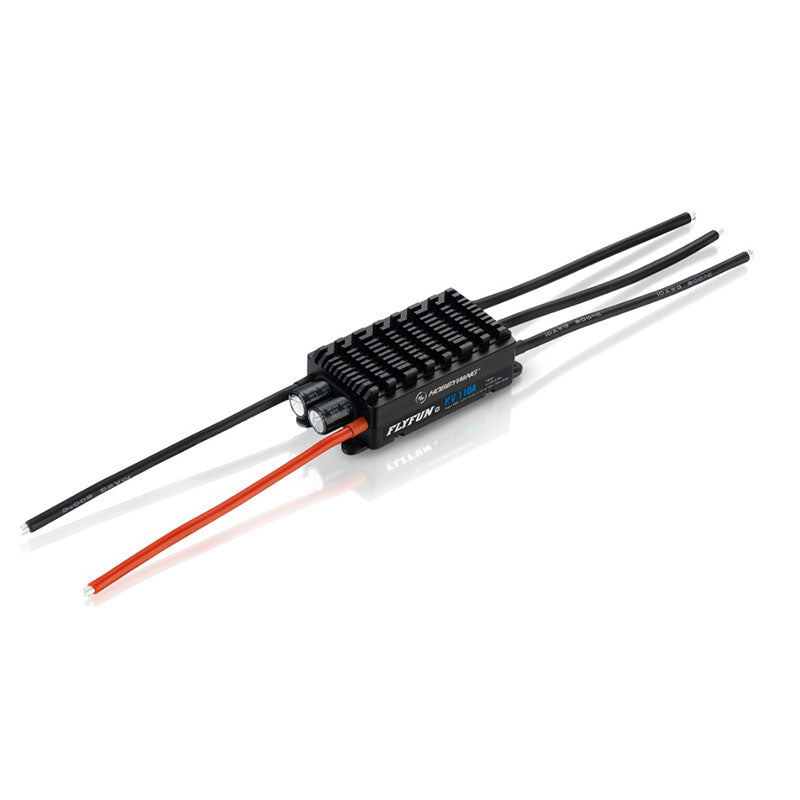

Hobbywing FlyFun Brushless ESC V5 160A 130A 110A HV OPTO Electronic Speed Controller DIY Spare Parts for RC Model

Specification:
Brand: Hobbywing
Type: 160A/130A/110A

160A:
Type: Brushless
Cont./Peak Current: 160A/200A
Input: 6-14S LiPo
BEC Output: No
Input Wires: Red-10AWG-150mm*1
Black-10AWG-150mm*1
Output Wires: Black-10AWG-150mm*3
Input Connectors: No
Output Connectors: No
Transmitter: Supported
LED Program Card: Not Supported
LED Program Box: Supported
LCD Program Box: Not Supported
WiFi Module: Not Supported
Program Port: Separate Program Wire
Firmware Upgrade: Not Supported
Size: 110x50.3x33.2mm
Weight: 221.5g

130A:
Type: Brushless
Cont./Peak Current: 130A/160A
Input: 6-14S LiPo
BEC Output: No
Input Wires: Red-10AWG-150mm*1
Black-10AWG-150mm*1
Output Wires: Black-10AWG-150mm*3
Input Connectors: No
Output Connectors: No
Transmitter: Supported
LED Program Card: Not Supported
LED Program Box: Supported
LCD Program Box: Not Supported
WiFi Module: Not Supported
Program Port: Separate Program Wire
Firmware Upgrade: Not Supported
Size: 110x50.3x33.3mm
Weight: 221.5g

110A:
Type: Brushless
Cont./Peak Current: 110A/140A
Input: 6-14S LiPo
BEC Output: No
Input Wires: Red-10AWG-150mm*1
Black-10AWG-150mm*1
Output Wires: Black-10AWG-150mm*3
Input Connectors: No
Output Connectors: No
Transmitter: Supported
LED Program Card: Not Supported
LED Program Box: Supported
LCD Program Box: Not Supported
WiFi Module: Not Supported
Program Port: Separate Program Wire
Firmware Upgrade: Not Supported
Size: 92.7x45.6x27mm
Weight: 170g

The package includes:
1PC Brushless ESC

Feature
1, DEO Technology / Active Freewheeling
2, Soft Start-ups & Reverse Brake
3, High-power BEC
4, Multiple Protections
5, New Design & Great performance
6, Multiple Programmable Parameters
7, The DEO technology (Driving Efficiency Optimization) implemented in the ESC has multiple advantages:
Rapider and smoother throttle response, better stability and flexibility during flight.
Higher driving efficiency, longer flight time.
Lower ESC temperature, more reliable operation.
8, New soft start-up modes are applicable to regular propeller aircraft and EDF aircraft with different sizes. With Reverse Brake mode enabled when landing can effectively shorten the sliding distance of the aircraft to simulate the landing of a real aircraft (within a super short distance, the FLYFUN 130A/160A-HV-OPTO-V5 doesn?¡¥t have this function). Normal Brake Mode, Proportional Brake mode, and Brake Disabled mode are also available; the brake amount is adjustable in normal brake mode while in proportional brake mode, the brake force will be automatically allotted on the basis of the position of radio throttle stick.
9, High-power switch-mode BEC with continuous/peak current of 8A/20A and voltage adjustable among 5.2V, 6.0V and 7.4V allows users to have more electronic devices or devices with higher power like servo, flight controller, and on-board light on their aircraft.
Multiple protection features include start-up, over-current, ESC thermal, capacitor thermal, overload, throttle signal loss (or Fail Safe), and abnormal input voltage effectively prolongs the service life of the ESC.
10, New design brings exquisite look and good heat-dissipating performance. Imported components, the high-performance 32-bit microprocessor, and the PCB (printed circuit board) with extremely low impedance adopted by the ESC guarantee great current endurance, excellent performance and high reliability. The ESC is available in high-voltage/regular version with different Amps.
