Hobbywing
Hobbywing EZRUN 5687 1100KV 56113 800KV 4985 1650KV 4274 2200KV Brushless Motor for 1/5 RC Vehicle Electric Toy Car
Hobbywing EZRUN 5687 1100KV 56113 800KV 4985 1650KV 4274 2200KV Brushless Motor for 1/5 RC Vehicle Electric Toy Car
SKU:HW-EZRUN-SL-5687-1100KV-DZN1
Couldn't load pickup availability
Specifications:
Brand: Hobbywing
5687-1100KV:
Type: Brushless
Pole Count: 4-Pole
KV Rating: 1100
LiPo Cells: 3-8S
No-Load Current: 4.1A
MAX Output Power: 5800W
Peak Current: 200A
Size & Weight:
O.D.: 56mm / 2.21in
Length:87mm / 3.43in
Shaft Diameter: 8mm / 0.315in
Weight: 916
Application: 1/5 1/6 RC Truck and Car Model
56113-800KV:
Type: Brushless
Pole Count: 4-Pole
KV Rating: 800
LiPo Cells: 3-8S
No-Load Current: 3.2A
MAX Output Power: 5800W
Peak Current: 200A
Size & Weight:
O.D.: 56mm / 2.21in
Length: 113mm / 4.45in
Shaft Diameter: 8mm / 0.315in
Weight: 1210
Application: 1/5 1/6 RC Truck and Car Model
4985-1650KV:
Type: Brushless
Pole Count: 4-Pole
KV Rating: 3200
LiPo Cells: 3S-6S
No-Load Current: 5.4A
MAX Output Power: 5700W
Peak Current: 160A
Size & Weight:
O.D.: 49mm / 1.929in
Length: 85mm / 3.346in
Shaft Diameter: 5mm / 0.196in
Weight: 587g
Timing: 0
Application: 1/5 Touring car/Buggies, 1/5 RC Model Car

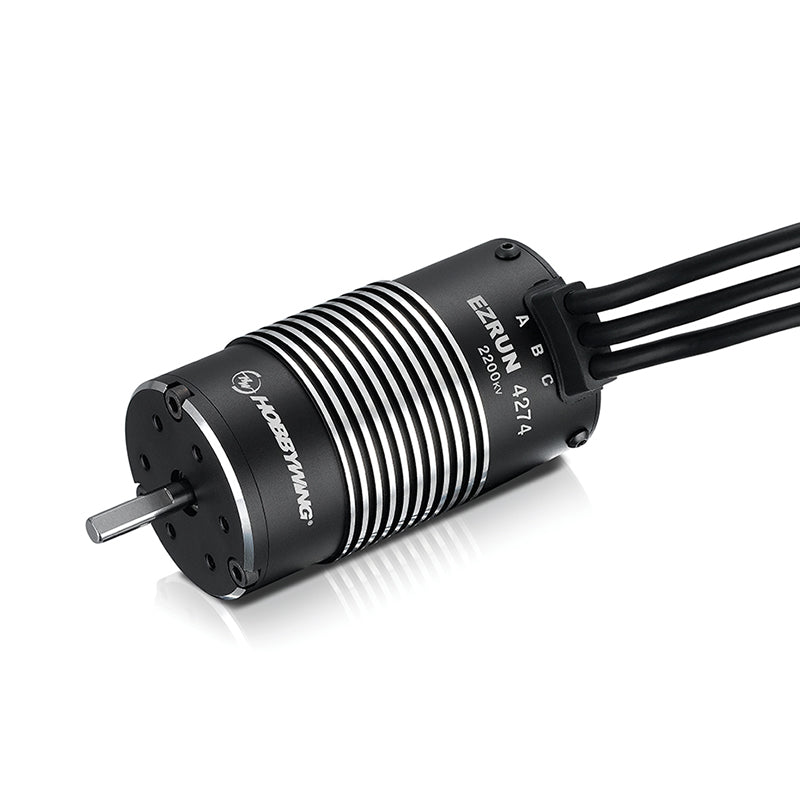

4274-2200KV:
Type: Brushless
Pole Count: 4-Pole
KV Rating: 2200
LiPo Cells: 2-6S
No-Load Current: 5A
MAX Output Power: 3000W
Peak Current: 120A
Size & Weight:
O.D.: 42mm / 1.654in
Length: 74mm / 2.913in
Shaft Diameter: 5mm / 0.196in
Weight: 418g / 14.745oz
Timing: 0
Application: 1/8 RC Truck and Car Model
The Package Includes:
1 x Hobbywing EZRUN Motor
