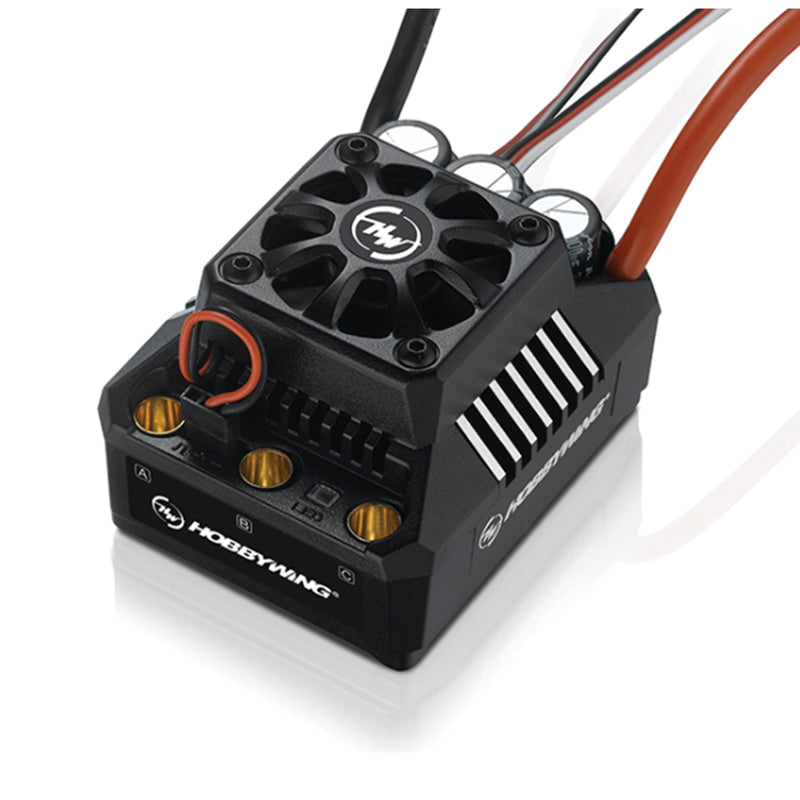

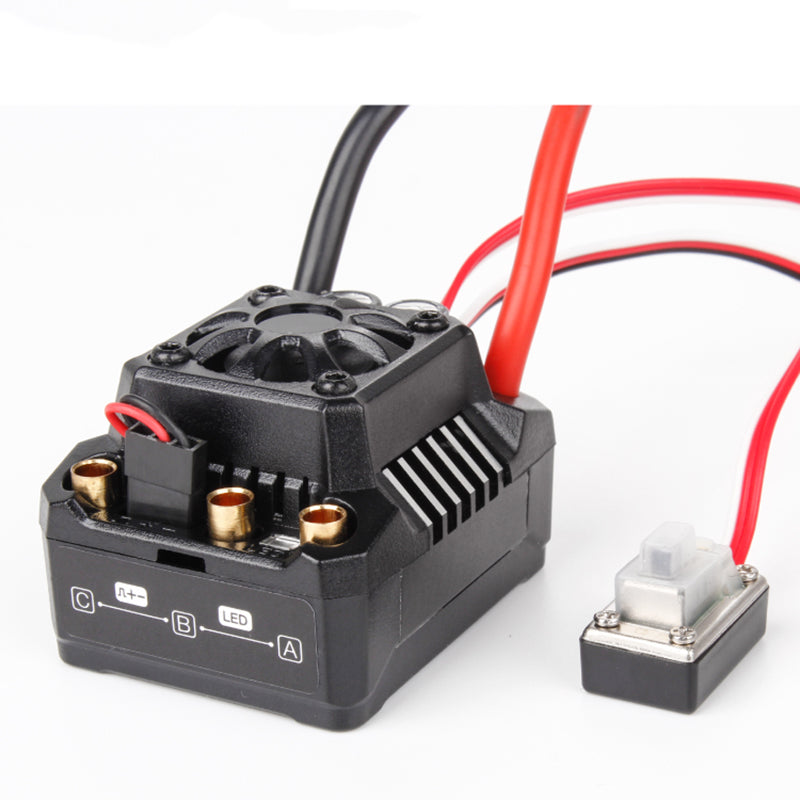

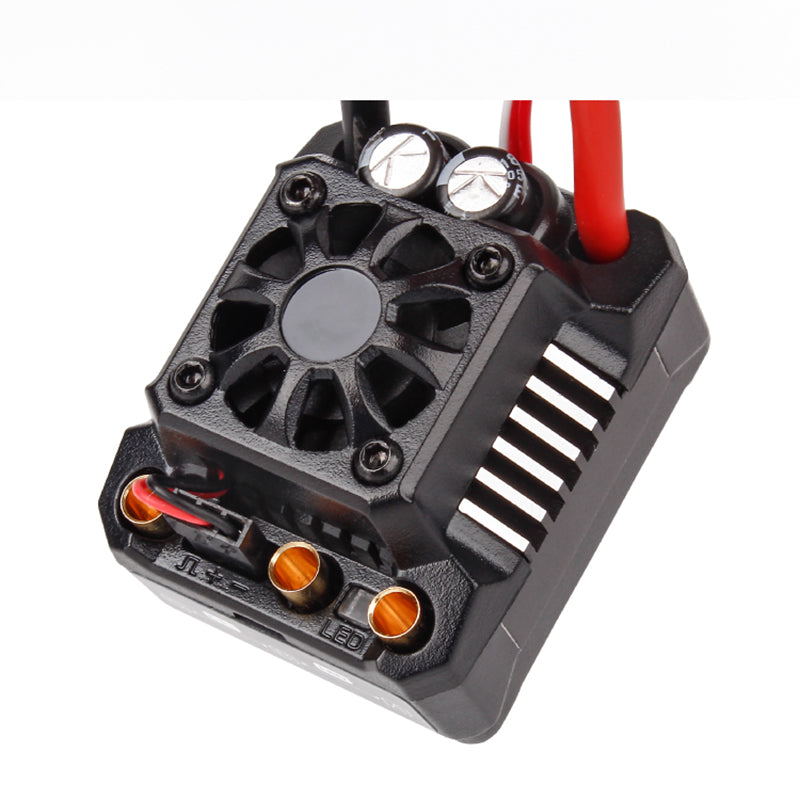

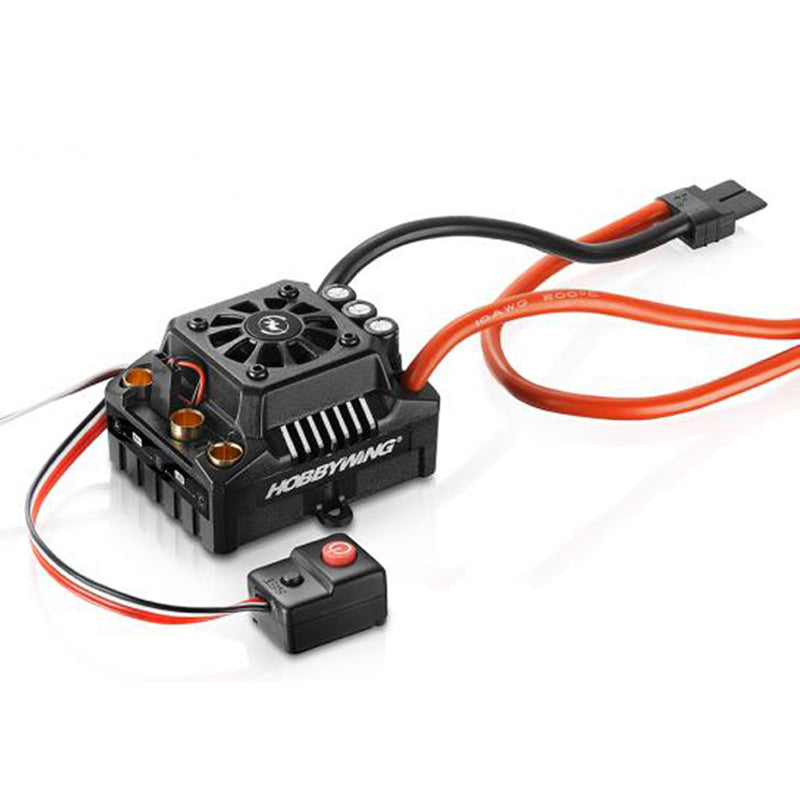

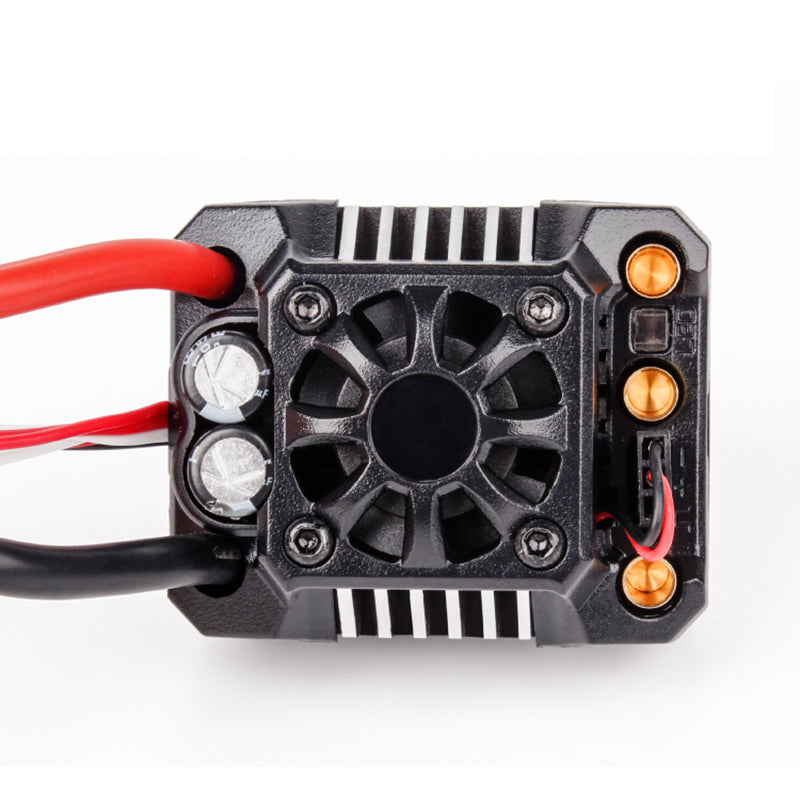

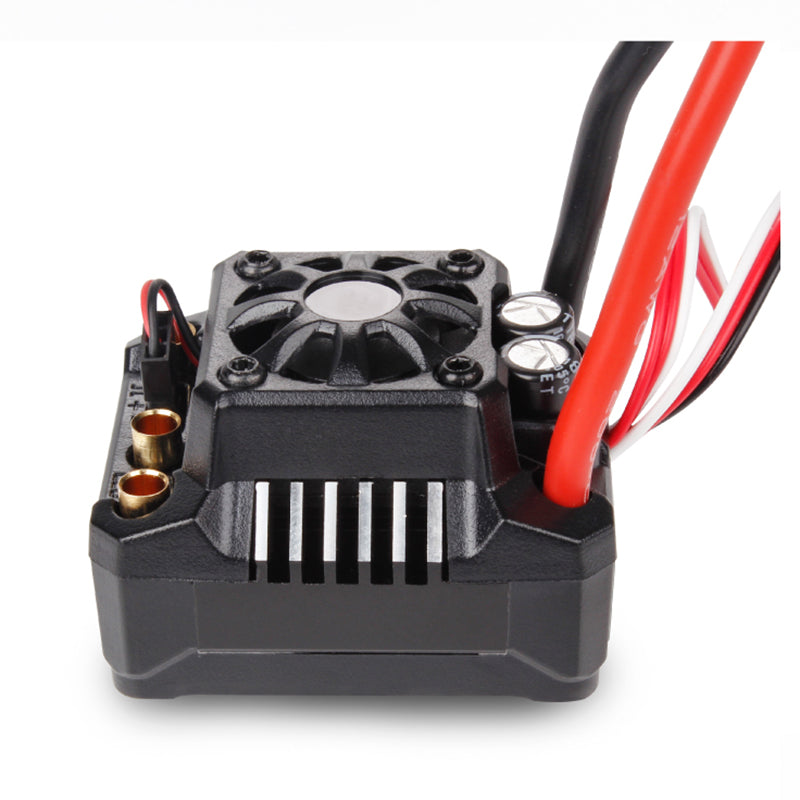

Hobbywing EZRUN MAX10 120A SCT ESC 60A Brushless Waterproof ESC MAX6 MAX5 160A 200A for 1/5 1/6 1/10 RC Car Model

Hobbywing EZRUN MAX10 120A SCT ESC 60A Brushless Waterproof ESC MAX6 MAX5 160A 200A for 1/5 1/6 1/10 RC Car Model

SKU:HW-EZRUN-MAX8-V3-TRXPlug-DZN1

Regular price $124.90 USD
Regular price Sale price $124.90 USD
Sale Sold out

Specifications:
Brand: Hobbywing

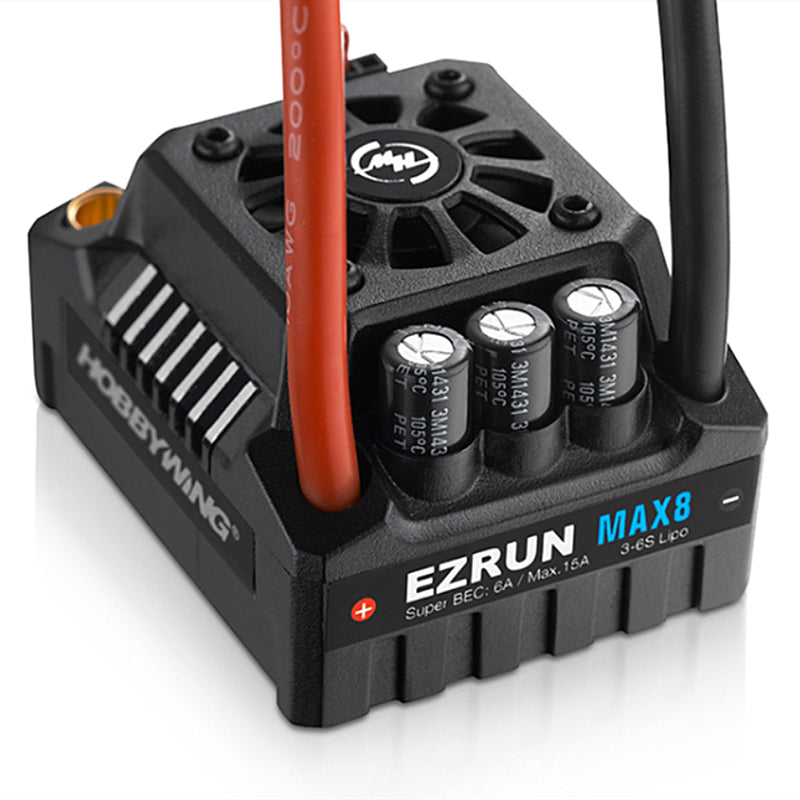

MAX8:
Continuous / peak current : 150A / 950A
Support motor type : sensorless brushless motor,
Applicable models : 1/8 RC Car / truck / SUV
Applicable motor KV : When 4S lithium or NiMH Section 12: 4274 motor, KV ¡Ü3000;
When using 6S lithium or NiMH Section 18: 4274 motor, KV ¡Ü2400;
The number of cells : 9-18 Cells NiMH, 3-6S Lipo
BEC output : 6V / 7.2V adjustable, continuous current 6A (switching power mode)
Dimensions : 59.8 (L) x 48 (width) x 36.8 (high)
Weight :174 g
Fans take power acquired from the built-in BEC of 6V or 7.2V stable
Parameter setting interface and the interface to the common fan

MAX6:
Continuous Current: 160A
Peak Current: 1050A
Motor Type: Sensored / Sensorless Brushless Motor (only in sensorless mode)
Applications: 1/6th Touring Car, Buggy, Truggy and Truck
Motor Limit: With 6S LiPo/18S NiMH: KV ¡Ü1500 (5892 size motor); With 8S LiPo/24S NiMH: KV ¡Ü1200 (5892 size motor)
LiPo/NiMH Cells: 9-24S NiMH, 3-8S LiPo
BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V
Connectors: Input End: None, Output End: Female 6.5mm Gold Connectors (pre-soldered onto the PCB of the speed controller)
Size: 70x56x46.5mm
Weight: 240g
Programming Port: FAN /PRG Port

MAX5:
Type: Brushless, Sensorless and Water-Proofed
Cont. Current: 200A
Peak Current: 1300A
Input: 3-8S Lipo /9-24 Cell NiMH
BEC Output: Switch Mode, 6V/7.4V,6A, MAX15A
Fan Size: 45.0 x 45.0 x 10.0mm
Fan Voltage Range: 5-7.4V (Powered by BEC)
Supported Motors: Brushless Sensorless Motor/Brushless Sensored Motor (Only in Sensorless Mode)
Application: 1/5 Buggy/Truck/Touring Car
Motor limit: With 8S LiPo/24S NiMH: KV¡Ü1000 (58110 size motor)
Size: 93.4 x 58.1 x 47.8mm
Weight: 342g

MAX10:
Continuous Current: 60A
Peak Current: 450A
Motor Type: Sensored / Sensorless Brushless Motor (only in sensorless mode)
Applications: 1/10th RC Car, DIY Truck
Motor Limit: With 2S LiPo: KV ¡Ü6000 (3652 size motor); With 3S LiPo/9S NiMH: KV¡Ü4000 (3652 size motor)
LiPo/NiMH Cells: 6-9S NiMH, 2-3S LiPo
BEC Output: 6V/7.4V Switchable, Continuous Current of 3A (Switch-mode BEC)
Cooling Fan: Powered by the stable BEC voltage of 6V/7.4V
Size: 39.4x32.8x23.1mm
Weight: 68g

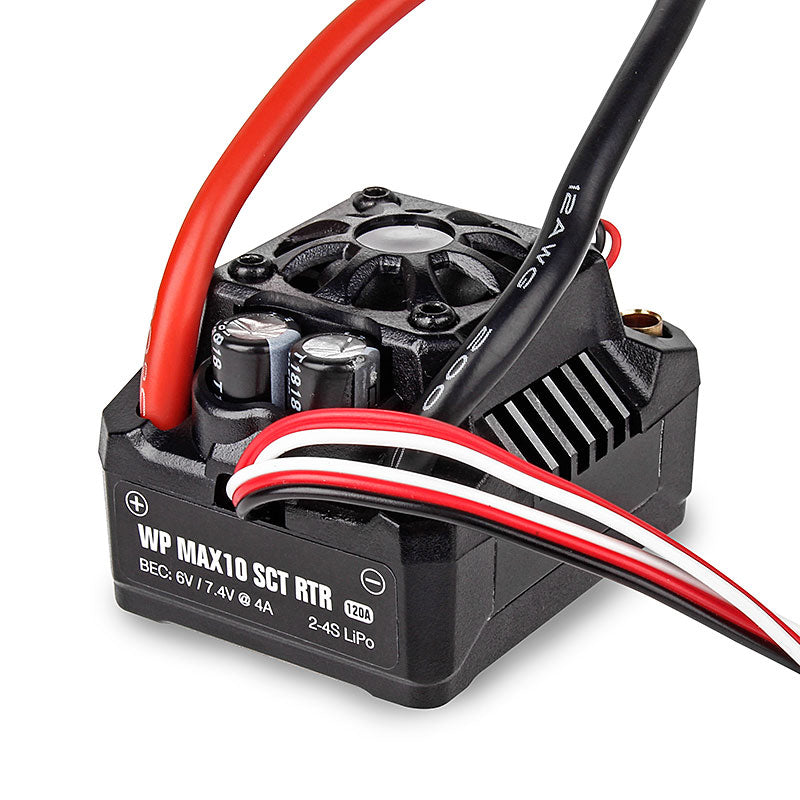

MAX10-SCT:
Continuous Current: 120A
Peak Current: 830A
Motor Type: Sensored / Sensorless Brushless Motor (only in sensorless mode)
Applications: 1/10th RC On Road / Off Road Car
Support Battery / Motor Limit: 2S Lipo, KV¡Ü4700; 4S Lipo, KV¡Ü3000
LiPo/NiMH Cells: 6-12S NiMH, 2-4S LiPo
BEC Output: 6V/7.4V Switchable, Continuous Current of 4A (Switch-mode BEC)
Cooling Fan: Powered by the stable BEC voltage of 6V/7.4V

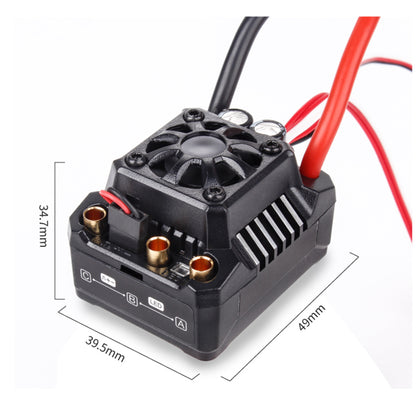

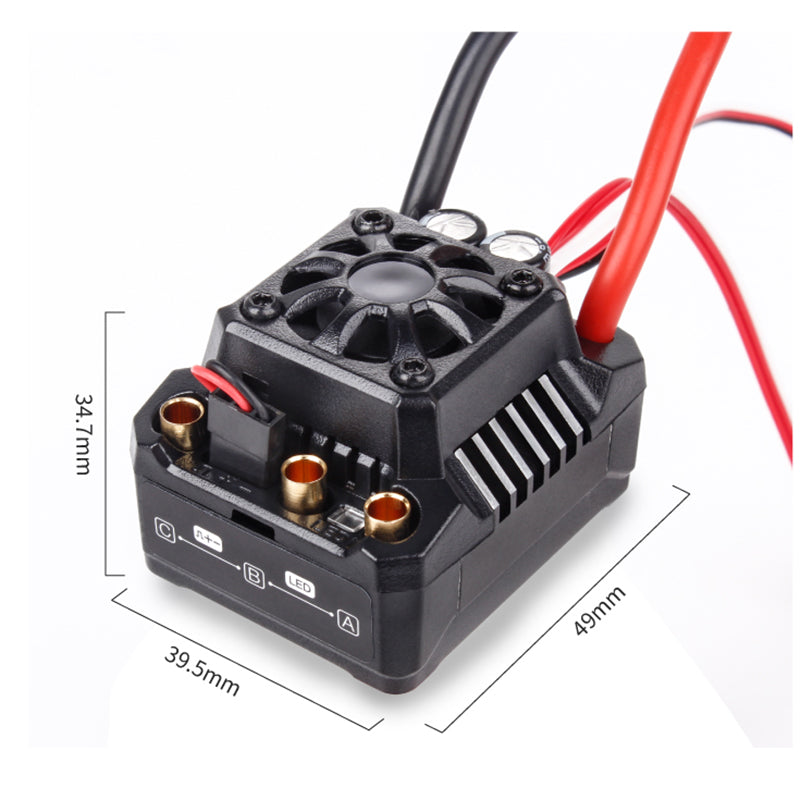

Size: 49x39.5x34.7mm
Weight: 105g

The Package Includes:
1 x Hobbywing EZRUN ESC
1 x Instruction Manul
