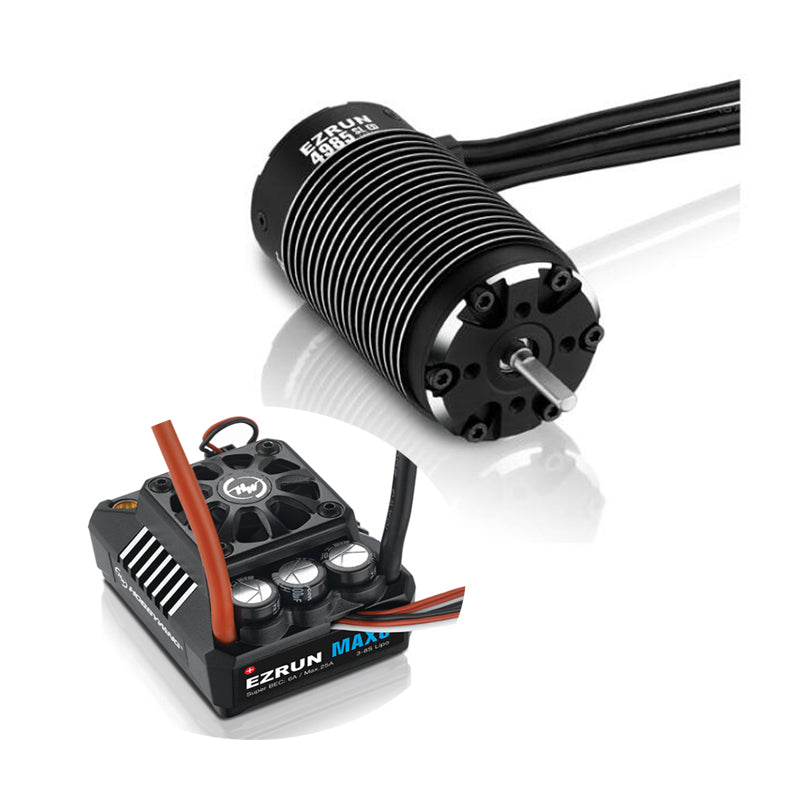

Hobbywing EZRUN Waterproof ESC 5687 1100KV 56113 800KV 4985 1650KV Motor MAX6 MAX5 for RC Car Vehicle DIY Model
Hobbywing EZRUN Waterproof ESC 5687 1100KV 56113 800KV 4985 1650KV Motor MAX6 MAX5 for RC Car Vehicle DIY Model
SKU:HW-COMBO-MAX6-5687-1100KV-DZN1
Couldn't load pickup availability
Specifications:
Brand: Hobbywing
MAX6 ESC:
Continuous Current: 160A
Peak Current: 1050A
Motor Type: Sensored / Sensorless Brushless Motor (only in sensorless mode)
Applications: 1/6th Touring Car, Buggy, Truggy and Truck
Motor Limit: With 6S LiPo/18S NiMH: KV ¡Ü1500 (5892 size motor); With 8S LiPo/24S NiMH: KV ¡Ü1200 (5892 size motor)
LiPo/NiMH Cells: 9-24S NiMH, 3-8S LiPo
BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V
Connectors: Input End: None, Output End: Female 6.5mm Gold Connectors (pre-soldered onto the PCB of the speed controller)
Size: 70x56x46.5mm
Weight: 240g
Programming Port: FAN /PRG Port
MAX5 ESC:
Type: Brushless, Sensorless and Water-Proofed
Cont. Current: 200A
Peak Current: 1300A
Input: 3-8S Lipo /9-24 Cell NiMH
BEC Output: Switch Mode, 6V/7.4V,6A, MAX15A
Fan Size: 45.0 x 45.0 x 10.0mm
Fan Voltage Range: 5-7.4V (Powered by BEC)
Supported Motors: Brushless Sensorless Motor/Brushless Sensored Motor (Only in Sensorless Mode)
Application: 1/5 Buggy/Truck/Touring Car
Motor limit: With 8S LiPo/24S NiMH: KV¡Ü1000 (58110 size motor)
Size: 93.4 x 58.1 x 47.8mm
Weight: 342g
5687-1100KV Motor:
Type: Brushless
Pole Count: 4-Pole
KV Rating: 1100
LiPo Cells: 3-8S
No-Load Current: 4.1A
MAX Output Power: 5800W
Peak Current: 200A
Size & Weight:
O.D.: 56mm / 2.21in
Length:87mm / 3.43in
Shaft Diameter: 8mm / 0.315in
Weight: 916
Application: 1/5 1/6 RC Truck and Car Model
56113-800KV Motor:
Type: Brushless
Pole Count: 4-Pole
KV Rating: 800
LiPo Cells: 3-8S
No-Load Current: 3.2A
MAX Output Power: 5800W
Peak Current: 200A
Size & Weight:
O.D.: 56mm / 2.21in
Length: 113mm / 4.45in
Shaft Diameter: 8mm / 0.315in
Weight: 1210
Application: 1/5 1/6 RC Truck and Car Model
4985-1650KV Motor:
Type: Brushless
Pole Count: 4-Pole
KV Rating: 3200
LiPo Cells: 3S-6S
No-Load Current: 5.4A
MAX Output Power: 5700W
Peak Current: 160A
Size & Weight:
O.D.: 49mm / 1.929in
Length: 85mm / 3.346in
Shaft Diameter: 5mm / 0.196in
Weight: 587g
Timing: 0
Application: 1/5 Touring car/Buggies, 1/5 RC Model Car
The Package Includes:
1 x Hobbywing EZRUN Motor
1 x Hobbywing EZRUN ESC
