Hobbywing

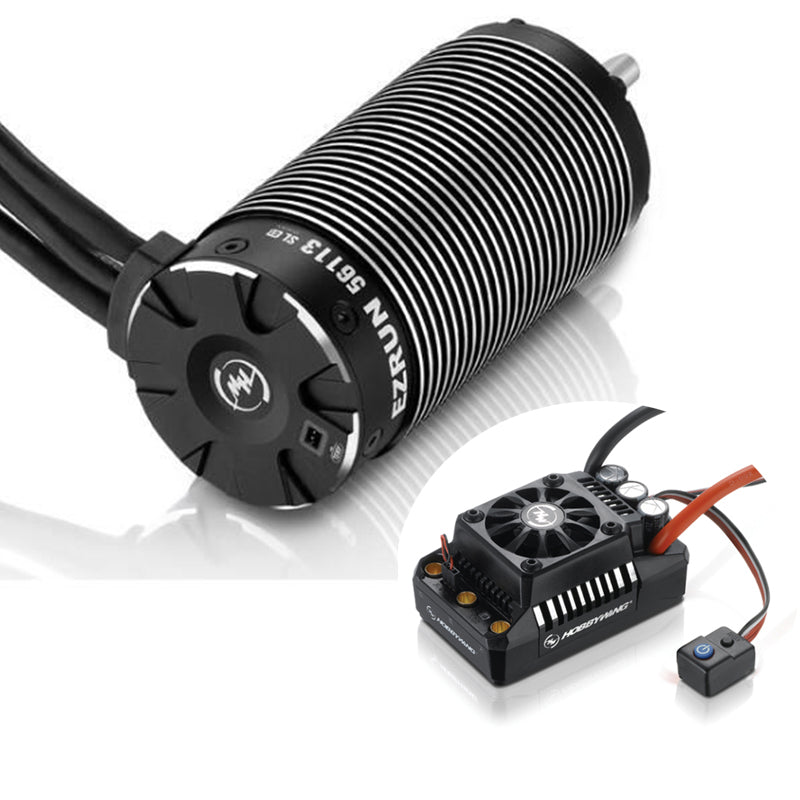

Hobbywing EZRUN Waterproof MAX5 -150A ESC 56113-800KV Motor for RC Car Construction Vehicle DIY Part Model Accessories

Hobbywing EZRUN Waterproof MAX5 -150A ESC 56113-800KV Motor for RC Car Construction Vehicle DIY Part Model Accessories

SKU:HW-COMBO-MAX5-56113-800KV-DZN1

Regular price $362.90 USD
Regular price Sale price $362.90 USD
Sale Sold out

Specifications:
Brand: Hobbywing

MAX5 ESC:
Type: Brushless, Sensorless and Water-Proofed
Cont. Current: 200A
Peak Current: 1300A
Input: 3-8S Lipo /9-24 Cell NiMH
BEC Output: Switch Mode, 6V/7.4V,6A, MAX15A
Fan Size: 45.0 x 45.0 x 10.0mm
Fan Voltage Range: 5-7.4V (Powered by BEC)
Supported Motors: Brushless Sensorless Motor/Brushless Sensored Motor (Only in Sensorless Mode)
Application: 1/5 Buggy/Truck/Touring Car
Motor limit: With 8S LiPo/24S NiMH: KV¡Ü1000 (58110 size motor)
Size: 93.4 x 58.1 x 47.8mm
Weight: 342g

56113-800KV Motor:
Type: Brushless
Pole Count: 4-Pole
KV Rating: 800
LiPo Cells: 3-8S
No-Load Current: 3.2A
MAX Output Power: 5800W
Peak Current: 200A
Size & Weight:
O.D.: 56mm / 2.21in
Length: 113mm / 4.45in
Shaft Diameter: 8mm / 0.315in
Weight: 1210
Application: 1/5 1/6 RC Truck and Car Model

The Package Includes:
1 x Hobbywing EZRUN Motor
1 x Hobbywing EZRUN ESC
