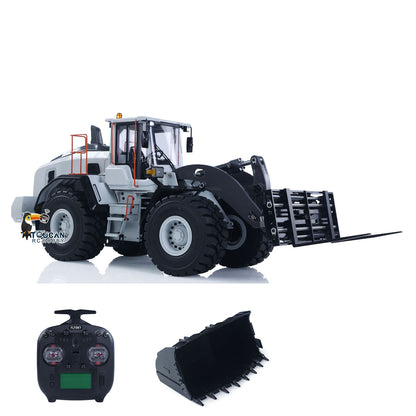

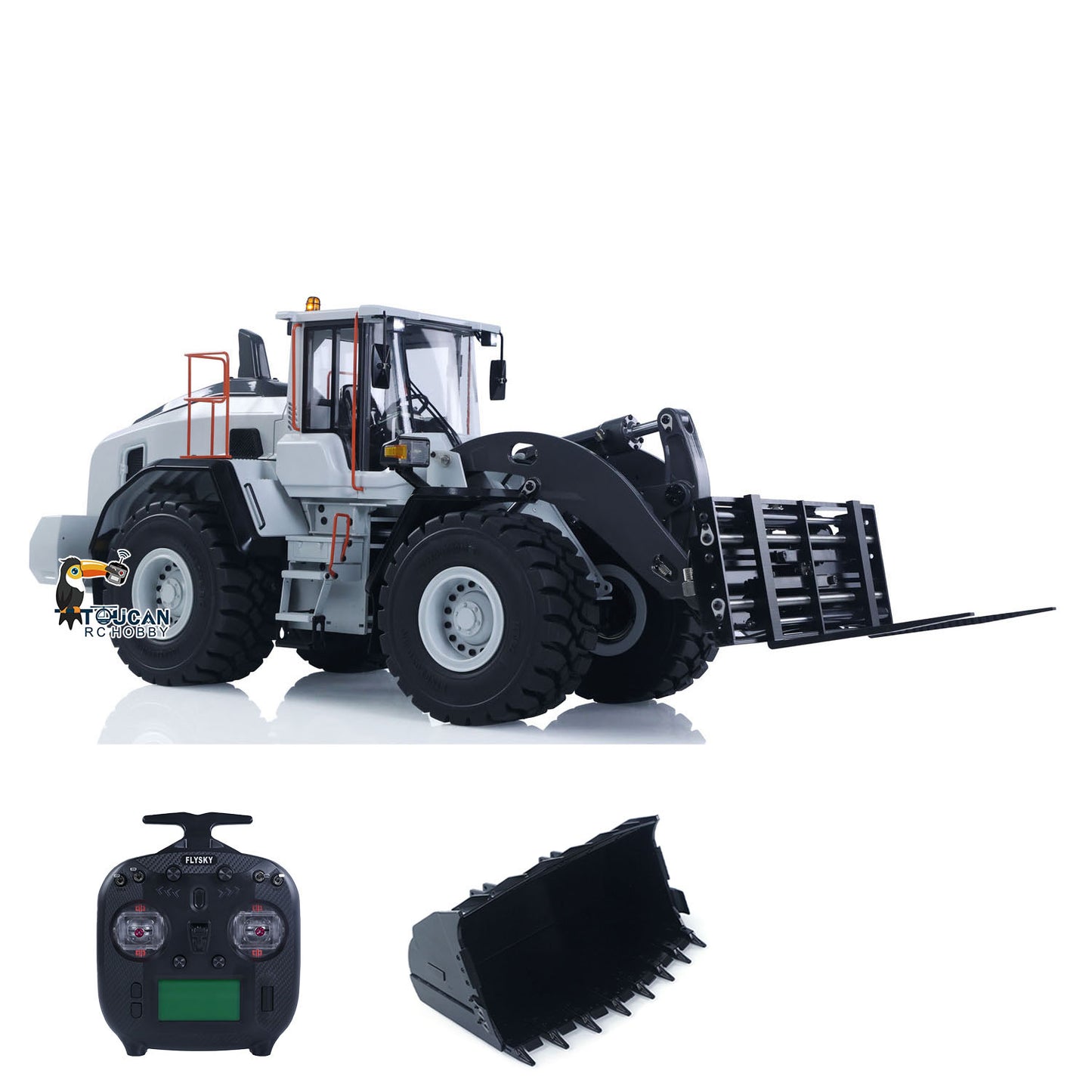

1/14 Metal RC Hydraulic Loader E260L Remote Control Construction Vehicle Flysky ST8 Radio Lock Differential Axle Fork Quick Coupler Light Sound ESC Battery
1/14 Metal RC Hydraulic Loader E260L Remote Control Construction Vehicle Flysky ST8 Radio Lock Differential Axle Fork Quick Coupler Light Sound ESC Battery
MTModel
SKU:MTM-RD-E260L-Loader-ST8-PNP-Y-CX-DZN1
Couldn't load pickup availability
#Specification:
Item Condition: New, Assembled and Painted
Material: Metal, Plastic
Scale: 1/14
Loader Net Weight: 16KG
Color: Yellow
Axles: Full Metal and comes with Differential Locks
Gearbox: Full Metal and 2Speed Gearbox
Driving ESC: 25A Brushless ESC
Driving Motor: 2216 930KV Brushless Motor
Differential Lock Servo: 20kg Servo
Shift Servo: 9KG Servo
Gearbox: 2 Speed
Pump ESC: 40A Brushless ESC
Pump Motor: 3542 800KV Brushless Motor
Valve: 5CH
Rated Pressure: 3.5Mpa
Max. Pressure: 7Mpa (Maximum pressure for single pump test)
Rated Flow: About 700mL/min
Recommended Battery: 3S Li-Po Battery, XT60 Plug (Not Included)
Battery Compartment Size: 140*50*33MM/5.5*2.0*1.3Inches
ID: MTM-RD-E260L-Loader-ST8-PNP-Y
#The Package Includes:

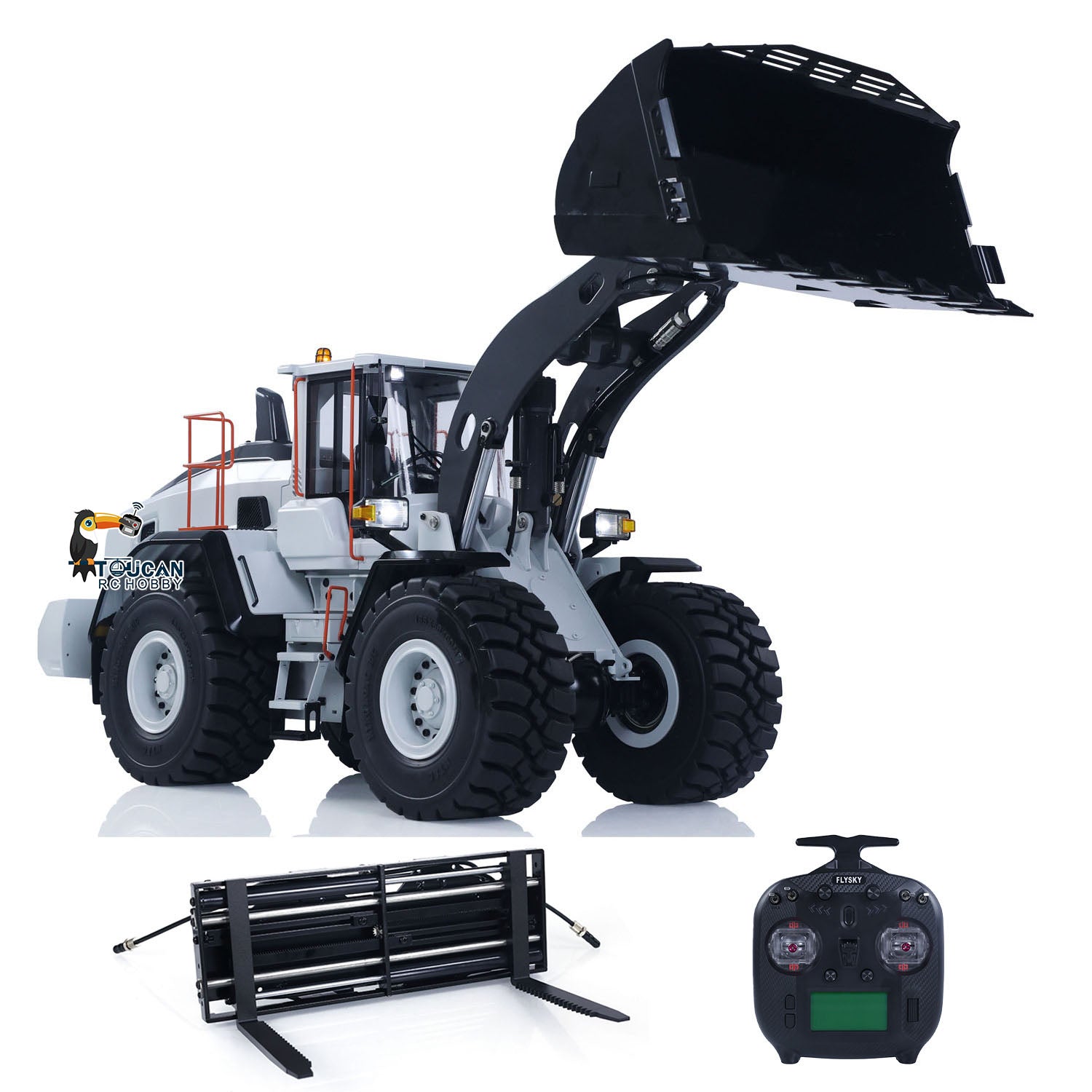

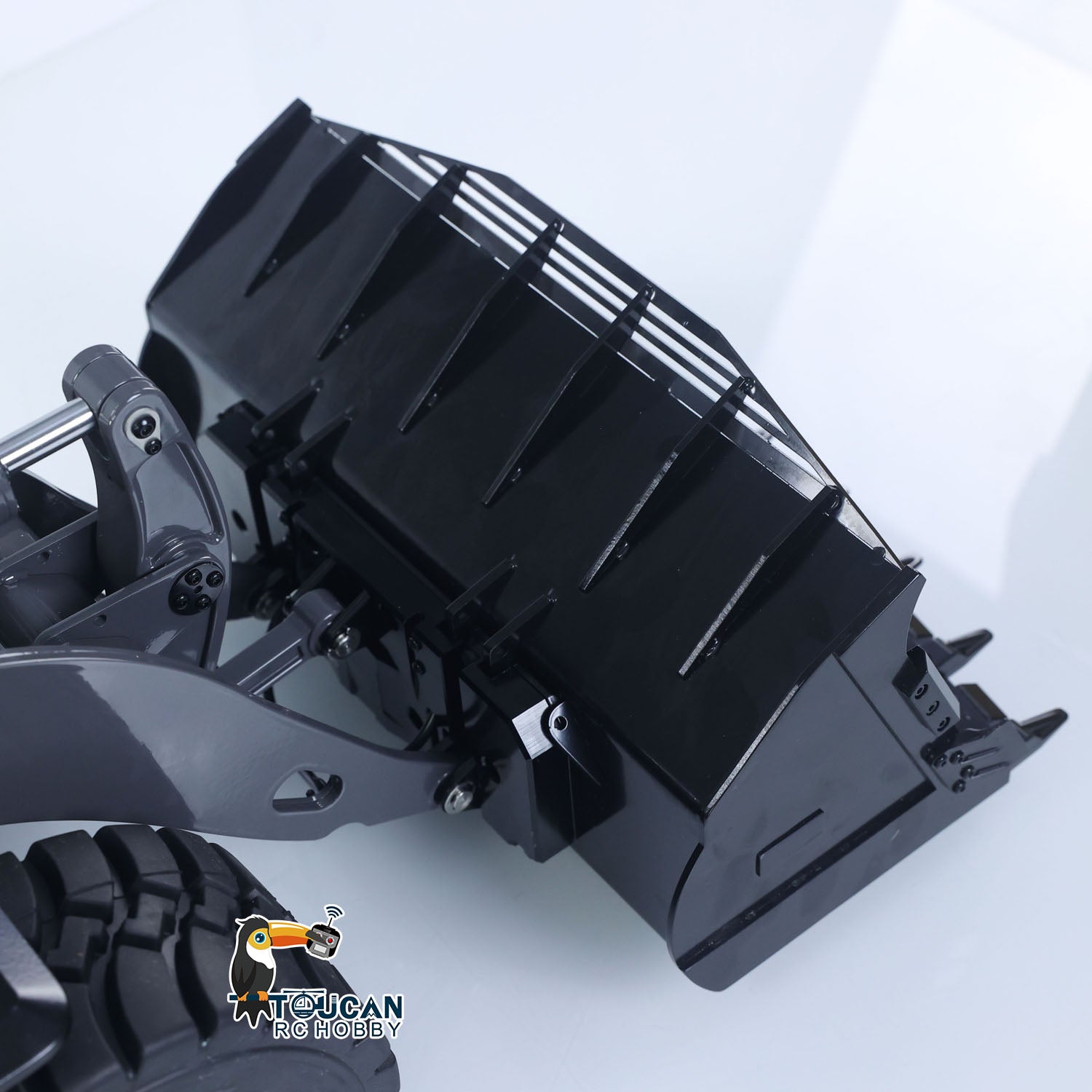

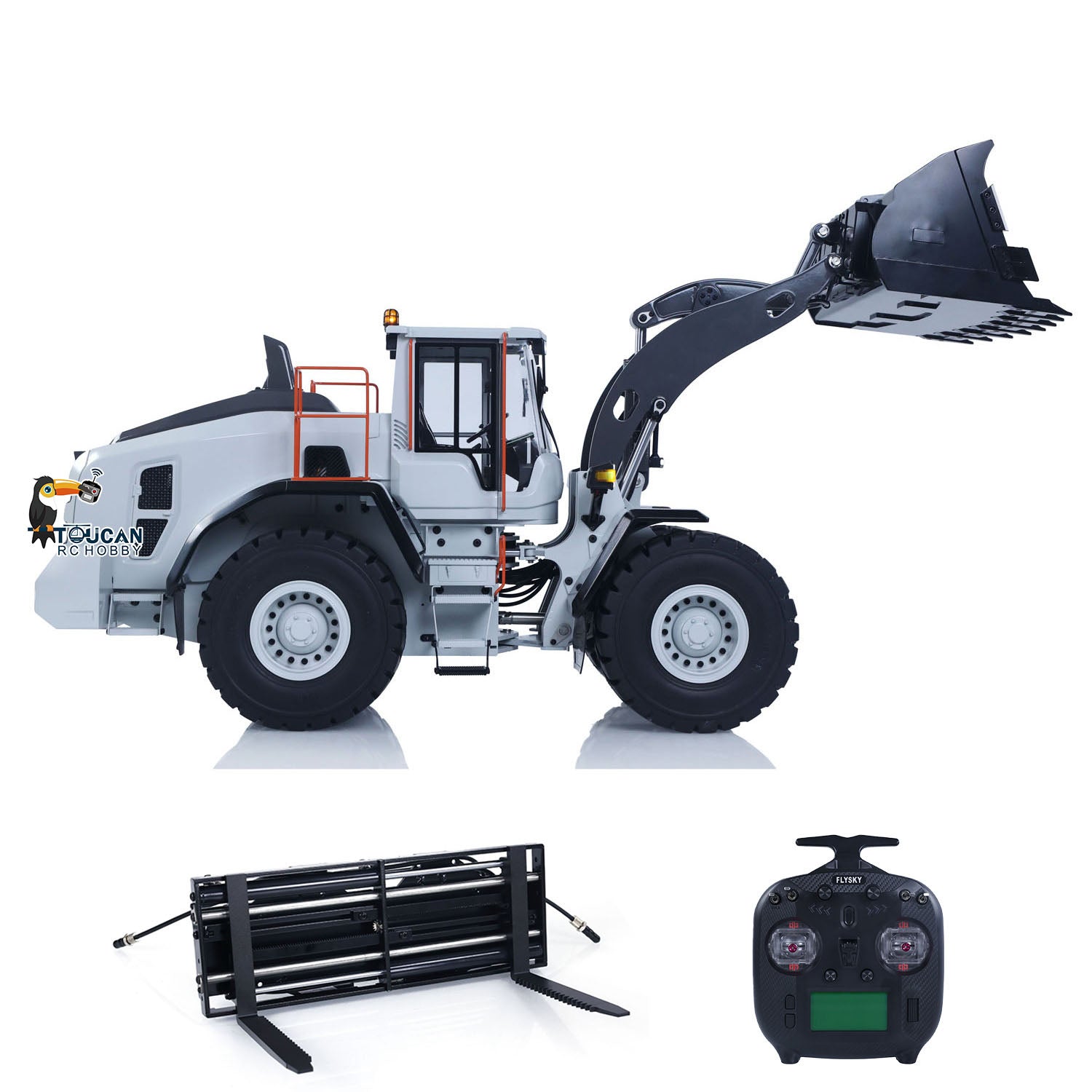

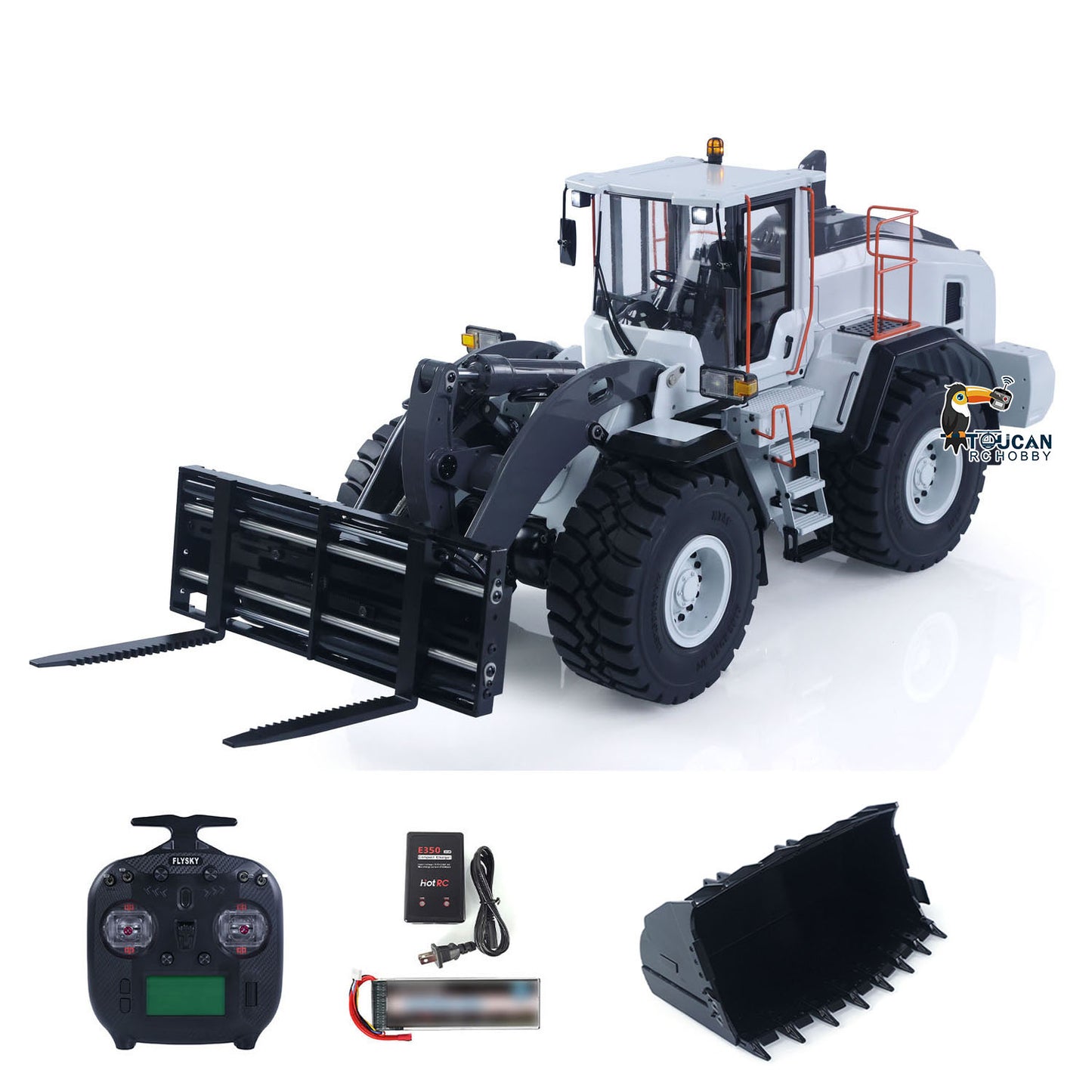

1/14 Metal Hydraulic Loader Model comes with Quick Coupler and Metal Bucket
1PC Metal Hydraulic Fork
ST8 Remote Controller and Receiver
Motor
Servo
ESC
Light System
Sound System
#There are some attachments for optional upgrade, the package option is selected by yourself.
Battery
Charger
#The Package Does Not Include:
Hydraulic Oil
#Main Features:
1, This hydraulic loader is equipped with 5-way metal hydraulic reversing valves and a high-quality oil pump, with a hydraulic working pressure of 3.5MPa.

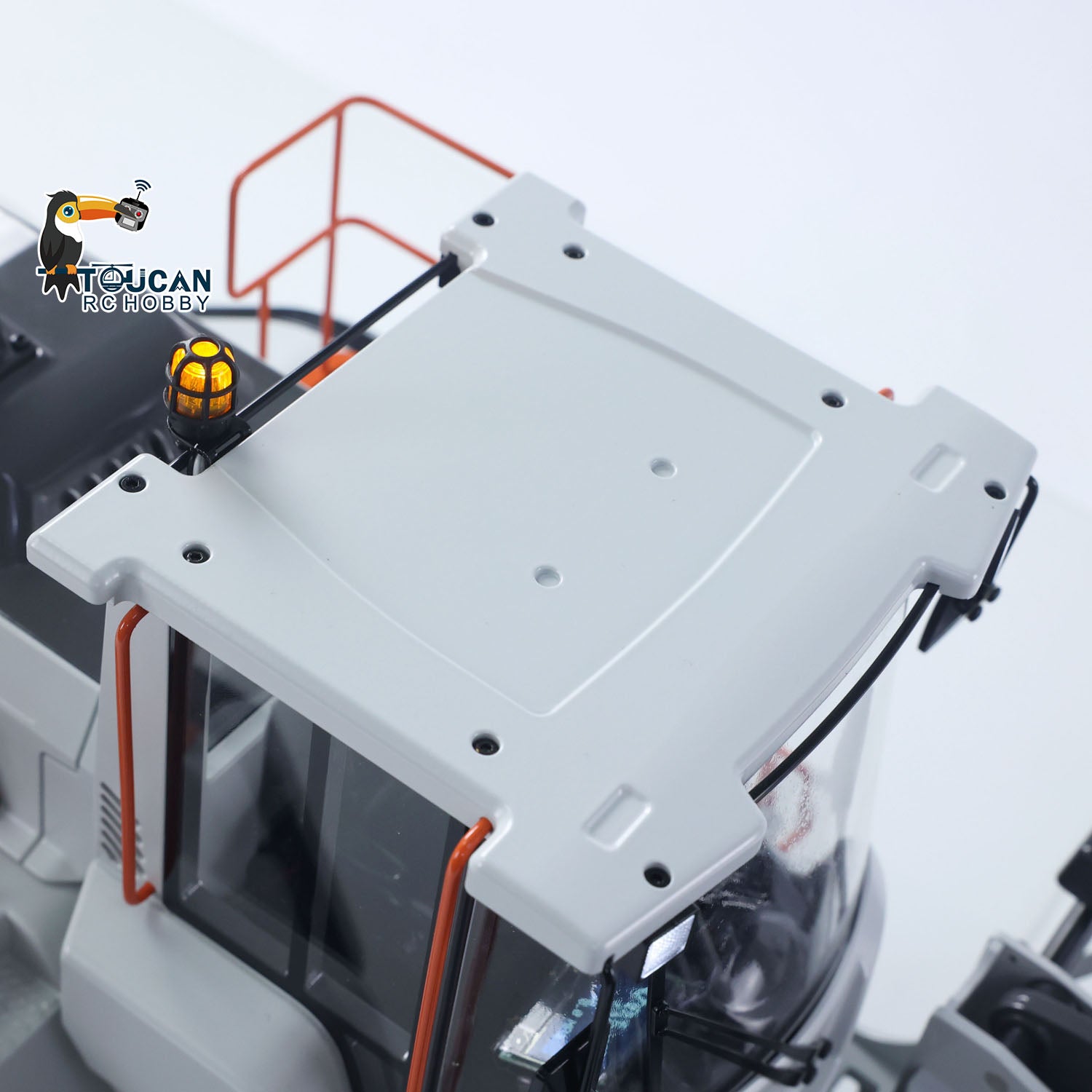

2, The cabin's LCD screen displays real-time voltage and oil pressure data.

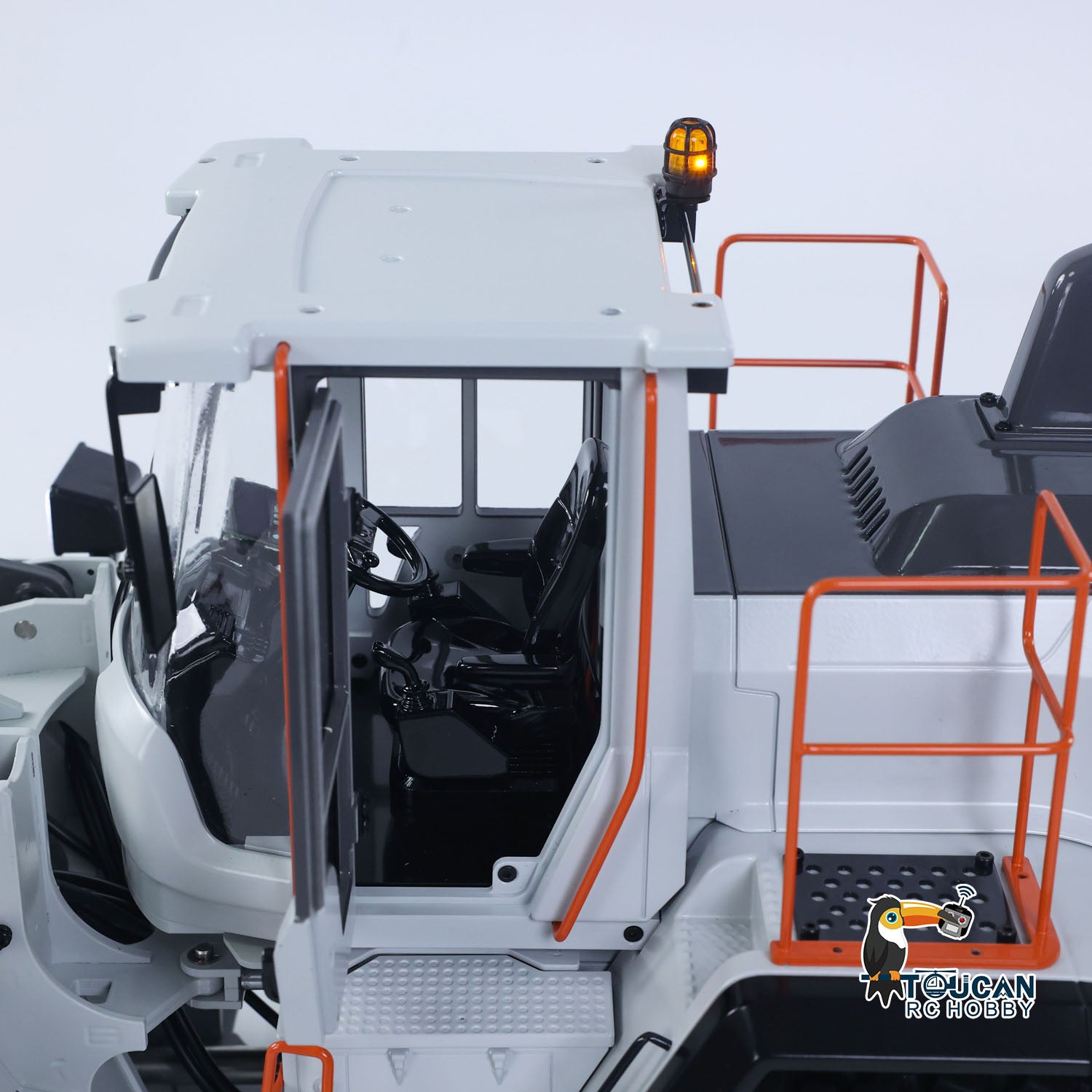

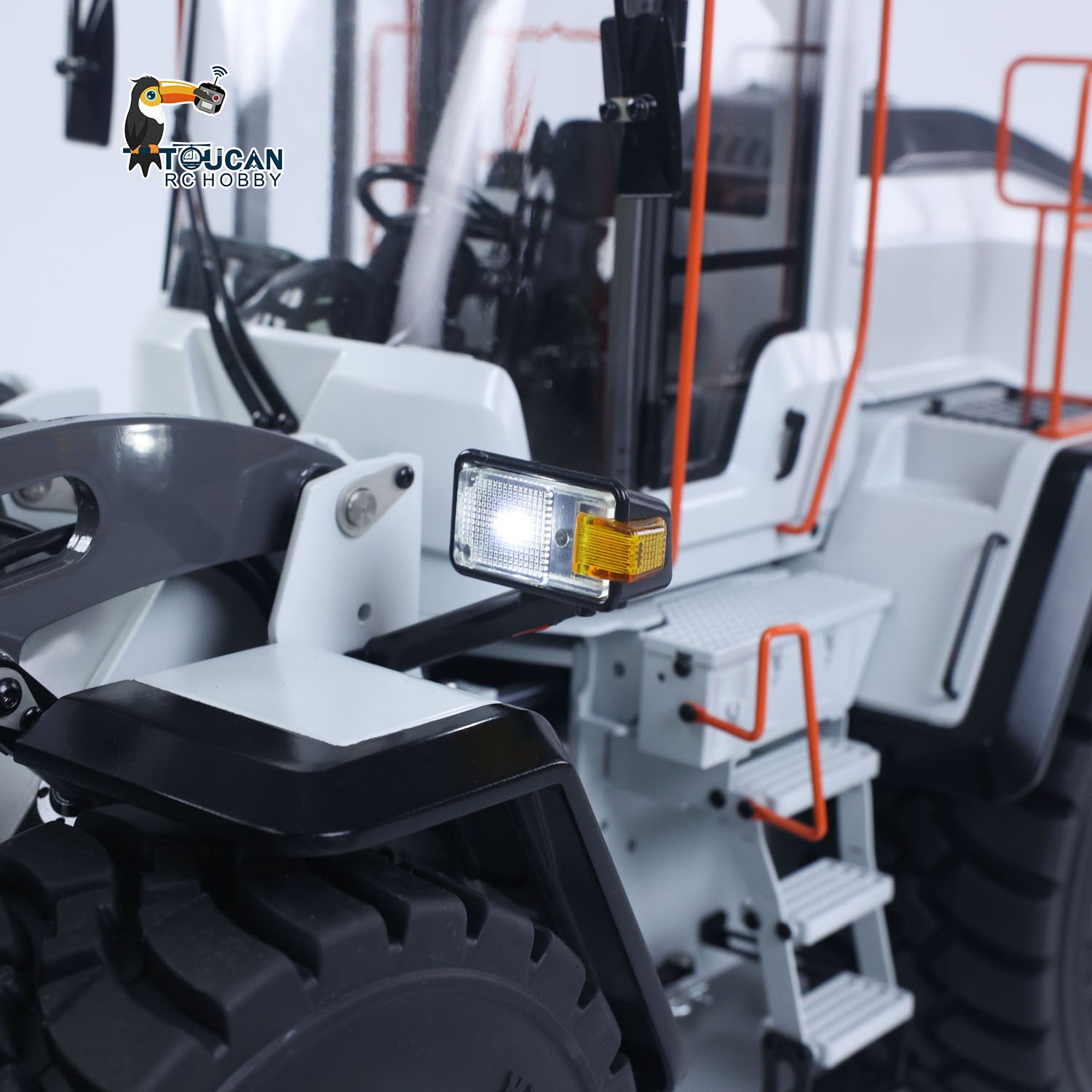

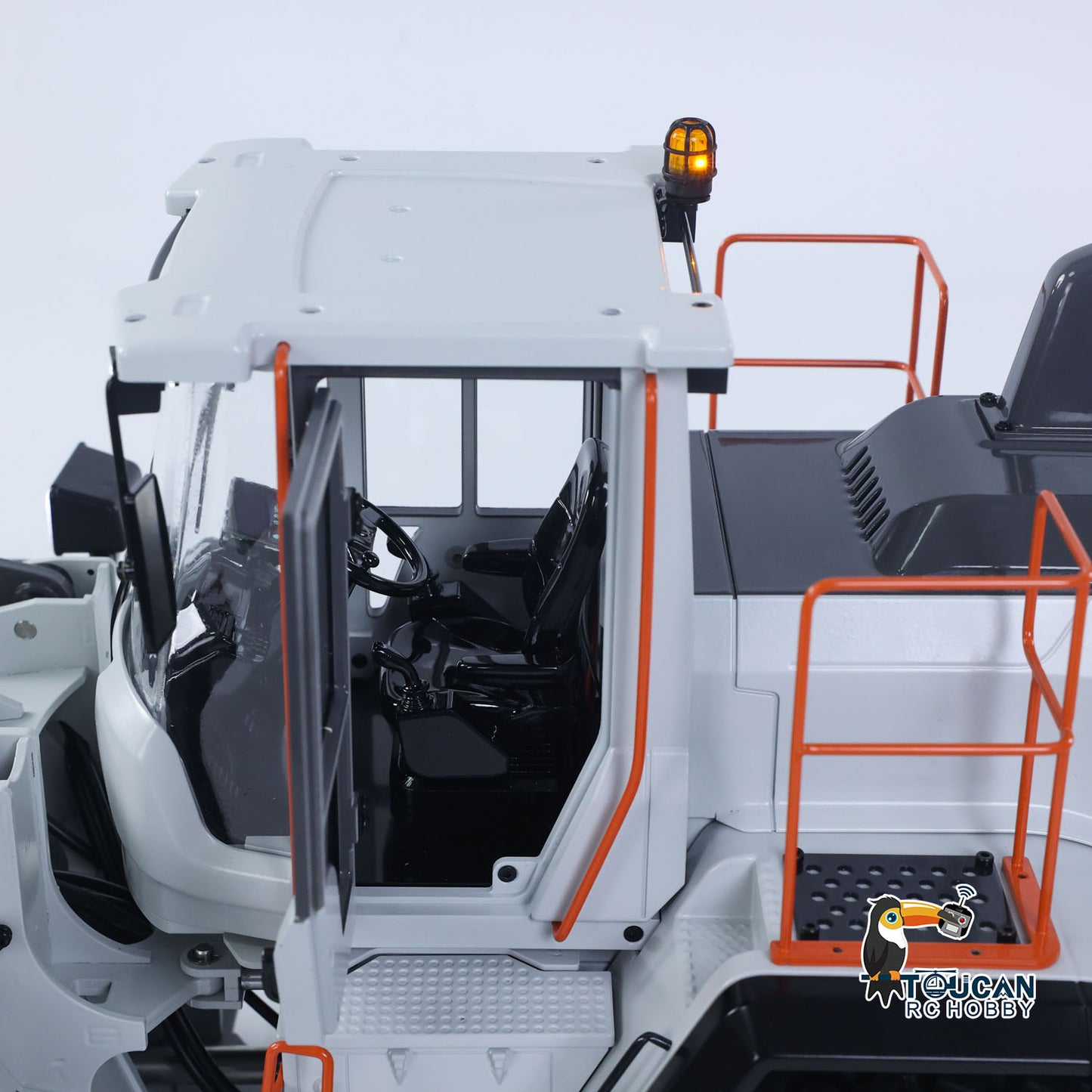

3, Featuring a simulated sound system and lighting system, this loader replicates the operational dynamics of a real-life loader.
4, Equipped with a hydraulic quick-release coupler, this loader enables rapid bucket-to-fork replacement.
5, The full-metal 2-speed gearbox, paired with a 25A brushless ESC and 2216 930KV brushless motor, allows seamless switching between high and low speeds.

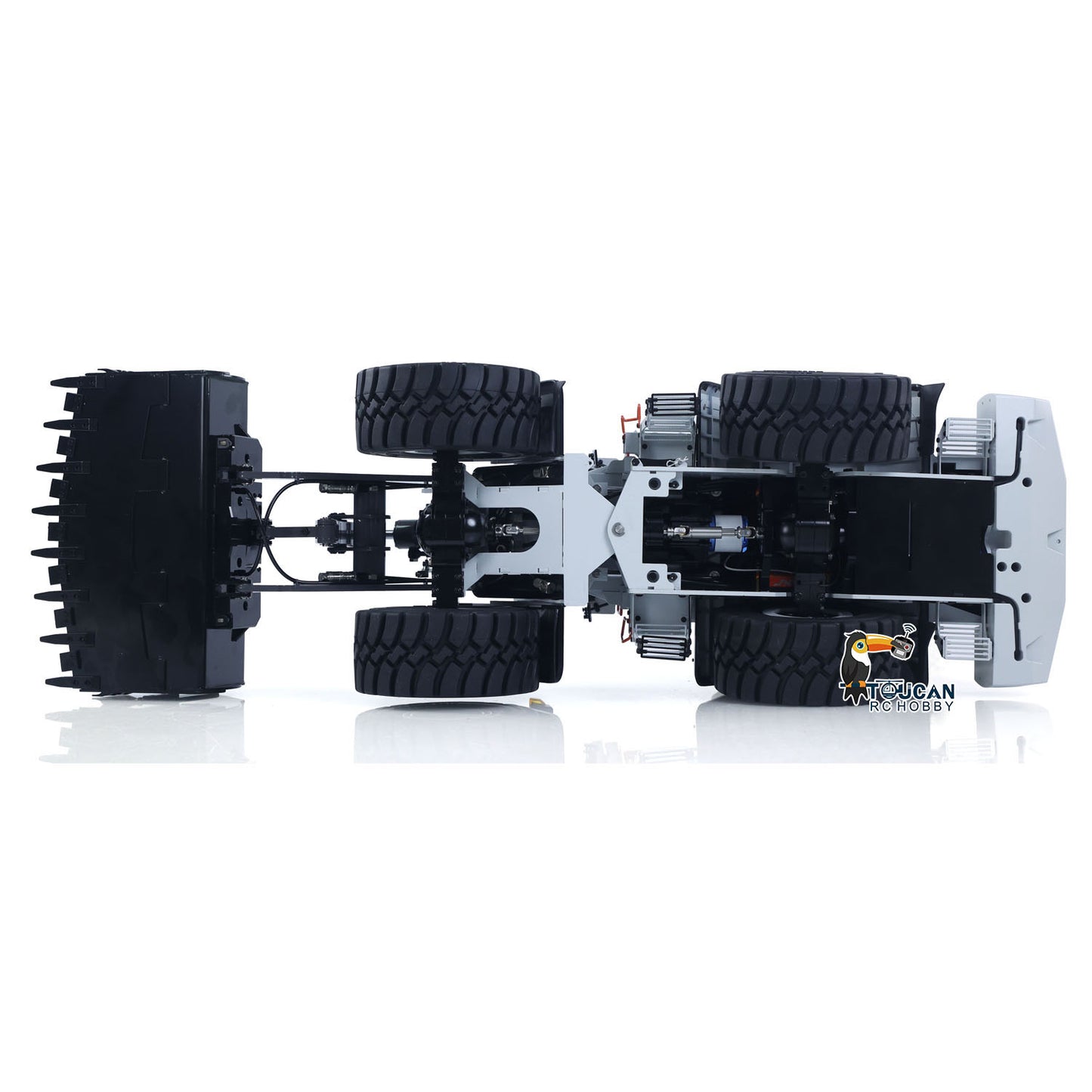

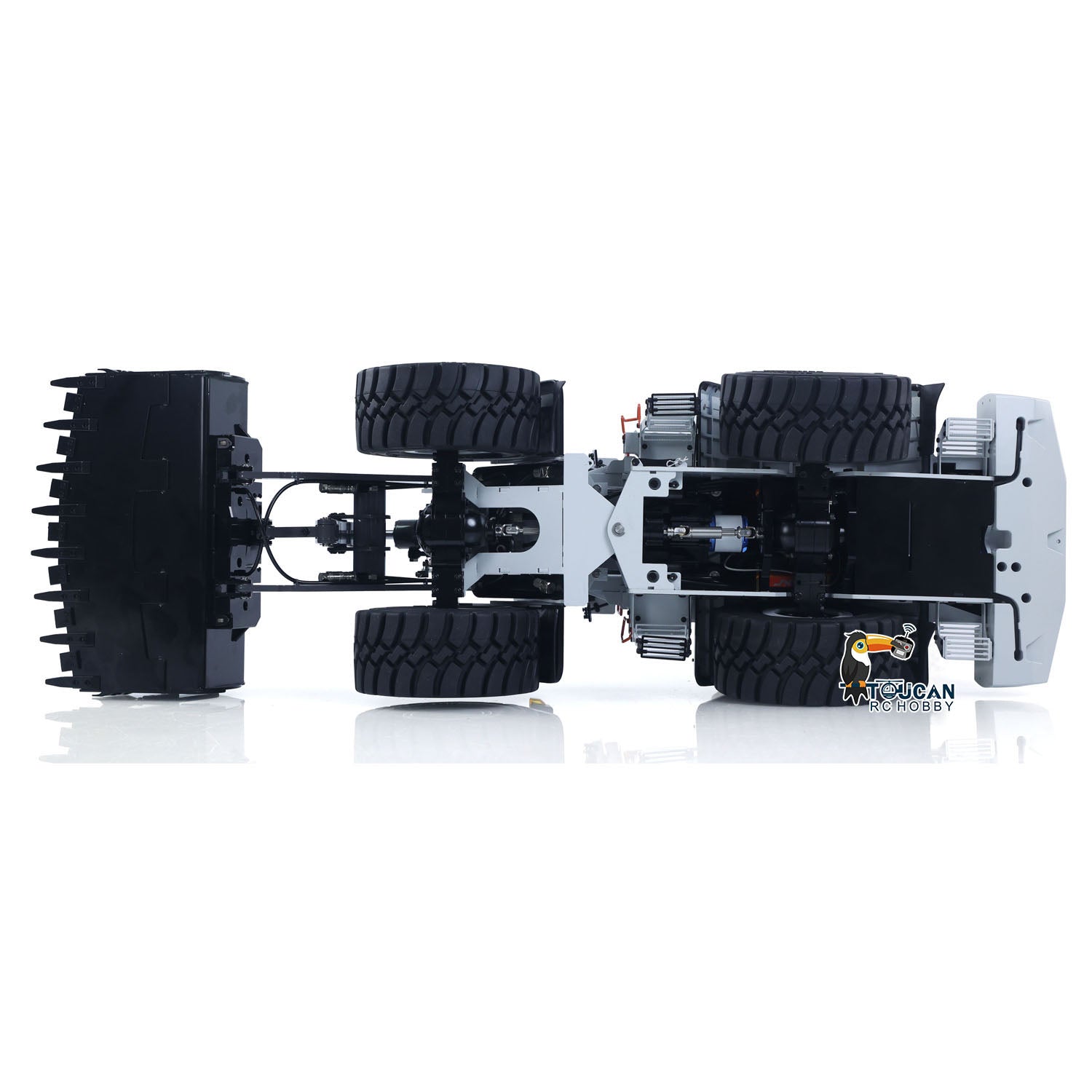

6, The loader's 4X4 axle system is equipped with a differential lock function. When wheels are stuck in a mud pit, activating the differential lock helps the loader escape from difficult terrain effortlessly.
#If you have any questions or are not sure whether it is the correct item you want, pls feel free to contact me before purchasing.
Share

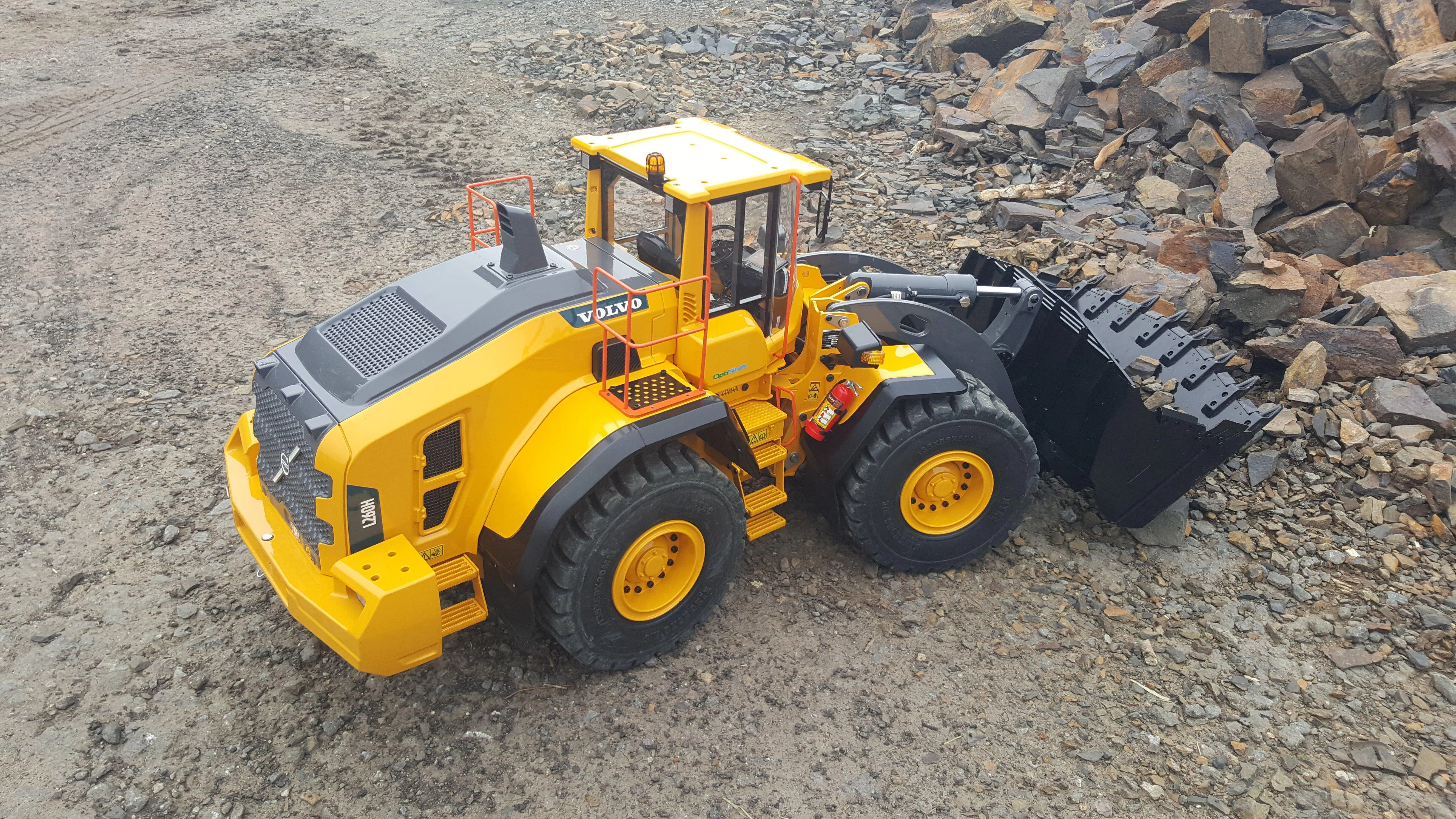

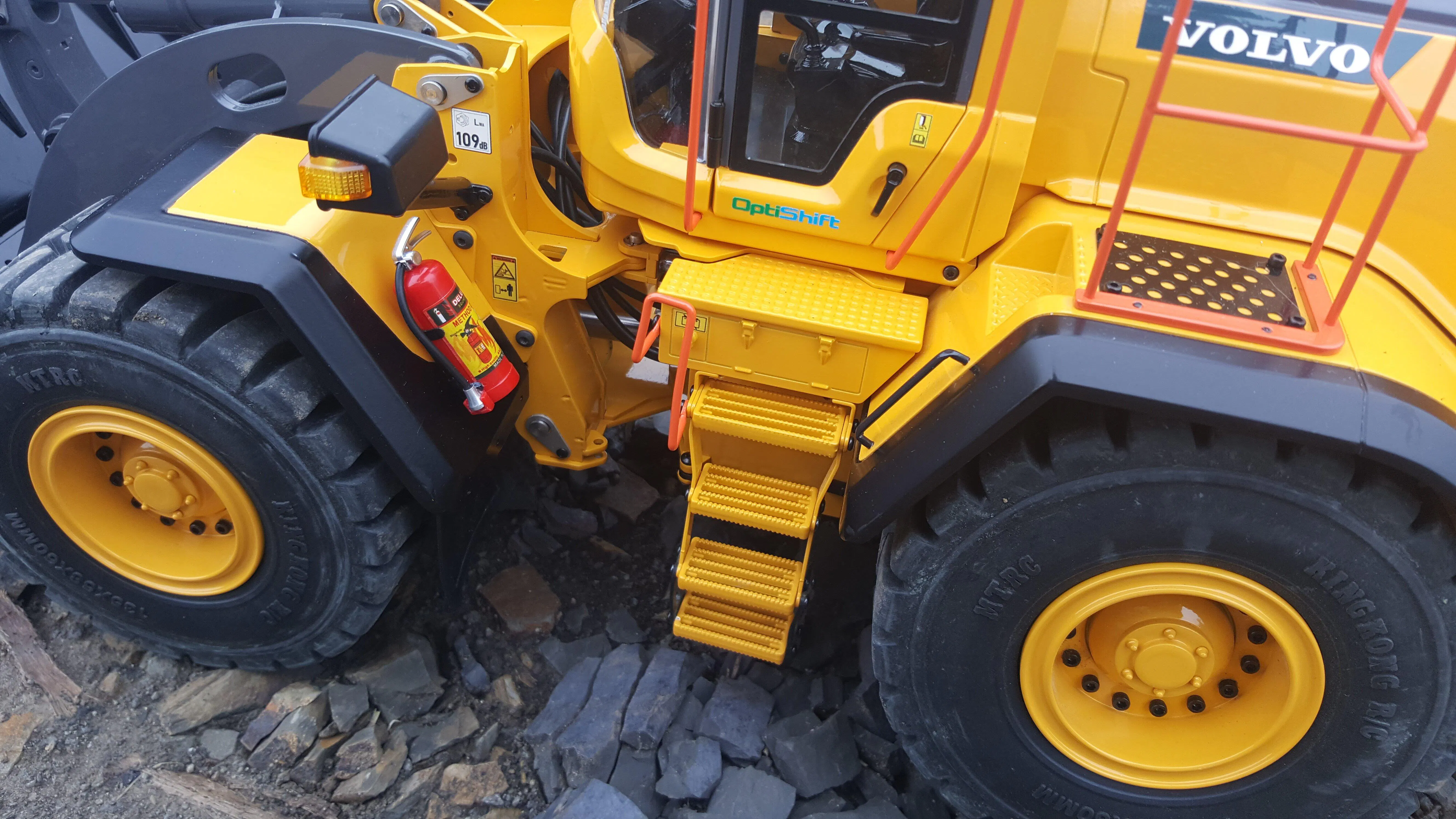

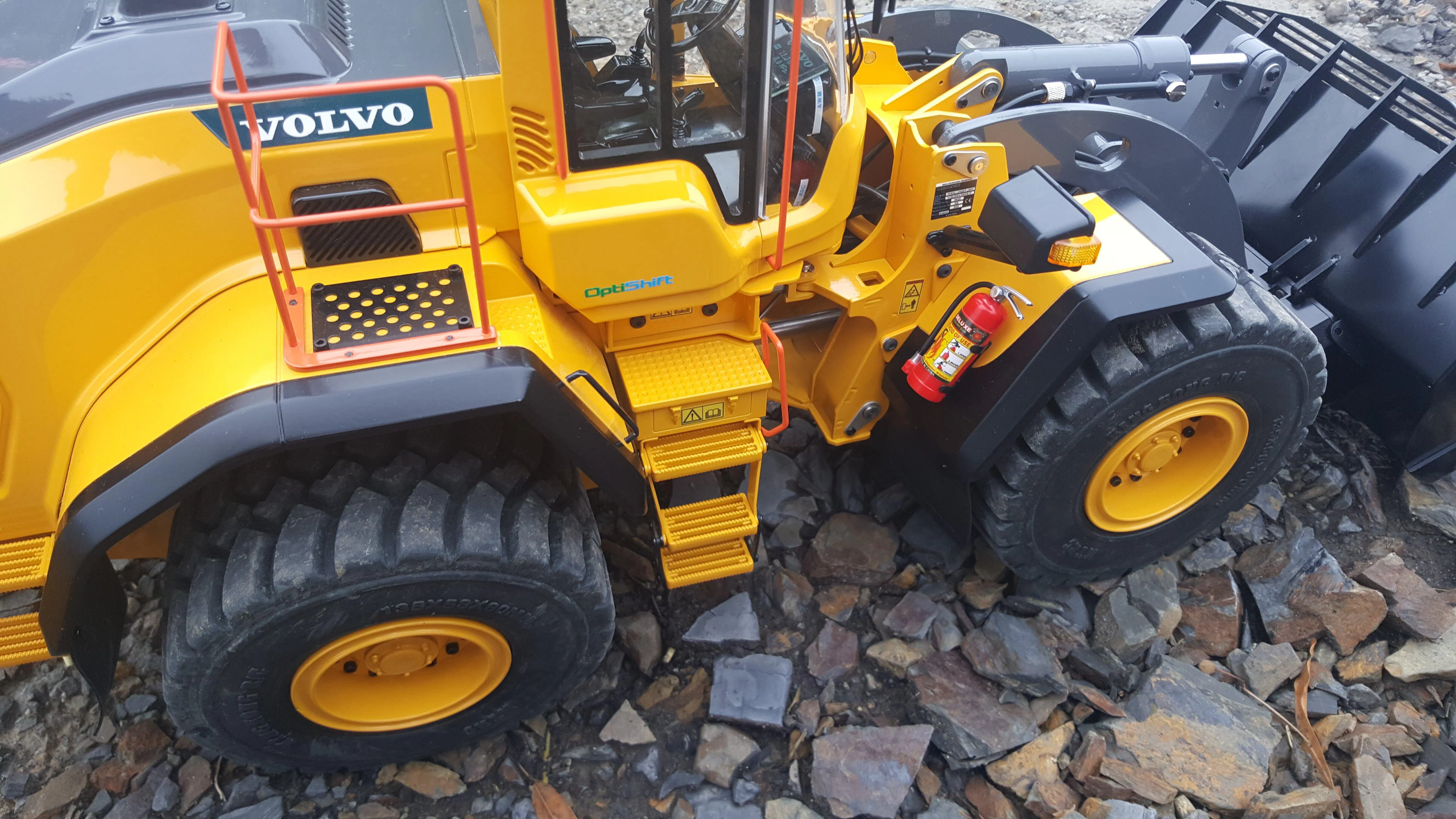

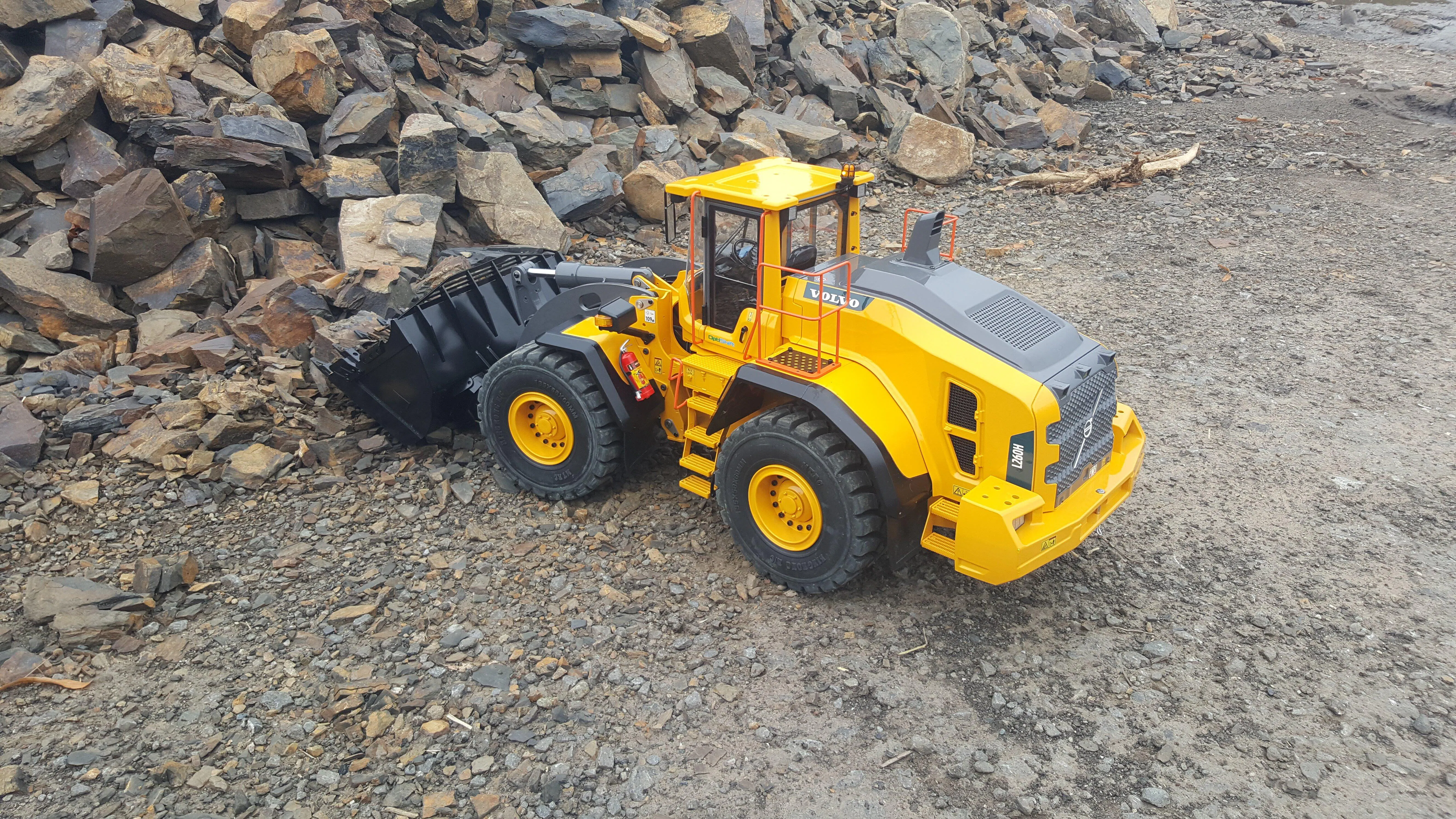

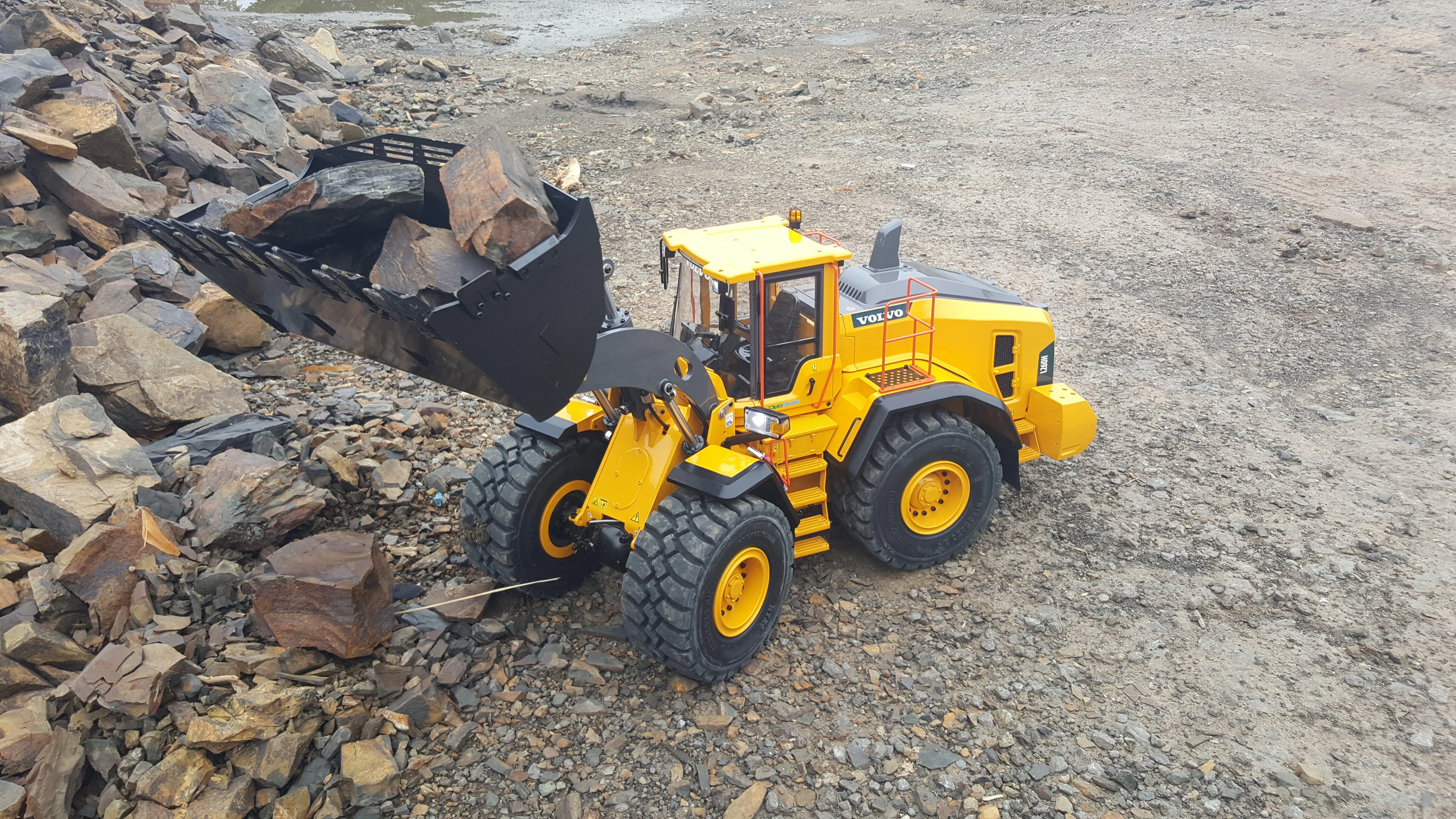

Buyer from Czech Republic. This is my second model from TH.
Order, delivery, packing:
- Order was easy to made, the price was final, including shipping, taxes.
- Loader was delivered fairly quickly, around 20 days.
- Unfortunately, even though it was nicely packed, the bucket scraped paint from the upper hydraulic cylinder.
- I was missing operation/maintenance manual with some basic information.
Functionality, playability:
- Control of model was explained on video.
- All functions are working perfectly and smooth.
- Switching of light modes is very confusing, and I just randomly switching SWC up and down until lights are not flashing.
Customer service:
- great, as usual, all issues were solved:
1) Kids broke warning light on the cabin - replacement part was sent.
2) Color for hydraulic cylinder was sent.
3) Broken mudflap - replacement part was sent.
4) Issue with beeping of pump - adjustment of settings in controller explained.
Details:
- The model is not 100% replica of Volvo L260H, some details are off, so it is like 95%.
- The are only basic decals (warning) and incorrect decals (VOVOL, E260L)
- The LCD panel inside shows correct brand - VOLVO
- Excellent and correct decals (full range of them, placement can be seen on photos): https://wuehlbox.com/en/wuehlbox-special/1272-decal-set-wheel-loader-mt-l260h-114.html
Additional info:
- Used oil: Dynamax Hydraulic oil OTHP 32 VG32, 1l
- Oil in tank: 60 ml
- Highly recommended is to have LiPo alarm for battery.
Current models from TH:
1) MD 6x6 Hydraulic Tipper/Dumper (Mercedes-Benz Arocs)
2) MTM Loader E260L (Volvo L260H)
