In Stock LESU Metal 1/14 RC Hydraulic Excavator Aoue ZX490 Remote Control Heavy Construction Digger Model Paladin PL18EV Lite Sound Smoke CNC

#90% Metal LESU 1/14 RC Hydraulic Excavator Aoue ZX490 RTR Remote Control 2Arms Heavy Digger Model PL18EV Lite Light Sound Smoke

#Specification:
Manufacturer: LESU
Scale: 1/14
Item Condition: New, Painted and Assembled
Material: 90% Metal, Plastic
Size: 859*263*257MM
Valve: 6CH
Product Weight: 18.4KG
Drive Motor: Brushless
Pump Motor: Brushless
Rotary Motor: Brushed
ID: LS-BA-B0026-UP1-RTR-OGGY

#The Package Includes:
1/14 RC Hydraulic Excavator Model
Metal Hydraulic Quick Release Coupler
Motor
Servo
ESC
Hydraulic System
Light System
Upgraded Sound System
Upgraded Smoke Unit
FlySky PL18EV Lite Remote Controller and Receiver
Battery
Charger

#The Package Does Not Include:
Hydraulic Oil
Smoke Oil

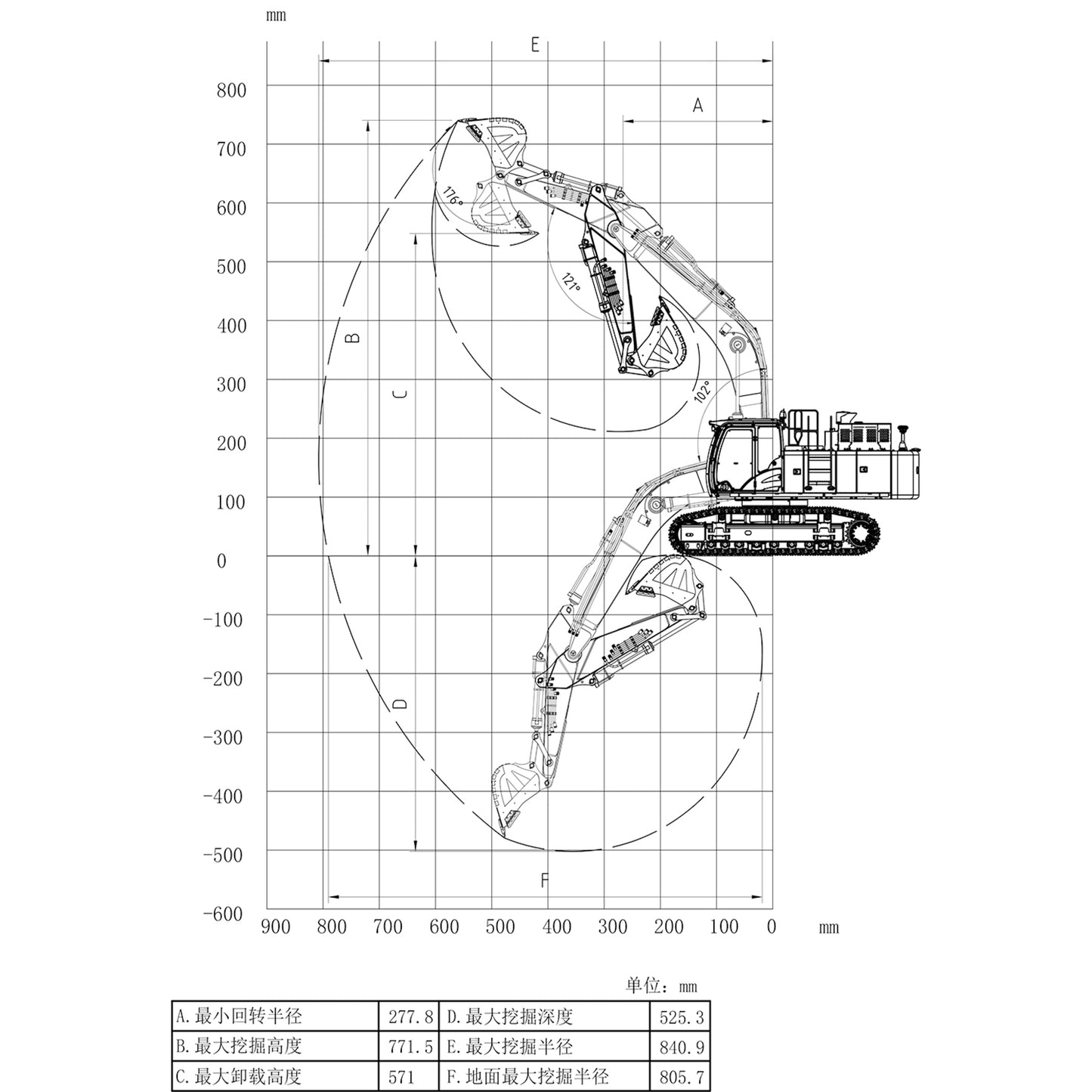

#Parameters:
Ground clearance from the top of the cab: 256.9 mm
Ground height of the bottom of the work: 100 mm
Total track length: 392mm
Wheelbase(drive wheel center base): 320 mm
Minimum swing radius: 277.8mm
Maximum digging height: 771.5 mm
Slewing speed: 12 r/min
Slewing drive reduction ratio: 1:208
Slewing motor speed: 2500 r/min
Maximum pressure of hydraulic workstation: 4 mpa
Rated pressure of hydraulic workstation: 3 mpa
Maximum unloading height: 571 mm
Maximum digging depth: 525.3 mm
Maximum digging radius: 840.9 mm
Maximum excavation radius of ground: 805.7 mm
Gauge: 187 mm
Track width: 43 mm
Total width of the excavator: 263
Traveling drive wheel speed: 25r/min
Travel drive reduction ratio: 1:520r/min
Traveling motor speed: 13200r/min
Number of reversing valve channels: 6
Height from the bottom of X rack to ground: 54.4mm

#Features:

1. Precision Hydraulic Performance
Equipped with a high-performance hydraulic system that delivers smooth, coordinated, and highly proportional arm movements. The realistic hydraulic operation provides precise control for digging, lifting, and grading, creating an authentic construction equipment experience.

2. Premium CNC Metal Construction
Designed with a modular structure for easy assembly and maintenance. Features extensive CNC-machined metal components, including a solid aluminum alloy boom, arm, and rear counterweight. With approximately 90% metal construction and 80% brass hydraulic tubing, this excavator offers outstanding durability and a highly realistic industrial appearance.

3. Advanced Hydraulic System & Quick Attachment Changes
Equipped with a 6-way hydraulic control valve, 3 hydraulic cylinders, and a reserved 3-way valve interface for future functional expansion. The independently designed hydraulic power station integrates the oil pump, brushless motor, radiator, oil tank, pressure gauge, filter, relief valve, and control valves into a clean, compact, and easy-to-maintain layout. Quick-release couplers and quick connectors allow fast, convenient attachment changes, improving efficiency and versatility during operation.

4. Immersive Scale Details & Realistic Effects
Features 9 functional opening access panels and doors for convenient maintenance and enhanced realism. The complete lighting system includes 7 bright LED lights, 3 warning beacons, and 2 simulated GPS antenna lights. An integrated sound system and realistic smoke unit recreate the sights and sounds of a full-size excavator, delivering a more immersive and true-to-scale operating experience.

5. Powerful All-Terrain Performance
Powered by a high-torque brushless drive motor with a planetary reduction gearbox for smooth operation, high efficiency, low heat generation, and excellent low-speed torque. The all-metal tracks and heavy-duty drive sprockets provide outstanding traction on dirt, sand, gravel, and other challenging terrain. A 6-channel slip ring enables continuous 360° turret rotation, delivering unrestricted operation and an even more realistic construction experience.
