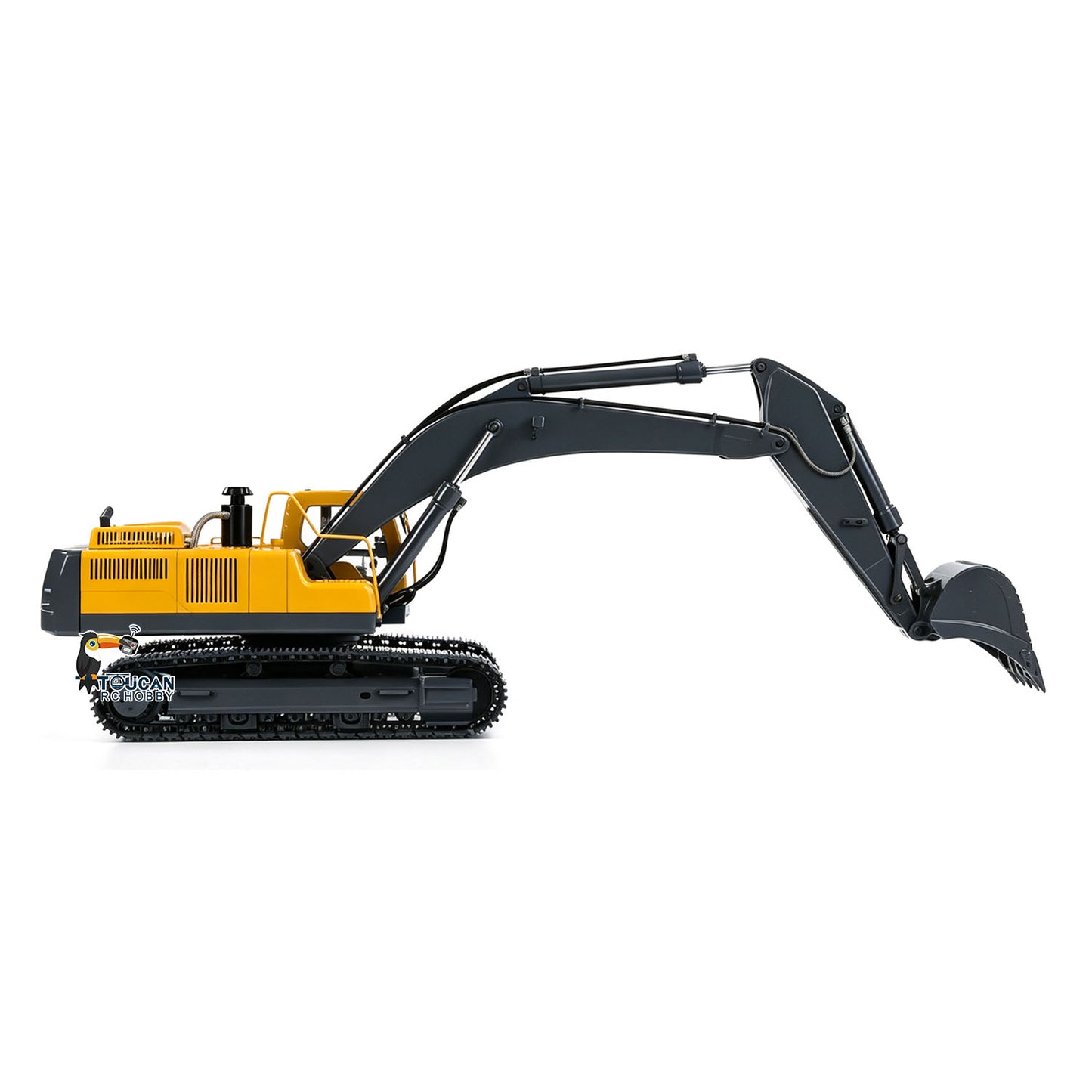

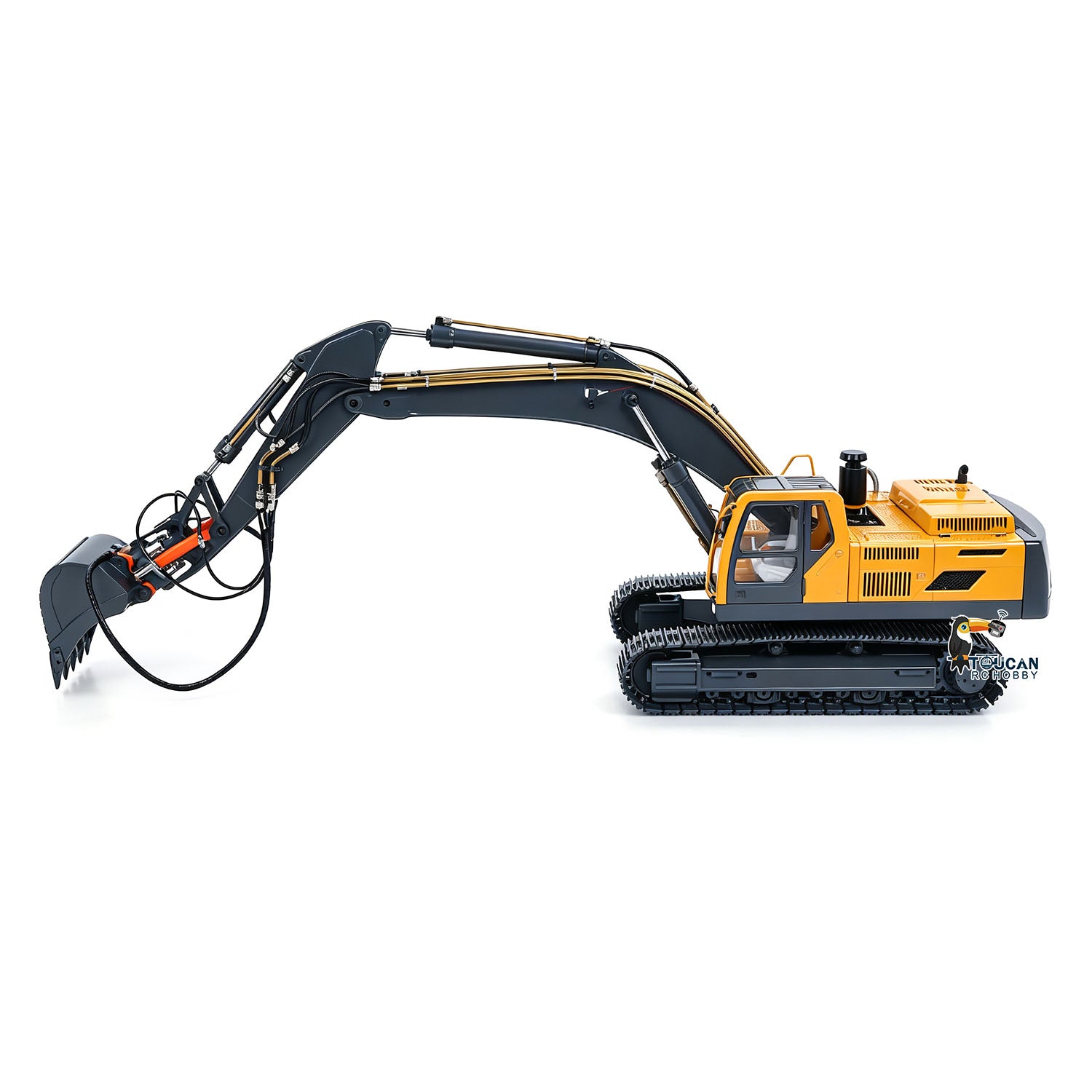

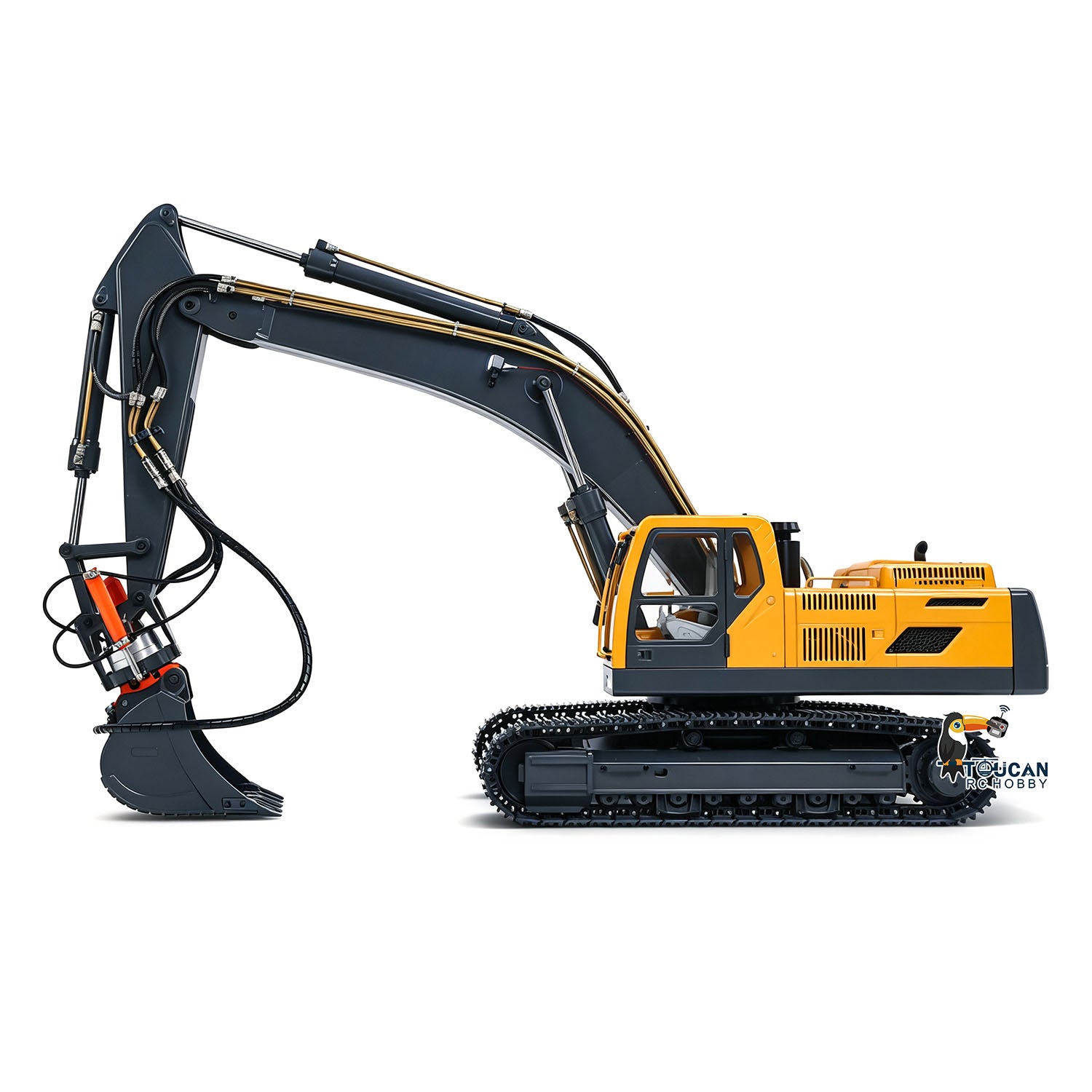

TOUCAN RC HOBBY JDModel V2 EC360 1/14 Metal RC Digger Radio Control 3CH/6CH Hydraulic Excavator Construction Vehicles Sound Light Module FlySky PL18 ESC Servo Motor

This video is for reference only.

#JDM V2 1/14 Metal RC Digger Radio Control 3CH/6CH Hydraulic Excavator Construction Vehicles Sound Light Module FlySky PL18 ESC Servo Motor

#Specification:
Brand: JDM Model
Item Condition: New, Assembled and Painted
Material: Metal, Plastic
Size: 827*246*260MM
Pump: Flow: 1.2l/min, Rated Pressure: 2.5MPa
Rising Power: 15KG
Lifting Power: 60KG
ID: JDM-106

#The Package Includes:
1/14 Hydraulic Excavator Model
Motor
ESC
Servo
Hydraulic System
FlySky Remote Controller and Receiver
Light System(Only the upgraded excavators have)
Sound System(Only the upgraded excavators have)

#The Package Doesn't Includes:
Hydraulic Oil
manual book.

Note: There are some attachments for optional upgrade, the package option is selected by yourself.
Battery
Charger

#Notices of Upgraded Version:
1. This is the upgraded version of the JDM 106 EC360 V2 excavator.
2. The oil pipes were upgraded from plastic oil pipes to brass oil pipes, and more oil pipes were added for the use of hydraulic claw and hydraulic shear.
3. The hydraulic quick-release coupler was added to this upgraded excavator, which makes it more convenient to replace the upgraded parts such as the bucket, ripper, claw, shear and so on.
4. One more 3-ways reversing valve was added to the excavator for the upgraded parts of the hydraulic quick-release coupler, hydraulic claw and hydraulic shear.
5. The remote controller was upgraded from FlySky I6S to FlySky PL18.
6. This upgraded version has the simulated sound and light system.

#Features of Upgraded Version:
1. 1:14 Metal Hydraulic Tracked Excavator
Designed in 1:14 scale, this RC excavator features a predominantly metal main structure, while the cab interior and a few decorative parts use plastic. The cab door and rear engine compartment cover can be opened to reveal interior details, making it suitable for RC construction model enthusiasts for operation, display and collection.

2. Full Brushless Power System
The travel drive, slewing system and hydraulic pump all use brushless motors for smooth power delivery and responsive operation. Independent tracked travel works together with upper-body slewing to provide a more realistic construction equipment operating experience.

3. 6-Channel Hydraulic Control System
Equipped with a 6-channel high-power hydraulic valve with neutral-position oil return. Three channels independently control the boom, arm and bucket, while the other three channels can be used for hydraulic attachments, offering more options for different RC construction scenarios.

4. 360 degrees Unlimited Slewing
The upper body supports continuous 360 degrees rotation, allowing the excavator to slew left and right without the limitation of a traditional fixed rotation range. Combined with independent tracked travel, it provides realistic simulated excavation, slewing and maneuvering operations.

5. Realistic Light & Sound System
Equipped with simulated lighting and sound effects, this excavator combines a metal structure, hydraulic movements, tracked travel and opening body details to enhance its mechanical appearance and operating experience. Ideal for RC construction scenes, display and collection.
