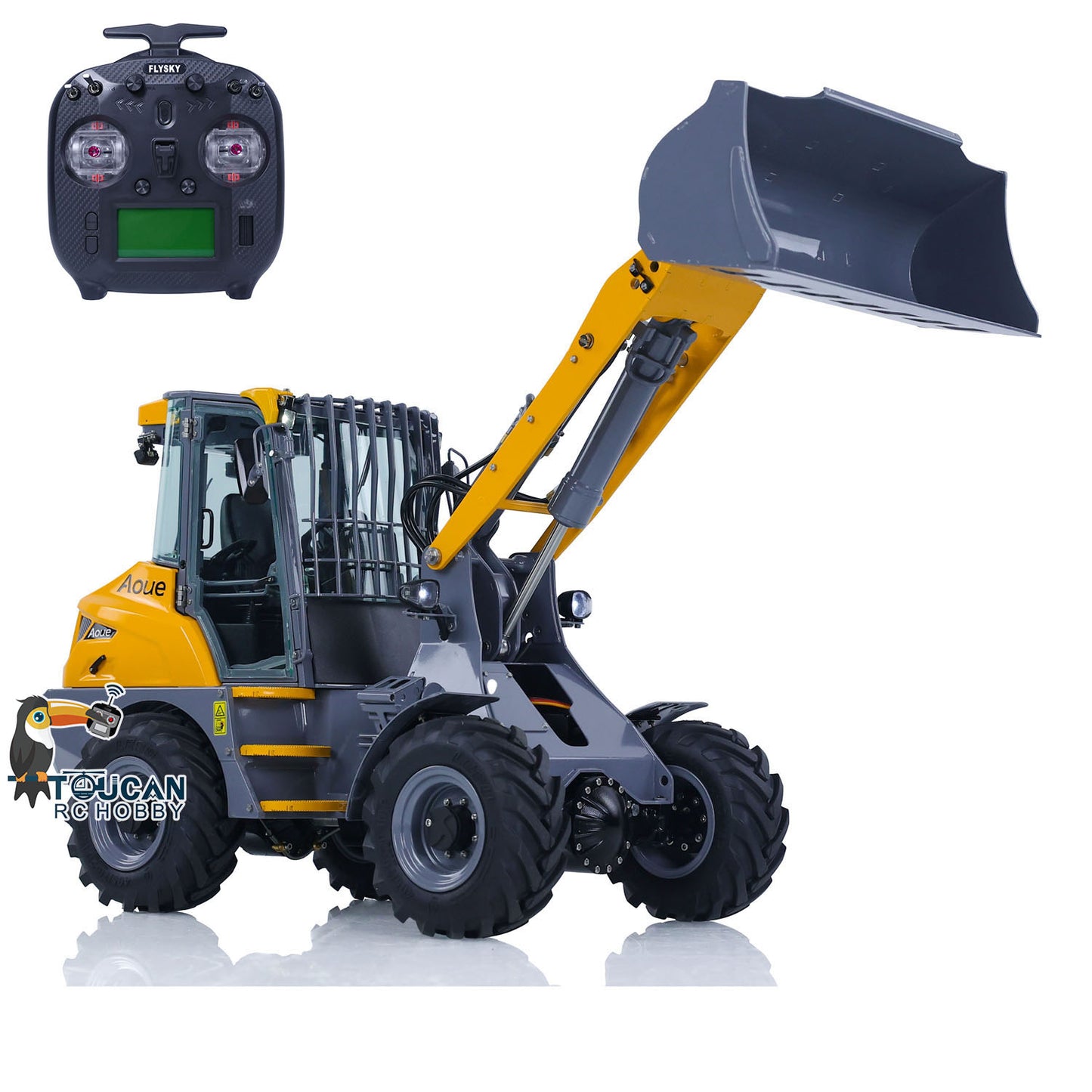

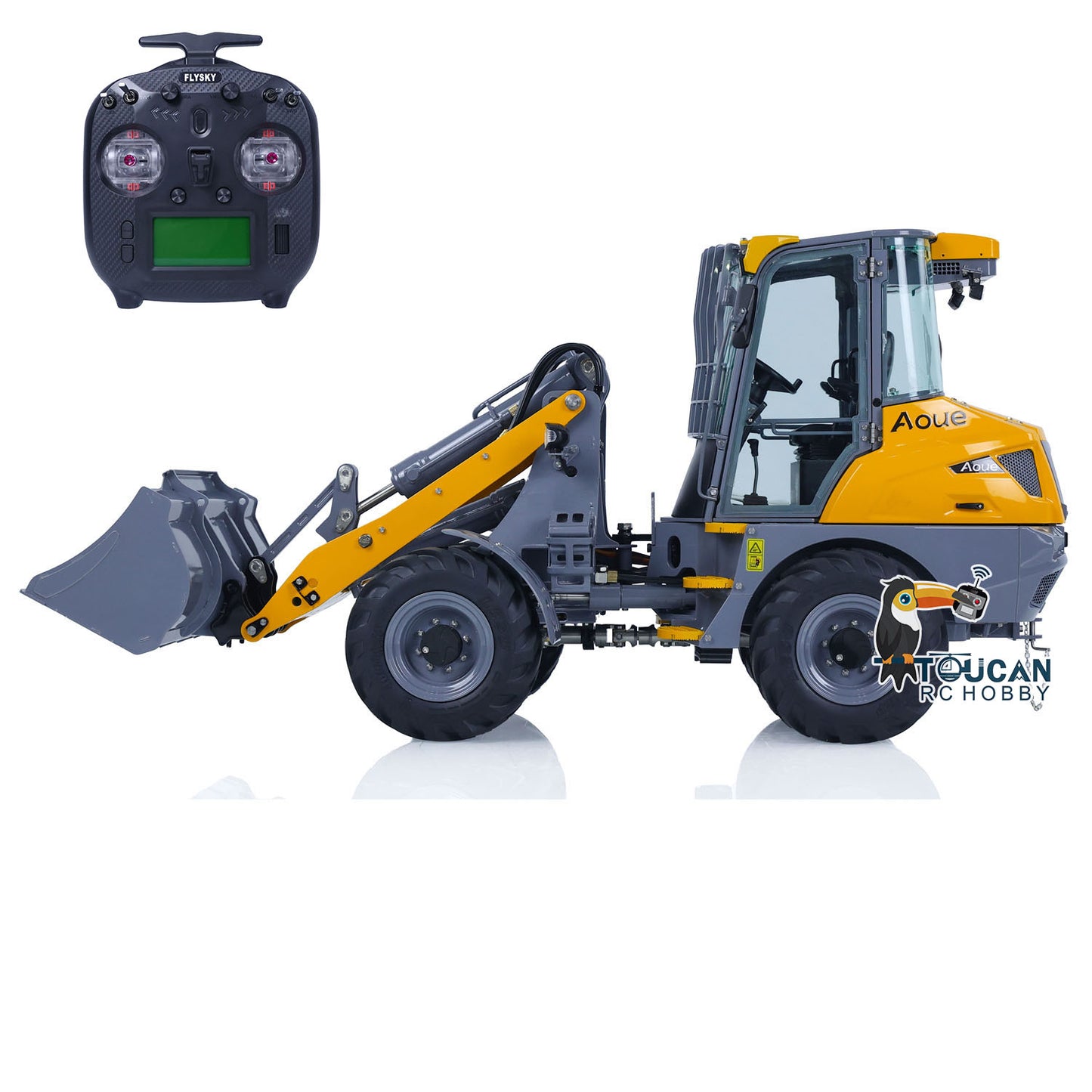

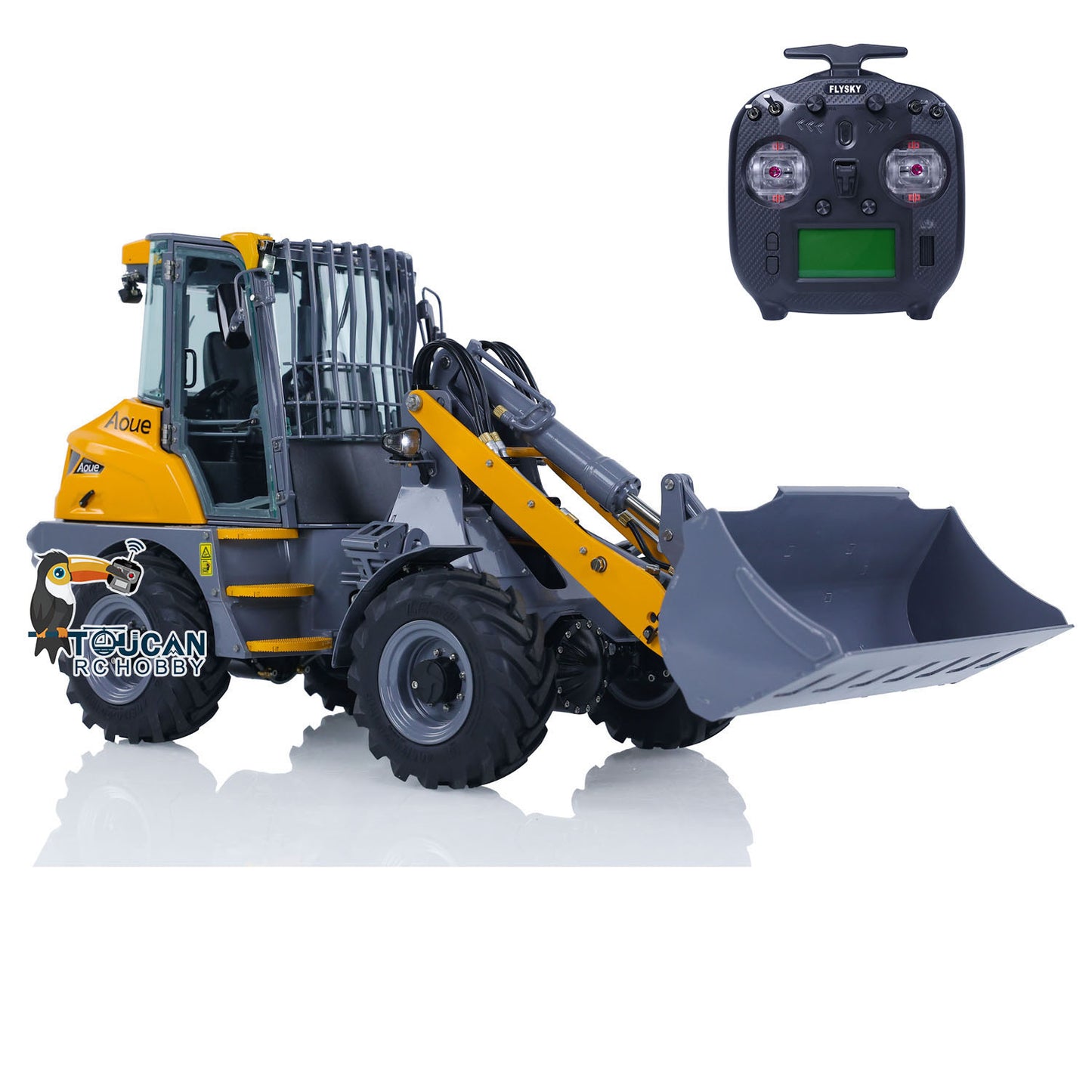

LESU MCL8 1/14 4*4 Wheeled RC Loader Remote Controlled Hydraulic Equipment Painted Assembled Car ST8 ESC Servo Motor
LESU MCL8 1/14 4*4 Wheeled RC Loader Remote Controlled Hydraulic Equipment Painted Assembled Car ST8 ESC Servo Motor
SKU:LS-RD-A0015-PNP-YGY-DZN1
Couldn't load pickup availability
Specification:
Manufacturer: LESU
Item Condition: New, Assembled and Painted.
Scale: 1/14
Vehicle Size: About 407*165*221mm
Net Weight: About 3.9KG
Material: Stainless Steel, Aluminum Alloy, Brass, Plastic
ID: LS-RD-A0015-PNP-YGY
The Package Includes:
1/14 AOUE-MCL8 RC Loader Model
ESC
Motor
Servo
Hydraulic System with 4-ways Reversing Valve
Light System
Sound System
FlySky ST8 Remote Controller and Receiver
The Package Does Not Include:
Battery
Charger
Hydraulic Oil
Technical Parameter
Wheelbase/mm: 161
Track gauge/mm: 135.1
Total length of loader/mm: 406. 7
Total length of bucket hinge pin/mm: 340. 3
Front wheel to bucket mounting hole length/mm: 68.3
Length from rear wheel to rear of vehicle body/mm: 95. 4
Height of the cab above the ground/mm: 221. 4
Workstation ground height/mm: 129. 6
Maximum unloading height/mm: 203
Maximum pressure of hydraulic workstation/mpa: 3
Rated pressure of hydraulic workstation/mpa: 2
Bottom height of bucket from ground/mm: 253. 3
Maximum height of hinge pin from the ground/mm: 277. 4
Maximum operating height/mm: 352. 5
Outer width of tire/mm: 164. 7
Transmission shaft ground clearance/rm: 33
Distance between shovel teeth and bucket linkage/m: 39. 5
Number of directional valve passes: 4
Number of hydraulic pumps: 1
Car shell material: Aluminum alloy + stainless steel
Features:
1. 4-wheel drive with a built-in differential lock in the rear axle for enhanced traction and stability.
2. Equipped with a towing hook at the rear of the vehicle for added functionality.

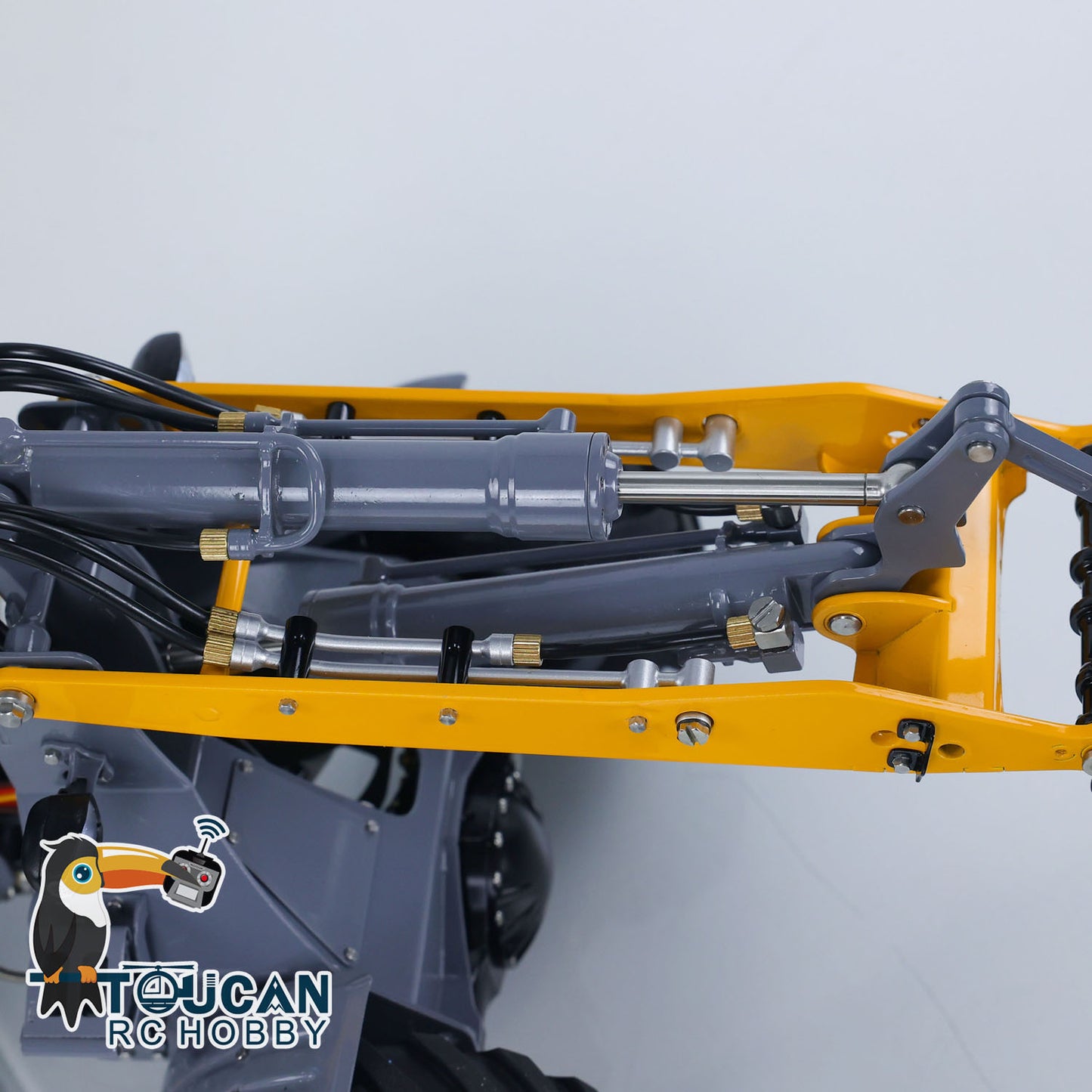

3. Precision hydraulic system ensures coordinated, smooth, and linear movements for realistic operation.

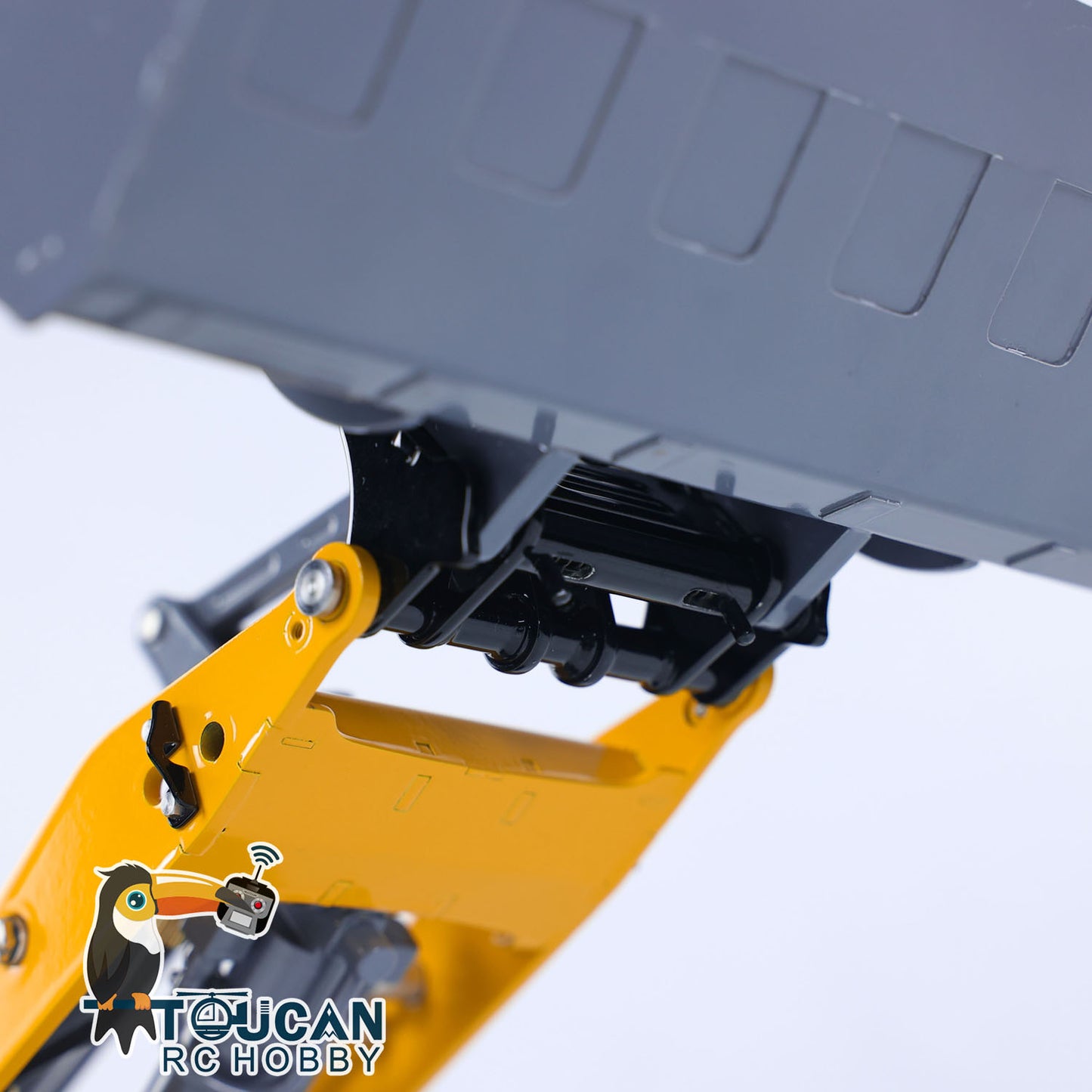

4. Hydraulic front bucket allows for more flexible and convenient loading and unloading operations.
5. Hydraulic steering with adjustable front wheel tilt angle provides precise control and a wide range of applications.
6. The driver's cab doors and rear tailgate can be opened, adding to the model's realism.
7. Features fully functional lights and simulation sound effects, enhancing the overall experience.
8. The loader model comes with a 4-channel directional valve.
