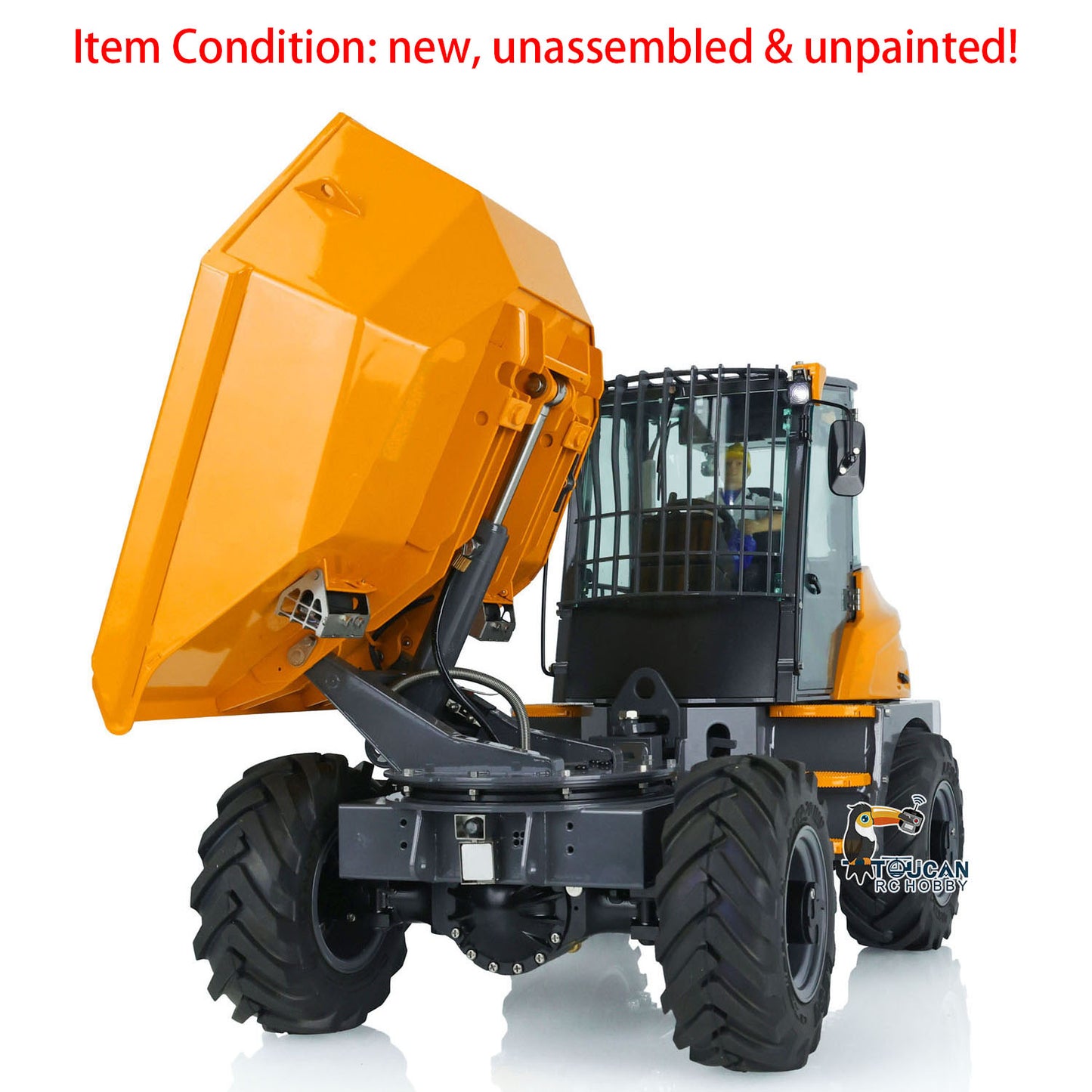

LESU 1/14 Metal Scale 4*4 AOUE 6MDX Unpainted and Unassembled Remote Control Hydraulic Articulated Dump Truck Servo ESC

Name: LESU 1/14 Metal Scale 4*4 AOUE 6MDX Unpainted and Unassembled Remote Control Hydraulic Articulated Dump Truck Servo ESC
Brand: LESU
SKU: LS-RD-A0011-AOUE-6MDX-KIT-QC-DZN1
Price: 1205.9 USD
Availability: InStock

SKU:LS-RD-A0011-AOUE-6MDX-KIT-QC-DZN1

$1,205.90 USD

~~$1,747.90 USD~~ $1,205.90 USD

Sale Sold out

Product variants

Quantity

Specification:
Brand: LESU
Product Condition: New, Unpainted and Unassembled.
Scale: 1/14
Material: Metal, Plastic
Model Net Weight: About 3.7KG
Model Size: 346.8*165.7*210.9mm
Model Speed: About 30m/min
Recommended Battery: 2S Li-po Battery, JST Plug
Size of Battery Compartment: 105*32*15mm
ID: LS-RD-A0011-AOUE-6MDX-KIT

The Package Includes:
1/14 Unpainted and Unassembled Metal Dumper
Motor
ESC
Servo
Hydraulic System
Light System
Sound System

The package does not include:
Remote Controller and Receiver
Battery
Charger
Hydraulic Oil

Features£º
1. All metal differential locking axle, hydraulic system of two-way reversing valve, all metal car body, high-quality rubber climbing tire cover, equipped with sound system and light system.
2. About the hydraulic system: rated flow 100 ml/min, rated pressure 3 mpa.
3. About the electronic equipment: 320A brush ESC for walking, 30A brush ESC for body rotation, 20A brushless ESC for hydraulic pump.
4: The joint position adopts a three-point articulated structure.

Steering radius: 25cm
Maximum steering angle: 25 ¡ã
Bucket rotation angle: 180 ¡ã

If you have any questions or are not sure whether it is the correct item that you want, pls feel free to ask me before purchase.
