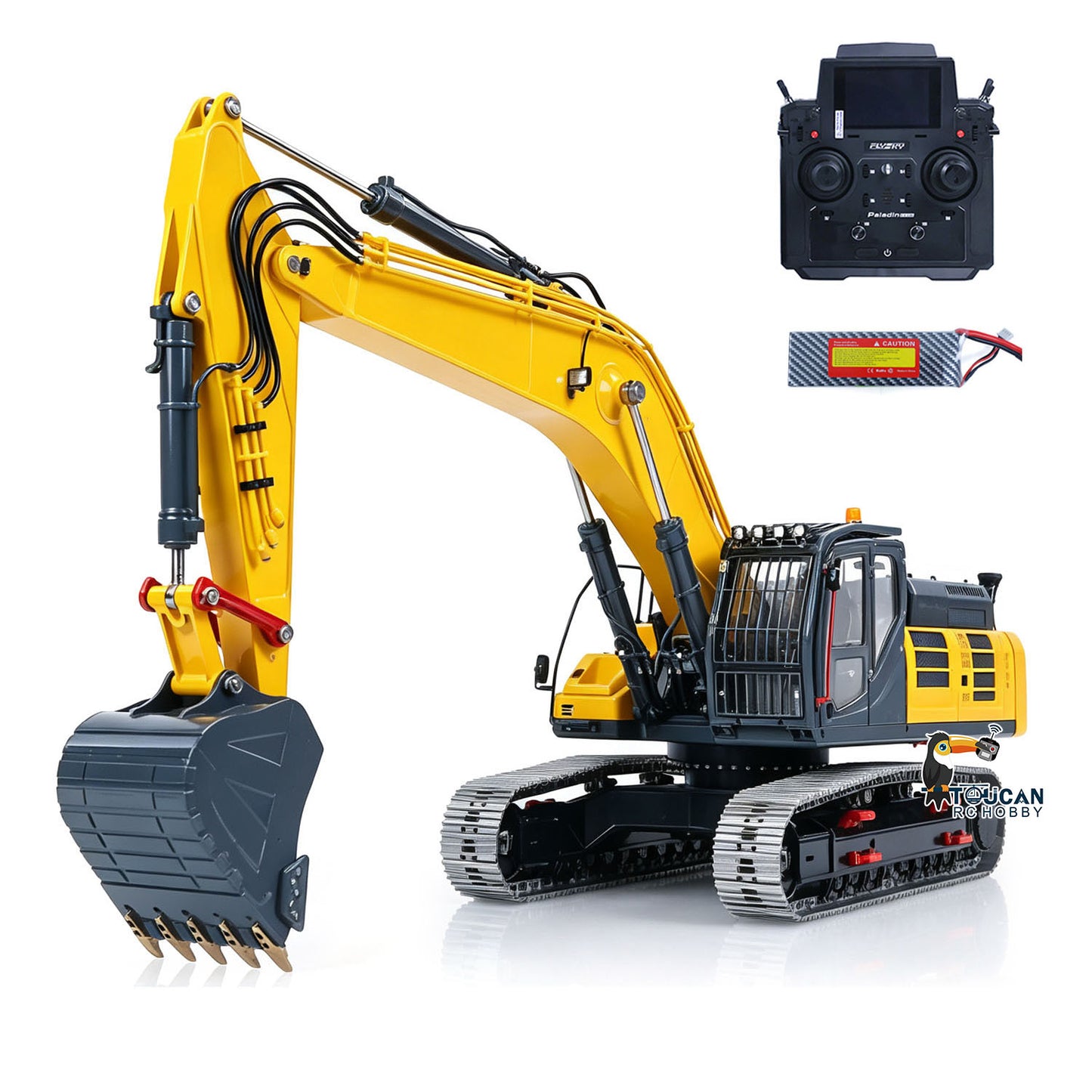

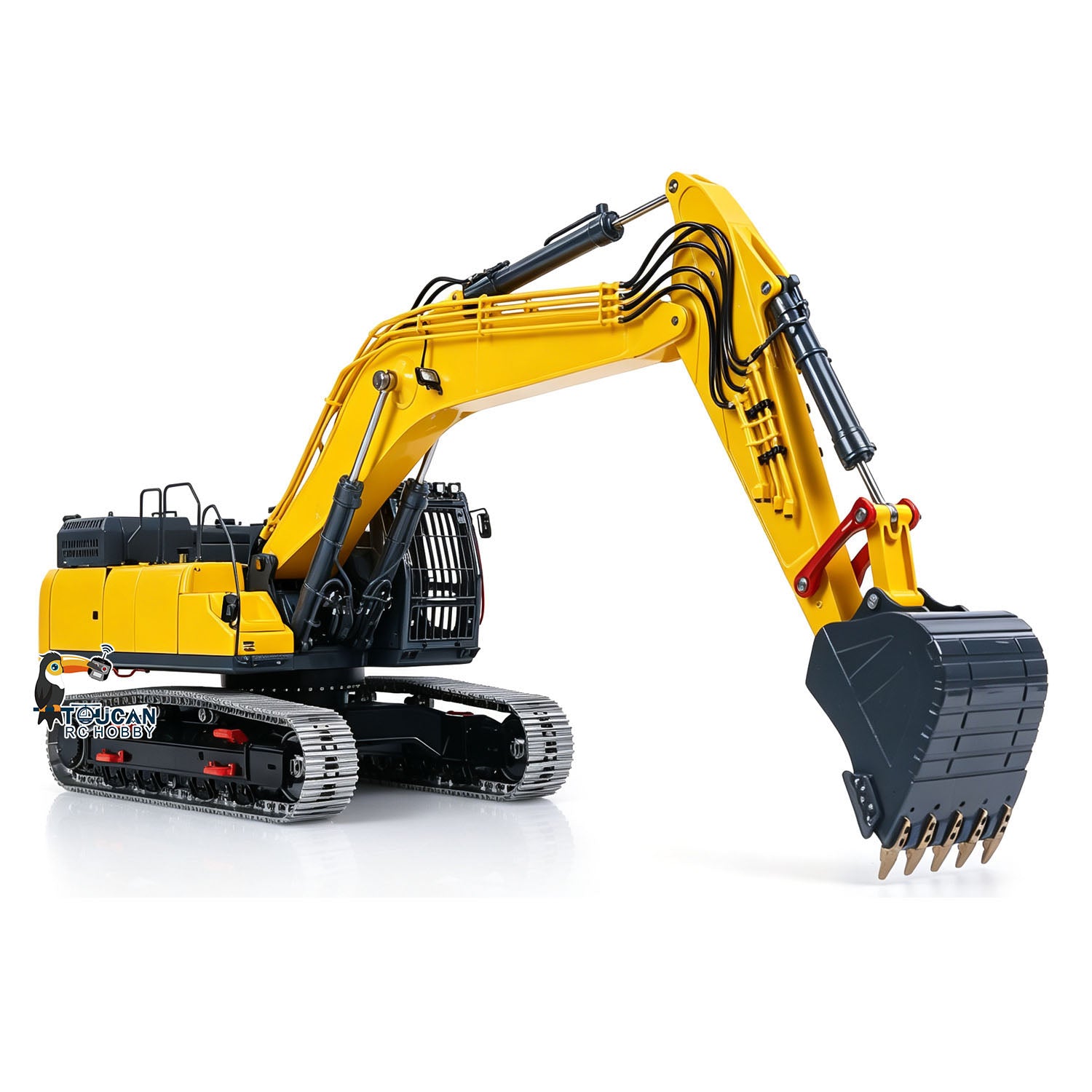

Metal LESU 1/14 Remote Control Hydraulic Tracked Excavator SK500 RC Digger 6CH Valve 3MAP Pump Brass Relief Valve Light System

#Metal LESU 1/14 Remote Control Hydraulic Tracked Excavator SK500 RC Digger 6CH Valve 3MAP Pump Brass Relief Valve Light System

#Specification:
Brand: LESU
Item Condition: New, Painted and Assembled
Scale: 1/14
Material: Metal, Plastic
Product Size£º580*443*255MM/22.8*17.4*10.0Inches
Net Weight/KG: 18.6
Wheelbase/mm£º316
Vehicle Battery: 3S Li-Po (Not Included)
Valve: 6-Way
Rated Pressure: 3Mpa
ID: LS-BA-B0018-MTrack-PNP-YGY

#The Package Includes:
1/14 RC Hydraulic Excavator Model £¨The tracks are metallic color)
Motor
Servo
ESC
Hydraulic System
Light System

#The Package Does Not Include:
Sound System
Remote Controller and Receiver
Charger
Hydraulic Oil

#There are some attachments for optional upgrade, the package option is selected by yourself:
PL18EVLite Radio System
Battery

#Technical Specifications:
Cab Top Height from Ground/mm: 251.9
Maximum Unloading Height/mm: 537.7
Height of Working Platform Bottom from Ground/mm: 96
Maximum Digging Depth/mm: 549.9
Total Length of Tracks/mm: 390.5
Maximum Digging Radius/mm: 853
Distance between Center of Drive Wheel and Guide Wheel on Track/mm: 316
Maximum Ground Digging Radius/mm: 534.5
Bottom Height of X Frame from Ground/mm: 37.9
Track Gauge/mm: 196
Minimum Swing Radius/mm: 320.9
Track Width/mm: 43
Maximum Digging Height/mm: 751.1
Overall Width of Excavator/mm: 256
Rotation Speed (r/min): 10
Travel Drive Wheel Speed (r/min): 42
Rotation Drive Reduction Ratio: 1:20
Travel Drive Reduction Ratio: 1:370
Rotation Motor Speed (r/min): 1500
Travel Motor Speed (r/min): 1400
Maximum Pressure of Hydraulic Workstation/MPa: 4
Number of Shifts for Reversing Valve: 6
Rated Pressure of Hydraulic Workstation/MPa: 3
Number of Hydraulic Pumps: 1

#Features:
1. The entire body is manufactured with CNC precision machining, stainless steel laser welding and other processes, with 95% metal material for the body shell.
2. This excavator is equipped with a 6-way high-precision metal directional control valve, 3 of which are reserved oil circuits for upgraded attachments; it is also paired with a powerful hydraulic oil pump with a rated pressure of 3MPA. The new metal hydraulic relief valve ensures safer operation of the excavator.

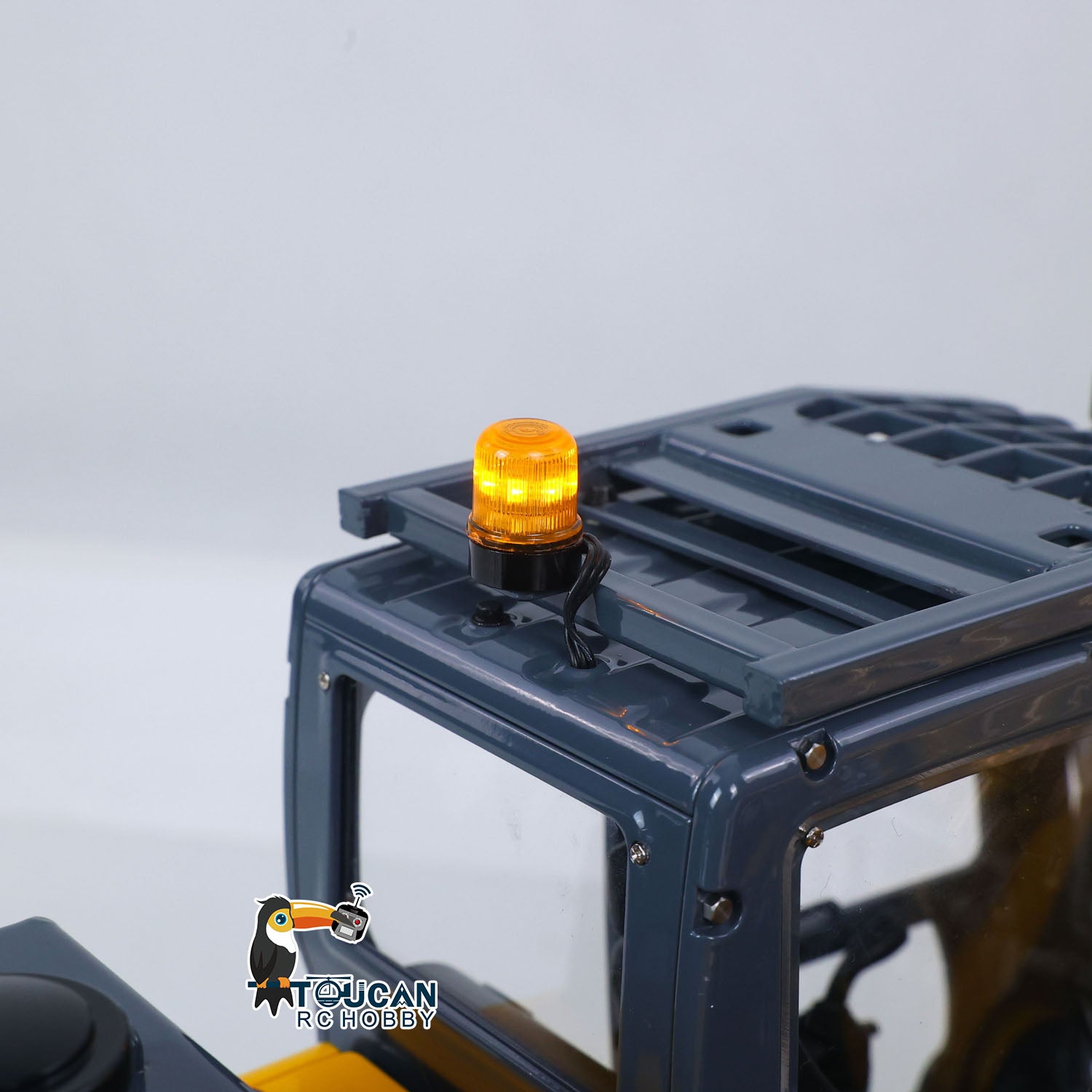

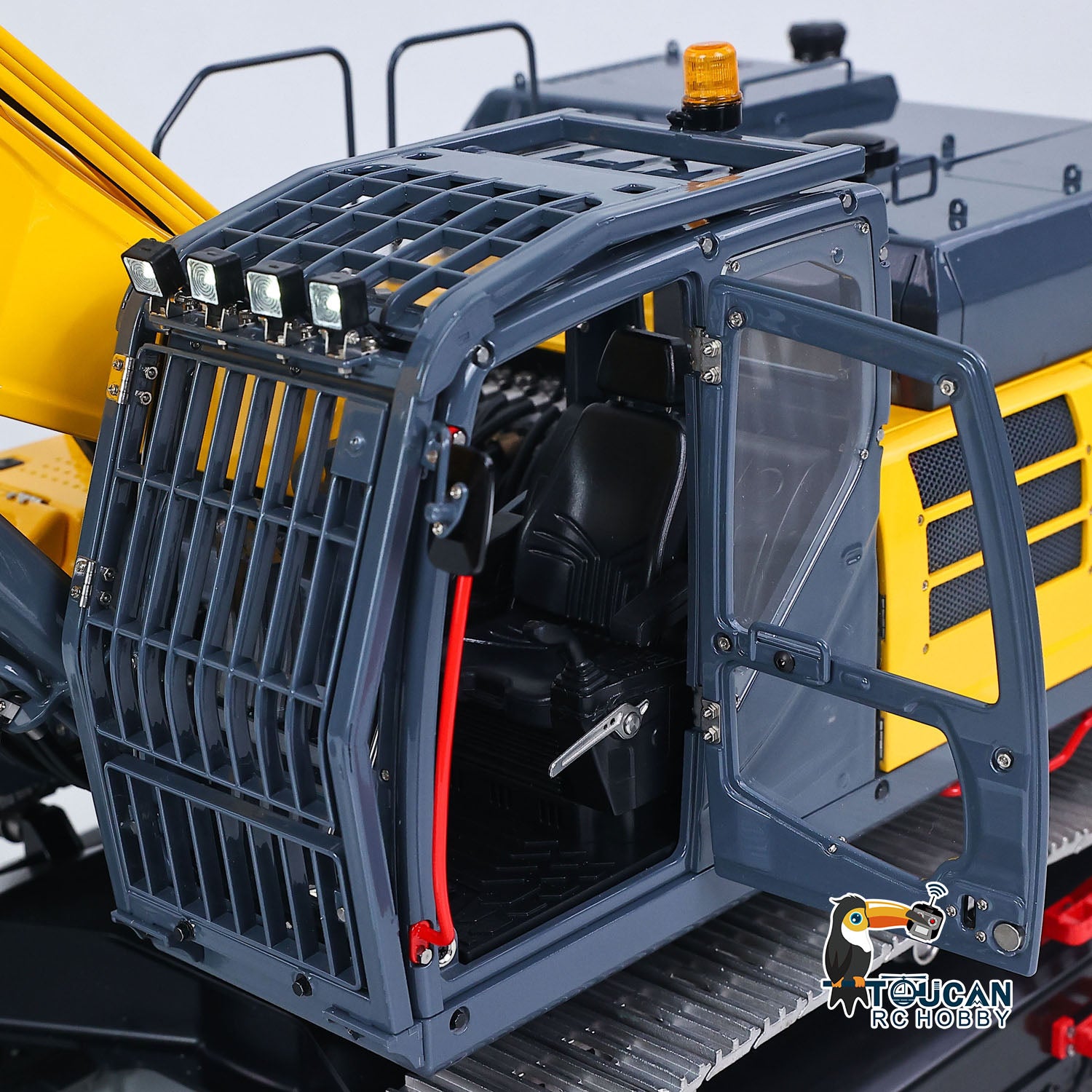

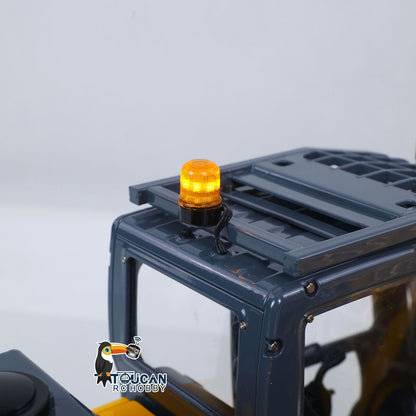

3. Equipped with a lighting system including spotlights and warning lights, simulating night working mode; Contact us for upgrades of sound module and smoke generator.
4. The cab is fitted with a simulated electronic display for real-time voltage monitoring, plus a one-click switch lever for effortless operation.

#If you have any questions or are not sure whether it is the correct item you want, pls feel free to contact me before purchasing.
