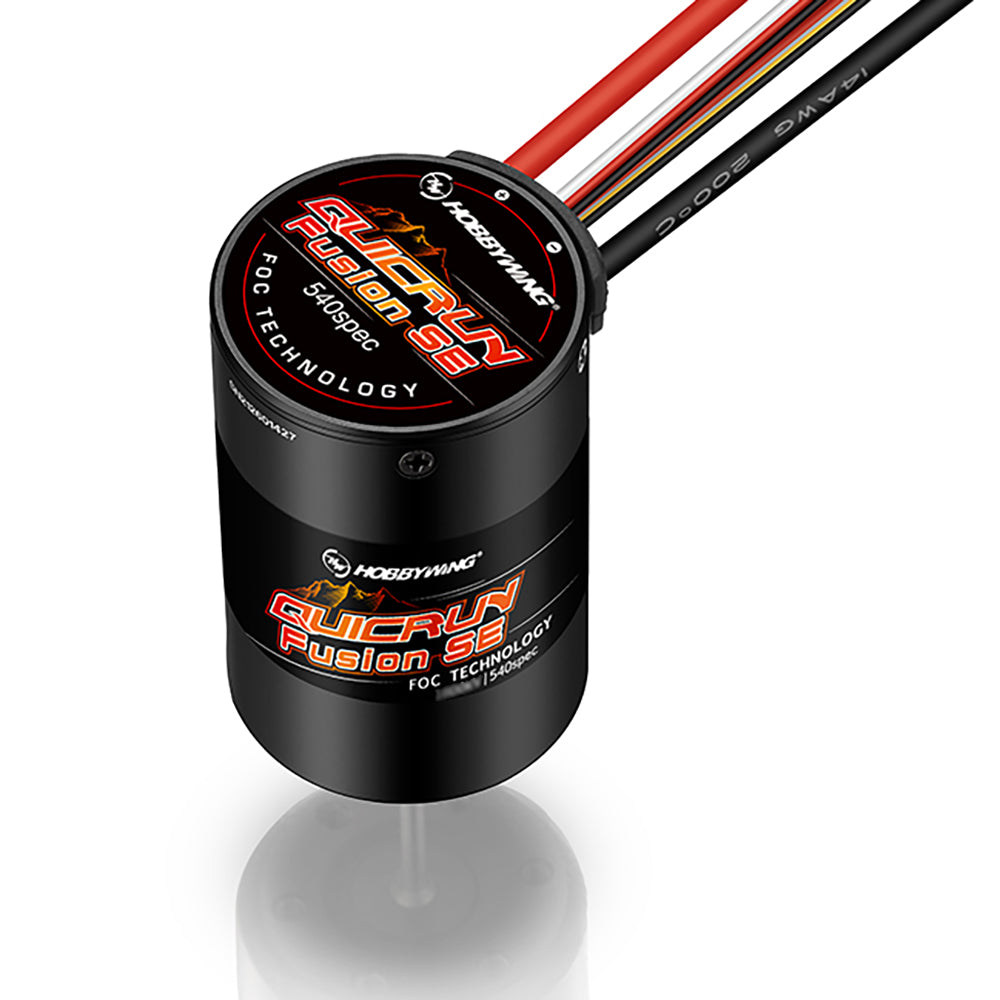

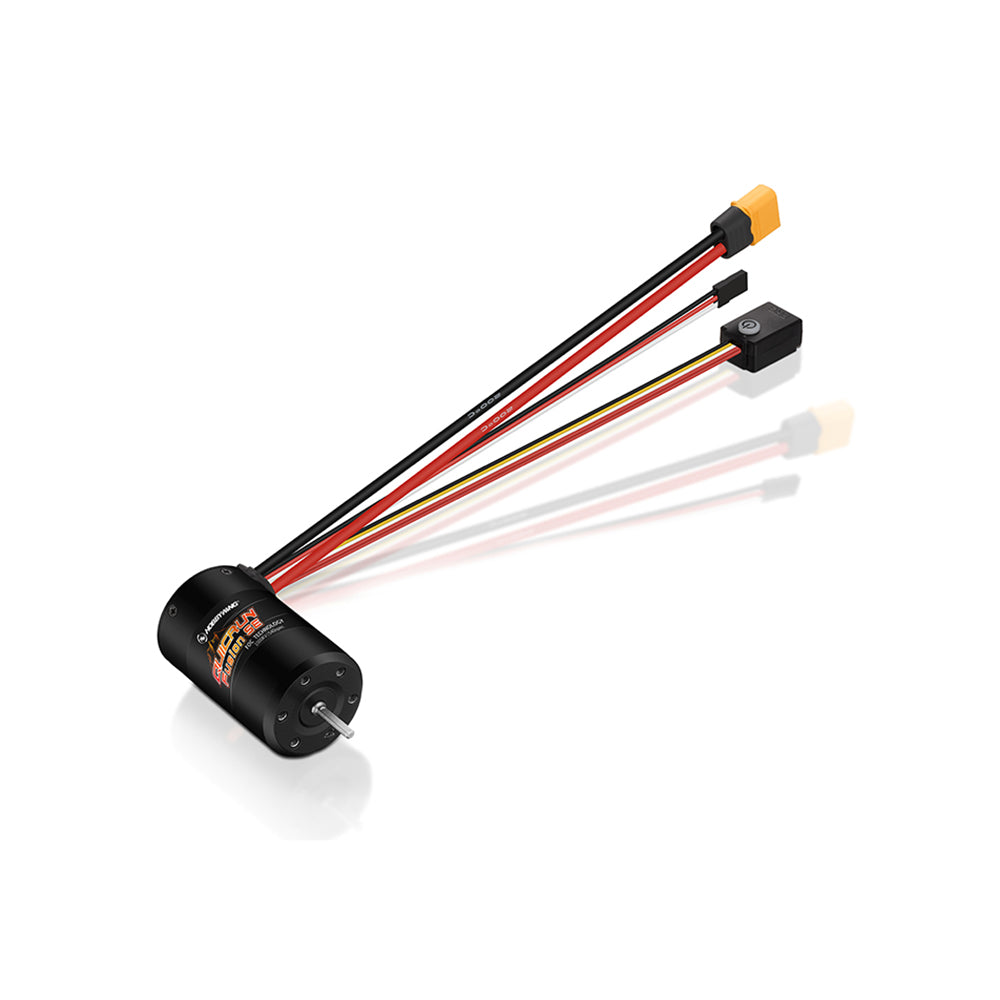

Hobbywing 2 in 1 Motor ESC Brushless 1200KV for 1/10 RC Crawler Car 1/14 Radio Control Truck Construction Vehicle DIY Parts

Hobbywing 2 in 1 Motor ESC Brushless 1200KV for 1/10 RC Crawler Car 1/14 Radio Control Truck Construction Vehicle DIY Parts

Hobbywing

SKU:HW-FusionSE-Motor-ESC-Brushless-1200KV-CX-DZN1

Regular price $67.90 USD
Regular price $82.90 USD Sale price $67.90 USD
Sale Sold out
Shipping calculated at checkout.

Specification:
Manufacturer: Hobbywing
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: Waterproof
Cont./Peak Current: 40A
Input Voltage: 2-3S Lipo/6-9 Cell NiMH
BEC Output: 6V/7.4V@4A.6A peak (Note: 7.4V voltage can be output only when using 3S Lipo)
Motor KV: 1200/1800KV (Options)
Diameter/length of Motor: 36mm / 58.mm
Shaft diameter / exposed shaft length: 3.175mm / 16 5mm
Motor Poles: 4
Input Wires: Red-14AWG- 200mm*1 / Black-14AWG 200mm*1
Input Connectors: XT60
SET Button on ESC: Not Supported
LED Program Box: Supported
LCD Program Box: Not Supported
OTA Programmer: Not Supported
Program Port: Independent programming interface(switch position)
Firmware Upgrade: Not Supported
Size: 36X58.1mm
Weight: 201g (including wires&connectors)
Suitable for: 1/10 RC Crawler Car 1/12 1/14 Remote Control Truck Model
ID: HW-FusionSE-Motor-ESC-Brushless-1200KV

This Package includes:
1PC 2 in 1 Brushless Motor ESC System

If you have any questions or are not sure whether it is the correct item you want, pls feel free to contact me before purchasing.
