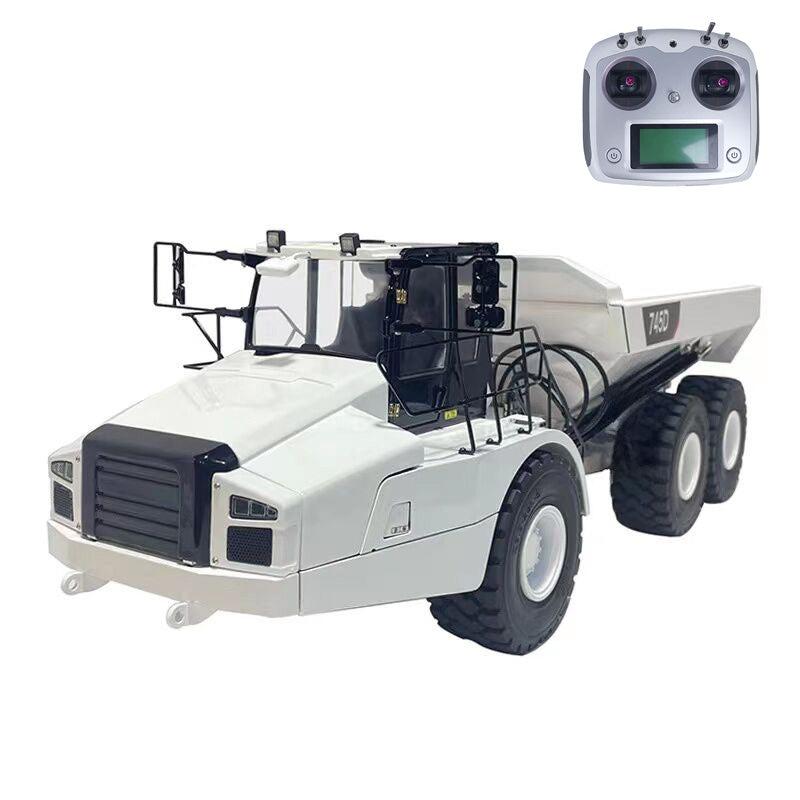

1/14 Radio Controlled Articulated DIM K745 6*6 Almost Ready To Run 2.4Ghz Metal Hydraulic Truck Pump Valve Cylinder Sound Light

1/14 Radio Controlled Articulated DIM K745 6*6 Almost Ready To Run 2.4Ghz Metal Hydraulic Truck Pump Valve Cylinder Sound Light

JZM

SKU:JZM-DIM-K745-Y-CX-DZN1

Regular price $2,455.90 USD
Regular price $2,589.90 USD Sale price $2,455.90 USD
Sale Sold out



Specification:
Item Condition: New, Assembled And Painted
Scale: 1/14
Material: Metal, Plastic
Color: Yellow/White
Size: 838*279*284MM
Weight: 20KG
Package Weight: 27KG
Walking: 137mm Rubber Tires
Hydraulic Pump: 5055 Or 5065 Brushless Motor + Italian Pump Head (Factory 3.5mpa)
Hydraulic Valve: Two-Way Valve With Neutral Return
Hydraulic Cylinder: Stainless Steel And Brass
Width Of The Outer Edge Of The Rearview Mirror: 279Mm
Maximum Driving Force 20KG
Theoretical Maximum Lifting Force 20KG
Recommend Battery: 12V 3S 5200mAh Lithium Battery (Battery Connector Is Xt60)(Not Included)

The Package Includes:
1/14 Assembled RC Hydraulic Articulated Truck Model
Remote Control
ESC
Servo
Motor
Light System
Sound System

The package does not includes:
Battery
Charger
Cabin Decorative Seat
Steering Wheel

Main Feature??????oo
Steering Form: Articulated Hydraulic Steering
Minimum Ground Clearance Of Chassis 45 (MM)
Hydraulic Pump: Flow 1.2L/Min, Rated Pressure 3.5Mpa (The Hydraulic System Uses No. 46 Hydraulic Oil By Default)
Reversing Valve: 2-Way Center Oil Return Reversing Valve
Transmission System: Brushed Two-Speed Gearbox + Metal Lockless Axle.
Walking Esc: 60A Brushed Esc
Main Pump Esc: 60A Brushless Esc
