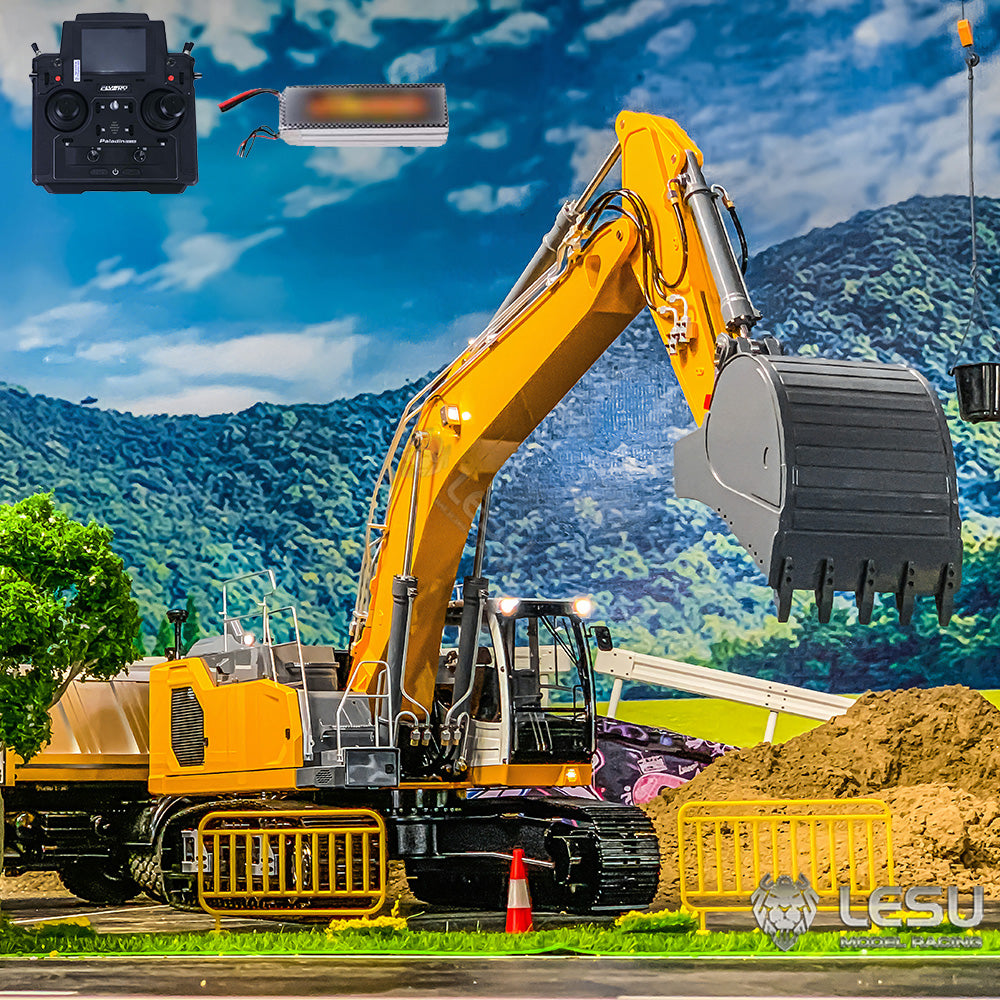

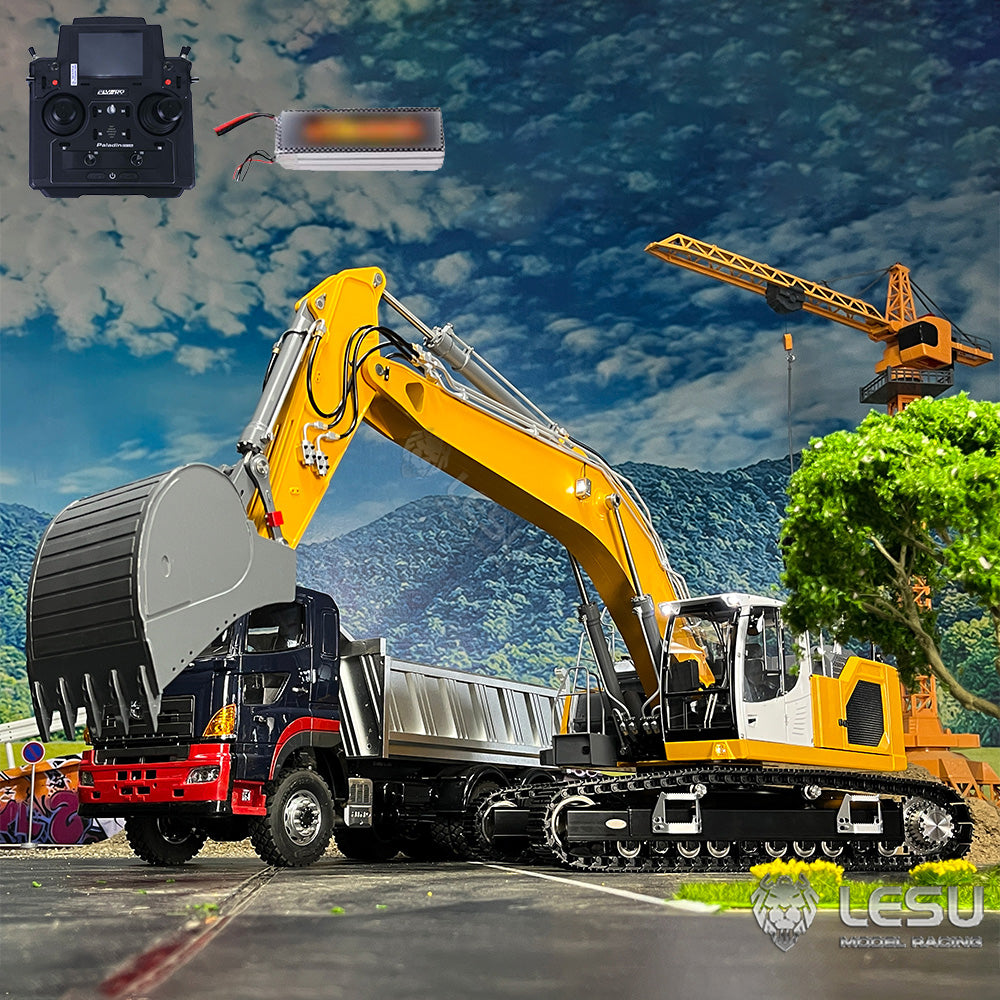

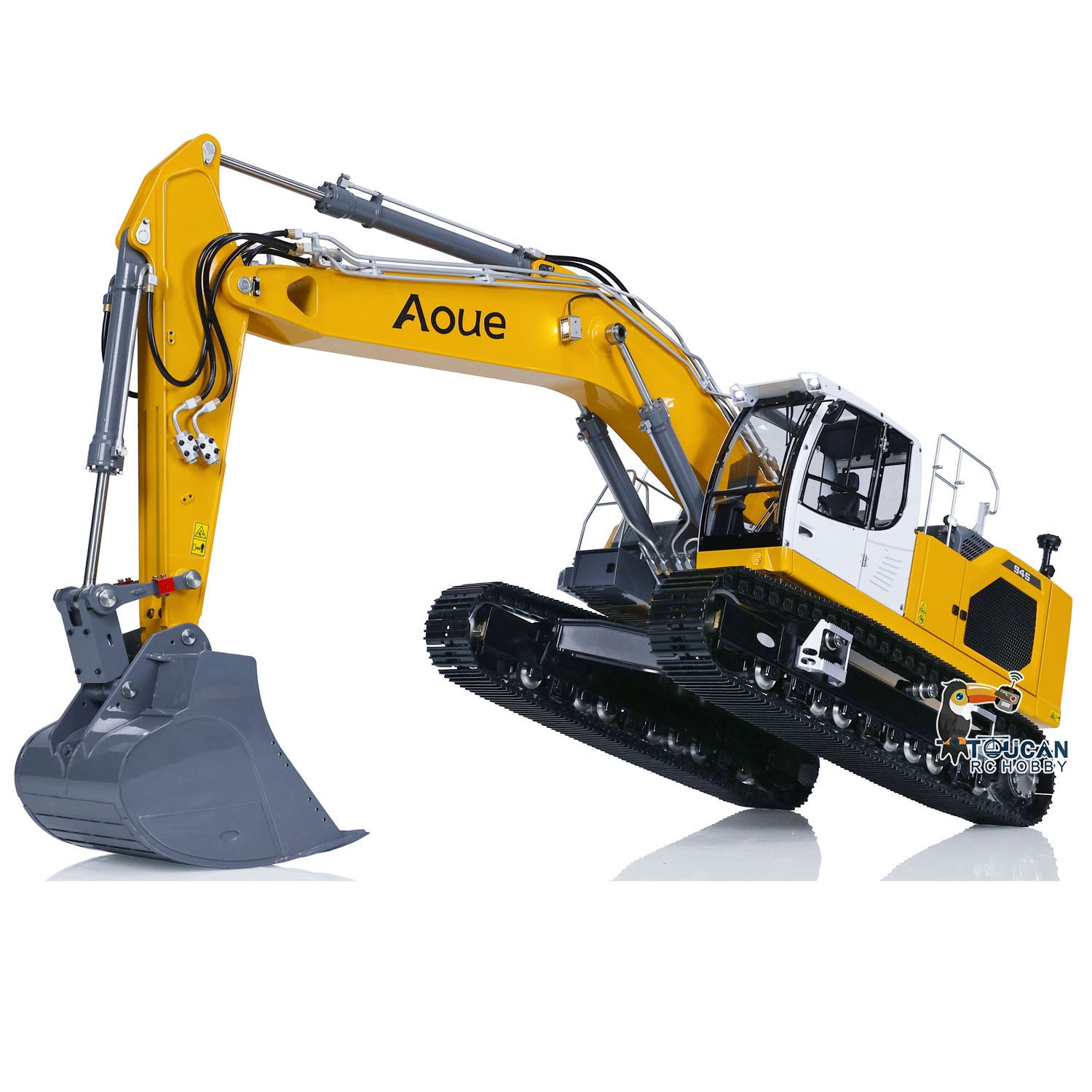

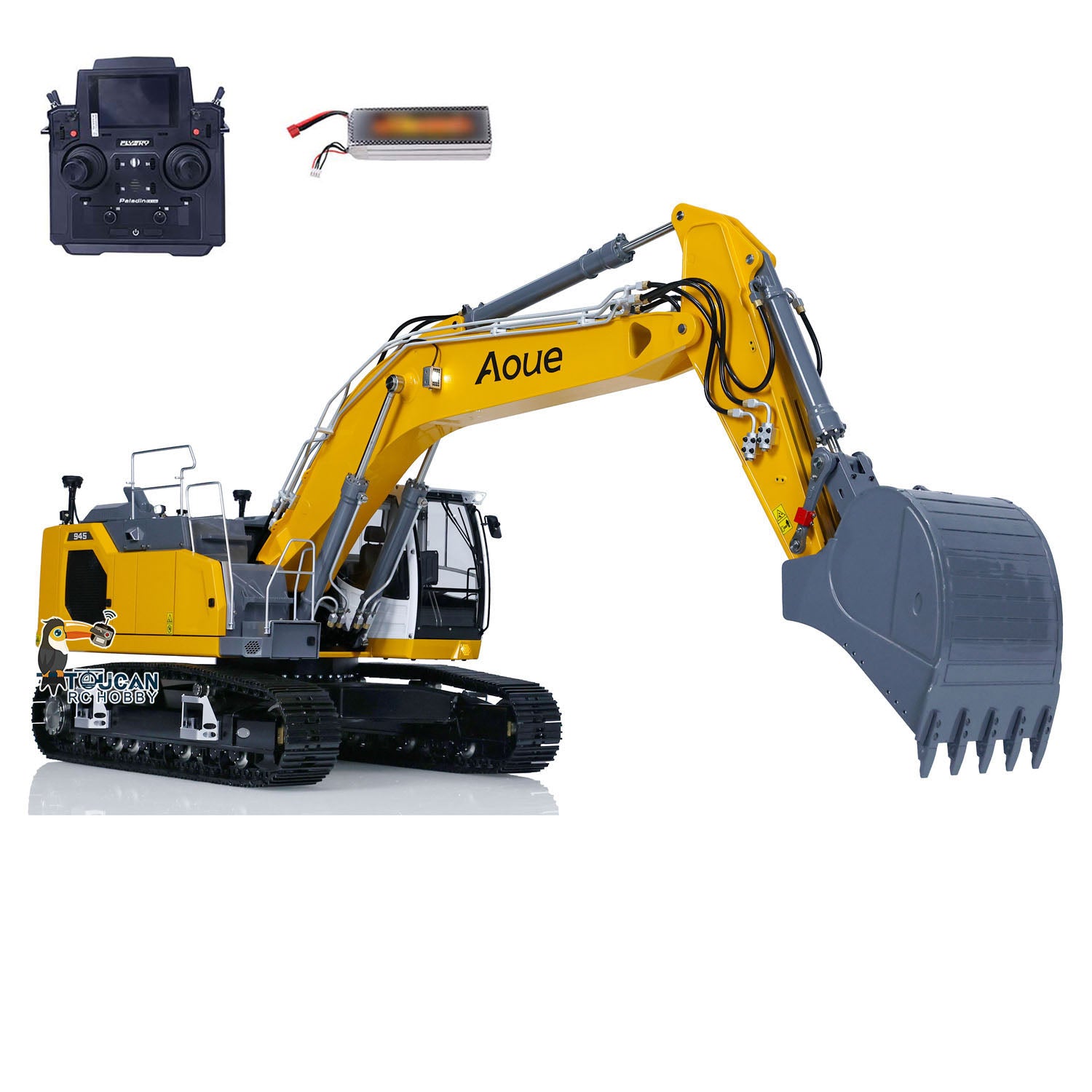

LESU 1/14 Metal Painted RC HydraulicExcavator LR945 PL18EV Lite RTR Remote Controlled Engineering Construction Vehicle
LESU 1/14 Metal Painted RC HydraulicExcavator LR945 PL18EV Lite RTR Remote Controlled Engineering Construction Vehicle
SKU:LS-BA-B0016-RTR-Y-DZN1
Couldn't load pickup availability
Specification:
Manufacturer: LESU
Item Condition: New, Painted and Assembled
Material: Metal, Plastic
Size: 795*268*257mm
Wheelbase: 215mm
Product Weight: 18.2KG
ID: LS-BA-B0016-RTR-Y

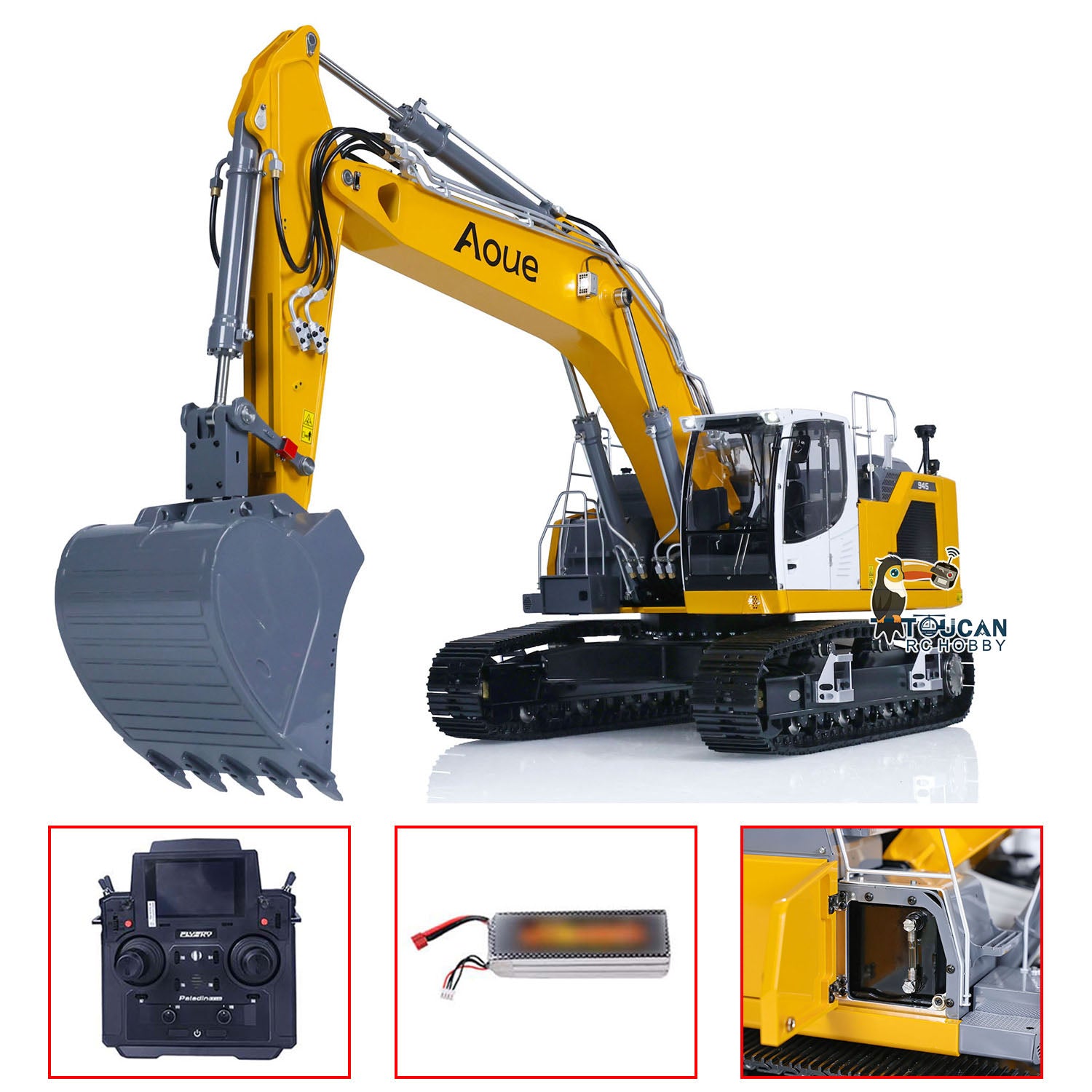

The Package Includes:
1/14 RC Hydraulic Excavator Model
Motor
Servo
ESC
Hydraulic System
Light System
There are some attachments for optional upgrade, the package option is selected by yourself.
Battery
RC Controller and Receiver
The Package Does Not Include:
Sound System
Charger
Hydraulic Oil
Parameters:
Ground clearance from the top of the cab: 228.2 mm
Ground height of the bottom of the work: 87.8 mm
Total track length: 382.9 mm
Wheelbase(drive wheel center base): 215.1 mm
Minimum swing radius: 251.3 mm
Maximum digging height: 758.6 mm
Slewing speed: 10 r/mm
Slewing drive reduction ratio: 1:20
Slewing motor speed: 1500 r/min
Maximum pressure of hydraulic workstation: 4 mpa
Rated pressure of hydraulic workstation: 3 mpa
Maximum unloading height: 523.9 mm
Maximum digging depth: 491 mm
Maximum digging radius: 767.7 mm
Maximum excavation radius of ground: 752.4 mm
Gauge: 250.7 mm

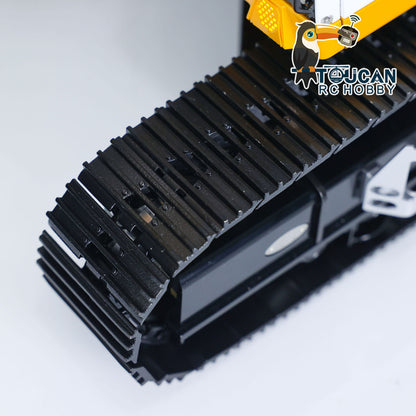

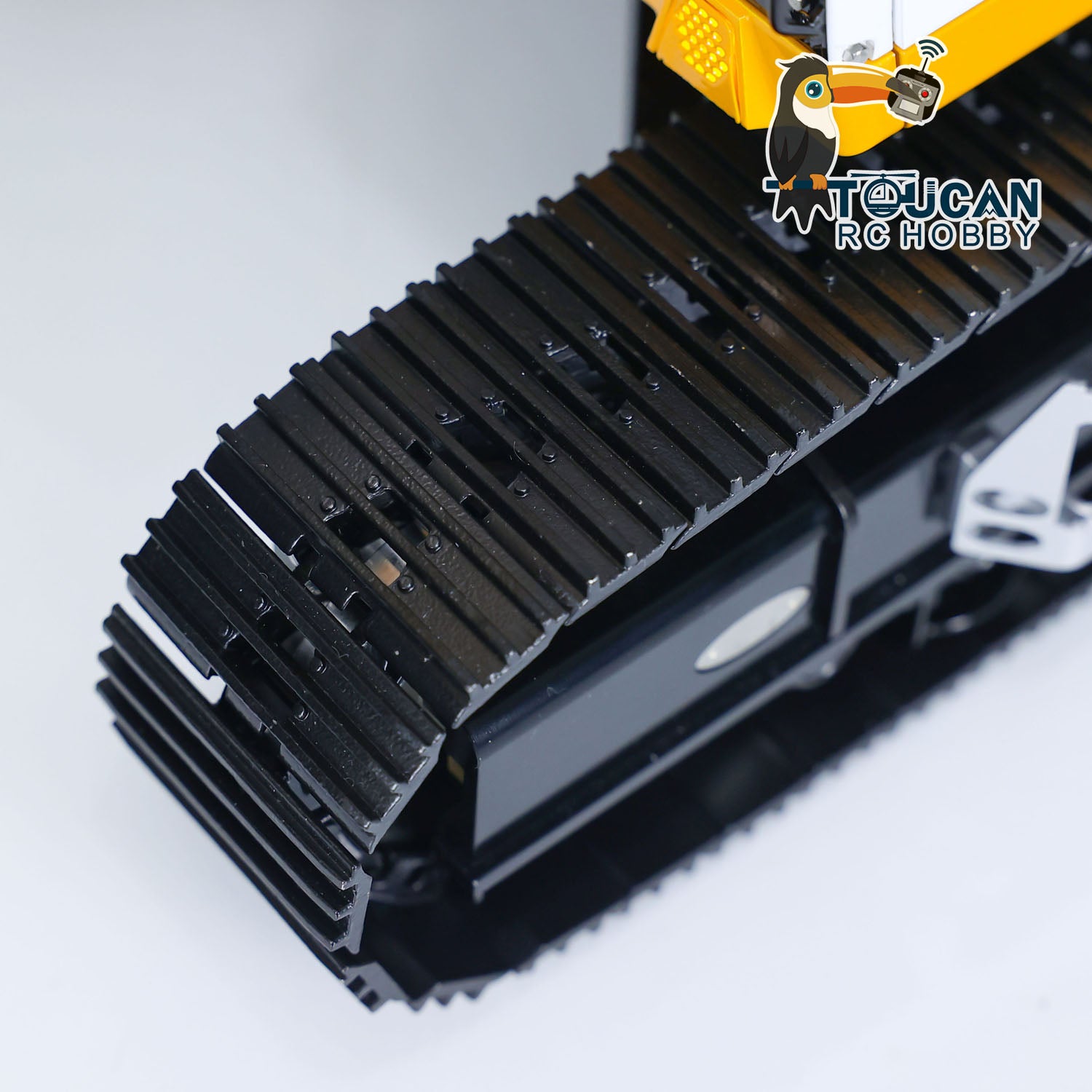

Track width: 43 mm
Total width of the excavator: 268.3
Traveling drive wheel speed: 42 r/mm
Travel drive reduction ratio: 1:370 r/min
Traveling motor speed: 1400 r/min
Number of reversing valve channels: 7
Height from the bottom of X rack to ground: 38.2 mm
Features:
1. Hydraulic excavator arm with a large cylinder body design provides powerful and precise digging capability, making it ideal for a wide range of construction and excavation projects.

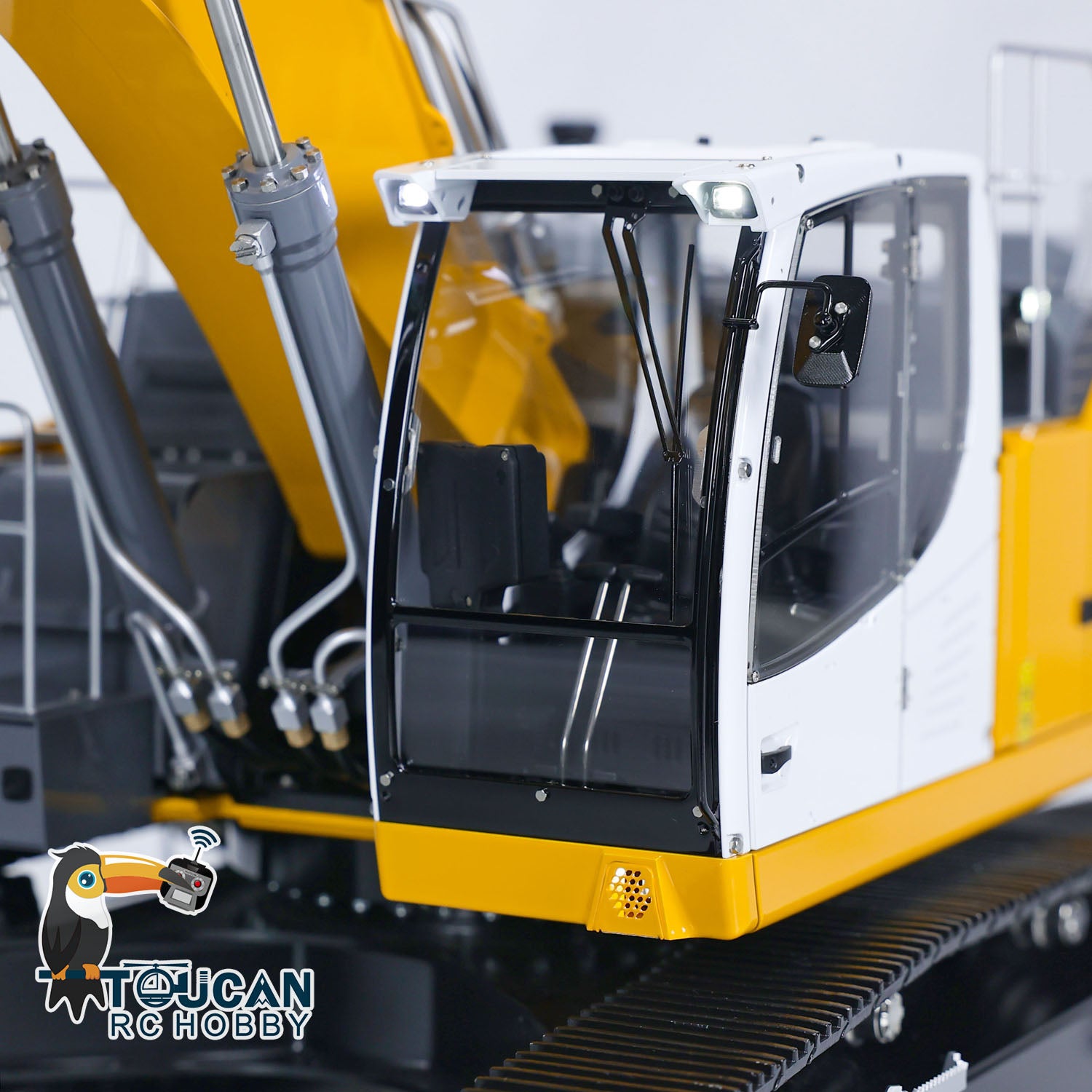

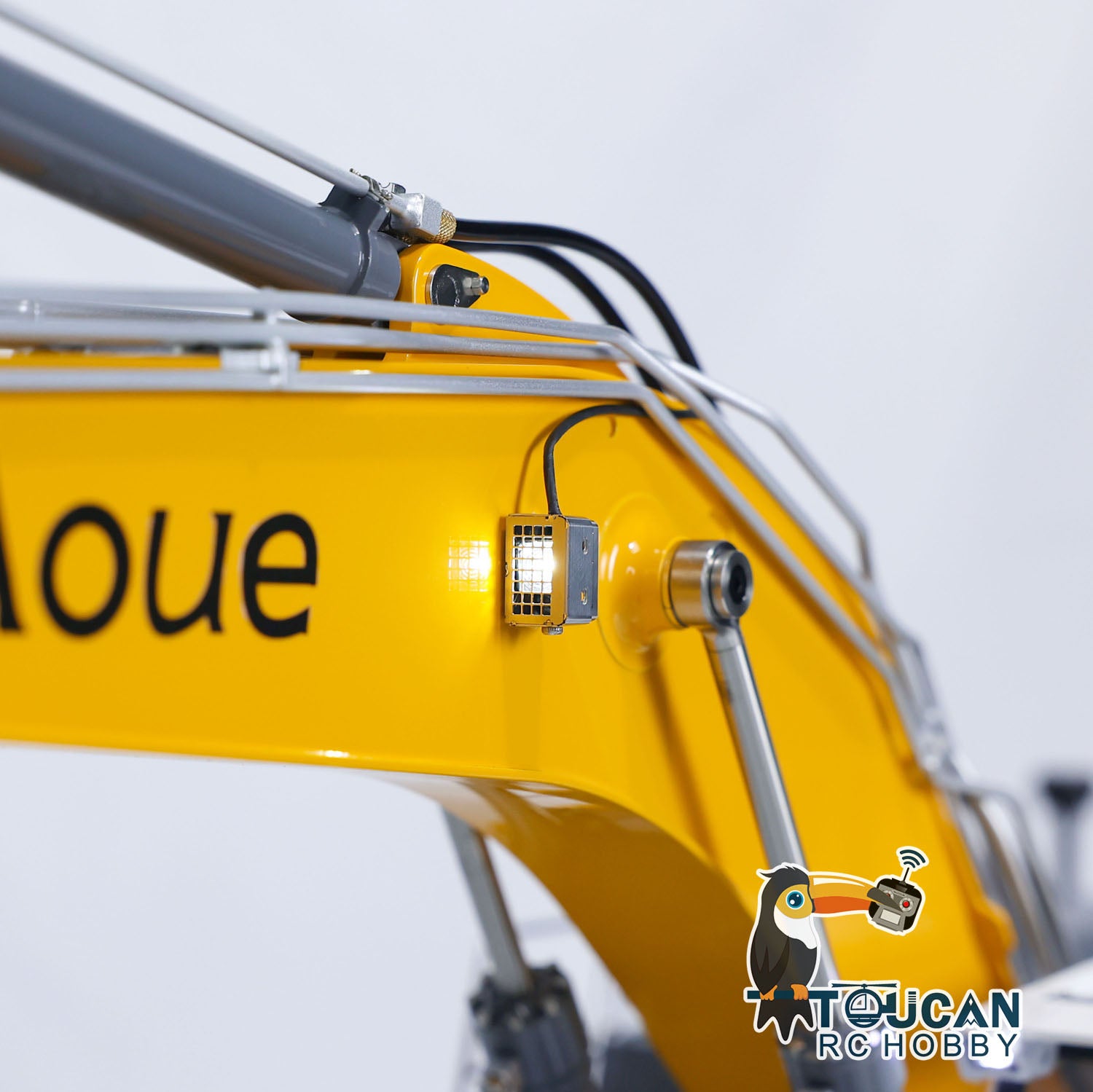

2. The entire machine is equipped with realistic lighting and electronic displays, and a convenient one-button circuit control system, allowing for easy operation and enhanced accuracy.
3. The modular design and aluminum alloy excavator arm and counterweight, precision CNC machined for durability and reliability, provide flexibility and ease of maintenance.
4. The oil circuit system is 80% welded with copper, and 90% of the machine is made of metal materials, making it strong and durable enough to withstand even the most demanding work environments.
5. The precise hydraulic system ensures smooth and linear movement, providing exceptional coordination and fluidity in operation, which is critical in construction and excavation work.
If you have any questions or are not sure whether it is the correct item that you want, pls feel free to contact me before purchasing.
After Sale Services
After Sale Services
We have the ability to handle any trouble of these items and refitting.
We can provide upgrading parts but you must have the ability to install.
Warranty
Warranty
All products warranty keeps compliance with the factory policies.
All products that you have bought for a long time could still get help from Toucanhobby.
All shipping breakage situation(pictures&videos) could be sent to Toucanhobby, we will help customers.
All malfunctions that you feel too hard to solve could get help from Toucanhobby. Sometimes we need some time to edit aftersale documents.
Accessories of most products could be collected for you by Toucanhobby, we try our best, you'd better directly provide a picture.
If we did something wrong in shipping, or product inconsistance, Toucanhobby should be responsible for the deal to the end.
We have some requirements for customers who bought PROFESSIONAL RC HOBBY PRODUCTS, especially concerning hydraulic system or relatively complicated electrionic and radio system setting, we require our customer to be patient and be able to communicate with us, and be capable of handling modeling problems.
