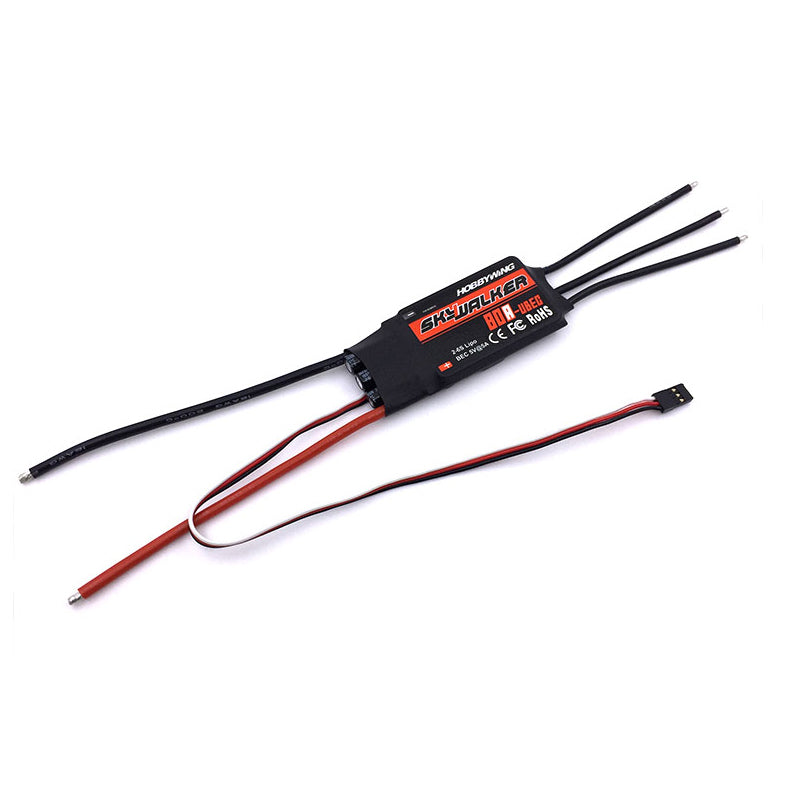

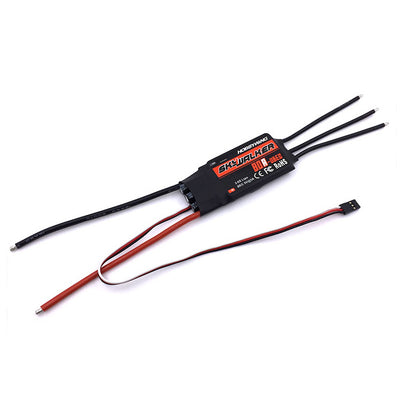

Hobbywing Skywalker Brushless ESC 80A 60A 50A 5V/5A UBEC Electronic Fittings Model DIY Spare Parts Accessories

Brand: Hobbywing
Type: 50A/60A/80A

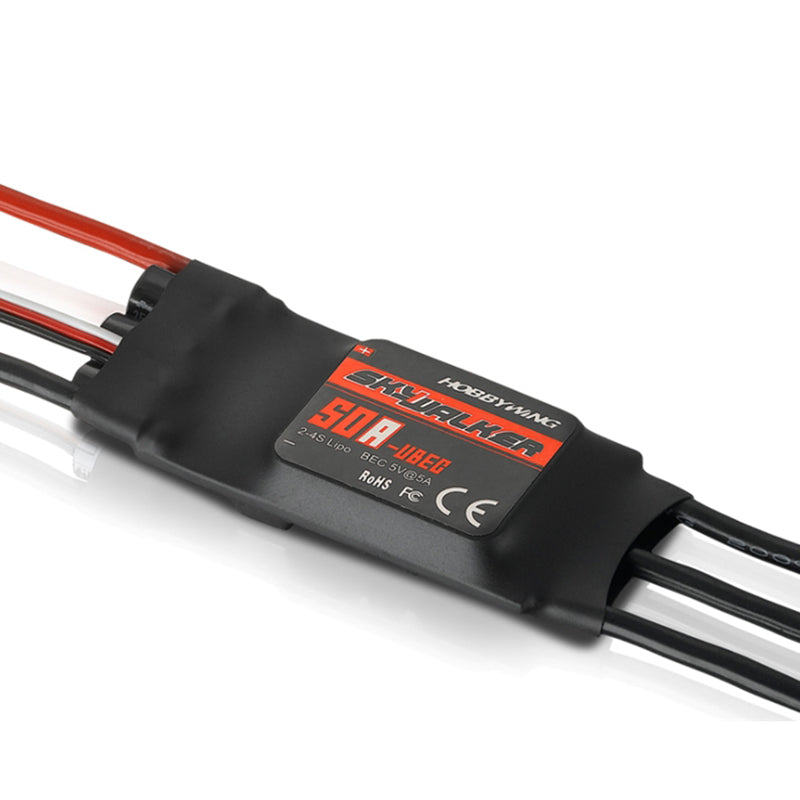

50A:
Size: Approx.65*35*14
Weight: 41g
Working Current: 50A
Maximum Current: 65A (10 seconds)
BEC: Yes, 5A/5V
Applicable Battery Type: 2-4 cells Li-Po, or 5 - 12 Ni-MH / Ni-Cd

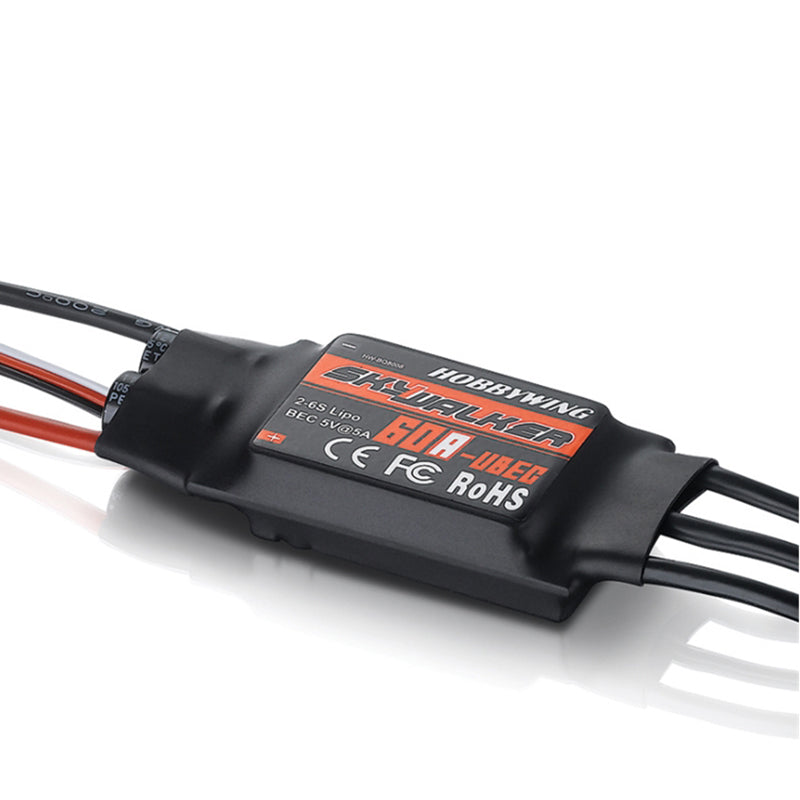

60A:
Weight: Approx.63g
Size: Approx.77*35*14 mm
Constant Current: 60A
Maximum Current: 80A (10 seconds)
BEC Mode: Switch Mode
BEC: Yes, 5A/5V
Applicable Battery Type: 2-6 cells Lipo or 5-18 cells NiHH
Refresh Rate: 50Hz-432Hz

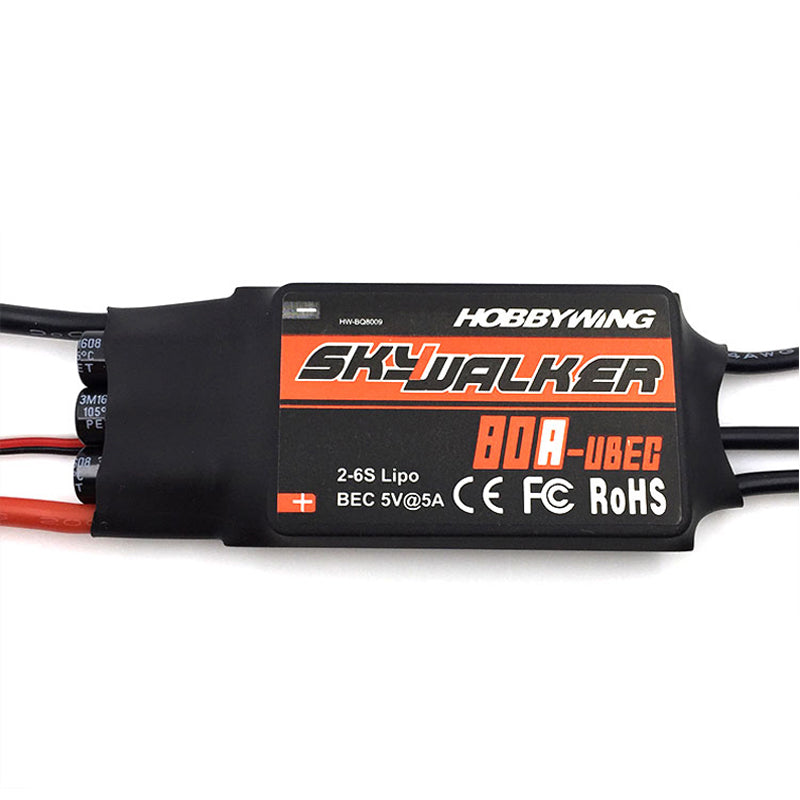

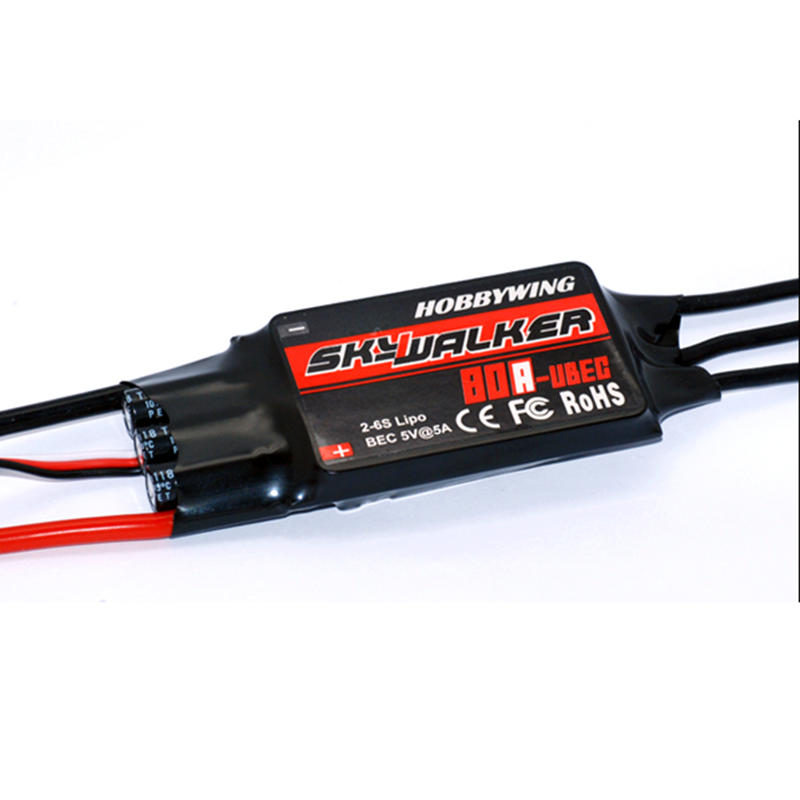

80A:
Weight: Approx.82g
Size: Approx.86 x 38 x 12mm
Working Current: 80A
Maximum Current: 100A (10 seconds)
BEC Mode: Switch Mode
BEC: Yes, 5A/5V
Applicable Battery Type: 2-6S Lipo Or 5-18 NiMH / NiCd
Refresh Rate: 50Hz-432Hz
Maximum speed: 210000 2-pole motor rev / min, 6-pole motors 70,000 rev / min, 12 pole motors 35,000 rev / min

This Package includes:
1PC Brushless Hobbywing Skywalker ESC

Features:
Safe power-up function: When the power is turned on, the throttle stick does not start the motor immediately and avoid any personal injury.
Throttle trip adjustment function: to adapt to different remote control throttle stroke difference, improve the throttle response linearity;

Program setting item (available remote controller throttle stick or LED parameter setting card setting):
Brake setting: no brakes / brakes
Battery type: lithium battery / nickel hydrogen
Low voltage protection mode: soft shutdown / hard shutdown
Low voltage protection threshold: low / medium / high
Start mode: normal / soft / super soft start
Angle: low / medium / high
Restore factory defaults

Comprehensive protection function:
Undervoltage protection: set by the user through the program, when the battery voltage is lower than the protection threshold, the automatic reduction in output power
Overvoltage protection: the input voltage exceeds the input allowable range does not start, automatic protection, while issuing a rapid "beep" alarm sound
Overheat protection: built-in temperature detection circuit, MOS tube temperature is too high when the automatic turn off
Remote control signal loss protection: remote control signal is lost 1 second after the reduction of power, and then 2 seconds without remote control signal is turned off the output.

Use common sense:
Some players pick up the electrical directly loaded on the plane, the result is to hear the beep sound, the motor is not turn, or speed up, for the following reasons:
The first time you use the ESC to identify the maximum travel and minimum travel of the remote control, as follows:
The ESC and the motor connected ----- ESC line connected to the receiver ----- open the remote control and push the throttle to the highest point ------ the ESC plug in the battery ------ listen to the sound ---- beep - beep ---- three after the throttle stick pulled to the lowest point ----- hear the beep three sound ----- OK
Brushless three-line can be arbitrarily connected, if the steering is wrong, to any of the two lines on the tune about it.
