FrSky Archer Plus R12+ Transmitter Receivers for 1/14 RC Truck Radio Controlled Construction Vehicle Simulation Car DIY Accessory

FrSky Archer Plus R12+ Transmitter Receivers for 1/14 RC Truck Radio Controlled Construction Vehicle Simulation Car DIY Accessory

FrSky

SKU:FrSky-03020118-ArcherPlusR12+-Receiver-CX-DZN1

Regular price $76.90 USD
Regular price $82.90 USD Sale price $76.90 USD
Sale Sold out
Shipping calculated at checkout.

Specification:
Manufacturer: Frsky
Material: Plastic
Dimension: 48.5??????33??????17.9mm (L??????W??????H)
Weight: 21.3g
Operating Voltage Range: 3.5 -10V (Recommend 2S Li-Batteries)
Operating Current: ???o?105mA@5V
Continuous Current: ????20A (power the device) ?? Instaneous Current: ????40A (power the device)
Voltage Measurement Range via AIN2 (External device): 0-35V (Battery Voltage Divider Ratio: 1:10)
Antenna connector: IPEX1
Dual XT30 Power Input Connector
Compatibility: FrSky 2.4GHz ACCESS / ACCST D16 capable transmitters
12 Configurable Channel Ports (ACCESS mode)
CP1: PWM / SBUS Out / FBUS / S.Port / SBUS In
CP2-12: PWM / SBUS Out / FBUS / S.Port
SBUS Out (Supports 16CH / 24CH mode)
ID: FrSky-03020118-ArcherPlusR12+-Receiver

This Package Includes:
1pc Archer Plus R12+ Receiver

Features:
1. Enhanced Anti RF-Interference Capability with more Solid RF Performance
2. Smart-Matched ACCESS & ACCST D16 modes
3. Basic Black-Box Data Record Function
4. Built-in Power Switch Function | Match with Different External Switches (Optional)
5. 12 Configurable Channel Ports* (PWM, SBUS, FBUS, or S.Port)(Note: In ACCST mode, SBUS Out is assigned on Pin11 & S.Port is on Pin12.)
6. Supports Signal Redundancy (SBUS In)
7. Full Control Range with Telemetry (FBUS / S.Port)
8. Anti-Interference Capability in the Spark-Ignition Process
9. Over-The-Air (OTA) Firmware Update
10. External Battery/Device Voltage Detection

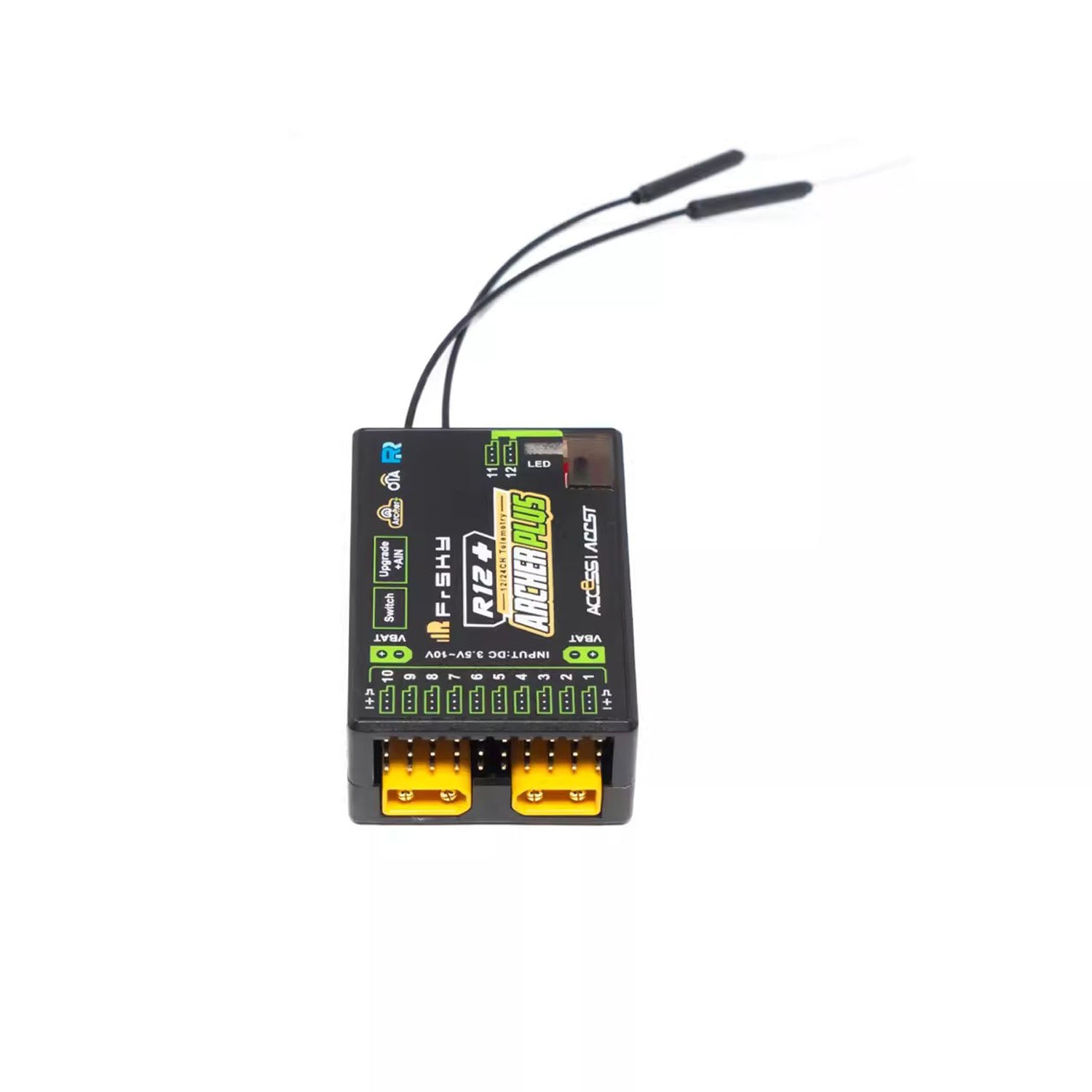

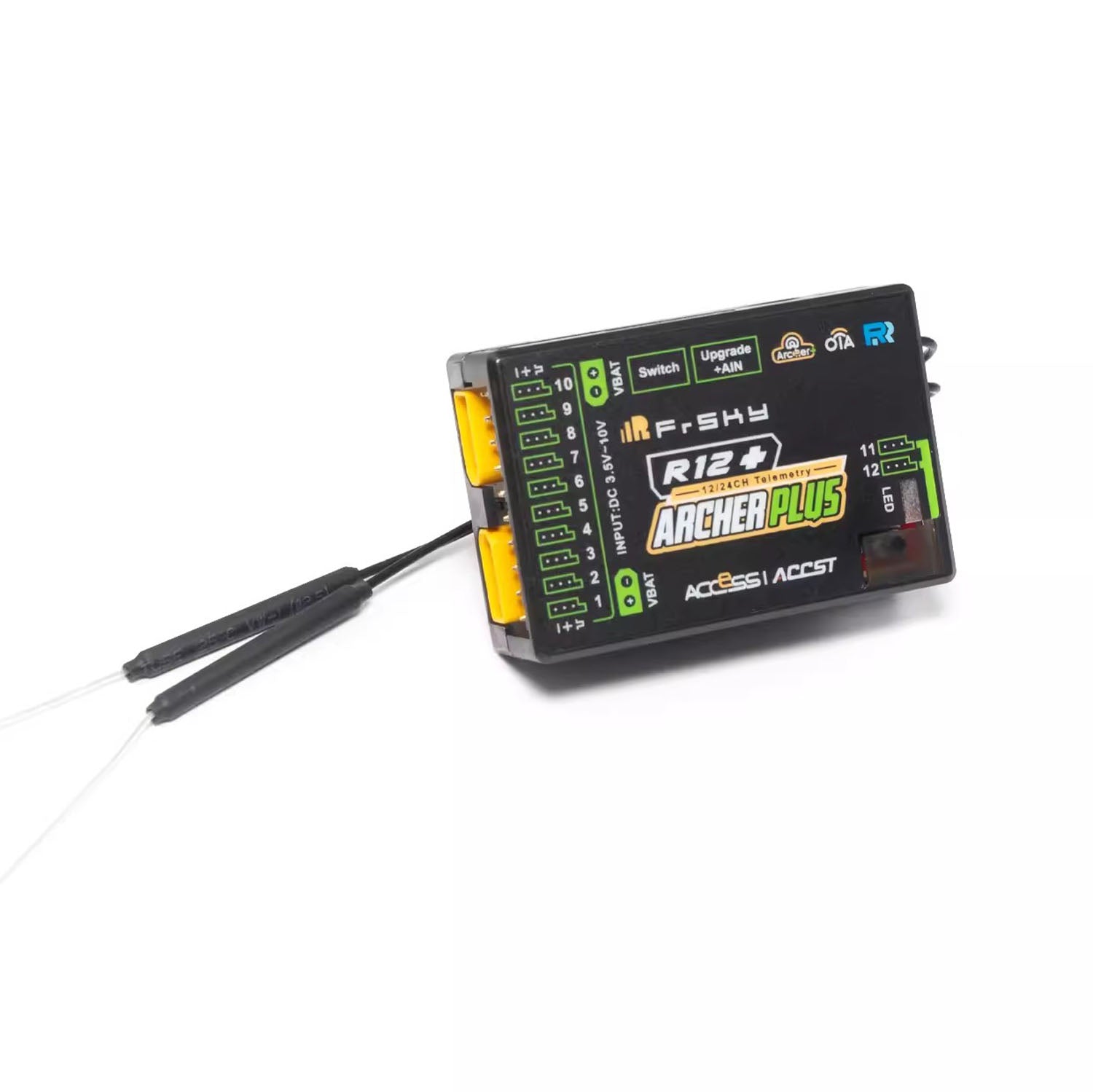

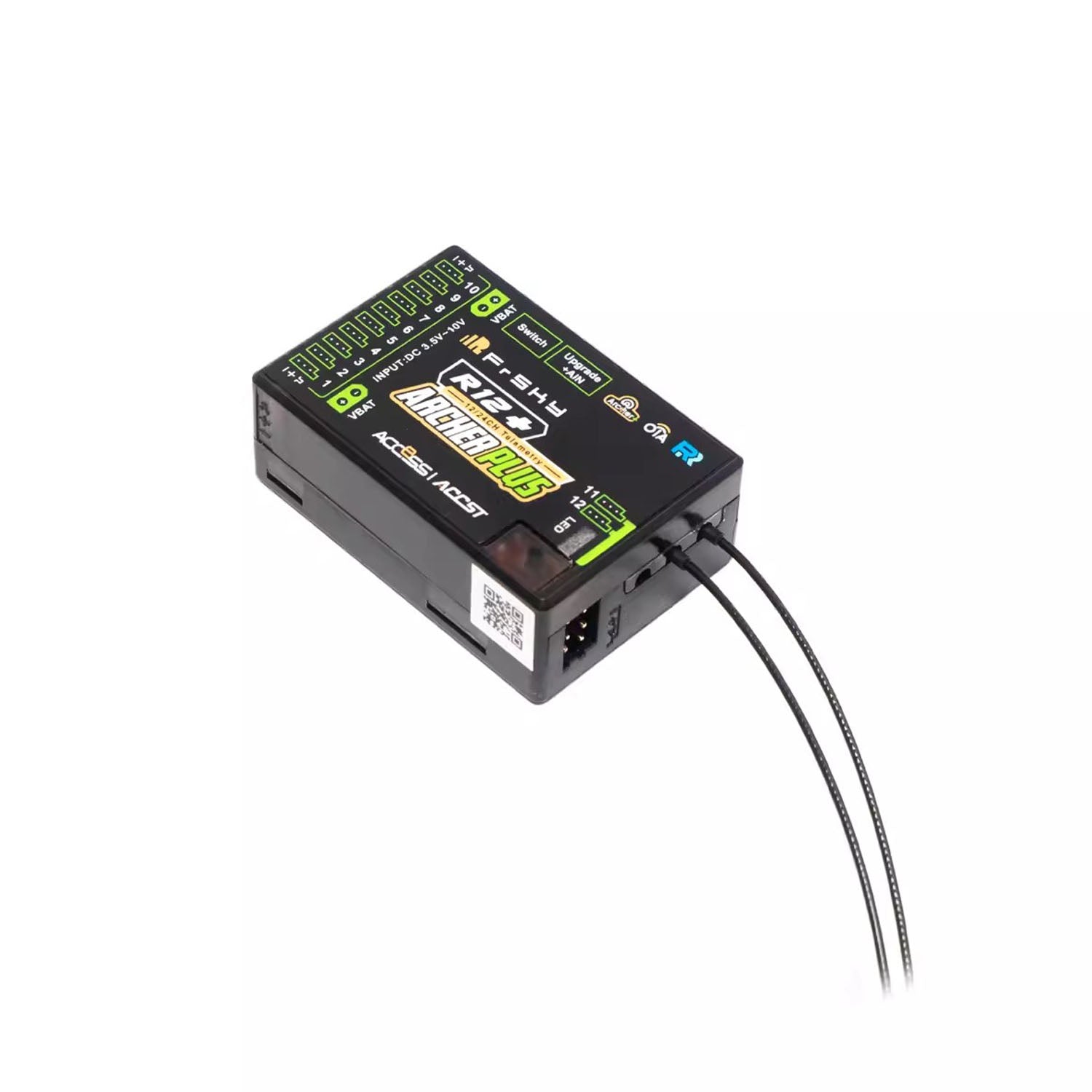

Archer Plus R12+ Receiver:
The Archer line of receivers has been enhanced further with the addition of the new Archer Plus Series.

The Archer Plus series receivers include some new features. Firstly an enhanced anti-RF-Interference capability can offer a more solid RF performance, and this is in addition to existing anti-interfere performance in the spark ignition process. These Plus series receivers are also with both ACCESS and ACCST D16 modes, where the RF protocol is smart matched during the binding process on the radio. With the Black-Box function, some basic flight data (like Power & Signal related) can be well preserved.

The R12+ receivers have 12 configurable channel ports*, each channel port can be assigned as PWM, SBUS, FBUS, or S.Port. The R12+ supports full-range signal strength with dual detachable antennas and guarantees optimal antenna reception and range. The R12+ can be used as a Primary receiver in a redundant solution by setting a port (Channel Port 1) as SBUS In and connecting to any other FrSky receiver equipped with an SBUS Out port. With the FBUS protocol, the Archer Plus series receivers can open up the possibility of seamlessly pairing with multiple telemetry devices (XACT servos, ADV Sensors, etc.) as well as simplifying the builds setup.
