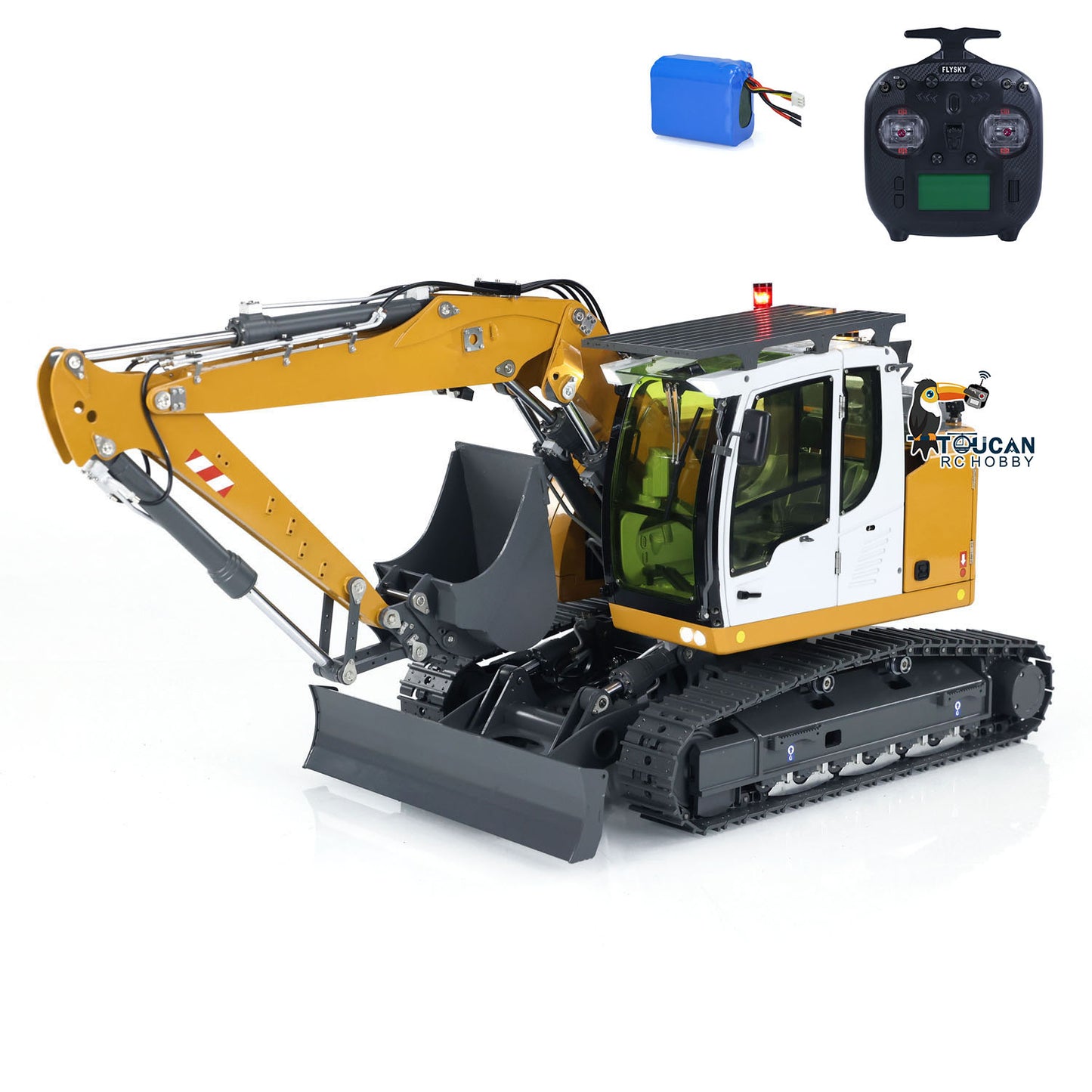

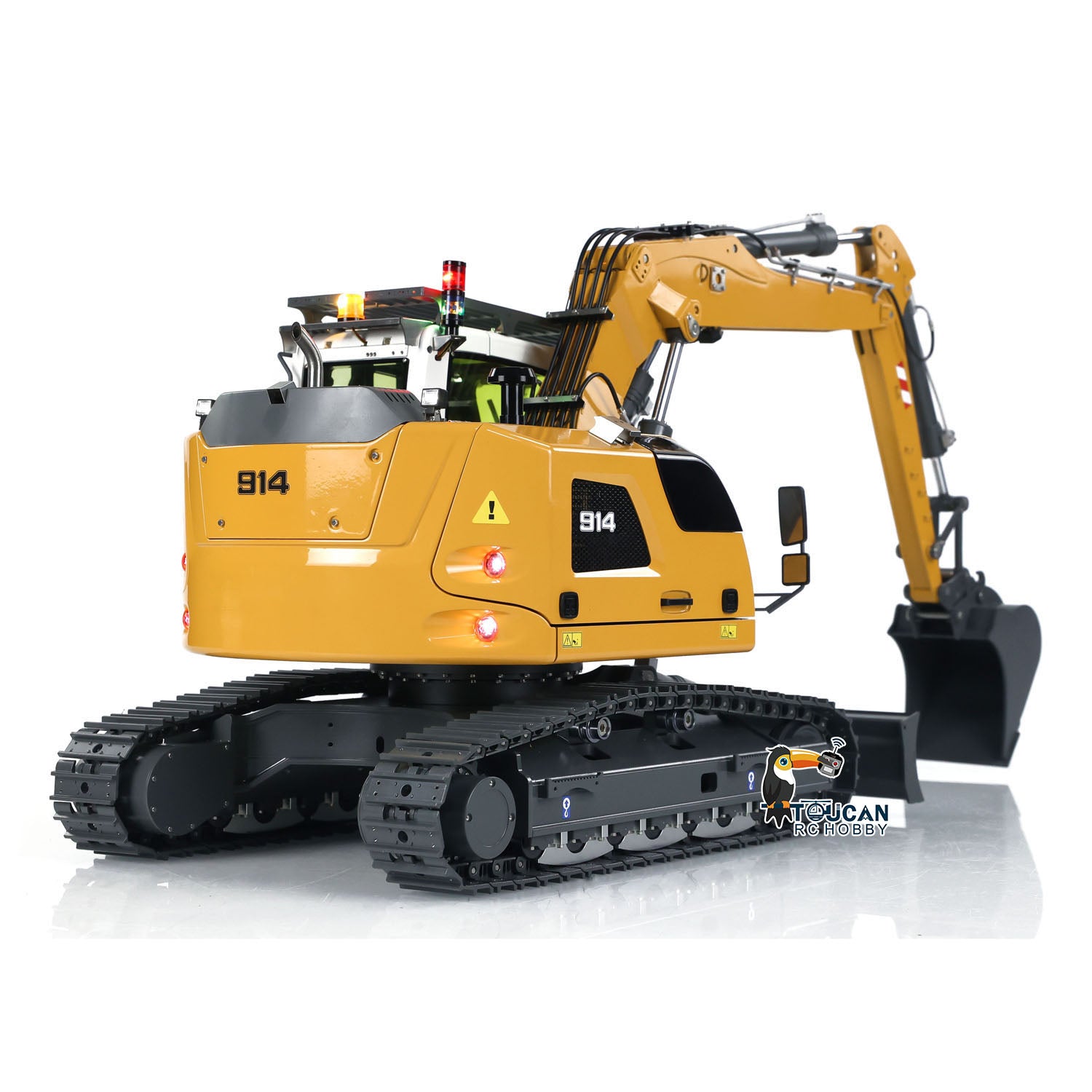

CUT 1/14 Scale 914 5-ways RC Hydraulic Excavator Valve Metal Remote Control Digger Hobby Model RTR Ver ESC Servo Motor

CUT 1/14 Scale 914 5-ways RC Hydraulic Excavator Valve Metal Remote Control Digger Hobby Model RTR Ver ESC Servo Motor

Toucanhobby

SKU:CUT-C914-Excavator-5CH-RTR-YW-CX-DZN1

Regular price $2,382.90 USD
Regular price $2,419.90 USD Sale price $2,382.90 USD
Sale Sold out
Shipping calculated at checkout.

Specification:
Manufacturer: CUT
Item Condition: New, Painted and Assembled
Material: Metal, Plastic
Size: 547.9*162.9*234.6
Scale: 1/14
ID: CUT-C914-Excavator-5CH-RTR-YW

The Package Includes:

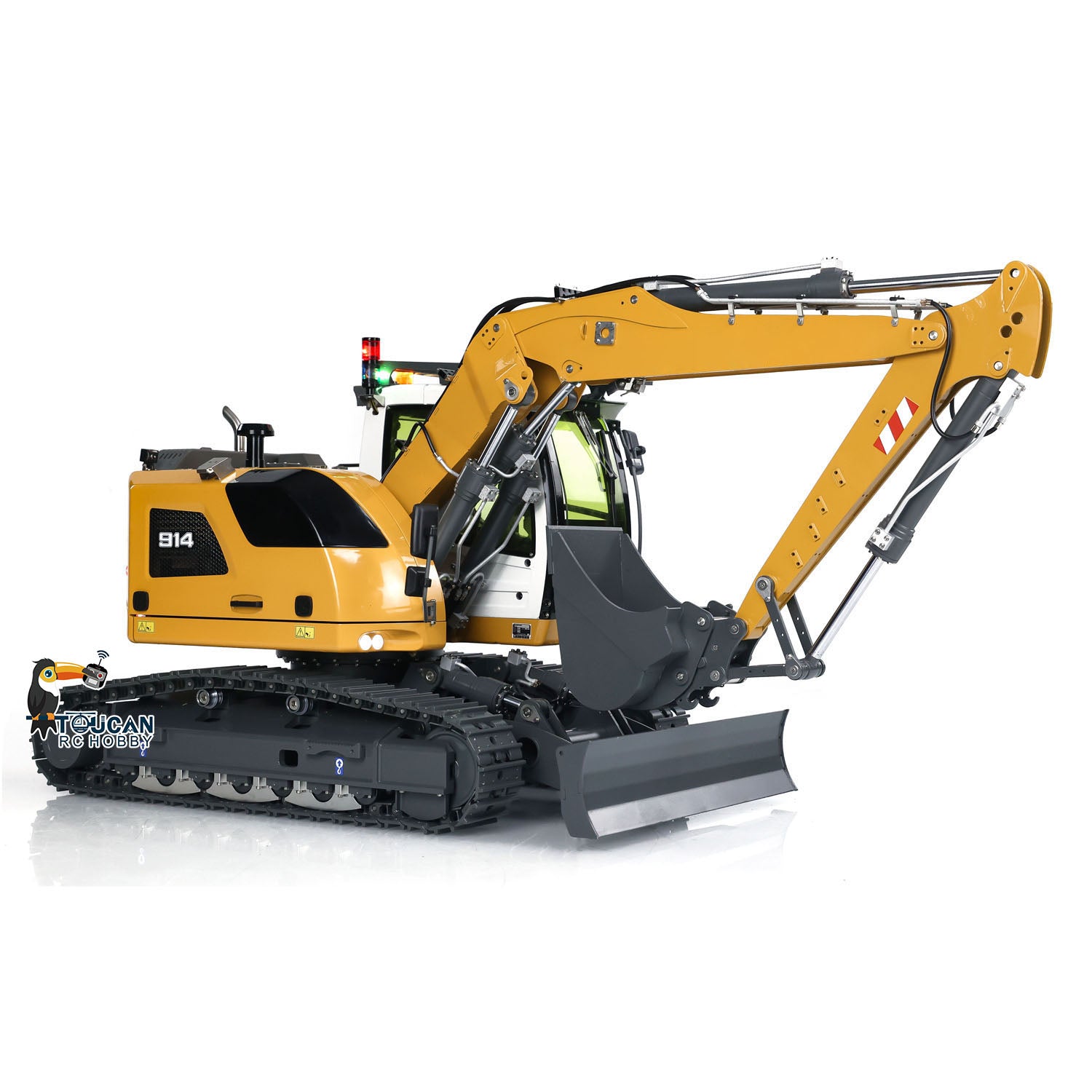

1/14 RC Hydraulic Excavator Model
ESC
Motor
Servo

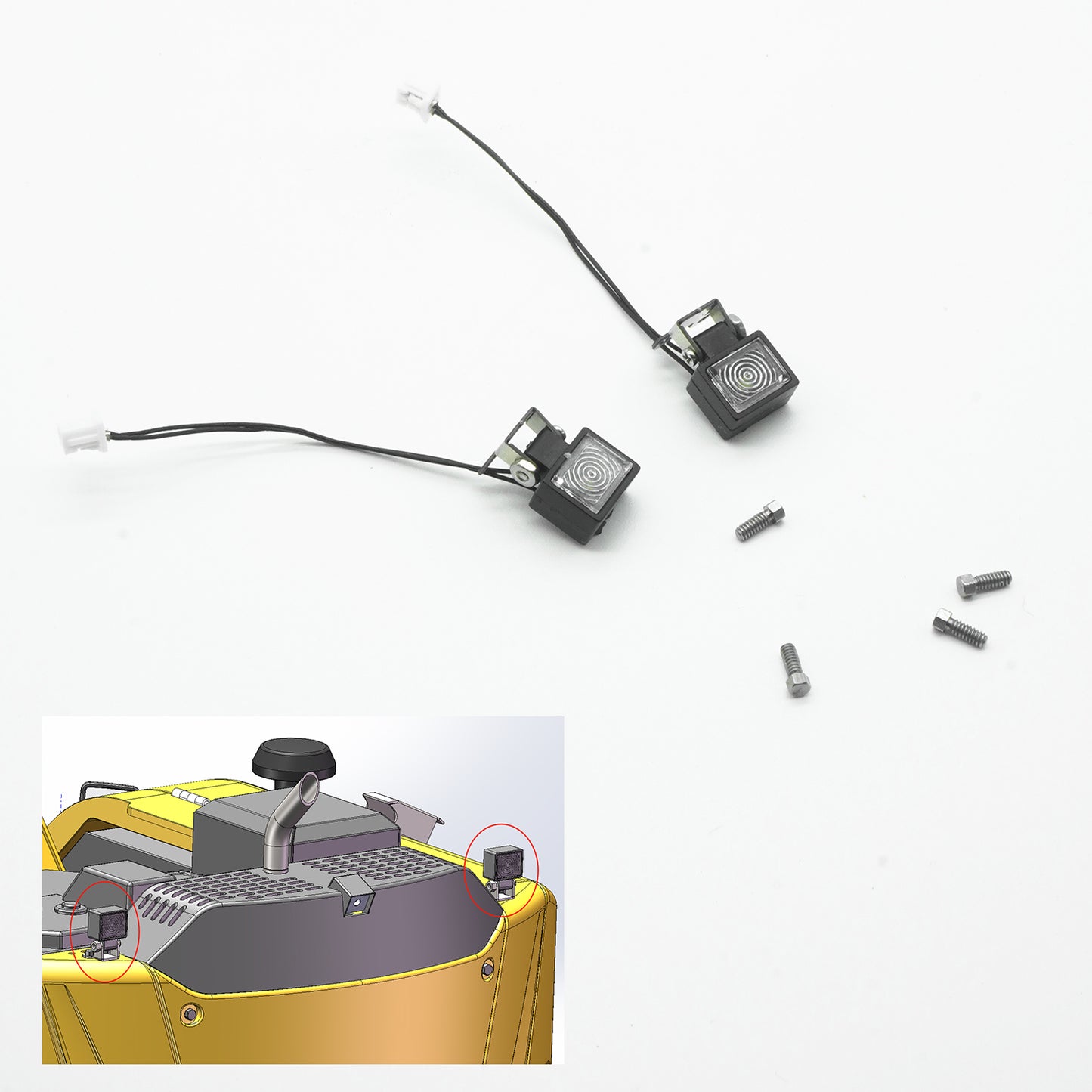

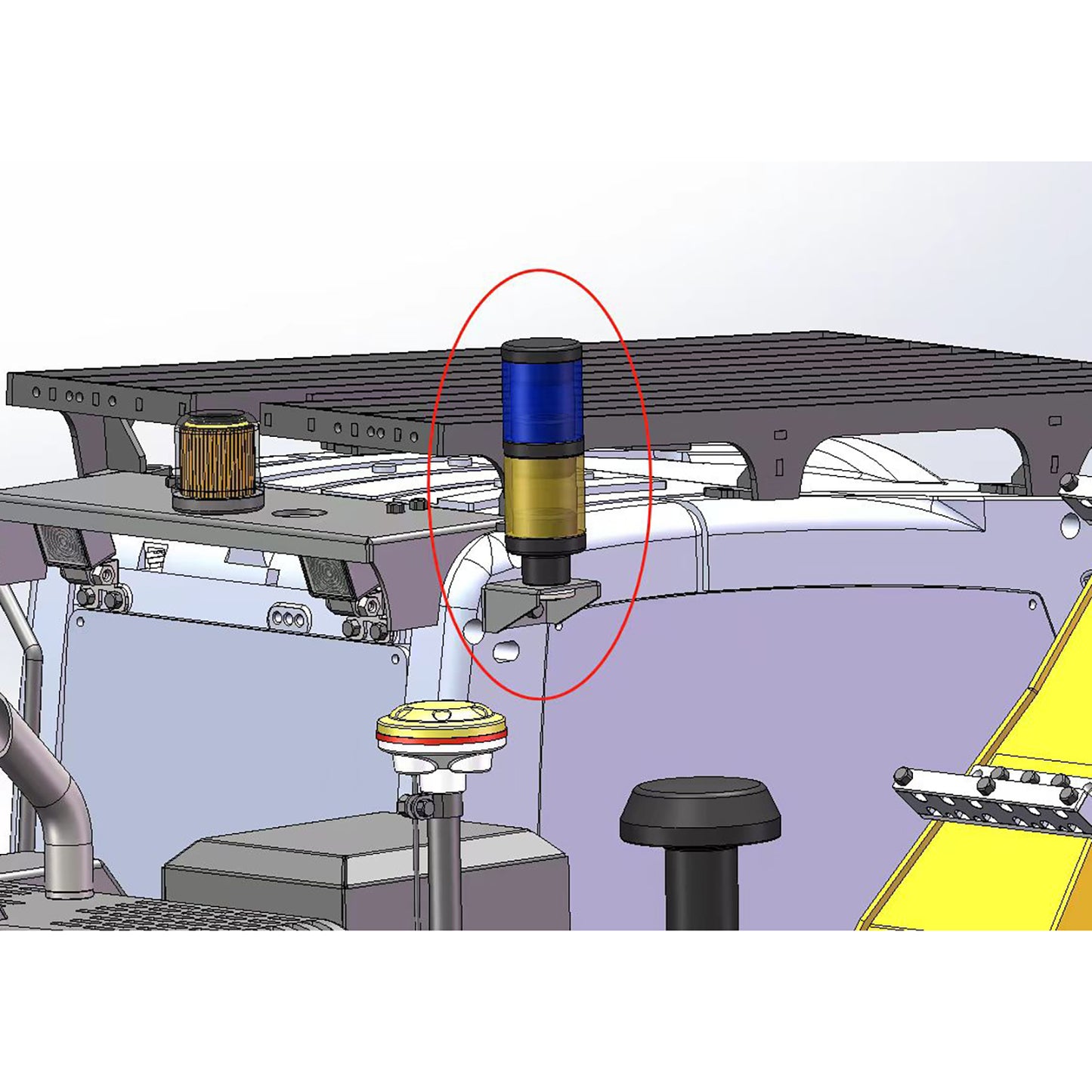

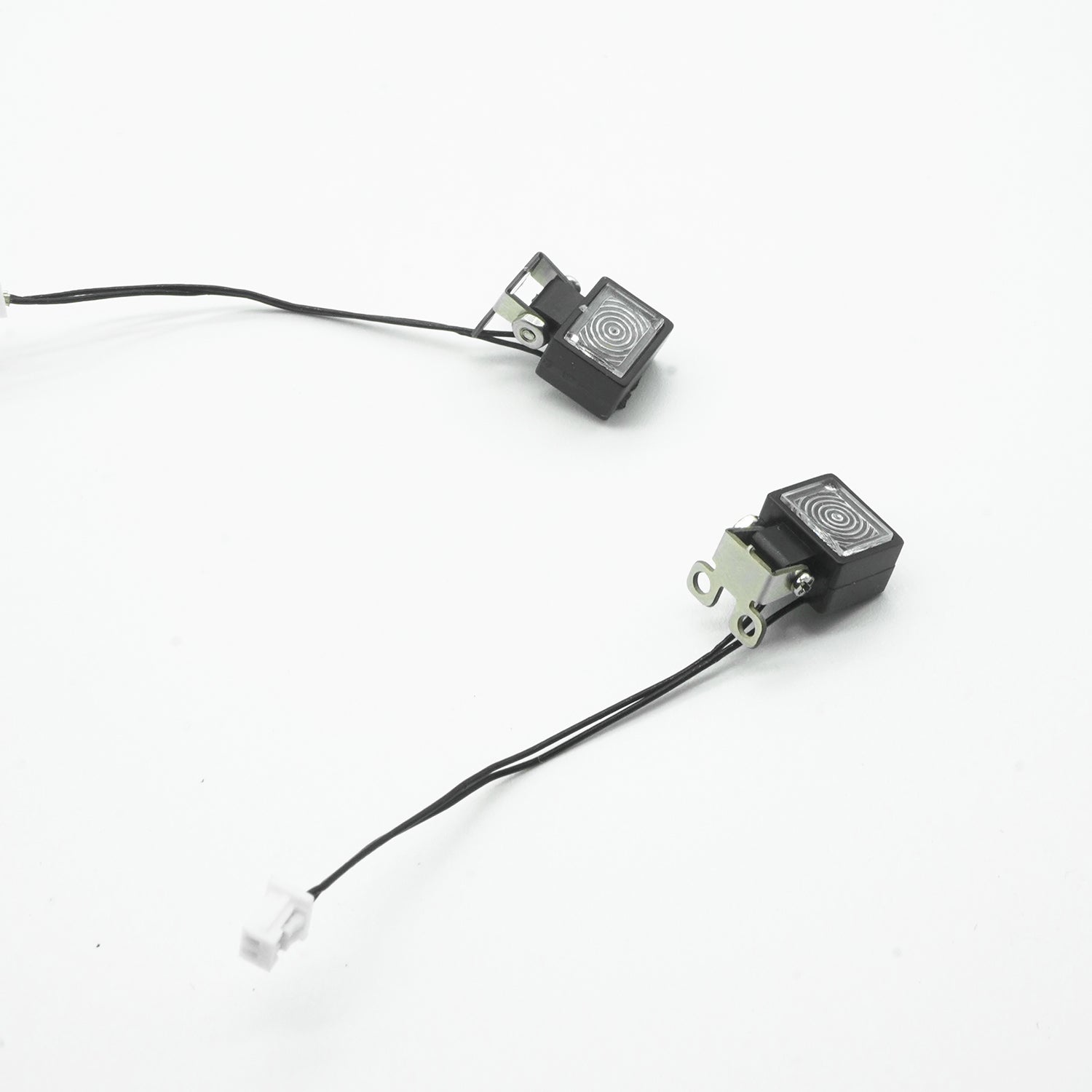

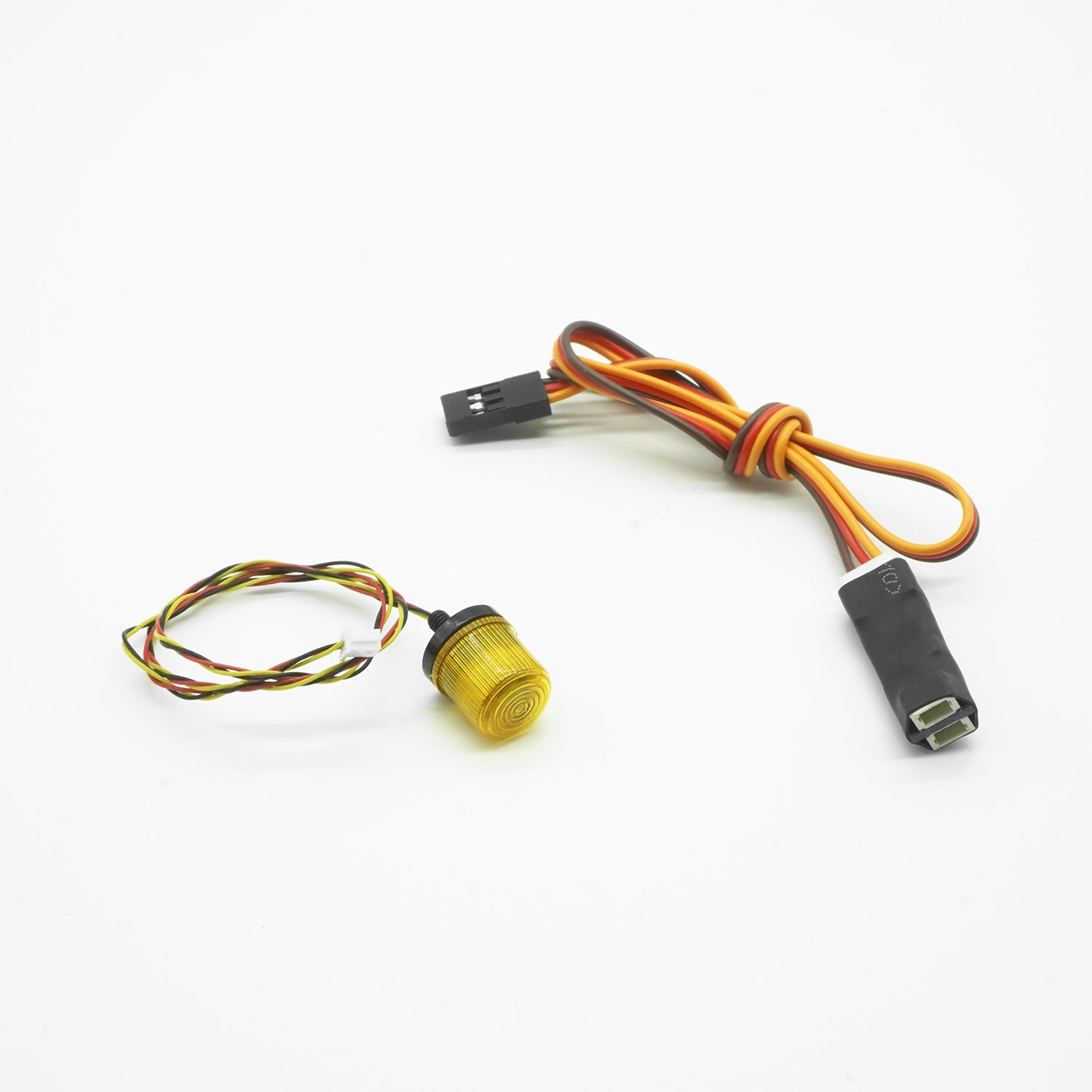

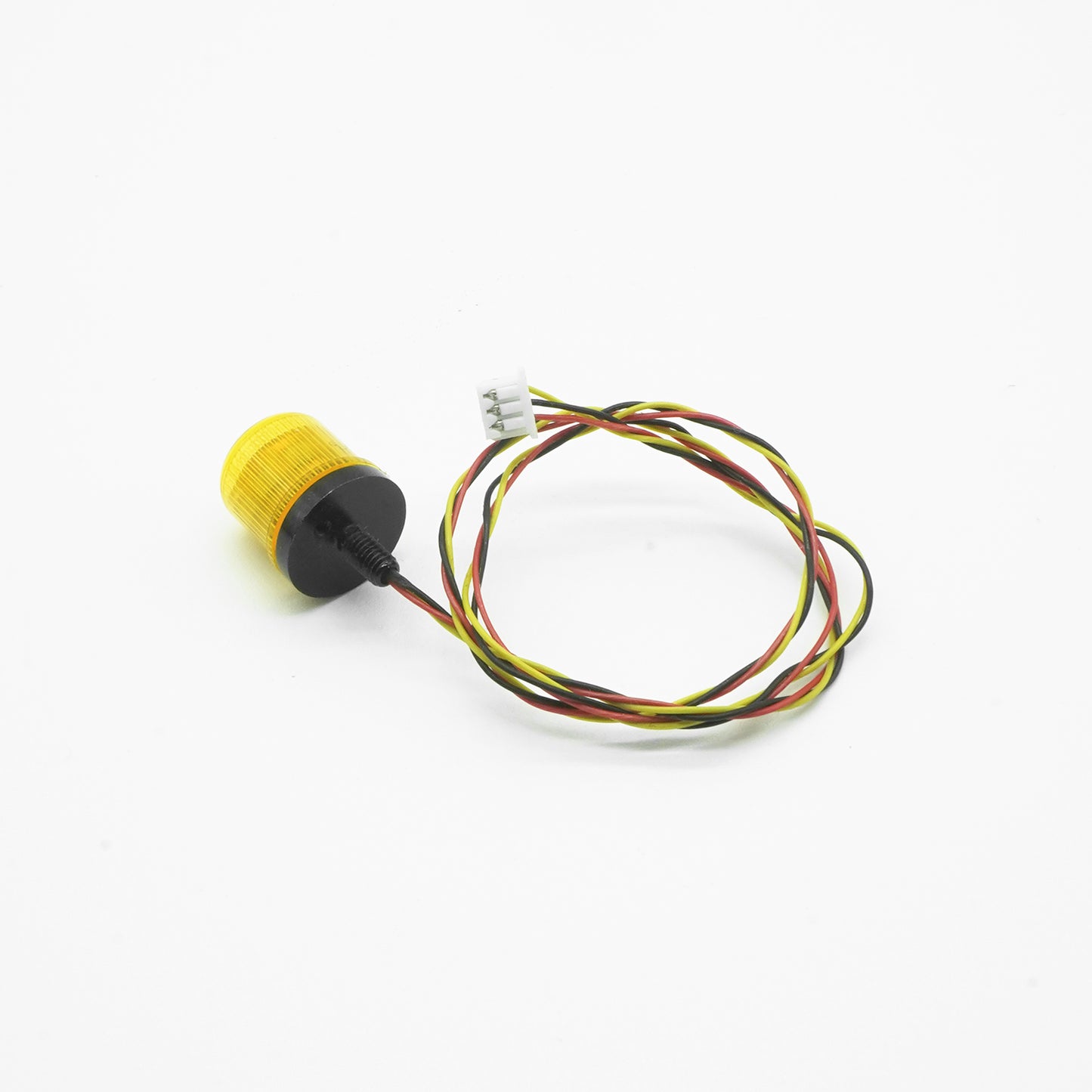

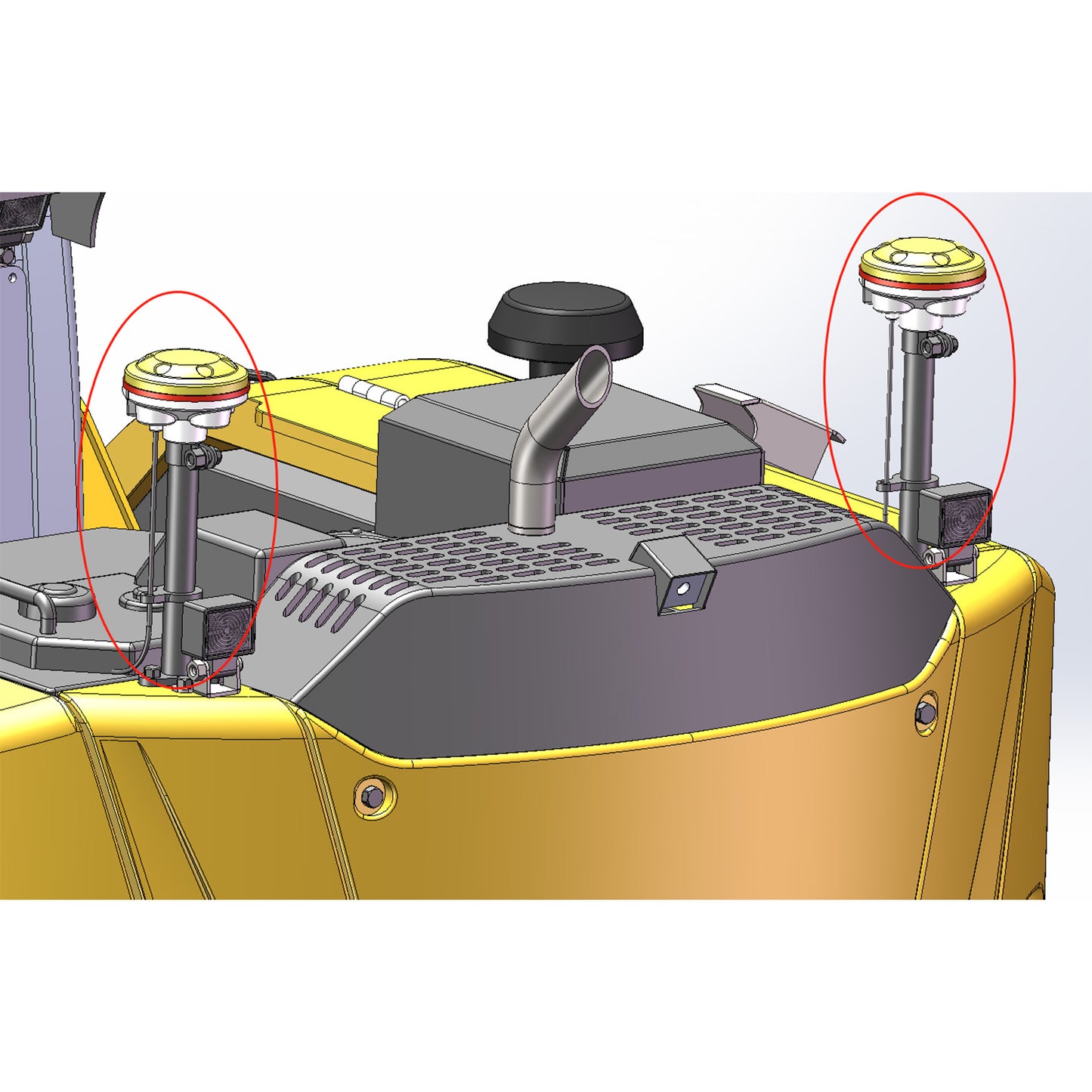

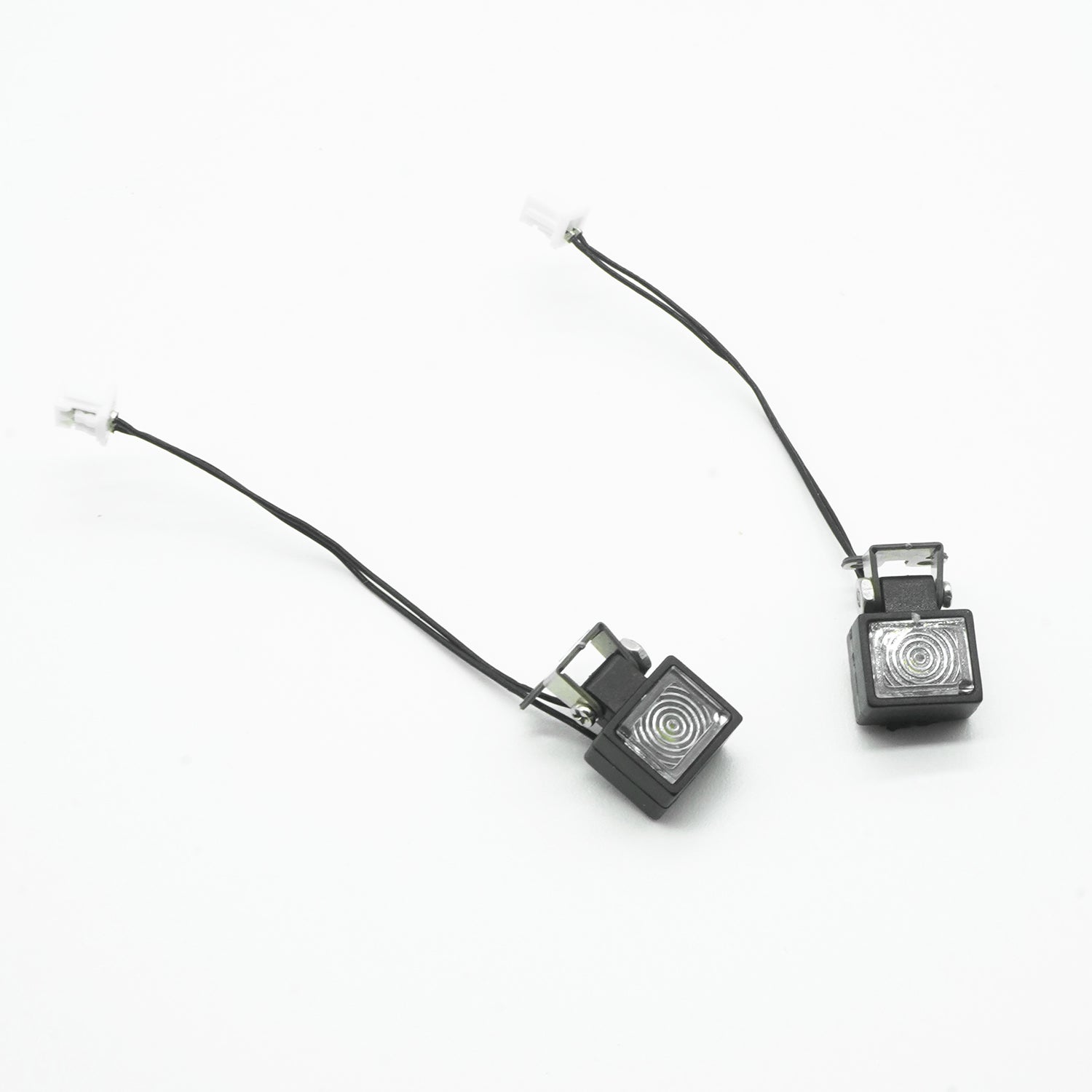

Light System
Sound System
Hydraulic System with 5-ways Reversing Valve

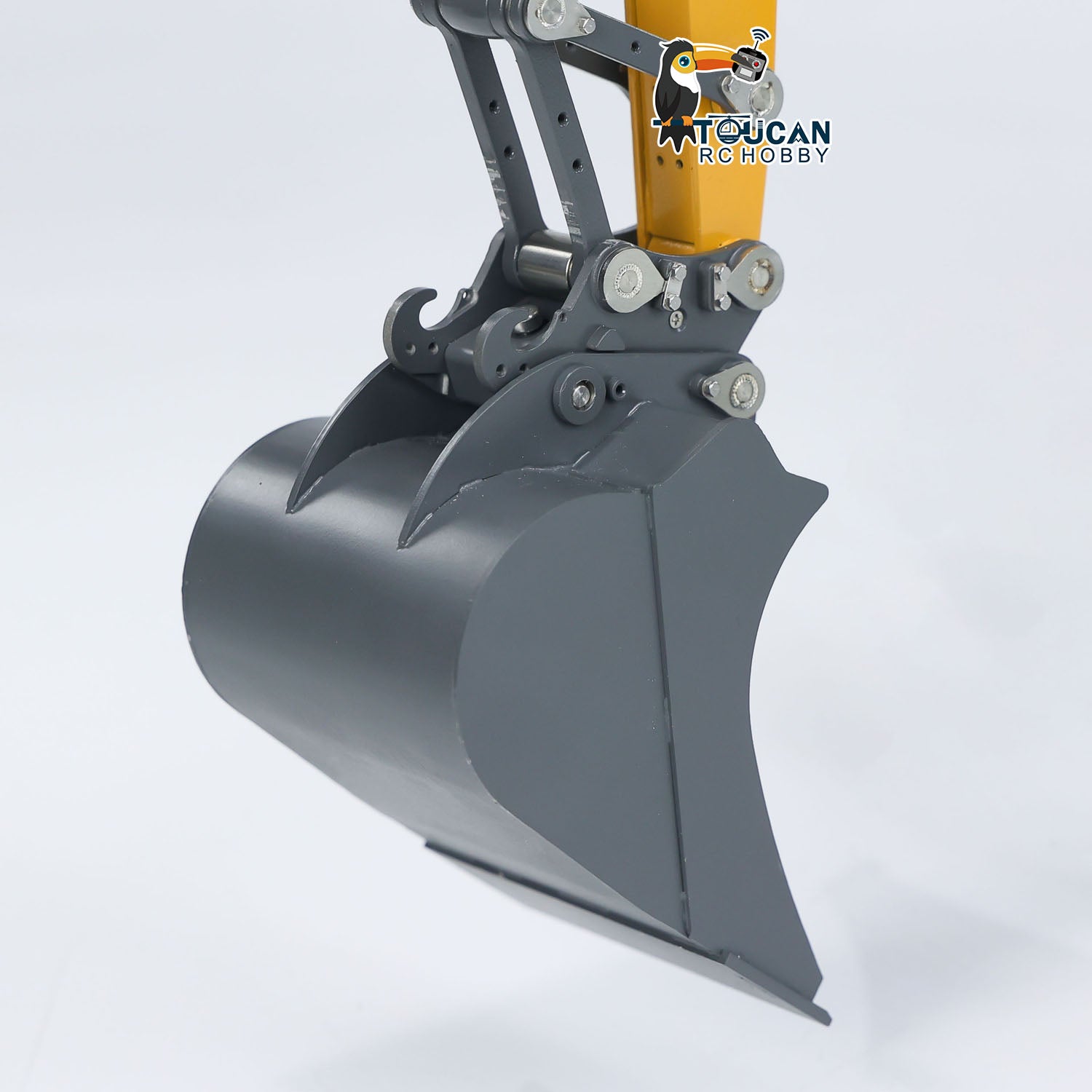

Manual Quick Release Coupler
FlySky ST8 Remote Controller and Receiver

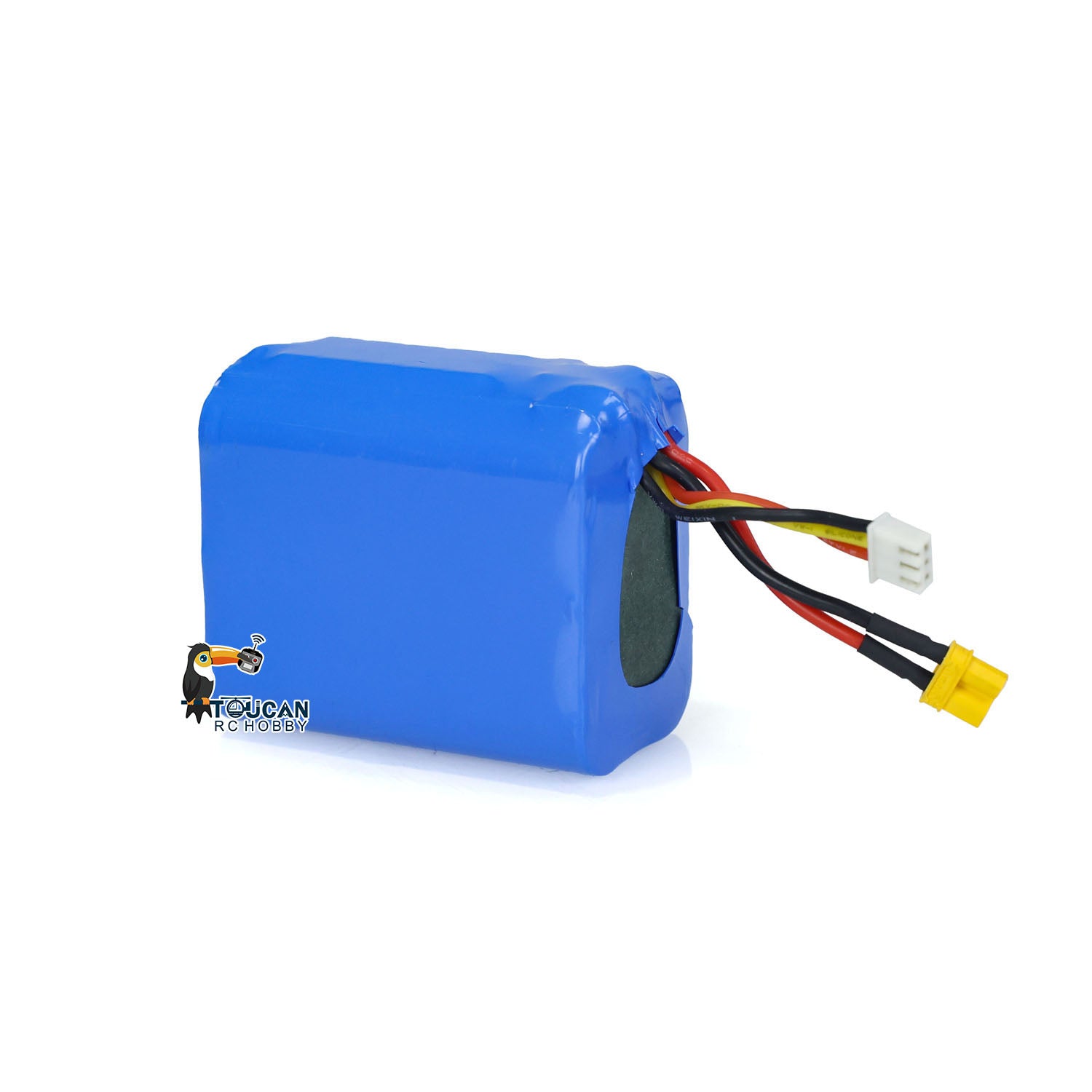

Battery

The Package Does Not Include:
Charger
Hydraulic Oil

Static Parameters
- Body width (mm): 194
- Ground clearance at upper edge of tracks (mm): 69.3
- Ground clearance at top of body (excluding exhaust pipe) (mm): 184.6
- Ground clearance at top of cab (excluding protective net) (mm): 221.3
- Ground clearance of counterweight (mm): 80.9
- Wheelbase (mm): 239.1
- Standard track width (mm): 35
- Distance between tracks (mm): 163
- Width of the bulldozer blade (mm): 198
- Maximum width of the chassis (mm): 203.2

Dynamic Parameters
- Maximum ground clearance with the bulldozer blade down (mm): 15.2
- Maximum ground clearance with the bulldozer blade up (mm): 52.6
- Rotation angle (??): 360 (infinite rotation)
- Torque of worktable rotation motor (kg): 25
- Rotation speed of the worktable (r/min): 9.5
- Single cylinder thrust (kg): 15
- Maximum speed of drive wheels (r/min): 30
- Drive wheel reduction ratio: 1/256
- Maximum pressure of hydraulic system (MPa): 4
- Rated pressure of hydraulic system (MPa): 2.5

Features
1. Main Body Construction: The main body predominantly uses CNC and stainless steel sheet metal processing, with some critical components made using ABS molds.

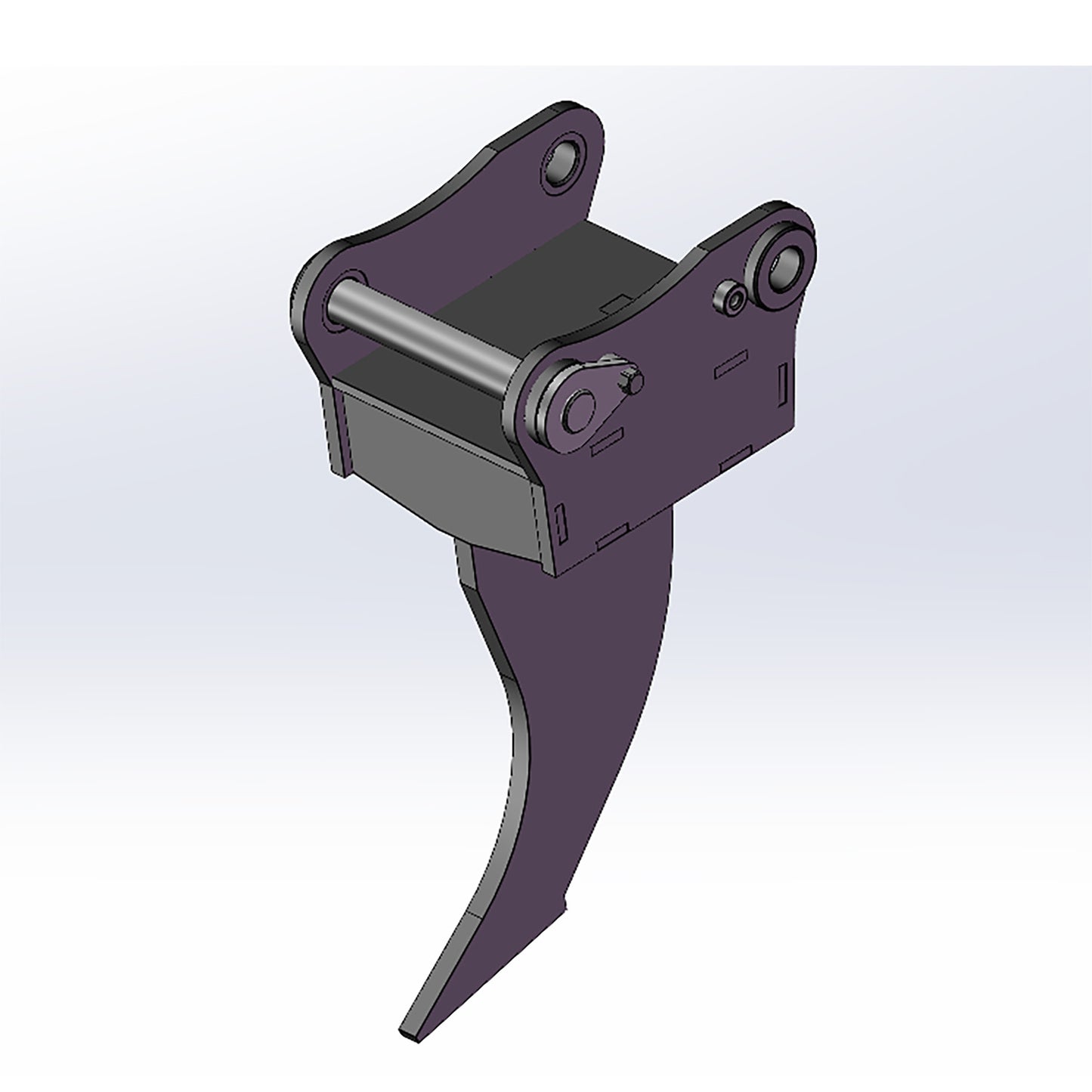

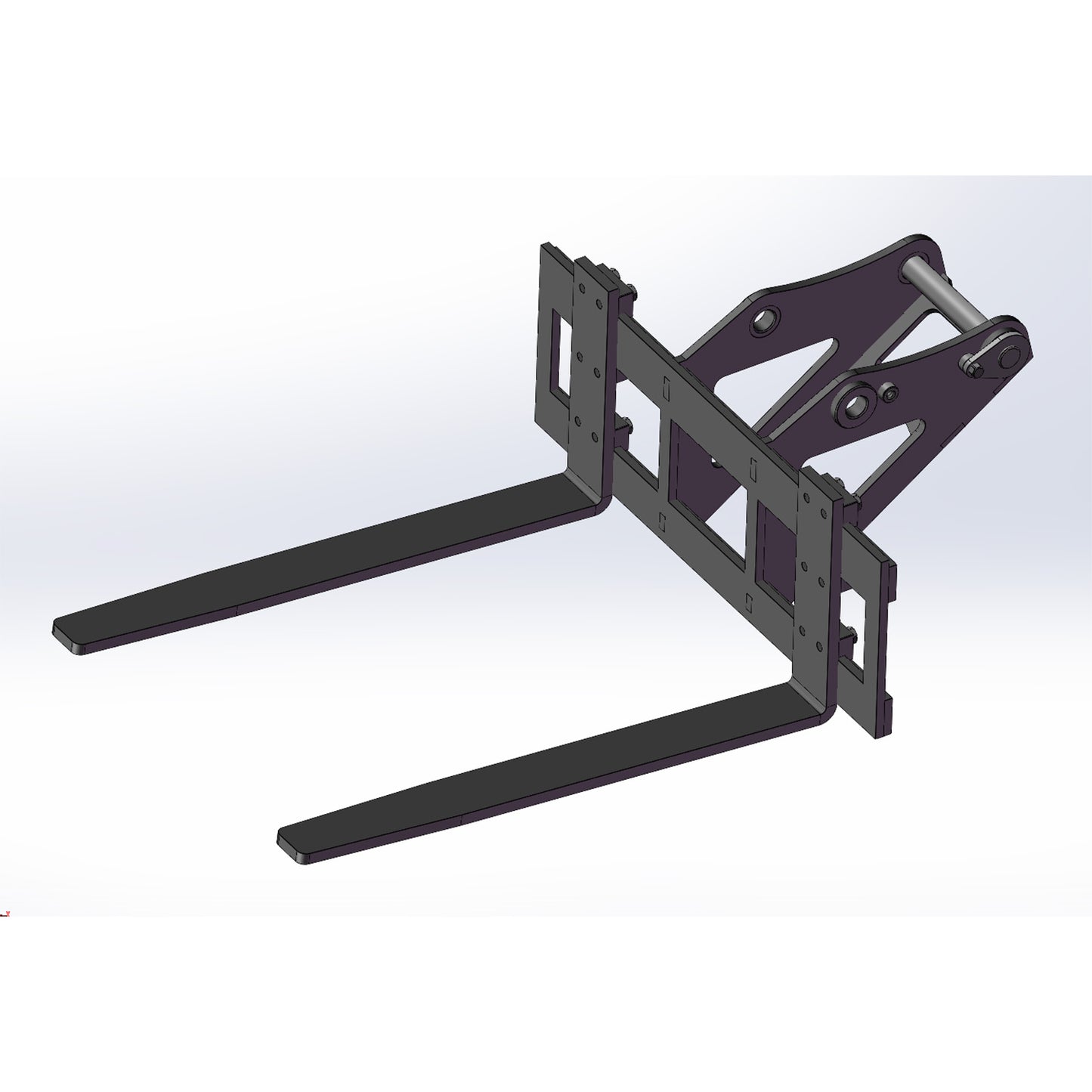

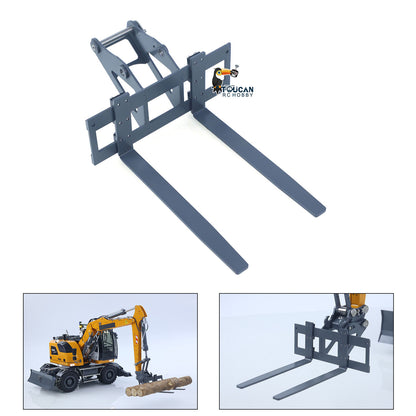

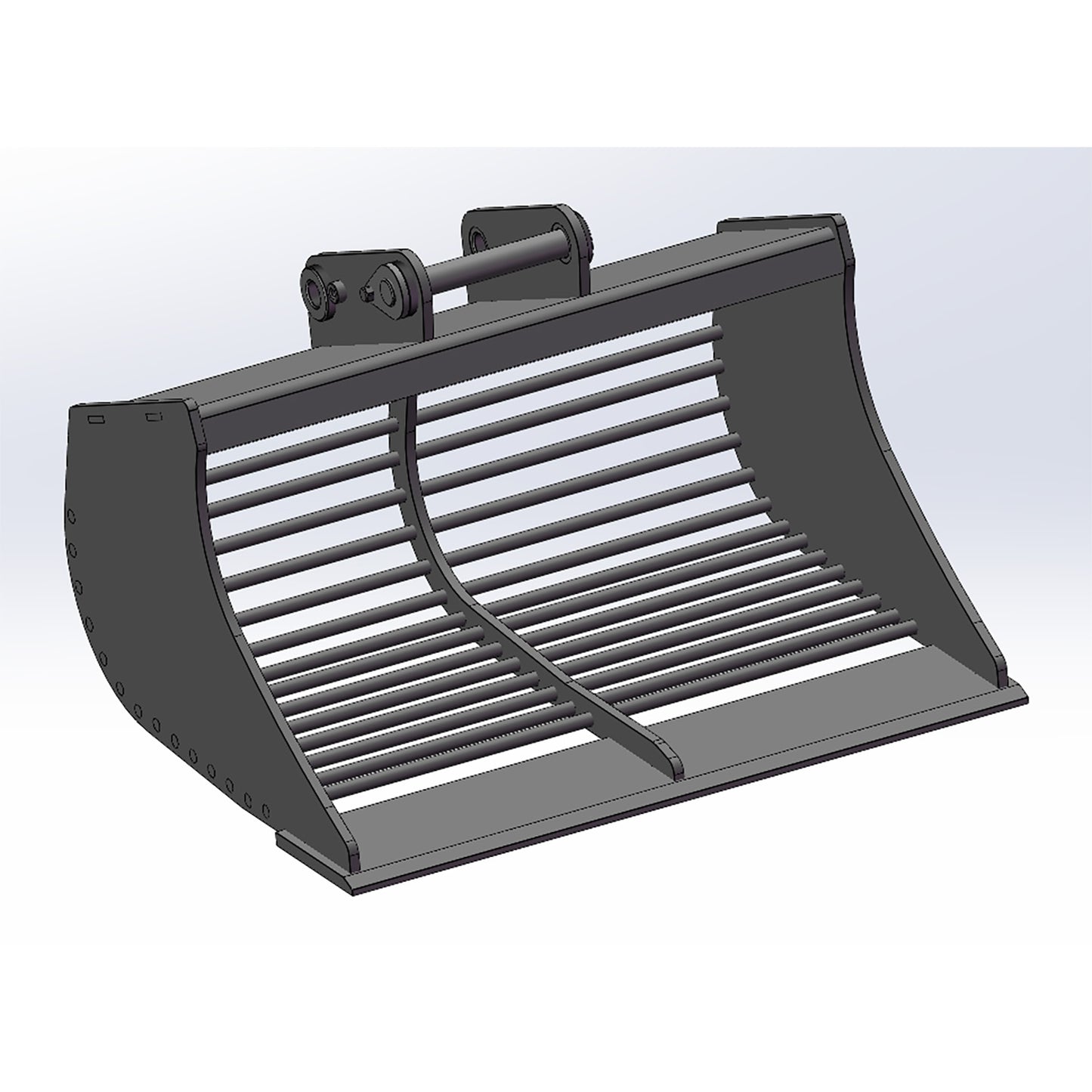

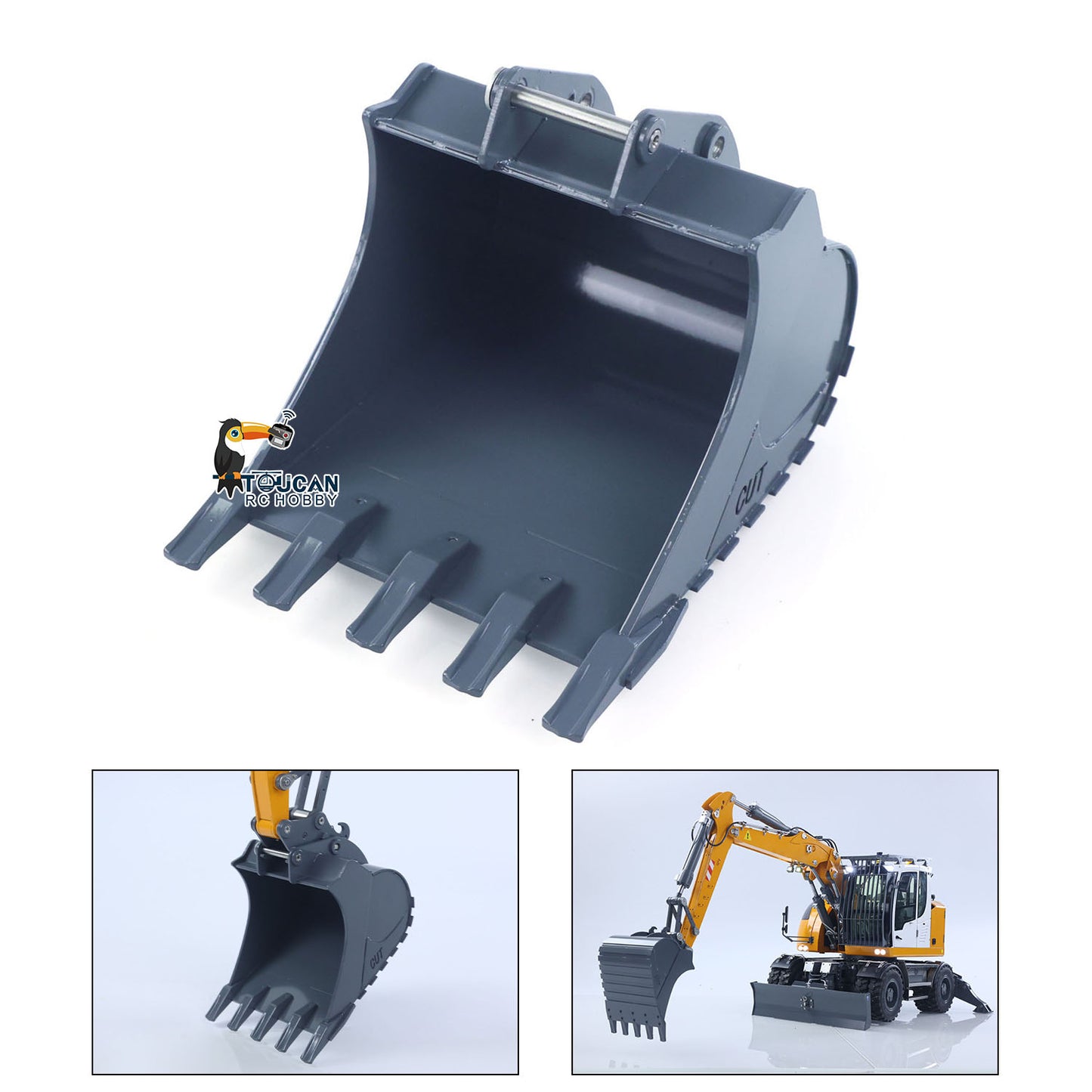

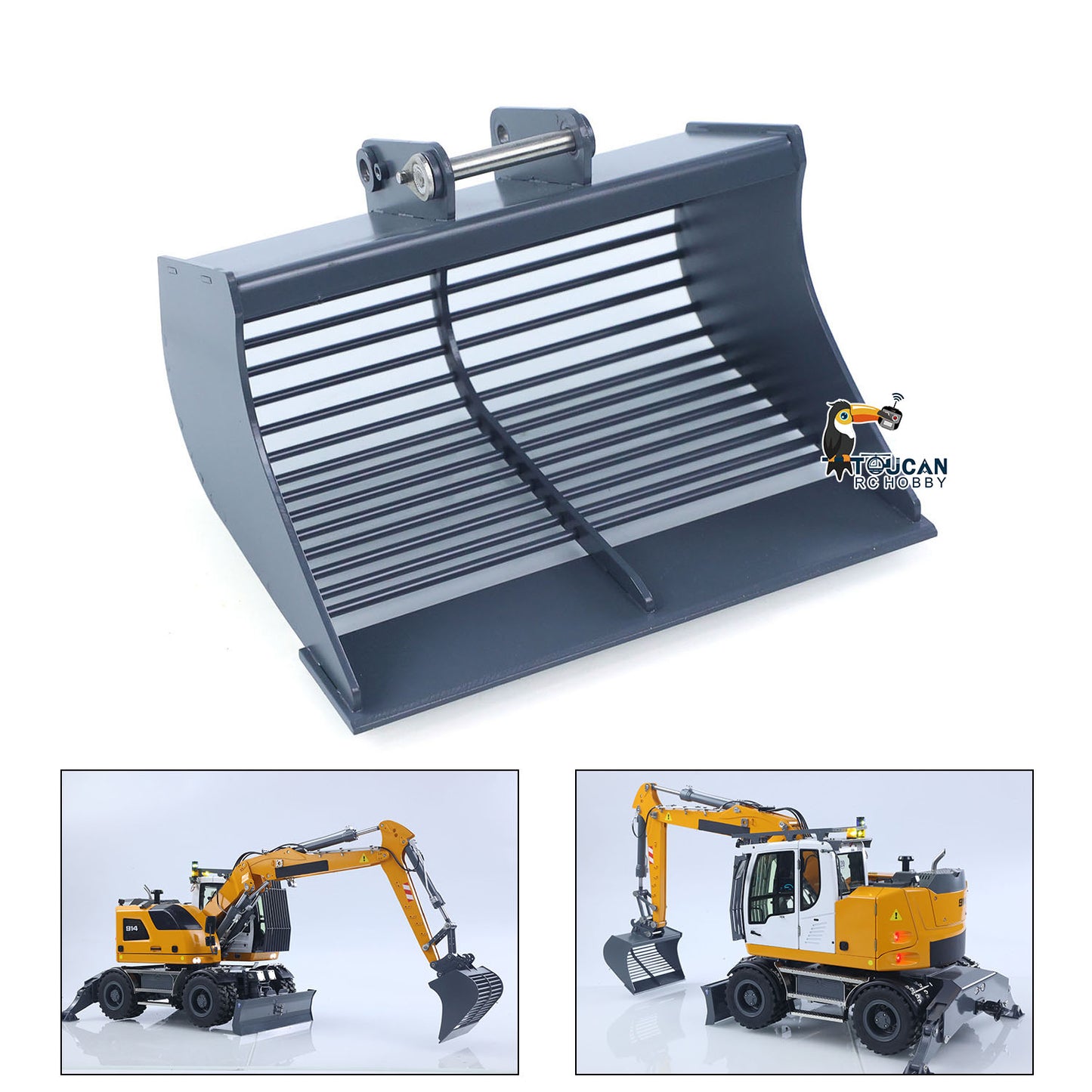

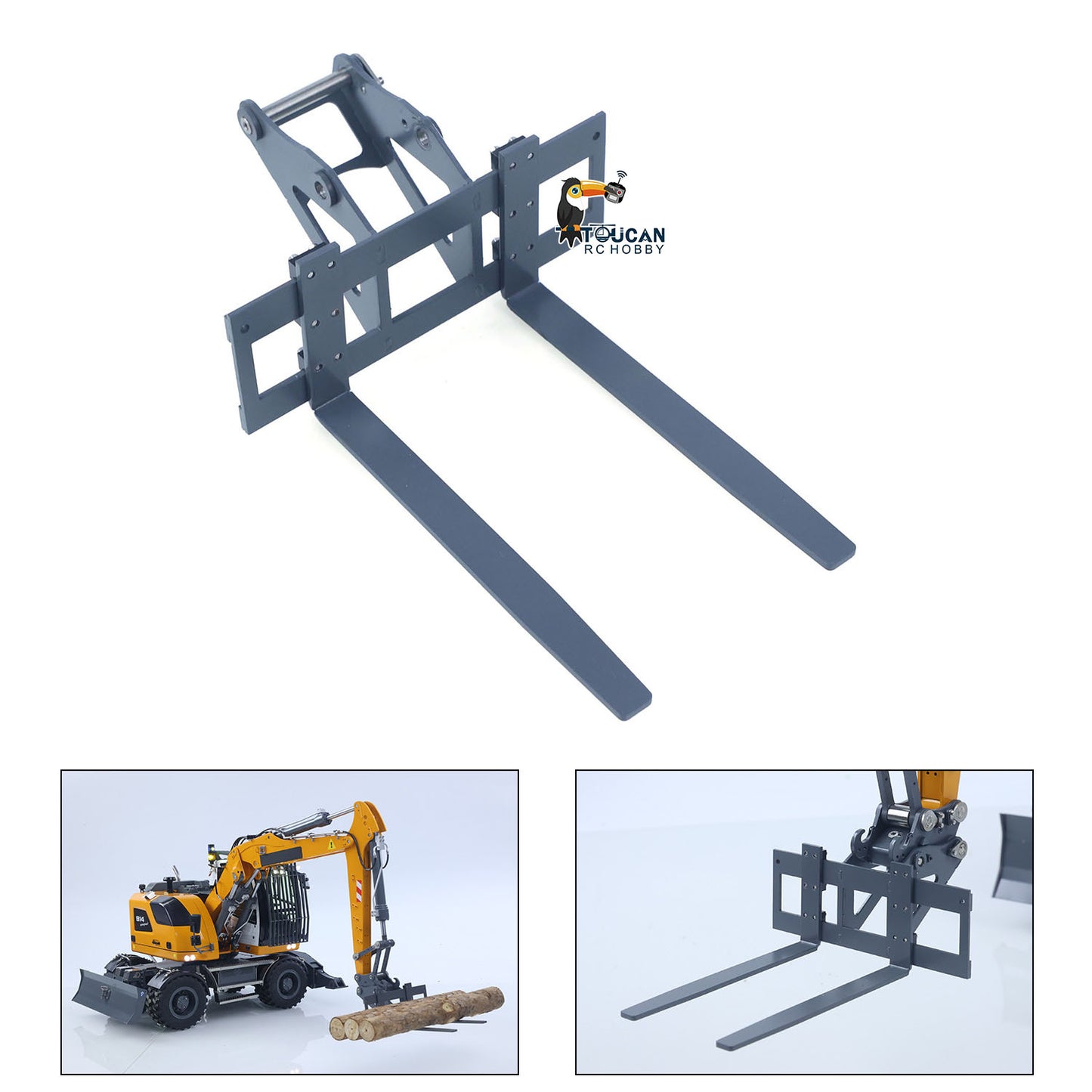

2. Multi-functional Design: This model is a multi-purpose machine, offering various upgrade options and multiple attachments to enhance playability.
3. Innovative Hydraulic Valve: First to use newly developed mechanical proportional hydraulic directional valve.

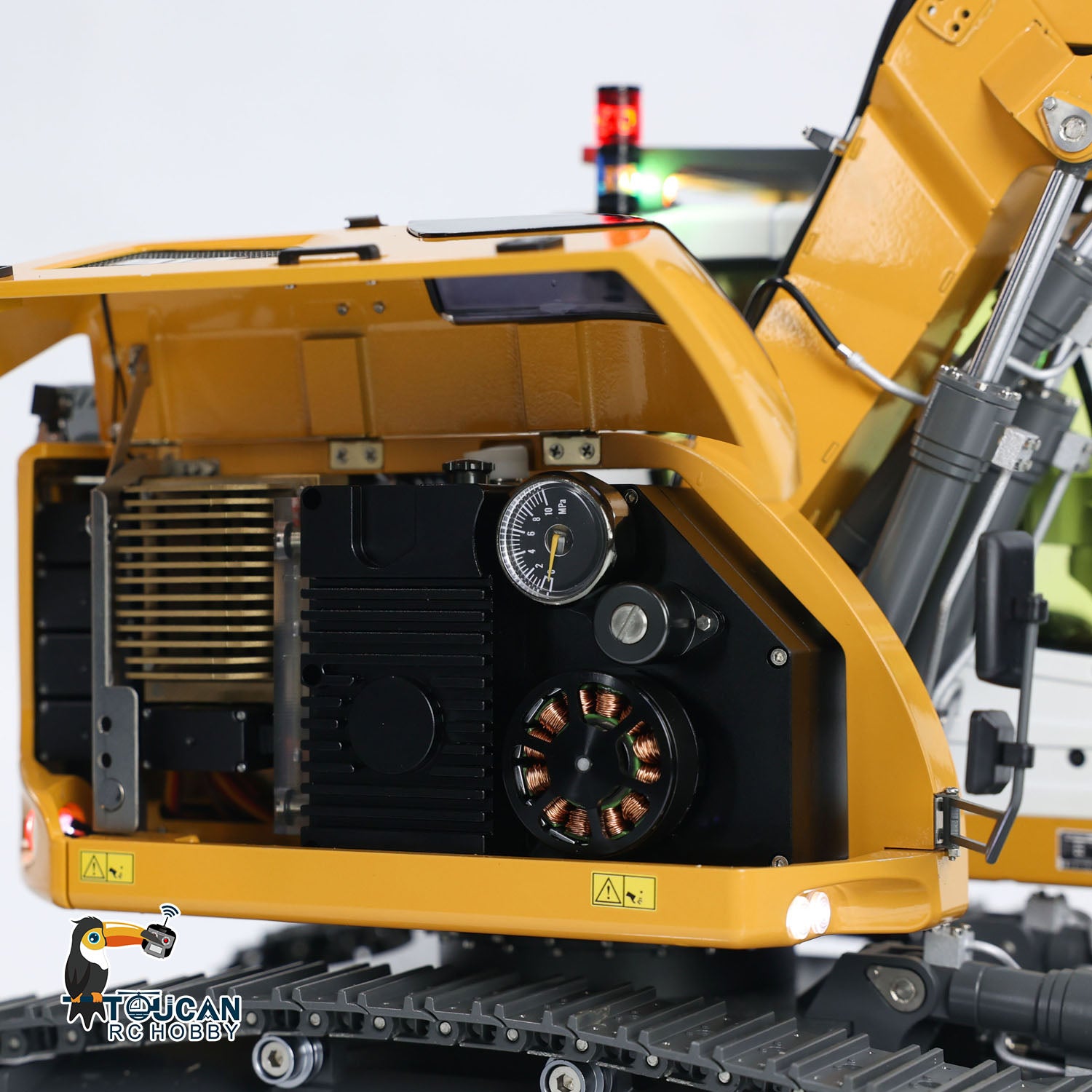

4. Integrated Hydraulic Pump Station: Reduces hydraulic pipelines by integrating a pressure regulator, pressure gauge, oil level indicator, and oil outlet.
5. Integrated Chassis: The one-piece formed chassis increases body strength, provides stable torque output for drive, and reduces noise.

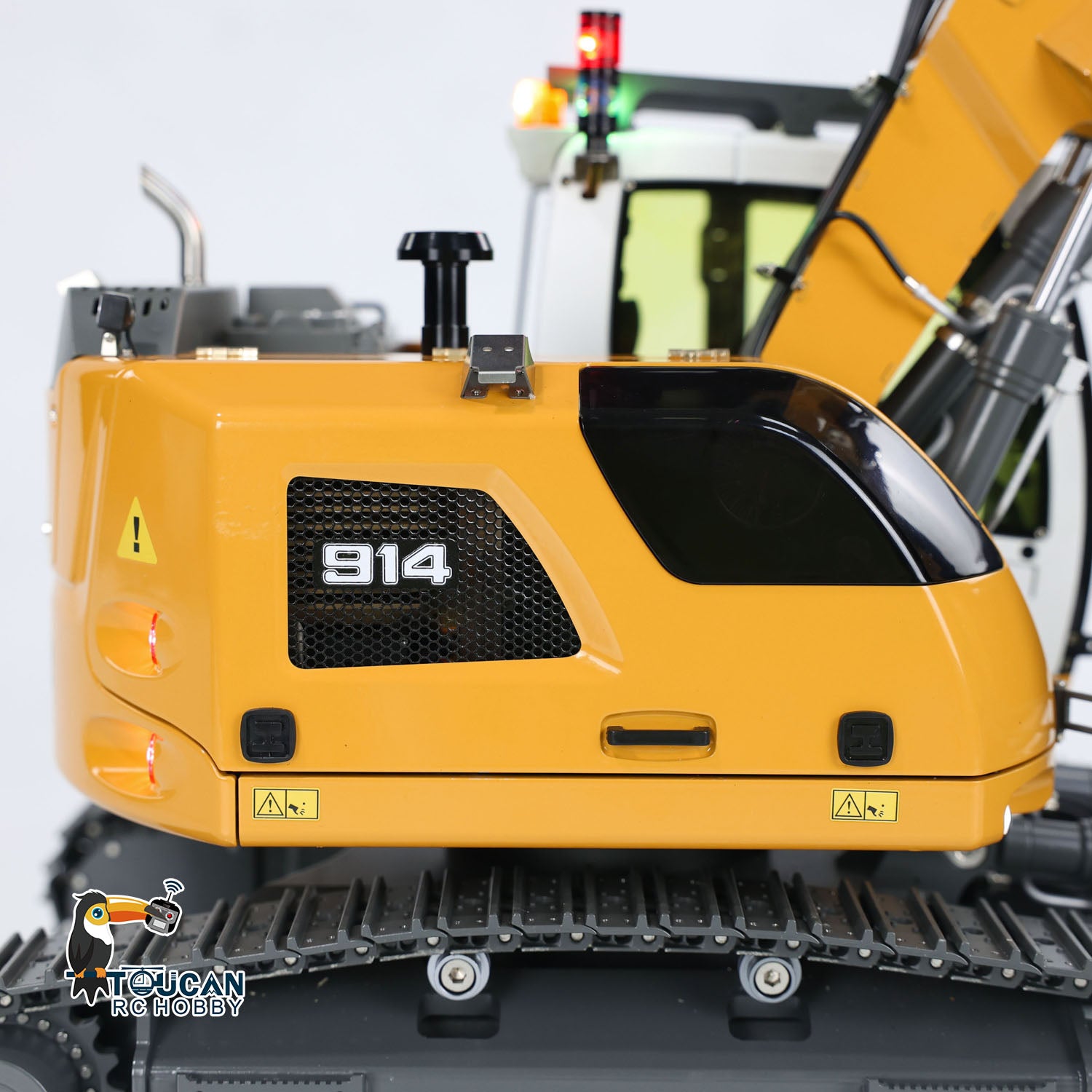

6. Counterweight Design: Sliding design of the counterweight with support from two linear bearings allows for smooth backward pull, facilitating quick battery replacement.

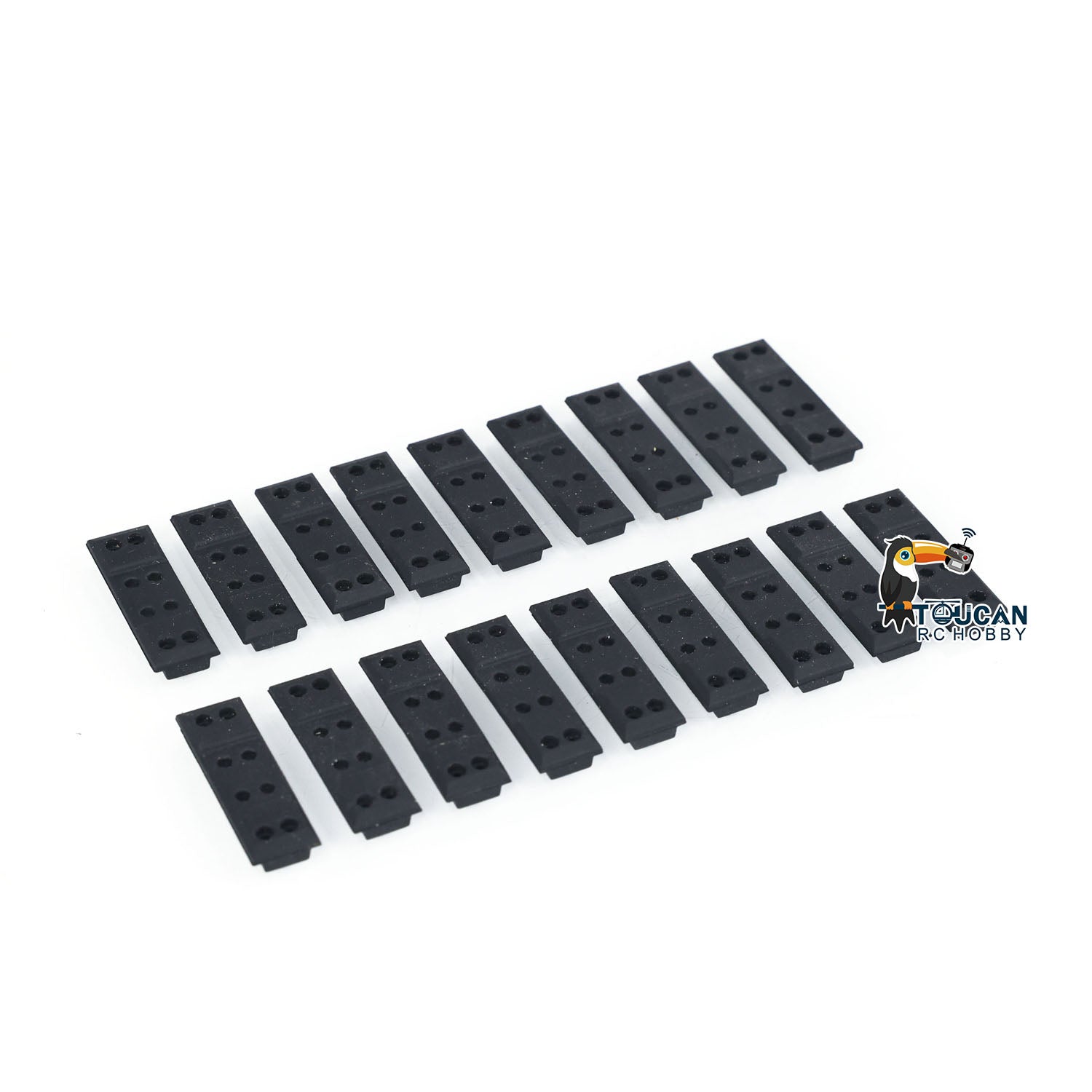

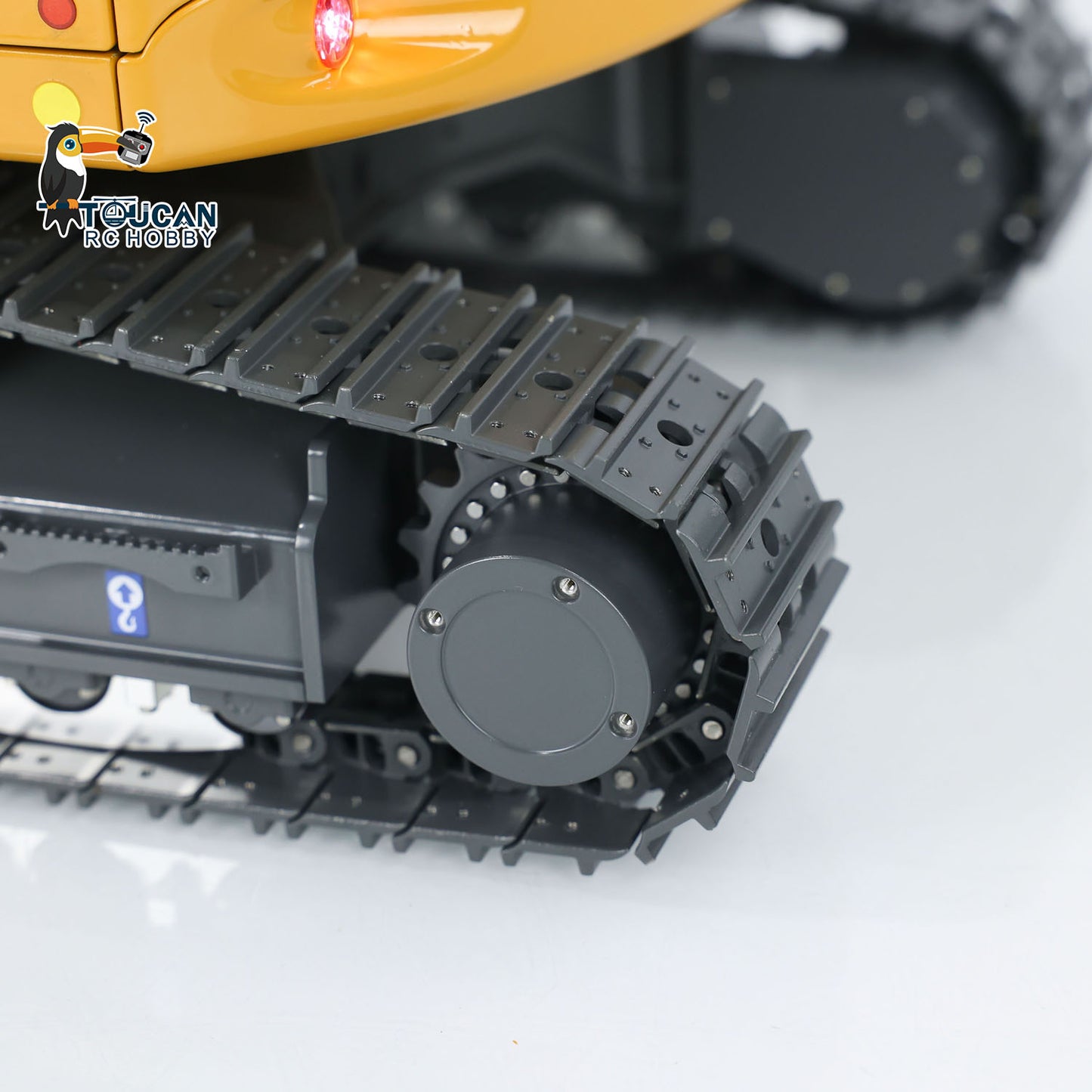

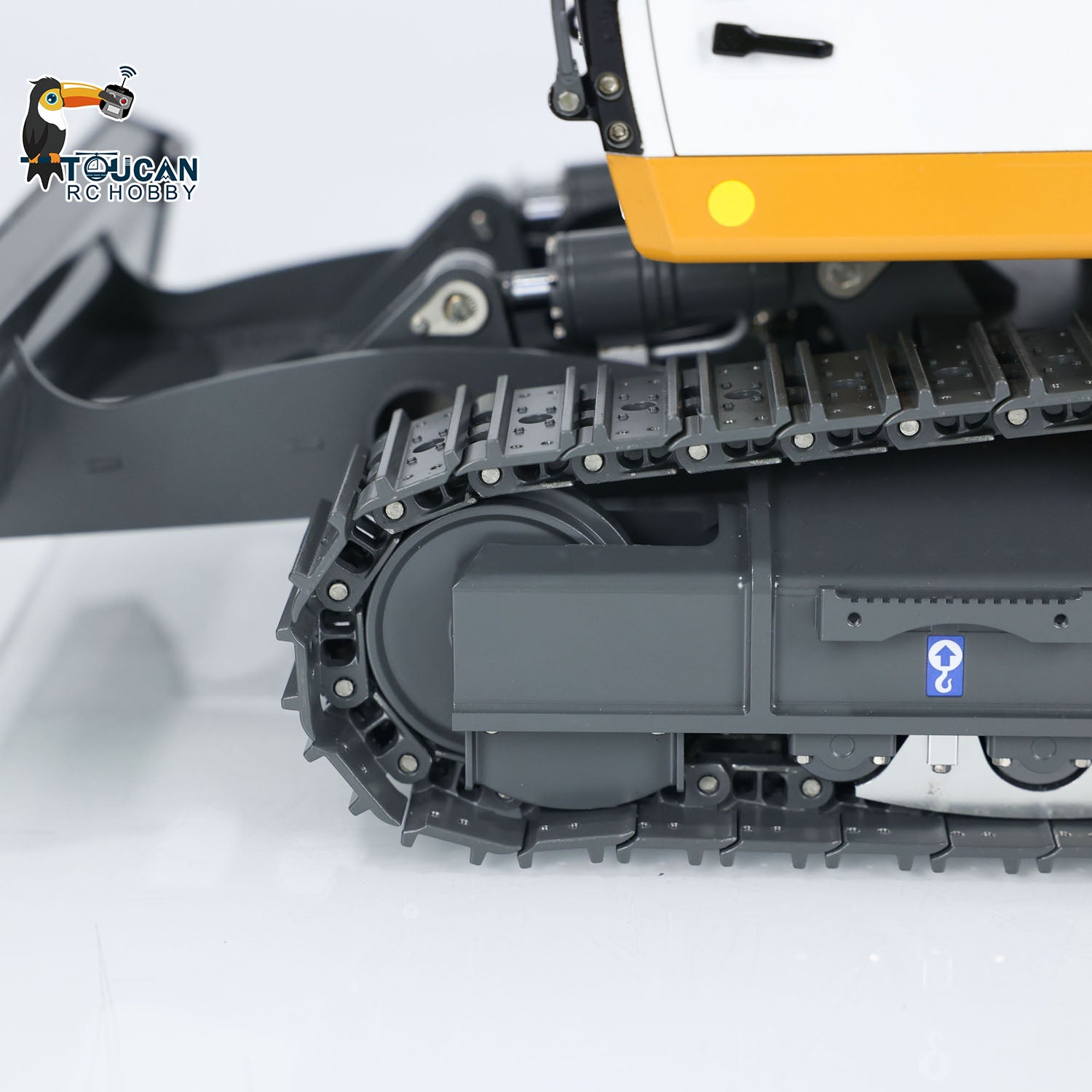

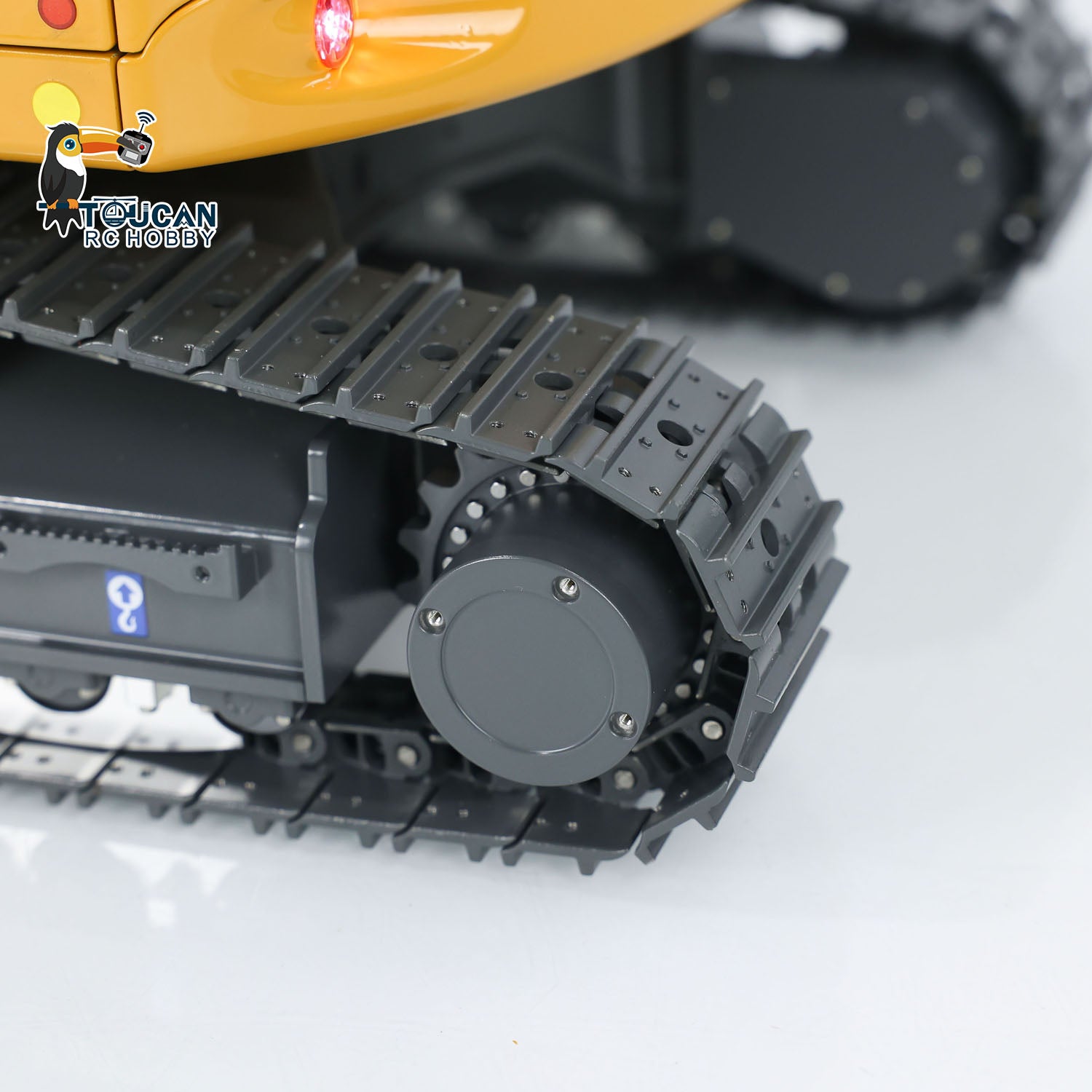

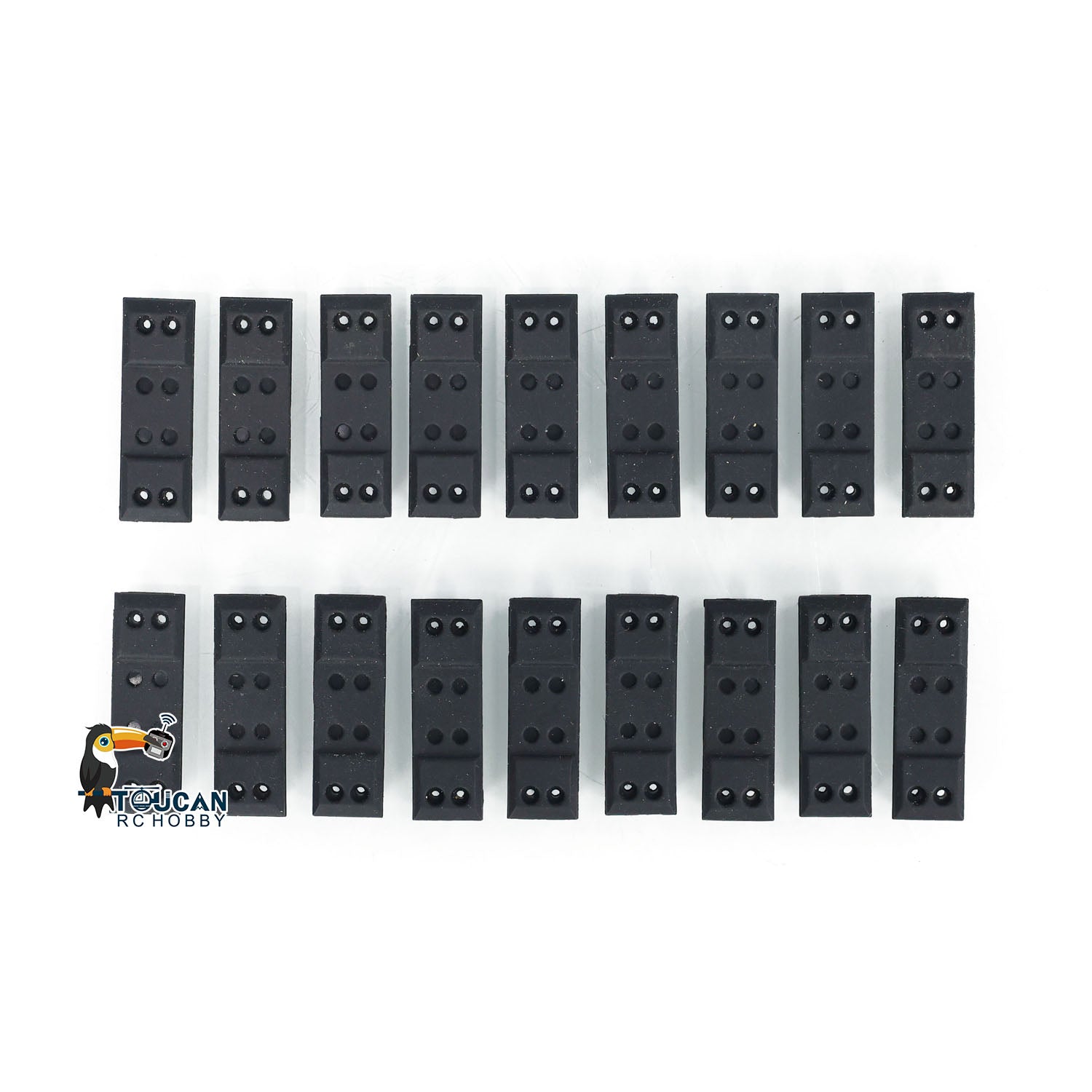

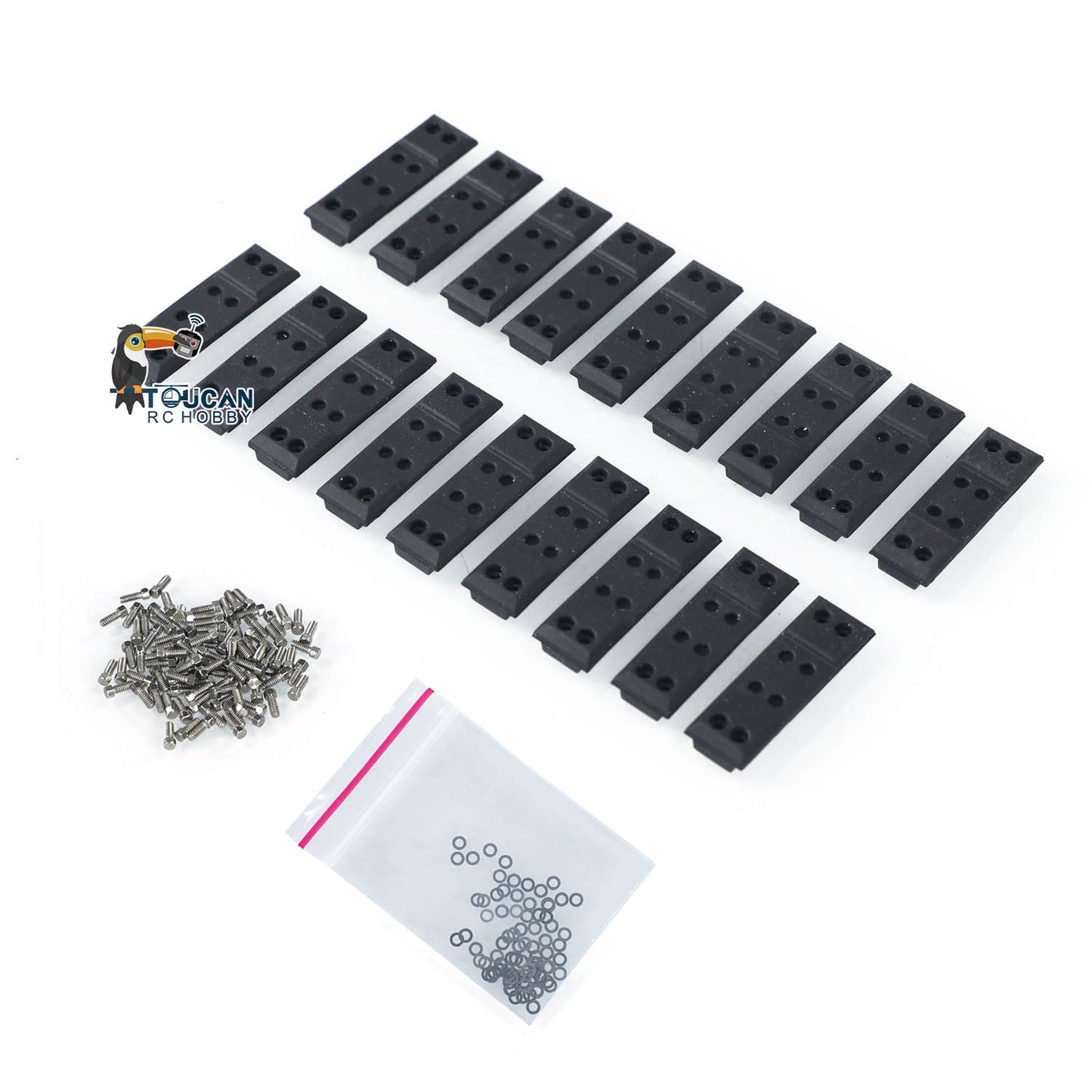

7. Track Upgrades: Tracks are pre-drilled with four mounting holes for easy upgrade to rubber tracks, enabling desktop entertainment play.
8. Hydraulic Swivel: Uses a planetary oil seal for smooth, stutter-free rotation and excellent sealing performance.

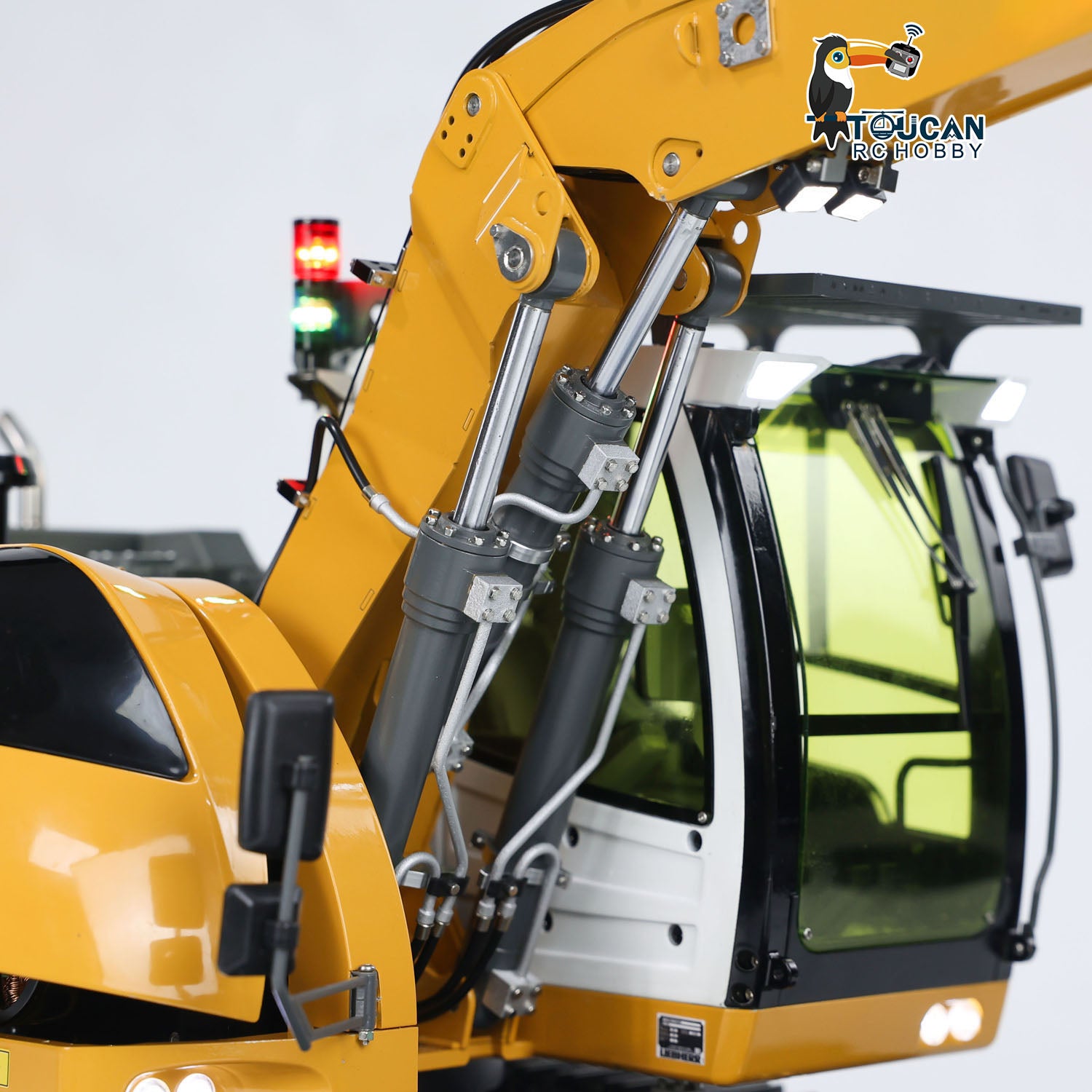

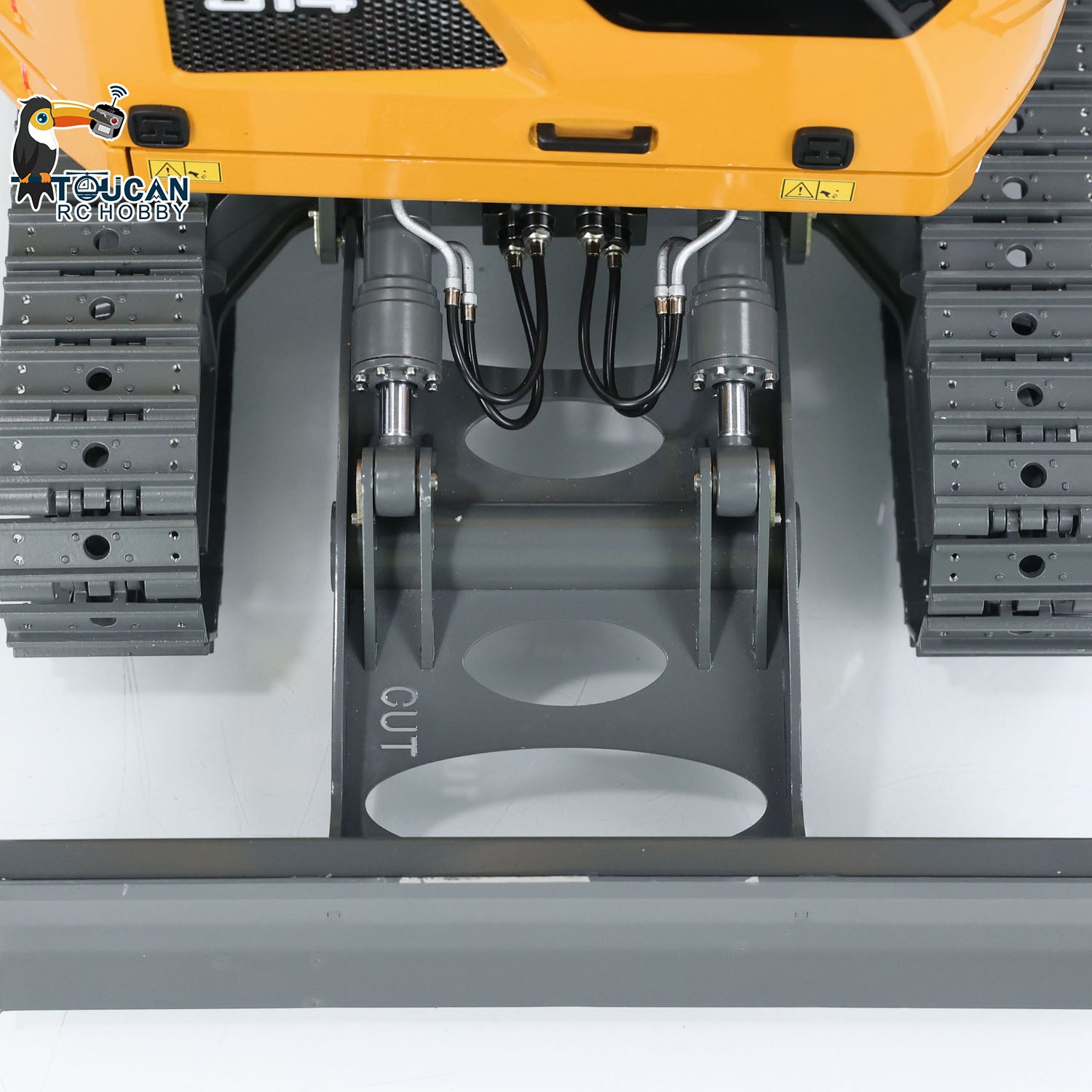

9. Cylinder Design: Adopts the sealing principle and structure of real vehicle cylinders, ensuring smooth operation with minimal resistance, good sealing, and easy maintenance.
10. High Integration Mainboard: Controls walking and hydraulic pump motor.

If you have any questions or are not sure whether it is the correct item you want, pls feel free to contact me before purchasing.
