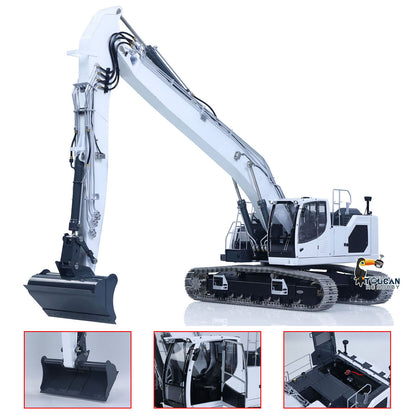

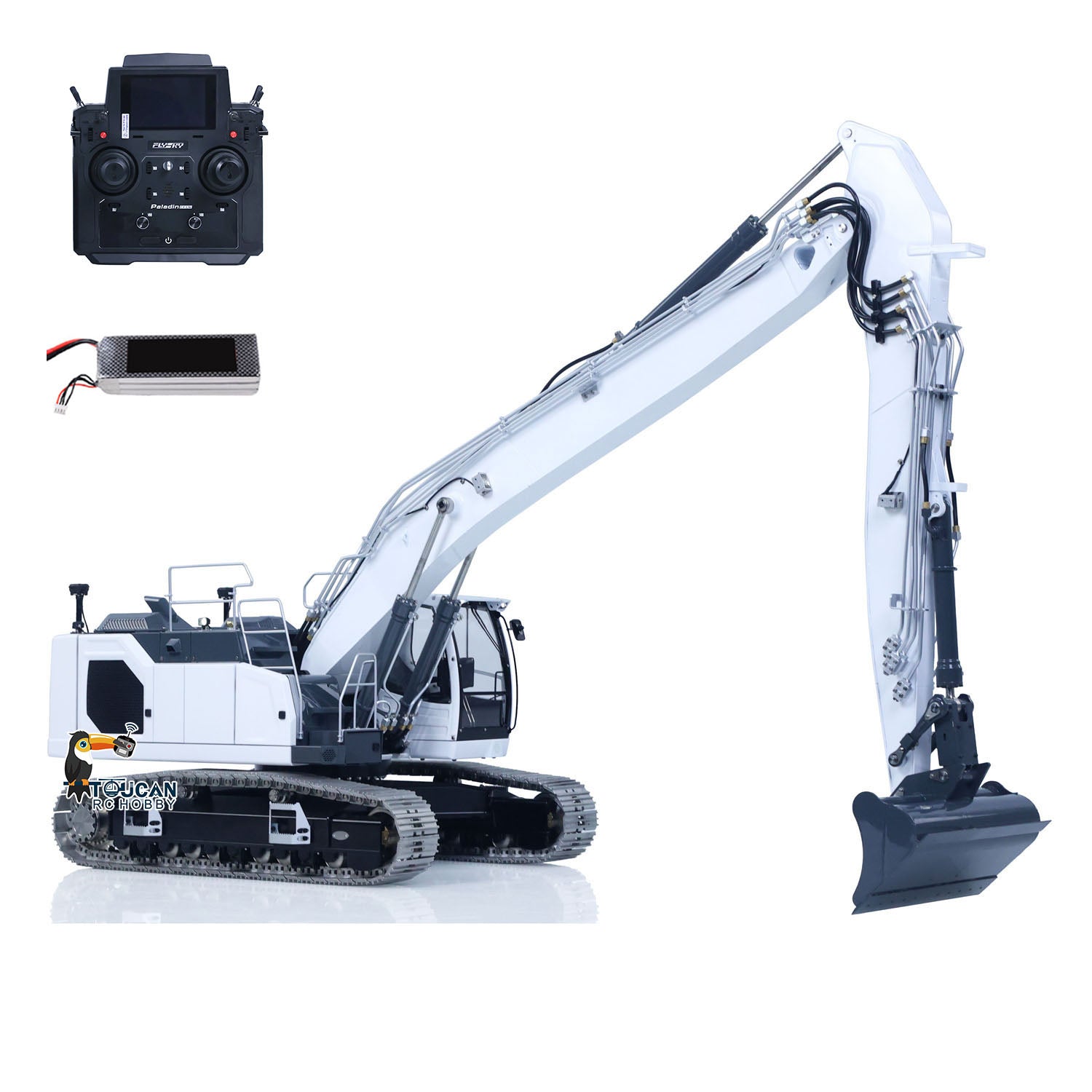

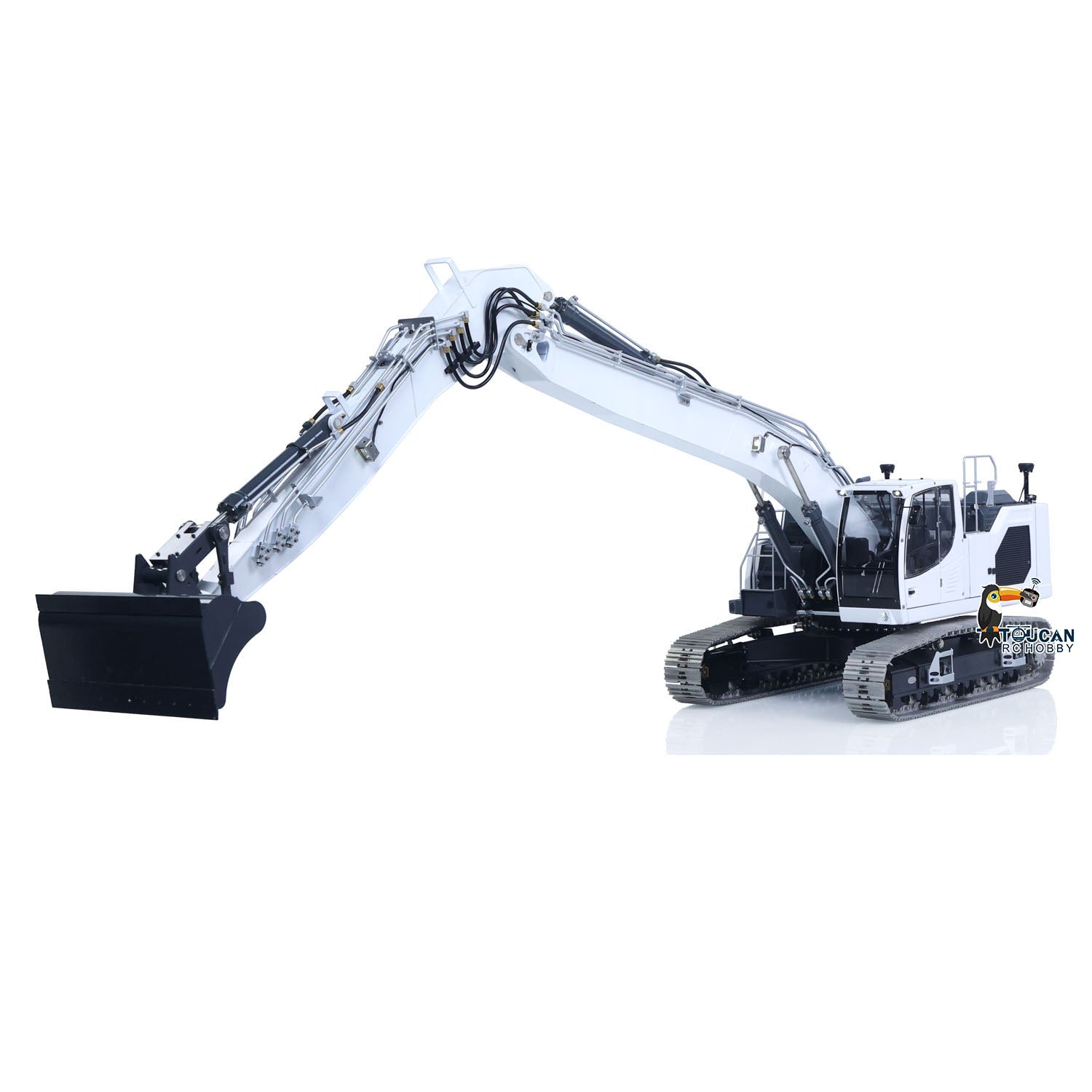

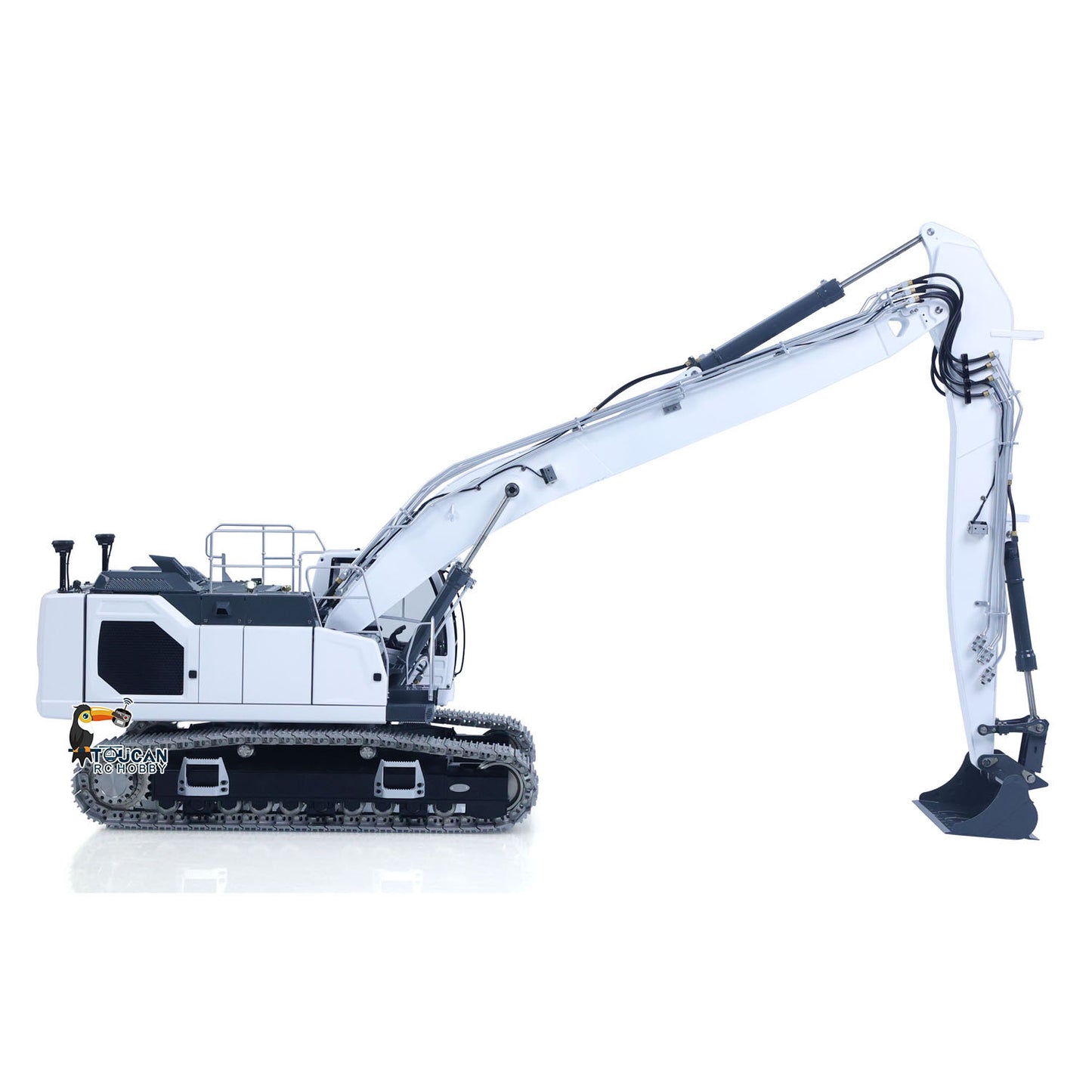

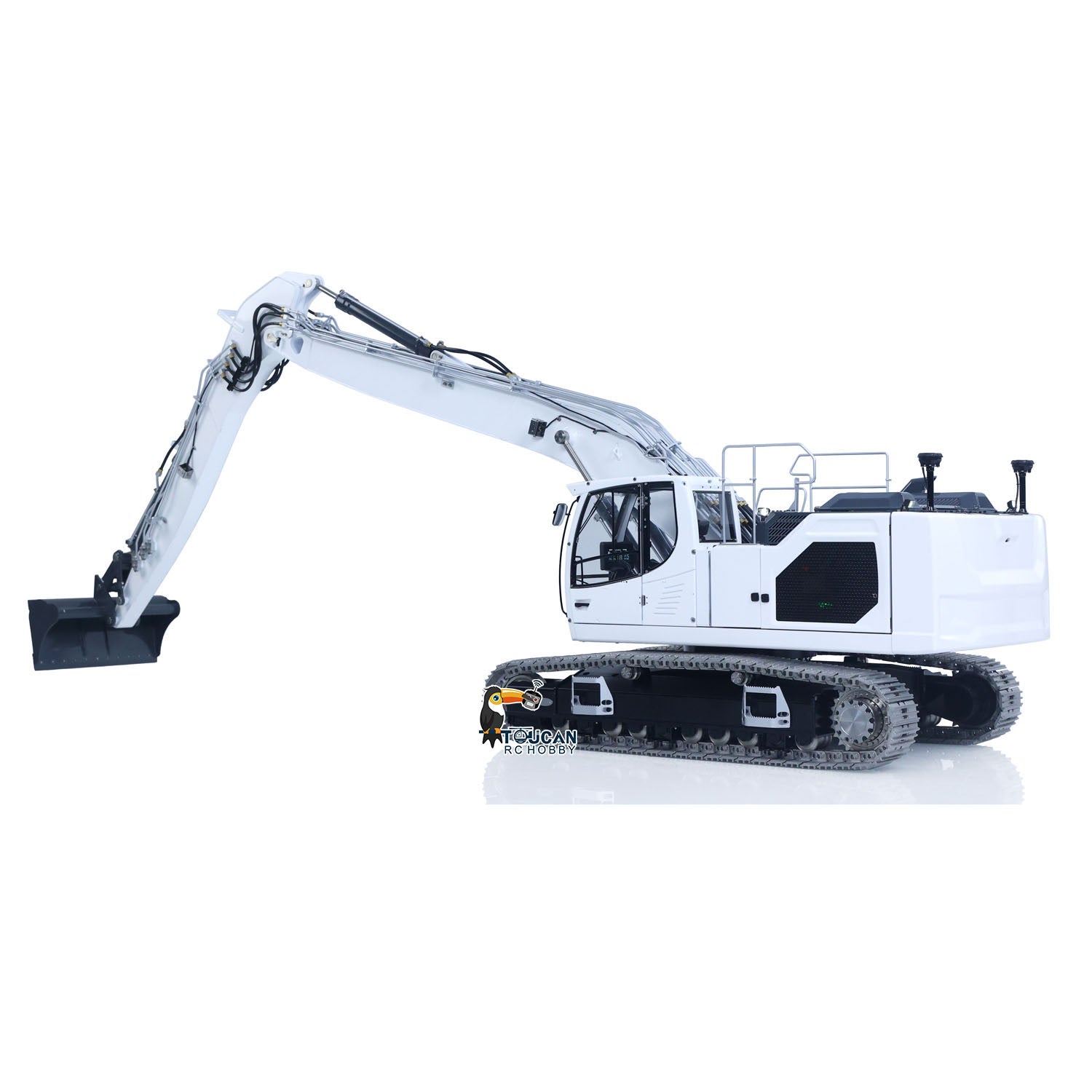

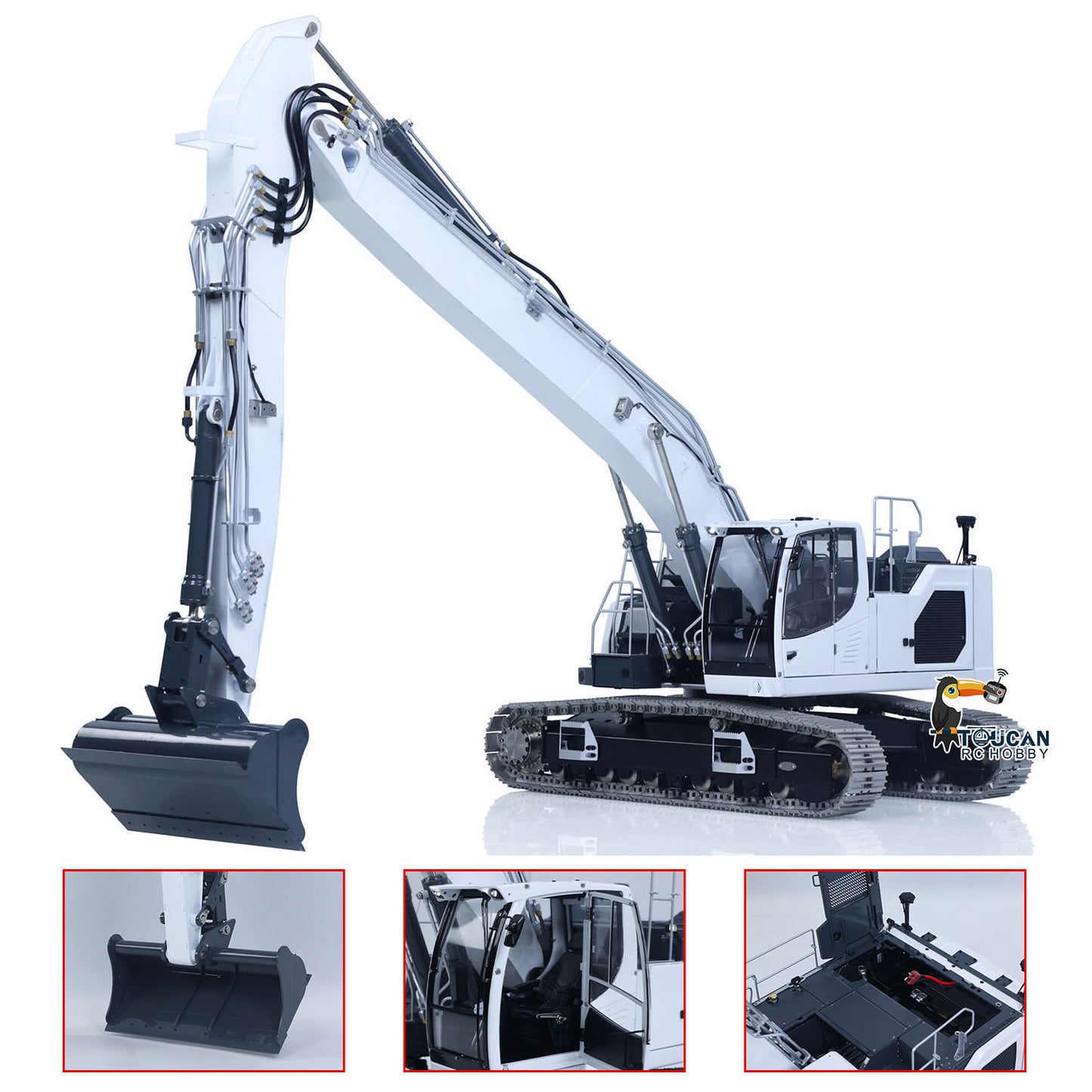

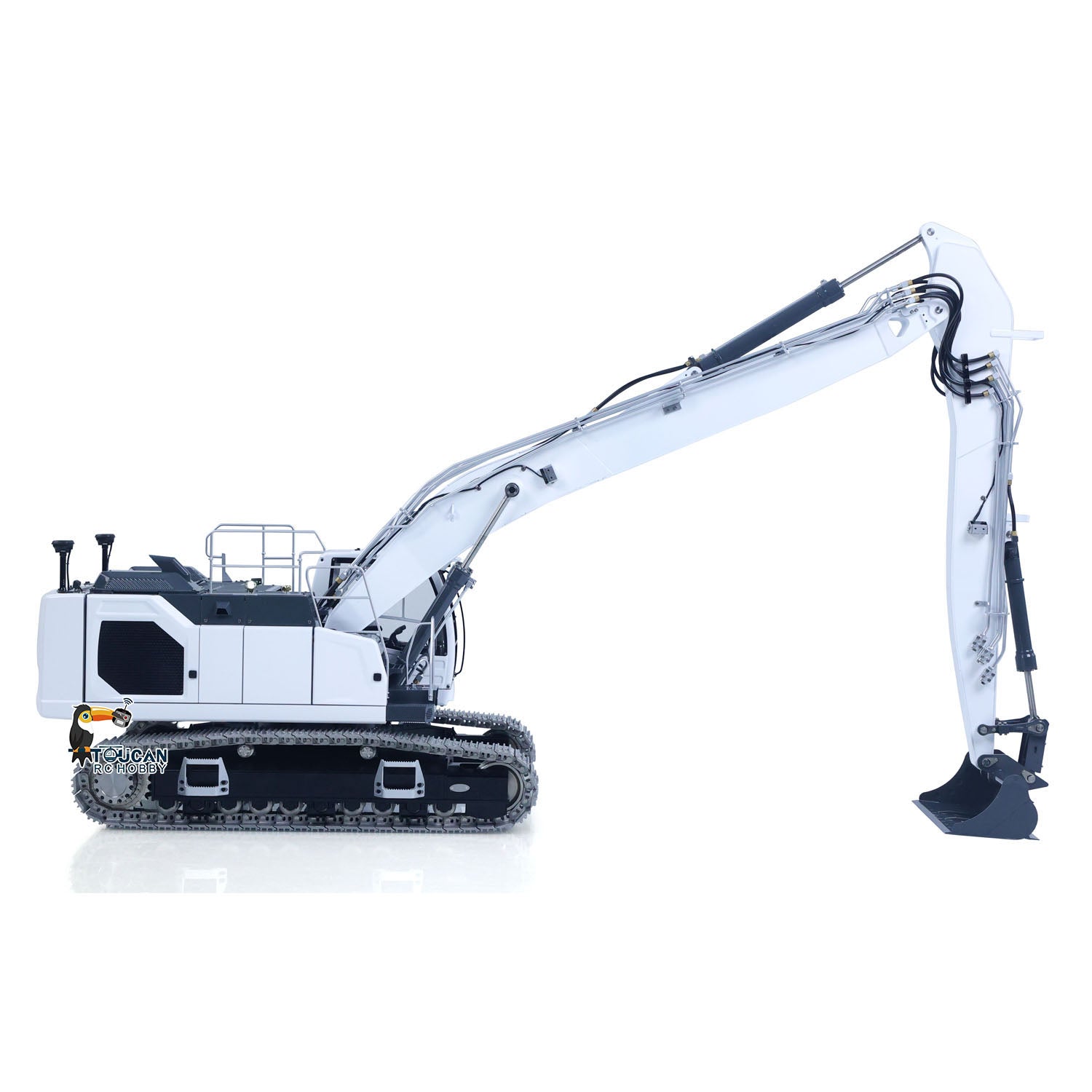

#LESU 1/14 RC Hydraulic Excavator AOUE LR945 CNC Long-reach Digger RTR Radio Control Model Light 7CH Valve Paladin PL18EV LITE
#Specification:
Manufacturer: LESU

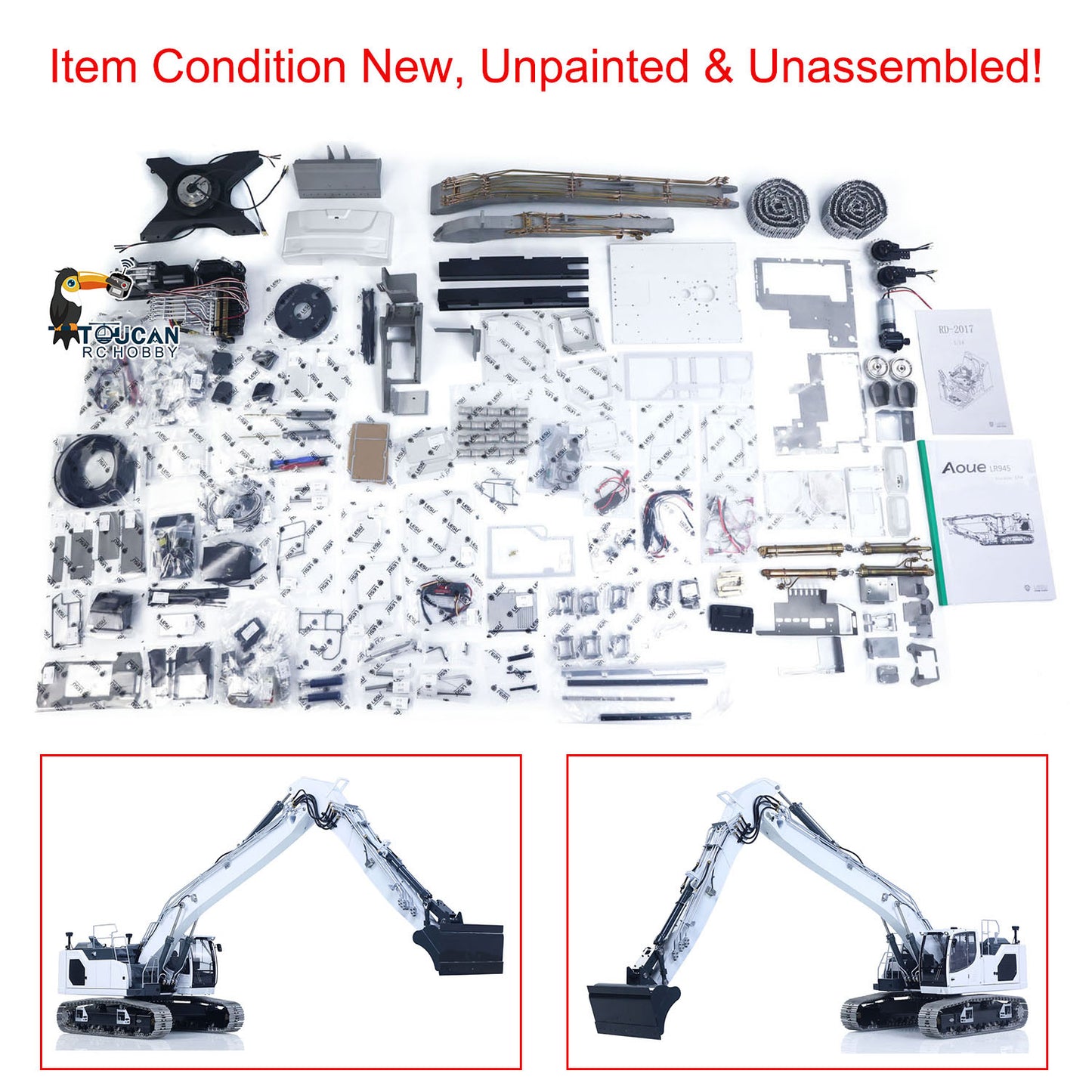

Item Condition: New, Painted and Assembled OR Unpainted and Unassembled(Options)
Material: Metal, Plastic
Scale: 1/14
Product Net Weight: 18.9KG
Wheelbase: 315MM
Product Dimensions: 932x268x228MM
Height from Top of Cab to Ground /mm: 228
Wheelbase (Center Distance Between Drive Wheel and Idler Wheel) /mm: 315
Height from Bottom of Working Platform to Ground /mm: 88
Track Gauge /mm: 206
Total Track Length /mm: 383
Track Width /mm: 43
Height from Bottom of X-Frame to Ground /mm: 38
Total Excavator Width /mm: 268
Minimum Swing Radius: 262MM
Maximum Digging Depth: 662MM
Maximum Digging Height: 927MM
Maximum Digging Radius: 1025MM
Swing Speed (r/min): 12
Maximum Ground Digging Radius: 1014MM
Swing Drive Reduction Ratio: 1:208
Travel Drive Wheel Speed (r/min): 25
Swing Motor Speed (r/min): 2500
Travel Drive Reduction Ratio: 1:520
Maximum Pressure of Hydraulic Station /MPa: 4
Travel Motor Speed (r/min): 13200
Rated Pressure of Hydraulic Station /MPa: 3
Number of Directional Valve Ports: 7
Number of Hydraulic Pumps: 1
ID: LS-BA-B0034-MTrack-RTR-W
#The Package Includes:
1/14 RC Hydraulic Excavator Model (Unpainted & Unassembled/Painted & Assembled)
Motor
Servo
ESC
Hydraulic System
Light System
#The Package Does Not Include:
Sound System
Charger
Hydraulic Oil
Note: There are some attachments for optional upgrade, the package option is selected by yourself.
FlySky PL18EV Lite Remote Controller and Receiver
Battery
#Feature:

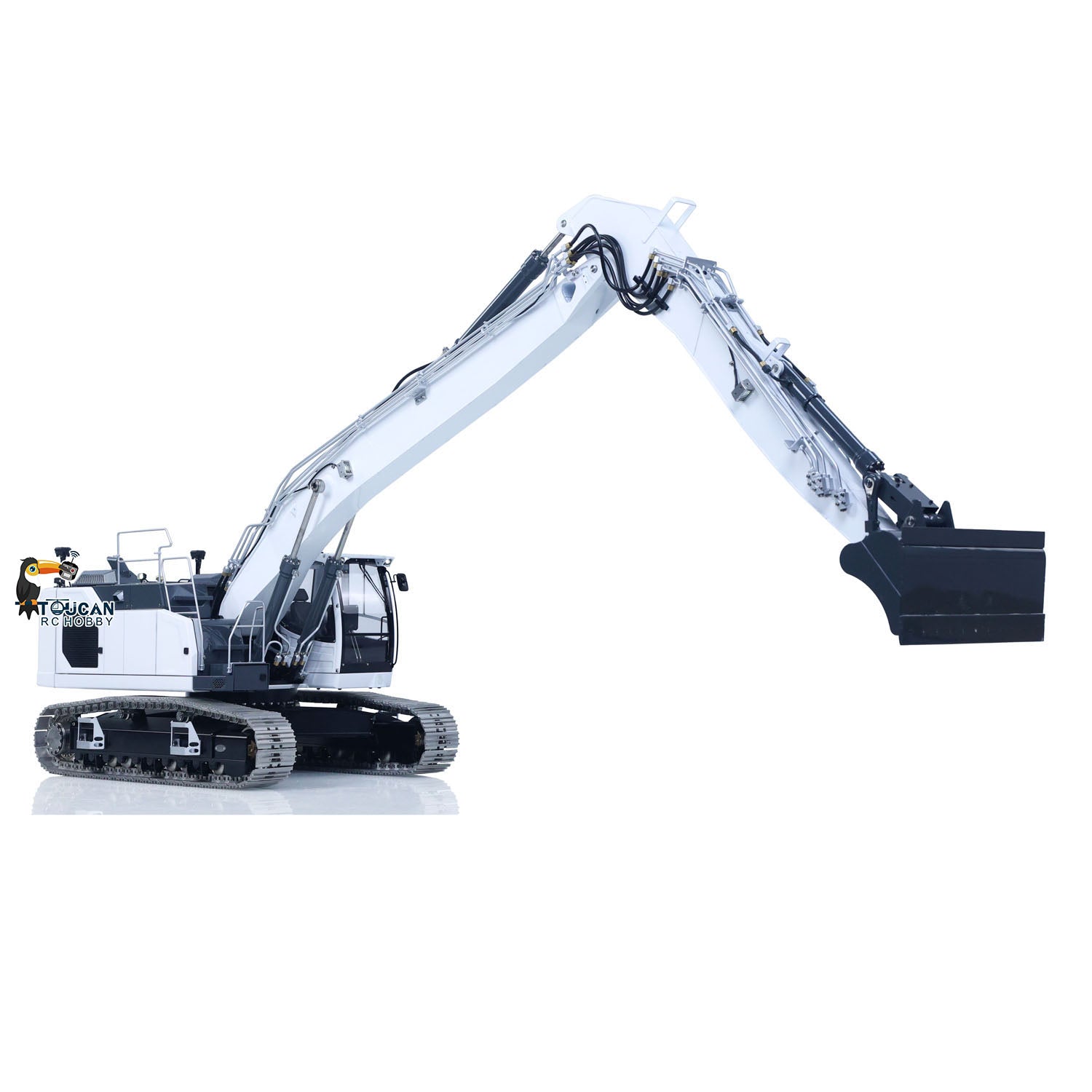

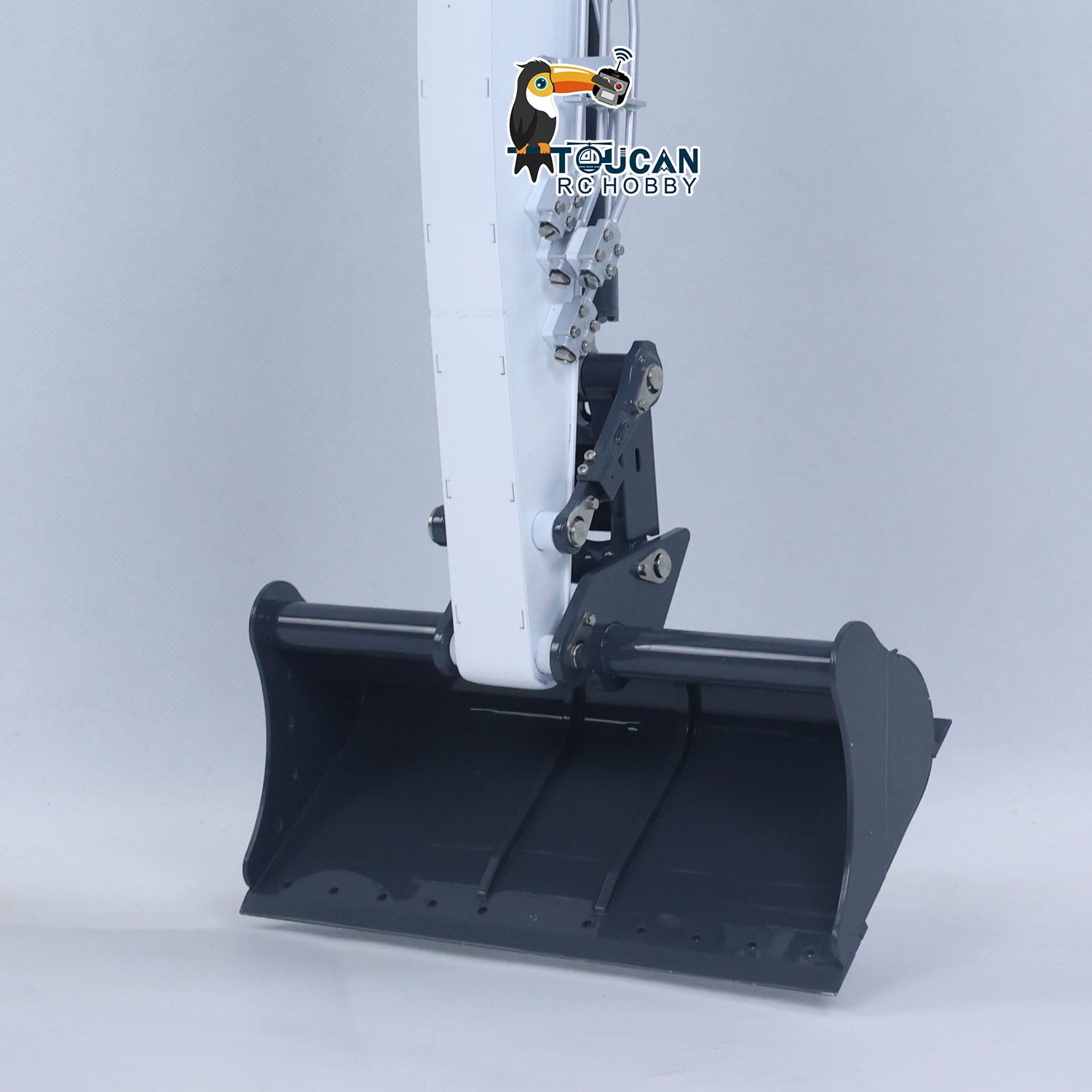

1. Precision Hydraulic Long-reach Arm, Smooth Linear Movement & Wide Working Range
2. Whole-machine modular design, Stainless Steel Arm & CNC Alloy Counterweight
3. 80% Copper Welded Oil Circuit, 90% Full Metal Body

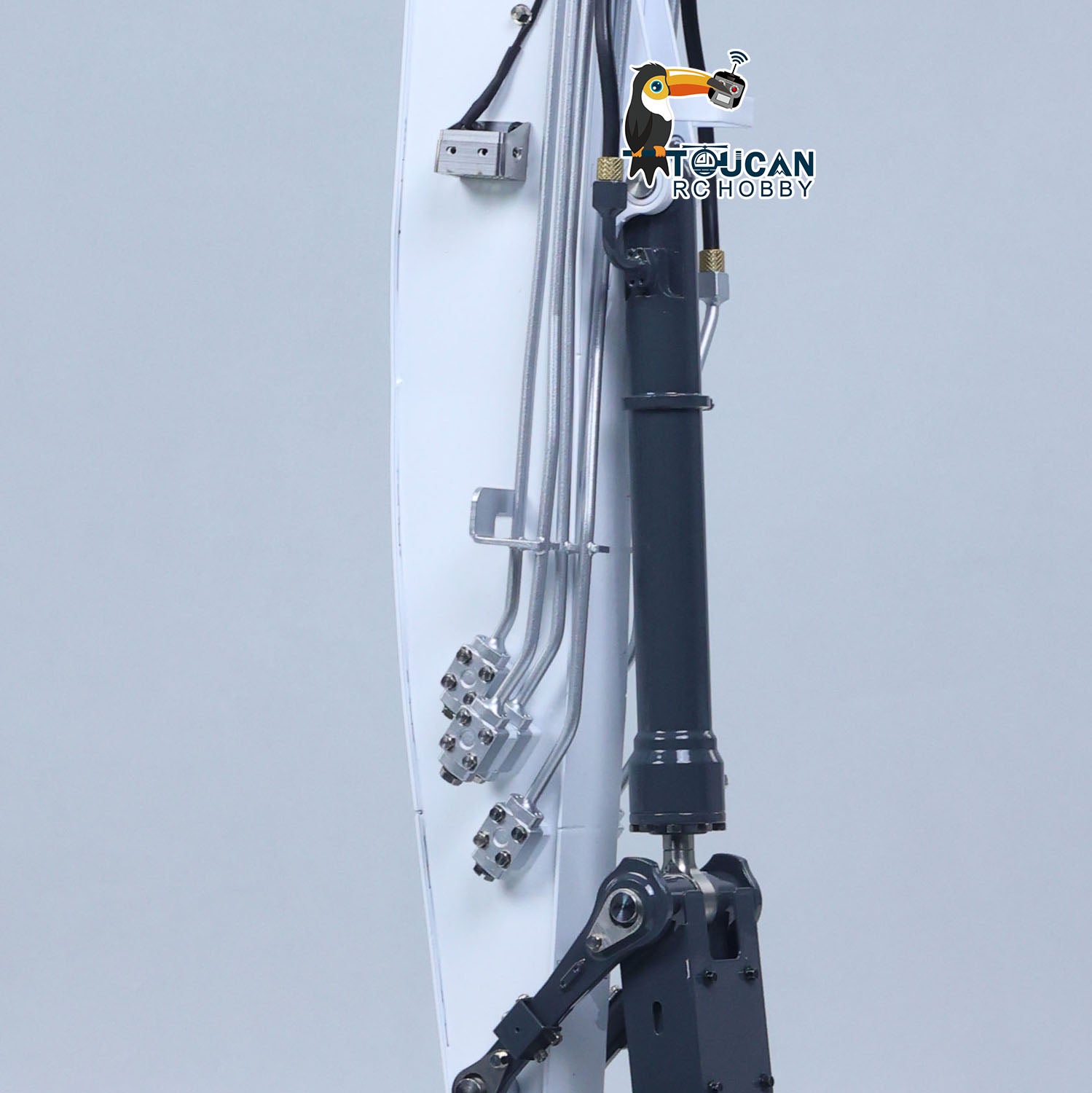

4. 7-Channel Directional Valve, 4 Hydraulic Cylinders & 3-way Reserved Oil Expansion

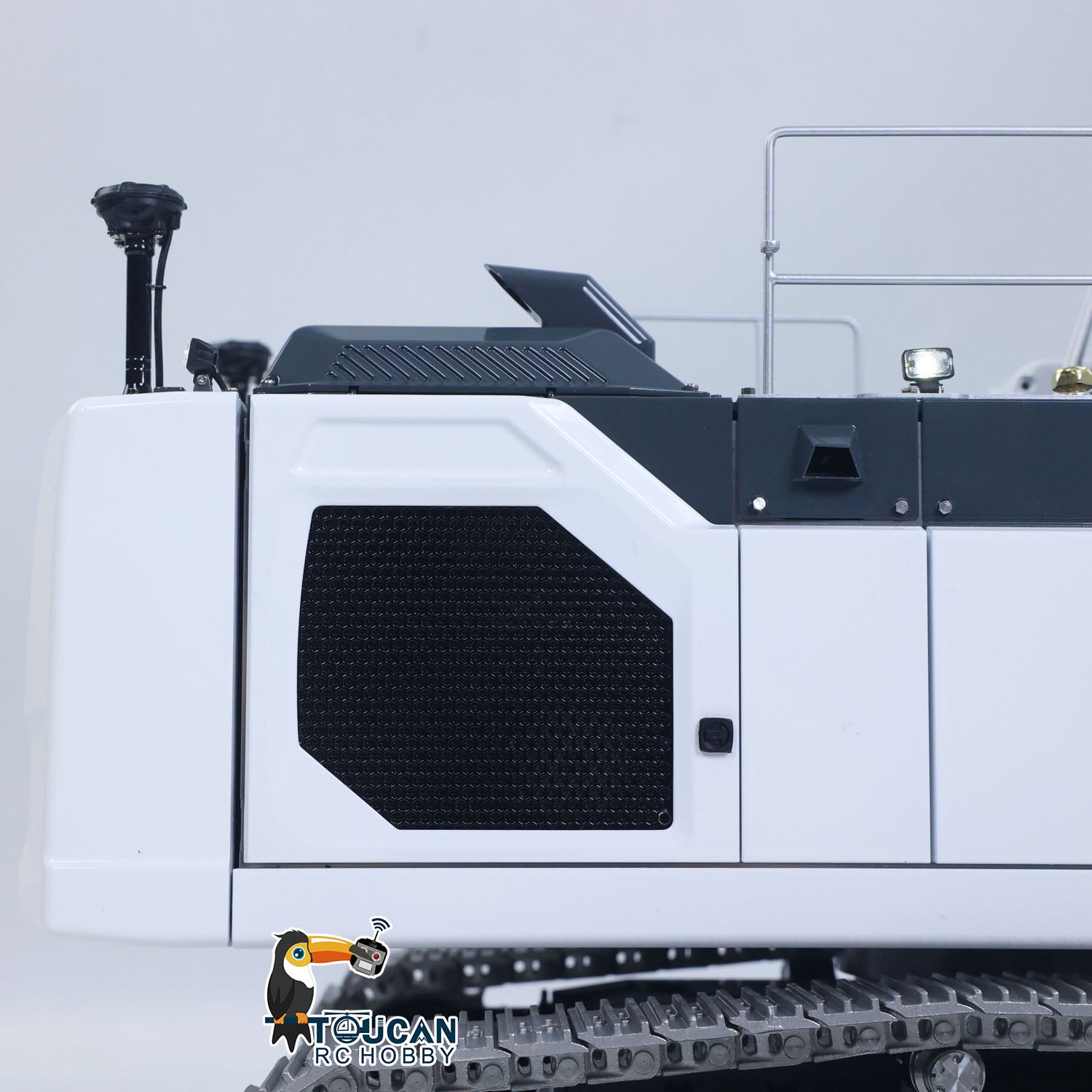

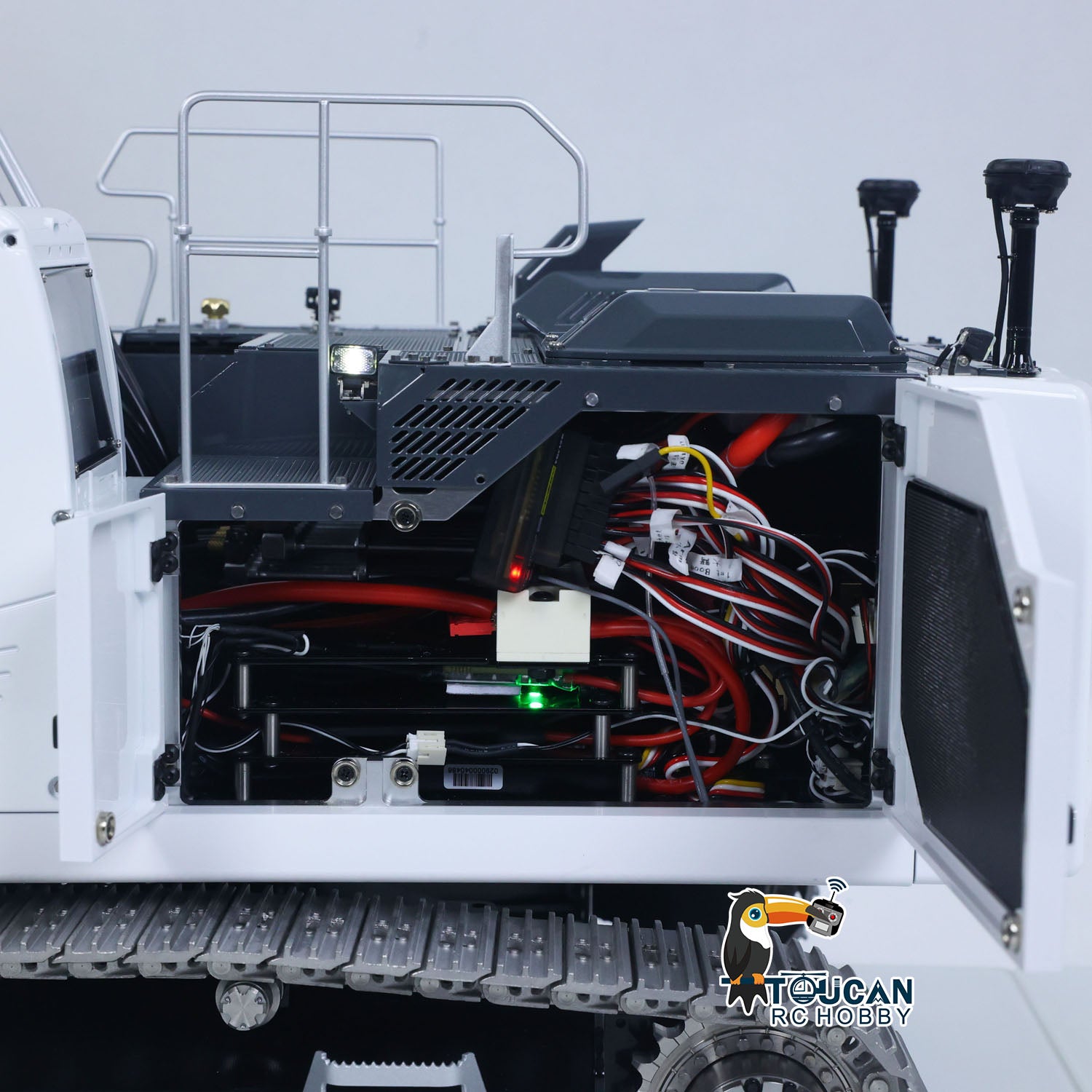

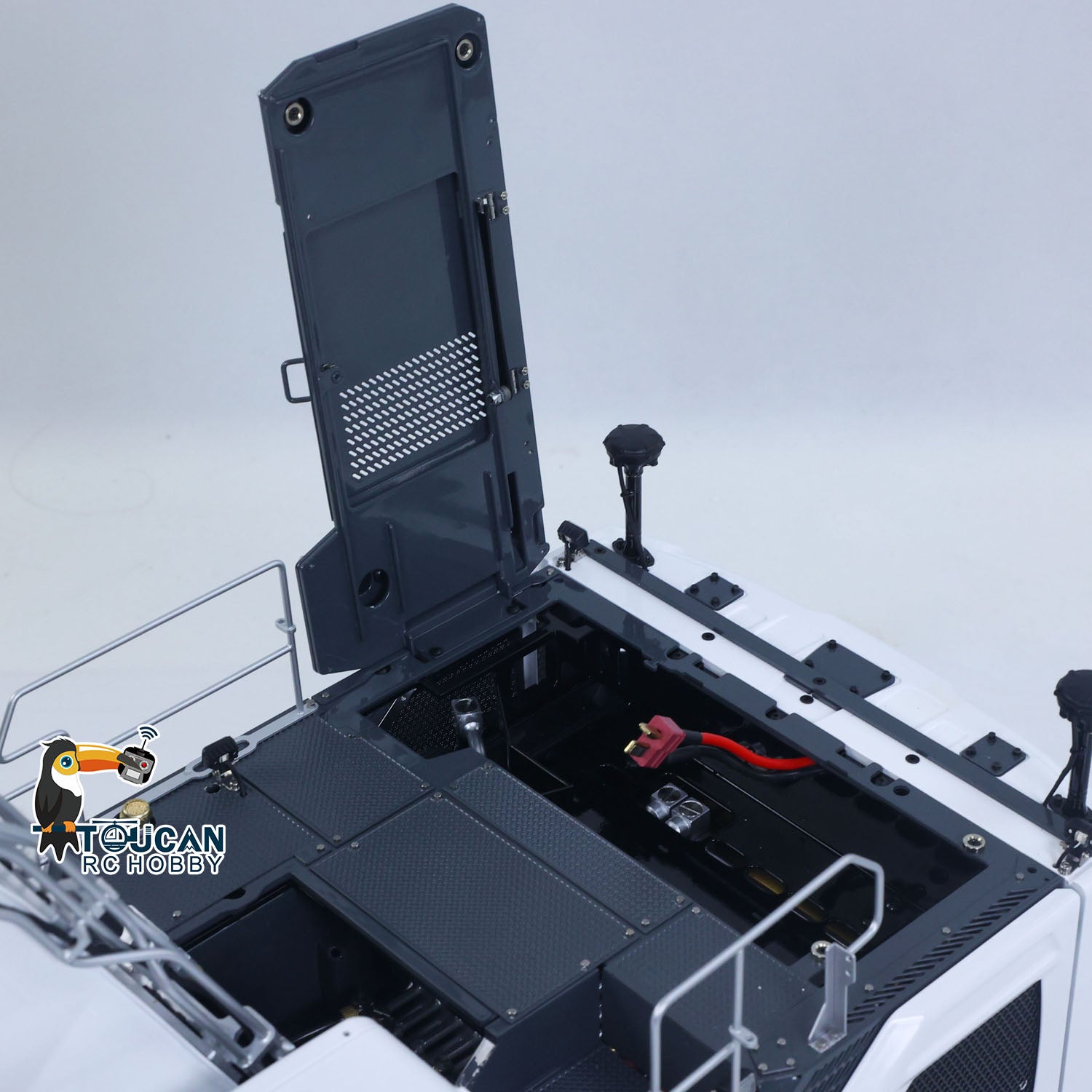

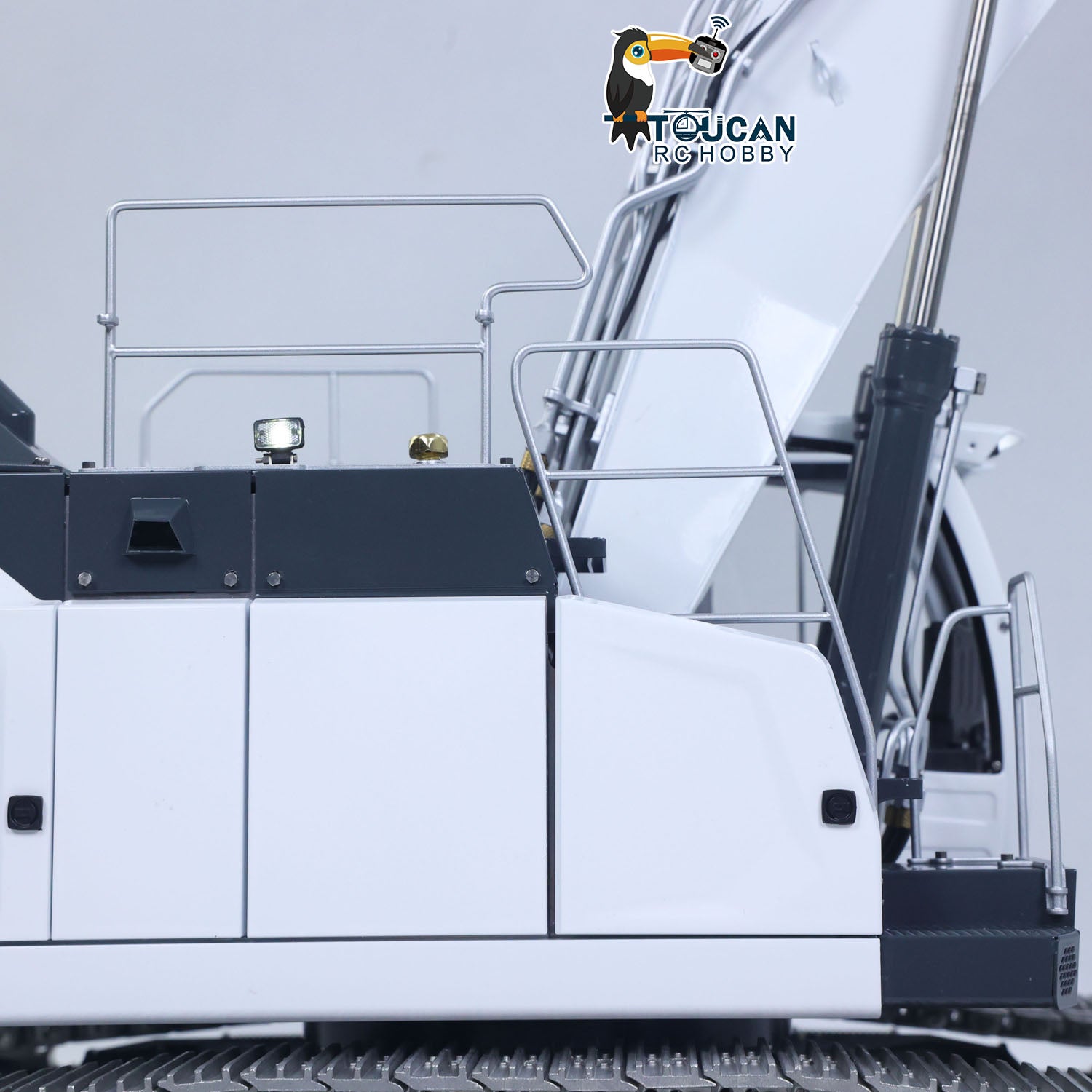

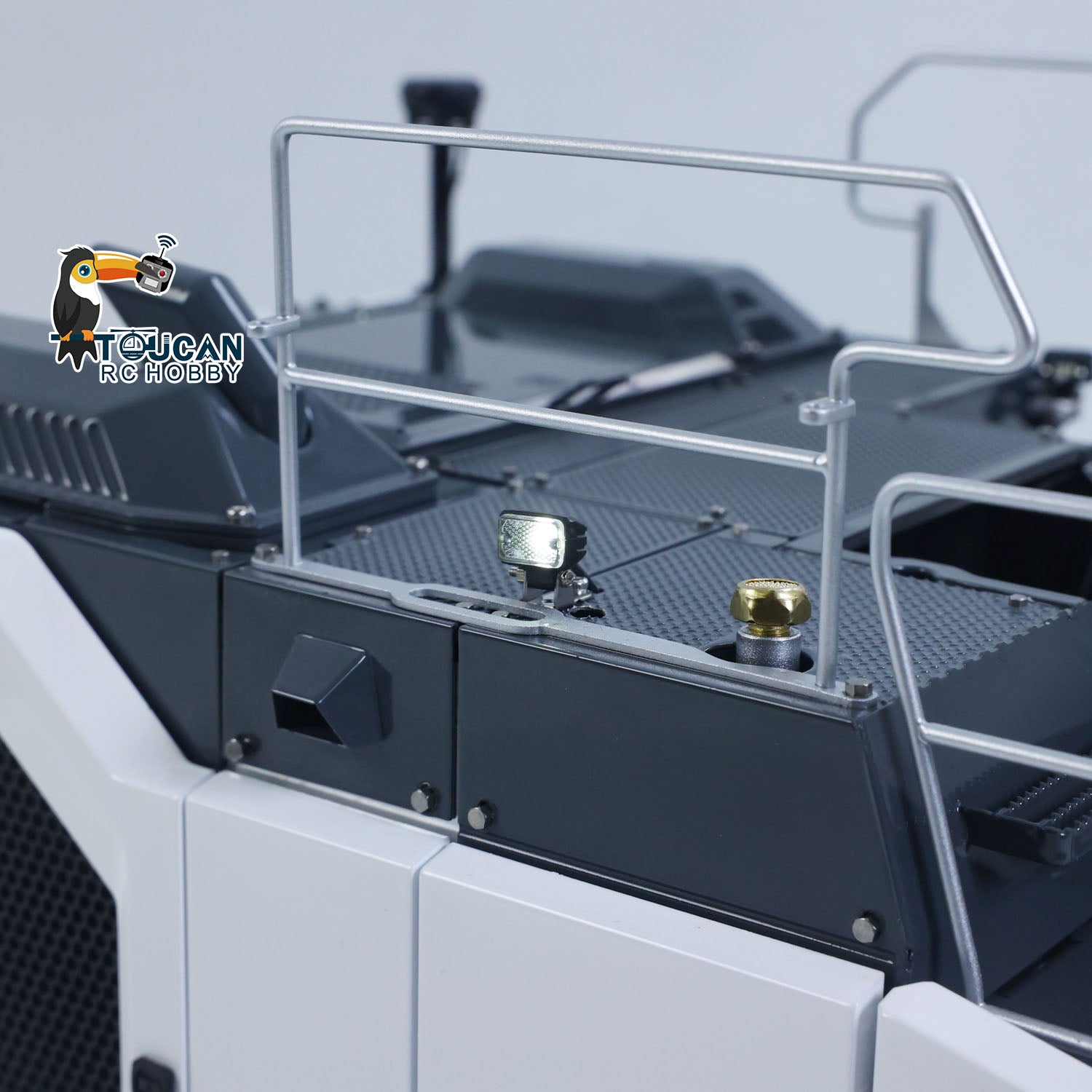

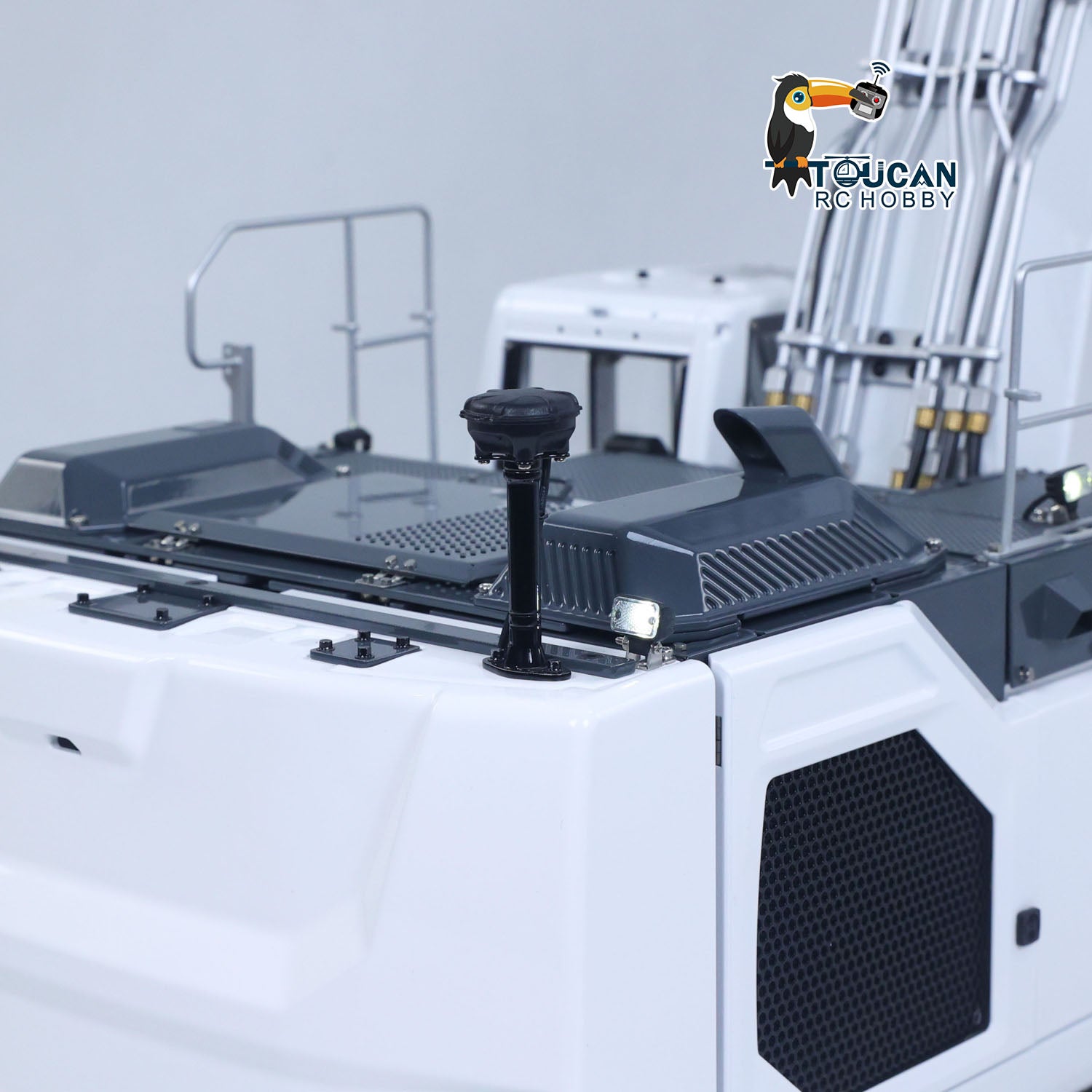

5. 7 Openable Doors, LED & GPS Lights with Light Controller

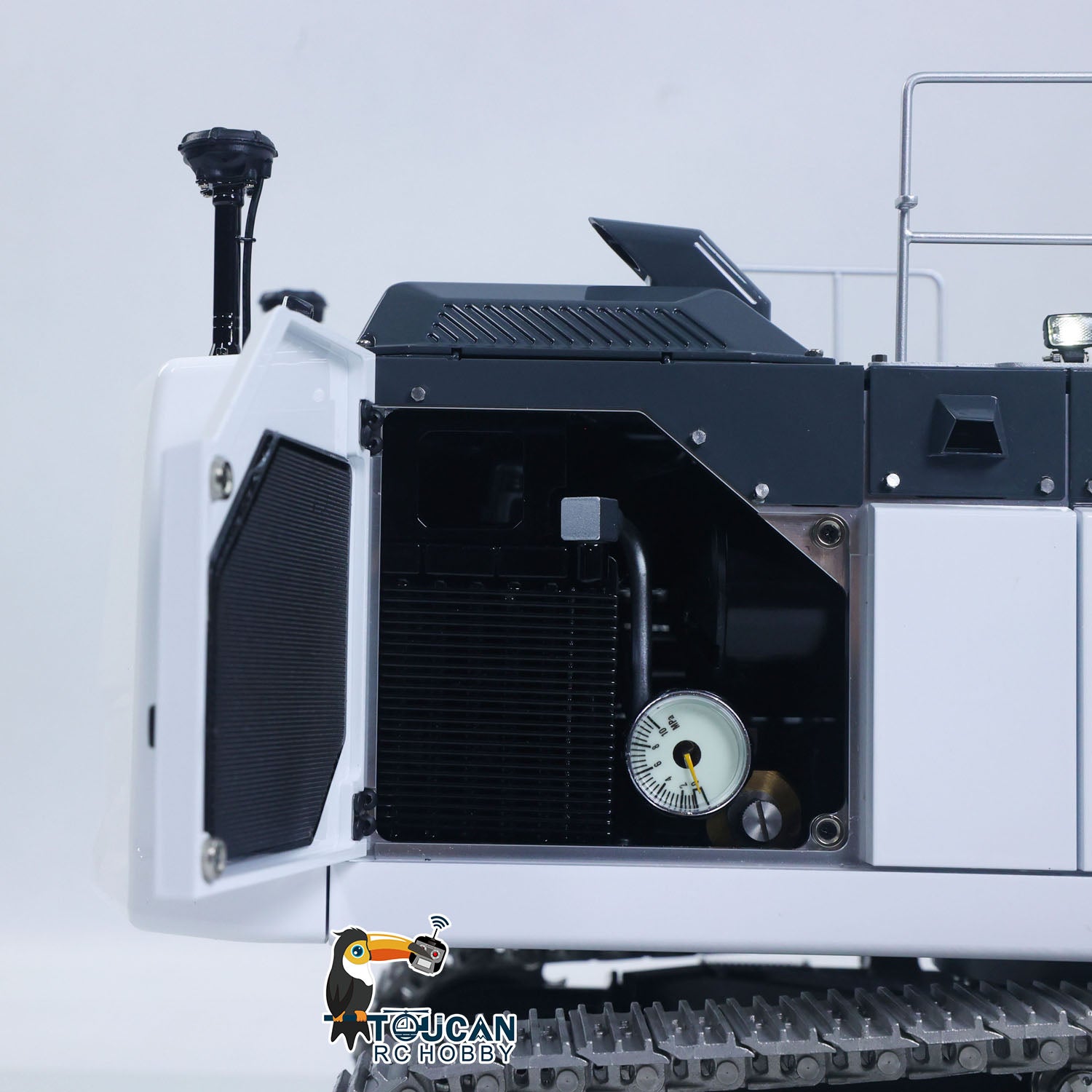

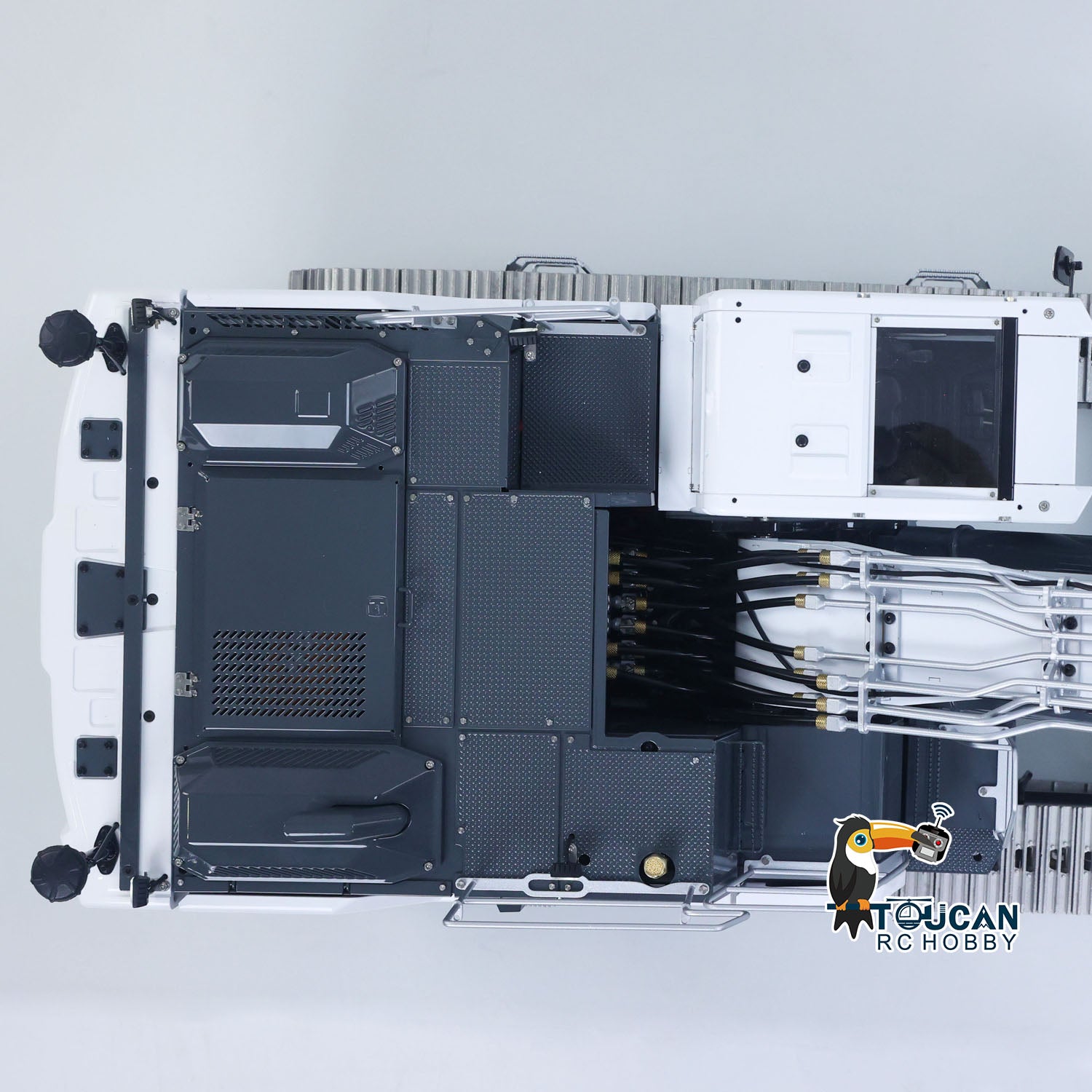

6. Independent and innovative hydraulic station (including oil pump, motor, radiator, oil valve, filter, pressure gauge, oil tank relief valve, etc.).

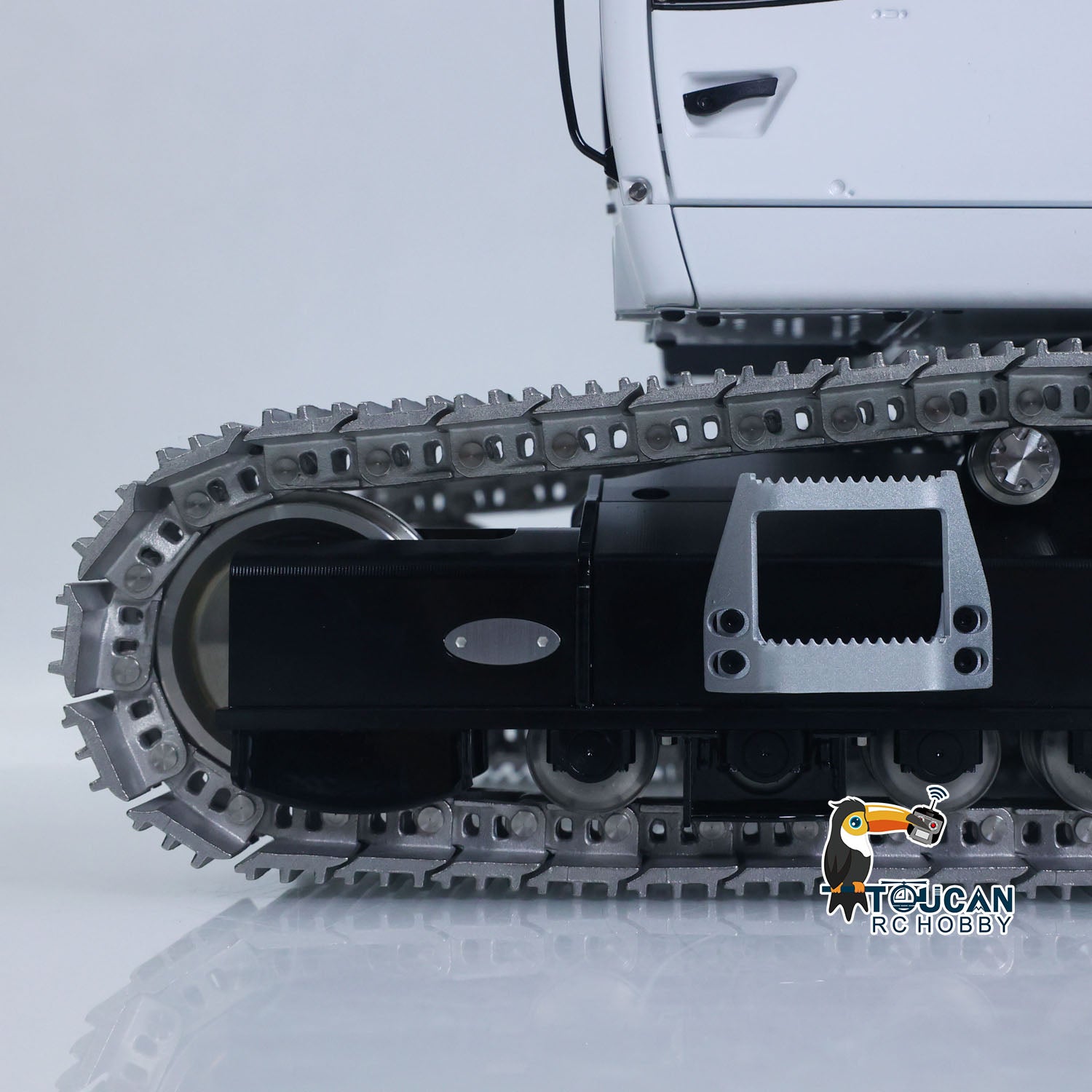

7. Brushless Planetary Drive, High Torque & All-Terrain Metal Tracks
8. 6-Channel Slip Ring, 360° Smooth Rotation & High Playability

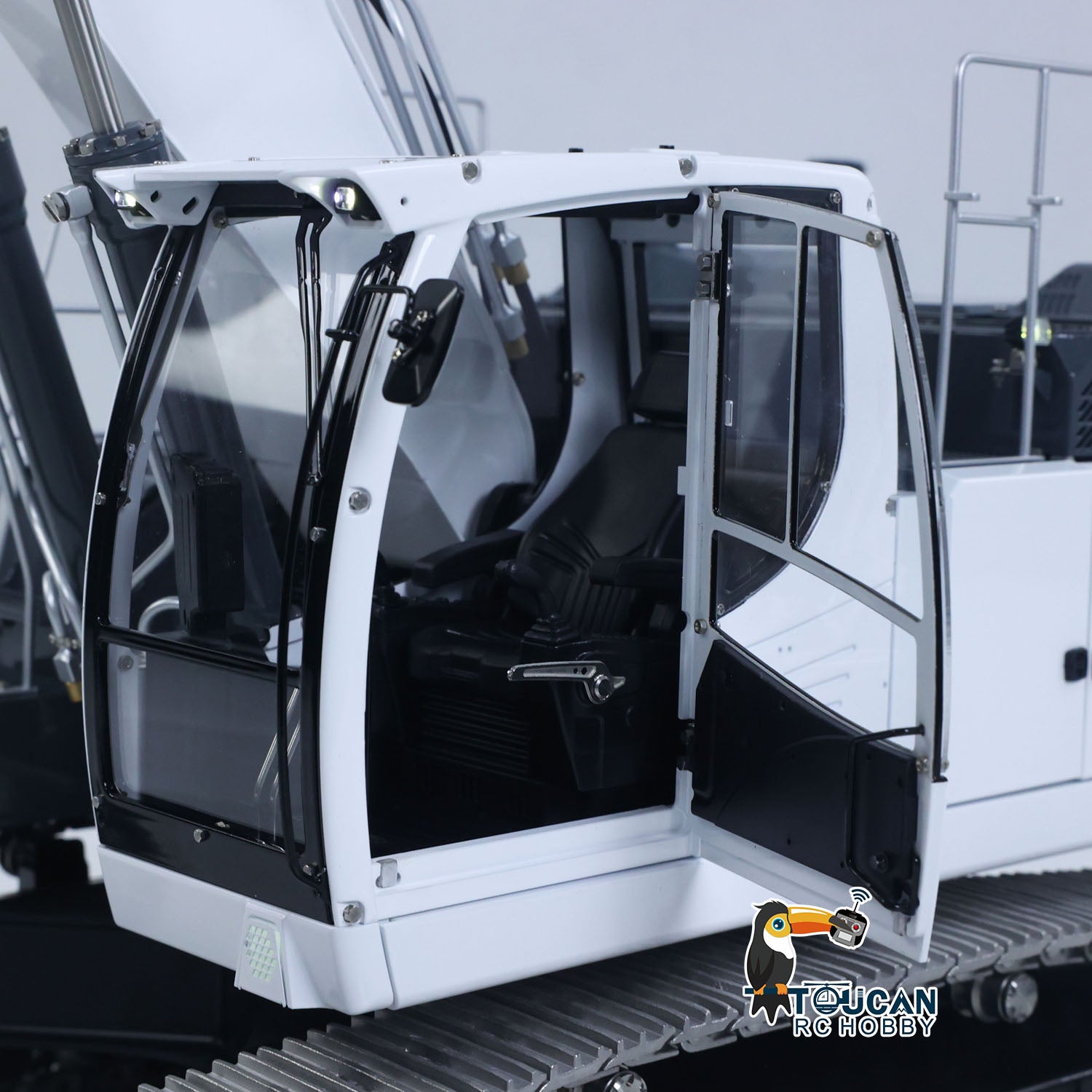

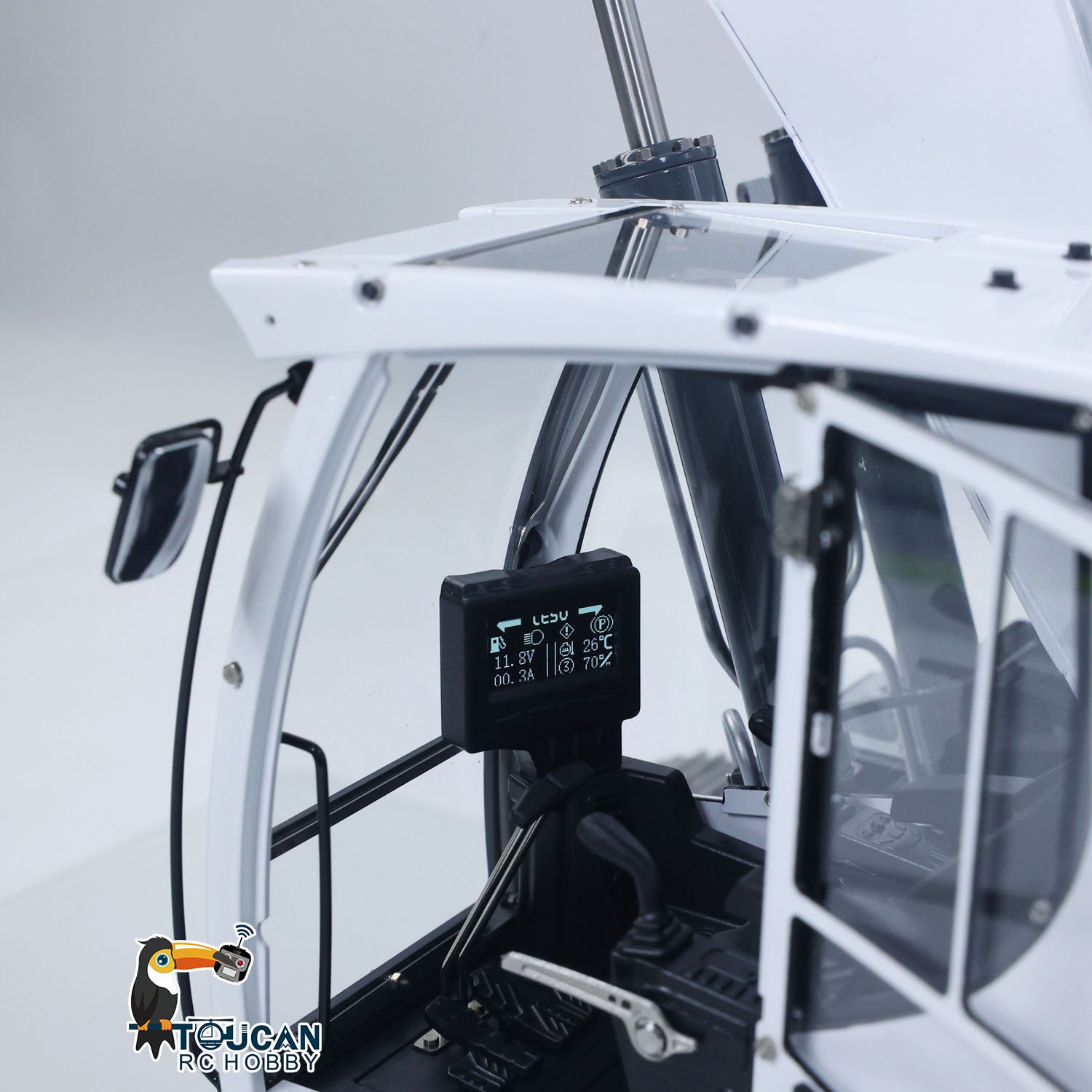

9. Cab LCD Display, Real-Time Oil Temperature & Voltage Monitoring
#If you have any questions or are not sure whether it is the correct item you want, pls feel free to contact me before purchasing.
