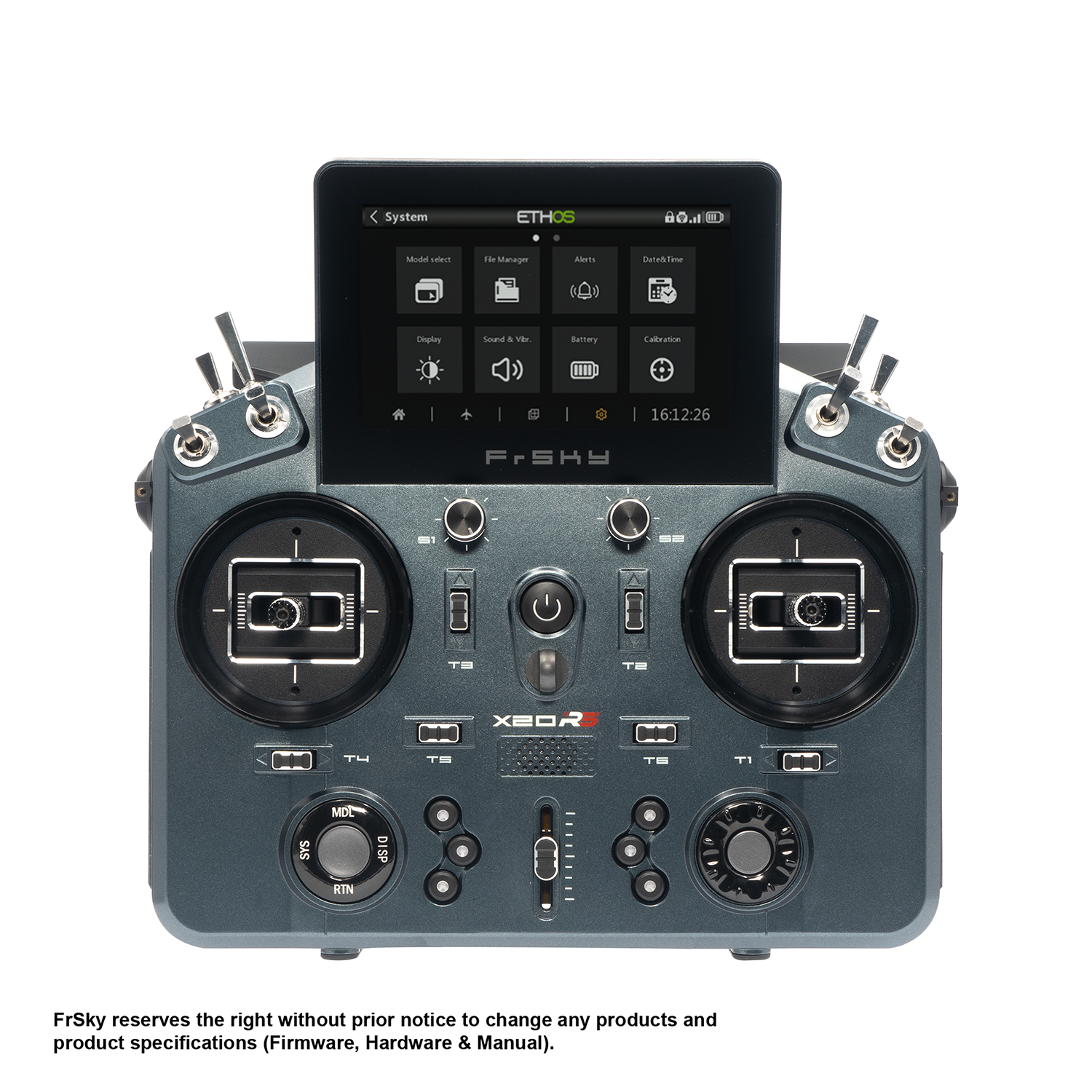

FrSky TANDEM X20RS Transmitter Built-in 8GB Flash Storage 24 Channels for RC Car Excavator Remote Control Boat Plane Model

FrSky TANDEM X20RS Transmitter Built-in 8GB Flash Storage 24 Channels for RC Car Excavator Remote Control Boat Plane Model

Flysky

SKU:FrSky-03010222-X20RS-TX-FCC-DGN-CX-DZN1

Regular price $703.90 USD
Regular price $752.90 USD Sale price $703.90 USD
Sale Sold out
Shipping calculated at checkout.

Specification:
Manufacturer: Frsky
Dimension: 205*213*90mm (L*W*H)
Weight: 892g(Battery Excl.) / 1024g(Battery Incl.)
Operating System: ETHOS
Internal RF module: TD-ISRM RS
Number of Channels: Up to 24
Built-in Flash Storage: 8GB
Operating Voltage Range: 6.5 ~ 8.4V (2S Li-battery)
Operating Temperature: -10??C~60??C (14??F~140??F)
Operating Current: 600mA@7.4V (typ.)
Charging Current: ?¡§11A ?¡§¡è200mA
Recharge System for 2S Li-ion Battery (USB Type-C Interface)
USB Adaptor Voltage: 5V+0.2V
USB Adaptor Current: >2.0A
Backlit Touchable LCD Resolution: 800*480
Compatibility: ACCST D16 & ACCESS & TD & TW receivers
Lite Type External Module Bay
ID: FrSky-03010222-X20RS-TX-FCC-DGN

This Package Includes:
1PC X20RS Transmitter comes with battery (for customers in EU/non-EU countries!)

FEATURES:
1. Built-in TD-ISRM RS Dual-Band Internal RF Module
?¡ìC 900M/2.4G Dual Band TD Mode
?¡ìC Dual 2.4G TW Mode
?¡ìC ACCESS 2.4G & ACCESS R9 Modes
?¡ìC 2.4G ACCST D16 Mode
2. Further Improvements for Form Factor Design
3. Super Low-Latency and Long-Range Control with Telemetry
4. Upgraded Robust Antenna Handle
5. 900M/2.4G External Antenna Connectors (LoRa mode)
6. 800?¡§¡é480 Resolution Outdoor High Brightness Touchscreen
7. 2 Angle Adjustable Slider Levers
8. 2 Knobs, 4 Standard Trims with 2 Extra Trims
9. 6 Quick-Mode Custom Buttons (Front) and 2 Momentary Buttons (Rear)
10. All Knobs, Trims, and Central Linear-Slider with All-CNC Metal Caps
11. Built-in 8GB Flash Drive Storage
12. Text to Speech (TTS) Function
13. Digital Audio Power Amplifier
14. Built-in 6-axis Gyroscope Sensor
15. High-Speed PARA Wireless Training System
16. Data Transmission & Recharge System via USB Type-C Interface
17. Haptic Vibration Alerts and Voice Speech Outputs
18. MC20R All CNC High-Precision Hall-Sensor Gimbals with 10 Ball-Bearing
?¡ìC Dual-side stick haptic feedback (Left/Right can do vibration independently.)
?¡ìC Easy Travel-adjustable with any desired degree from 45?? to 60??
?¡ìC 8?? rotatable panel

Overview
TD-ISRM RS RF PERFORMANCE
With solid performance based on the dual-band 900M/2.4G RF signal link with multiple operating combinations of RF modes, the TANDEM X20R & X20RS versions are equipped with the TD-ISRM RS built-in RF module which is capable of supporting multiple protocols (like TW, TD, etc).
The TD-ISRM RS RF module has the dual 2.4G TW RF mode and supports simultaneous activation of working under TW and ACCESS R9 modes with the same module. In this configuration, the TW receiver and ACCESS R9 receiver can be connected via the SBUS IN/OUT ports to achieve redundant backup. This RF signal connection solution makes use of three different RF links at the same time in RC applications. This further enhances the RF signal??£¤s reliability, particularly in long-distance RC operations scenarios.

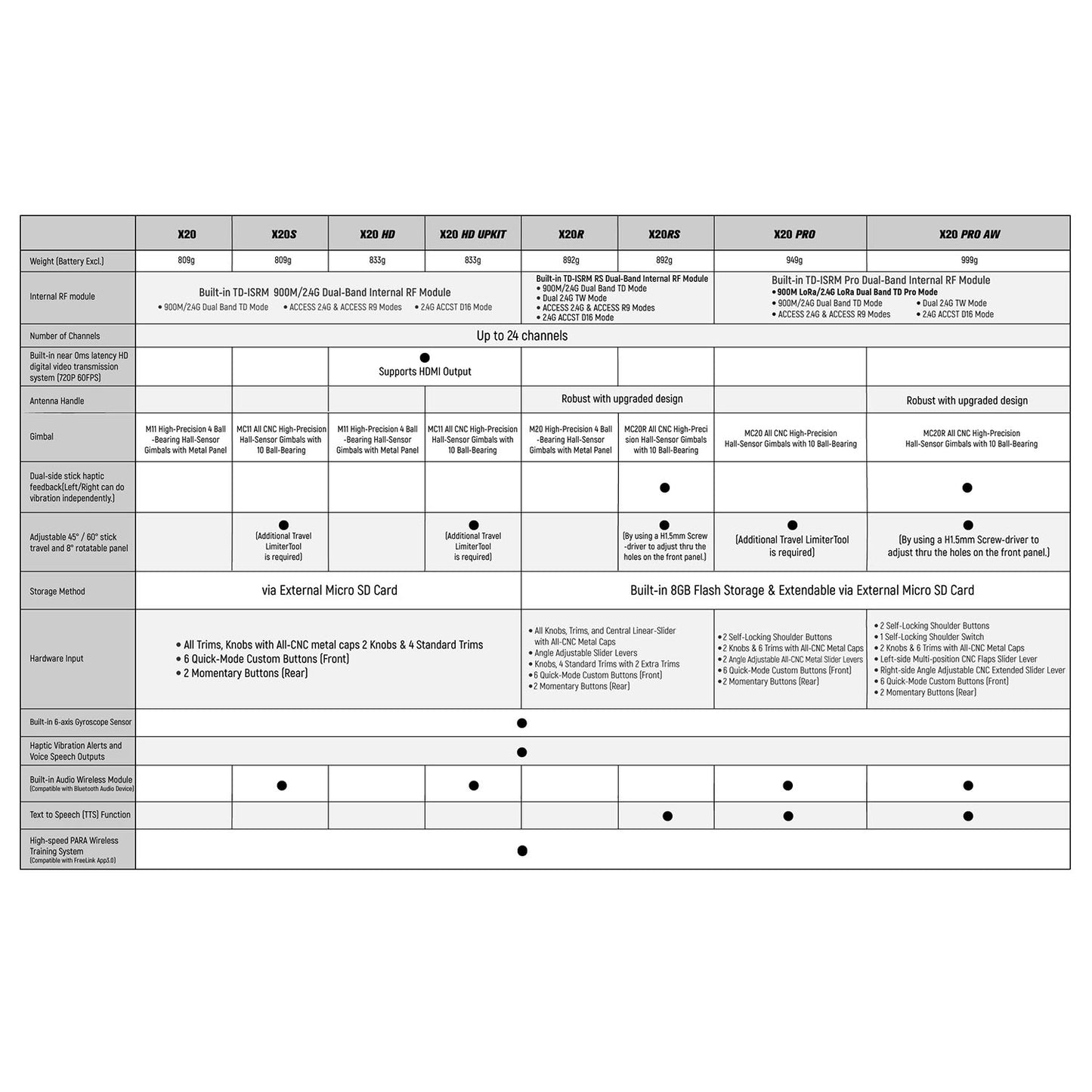

DIFFERENCES IN APPEARANCE & FUNCTIONAL INPUTS
The X20R and X20RS have changed from the original X20 design in appearance. The bottom hand grip adopts the overall design of the PRO version, eliminating the need for an additional grip cover, and allowing the bottom part to be fully grasped by the palm for a more comfortable and relaxed grip. Additionally, the Lite-type external module slot has been adjusted to provide more fitting installation space for external modules of different shapes, making it more convenient.
R and RS versions add 2 extra trims, allowing for more precise tunings during the operations. The slider levers on both sides of the transmitter support adjusting the positioning of the center, catering to different users??£¤ habits and preferences. The primary input components, including trim caps, center-slider caps, and knobs are all made from metal, offering rugged quality and enhanced durability for outdoor use.

UPGRADED ROBUST ANTENNA HANDLE & EXTERNAL LoRa ANTENNA CONNECTORS
The newly upgraded antenna handle incorporates the good capability of impact resistance facing the tough conditions of outdoor fields. The reinforced and thickened antenna casing is better suited for comfort gripping but also does not compromise the antenna??£¤s performance. On the contrary, the redesigned antenna can transmit signal data more effectively, providing pilots with a more reliable flying control experience.
The X20R & X20RS are also equipped with 2 external antenna connectors, which can be mounted with additional 2.4G and 900M antennas for enhancing the RF capabilities working under the LoRa modes, to achieve enhanced long-range control.

BUILT-IN MASS STORAGE & TEXT TO SPEECH FUNCTION
To save the user the trouble of deciding the storage capacity, both R and RS versions have a built-in 8GB flash storage that offers big storage to meet all your radio??£¤s storage needs with high data transmission speed.
Thanks to the upgraded storage feature, the TTS (Text-to-Speech) function of X20 RS versions can quickly and conveniently convert typed input English words into spoken speech. This enables the ETHOS system to more flexibly match the triggered operational status using generated speech audio when specific functions are activated and to alert clear outdoors with the digital power amplifier module.

DUAL-SIDE HAPTIC GIMBAL FEEDBACK
The gimbal vibration feedback function can be easily enabled or disabled by setting a switch. The dual-sided Gimbal??£¤s vibration feedback can operate independently, allowing the configuration to match distinct feedback preferences tailored to various application scenarios for RC enthusiasts.

EASY TRAVELl-ADJUSTABLE MC20R GIMBALS (with ANY DESIRED DEGREE BETWEEN 45?? to 60??)
The MC20R Gimbals also has an 8?? rotatable panel and can be adjusted to a 45?? travel position. What??£¤s even better is that the angle is not limited to just 45?? and 60??, the MC20R Gimbal allows for adjustment of any travel position between 45?? and 60??. To enhance convenience for pilots in outdoor applications, the angle travel position can be directly adjusted using a 1.5mm hexagon screwdriver through the adjustment hole on the Gimbal Panel, eliminating the need to disassemble the radio casing.
