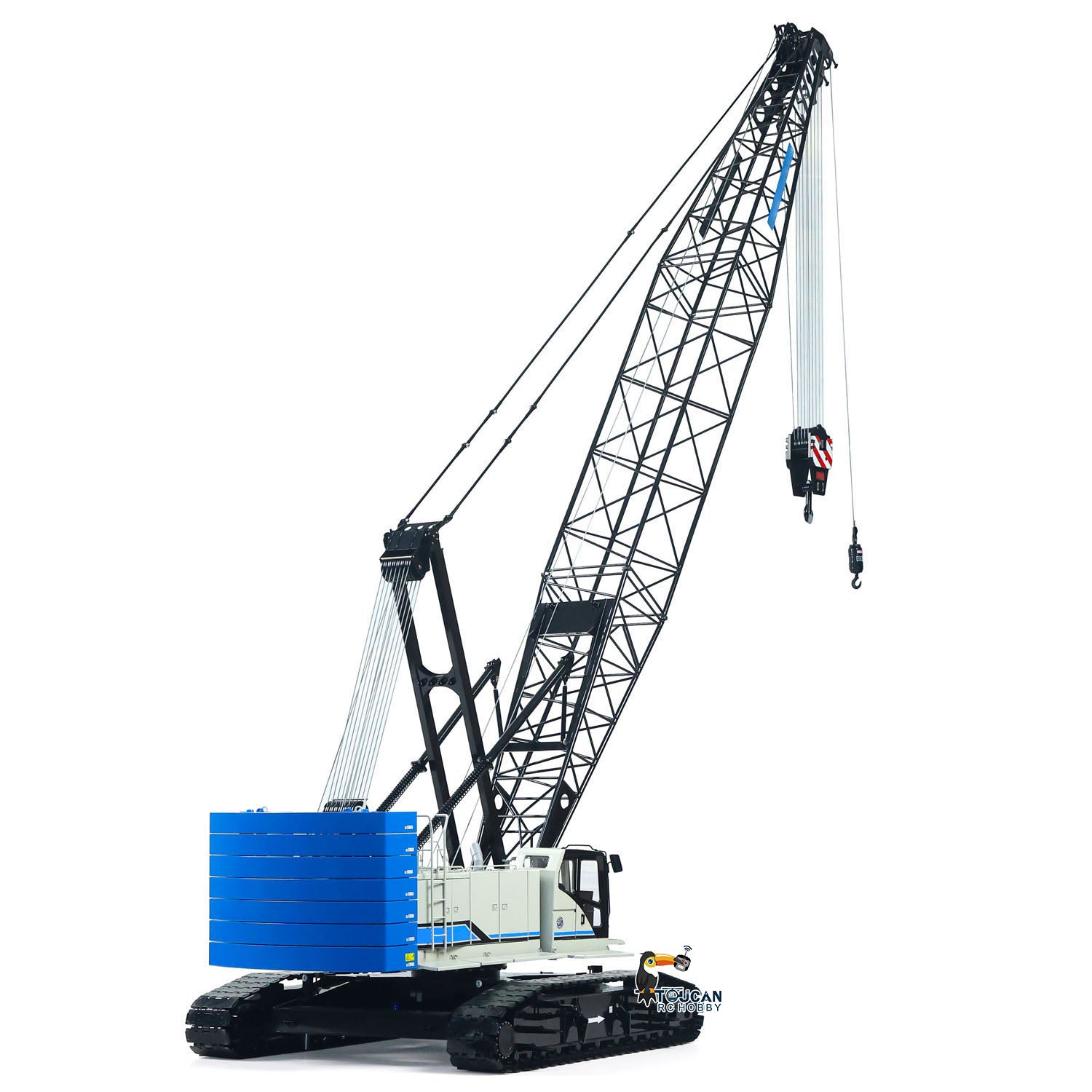

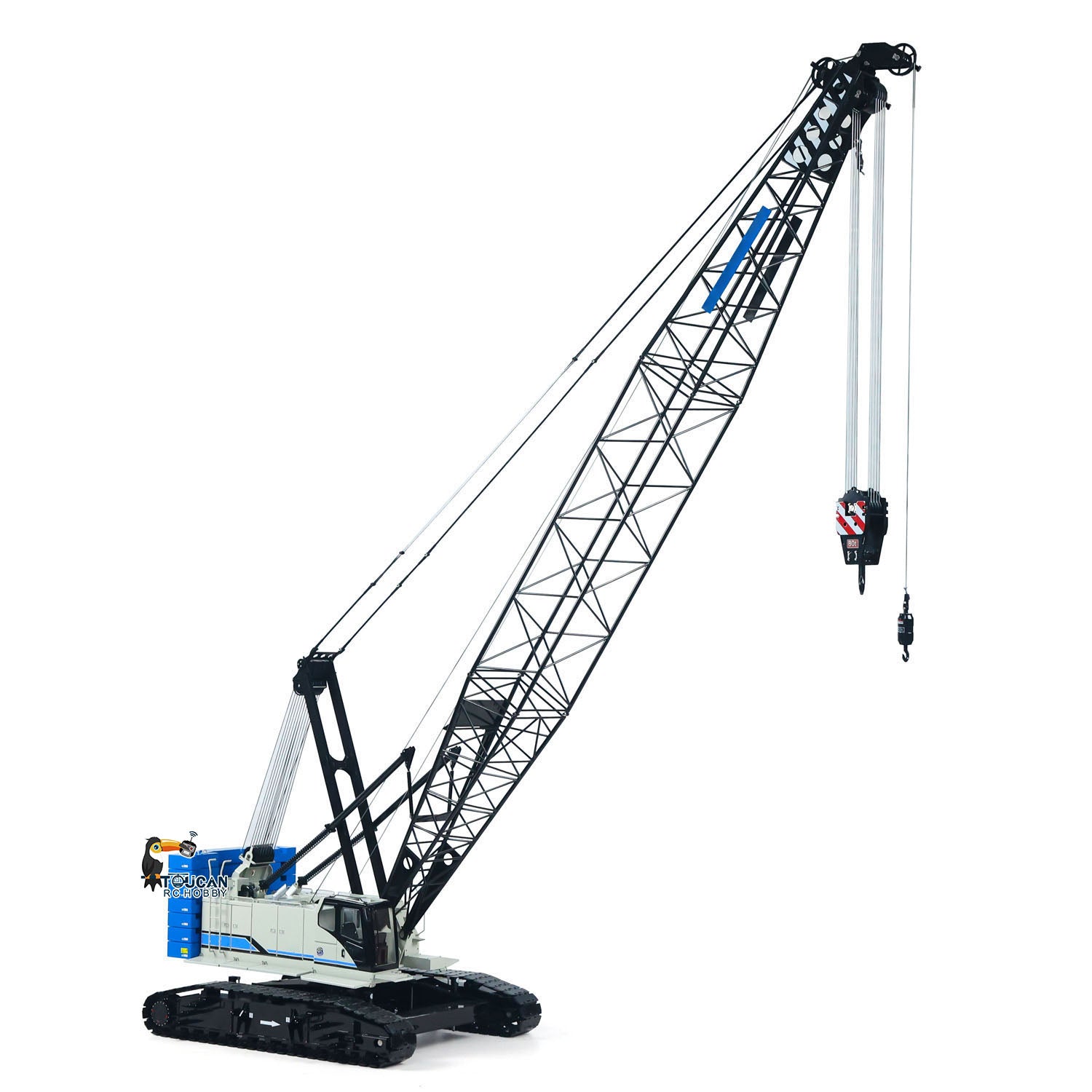

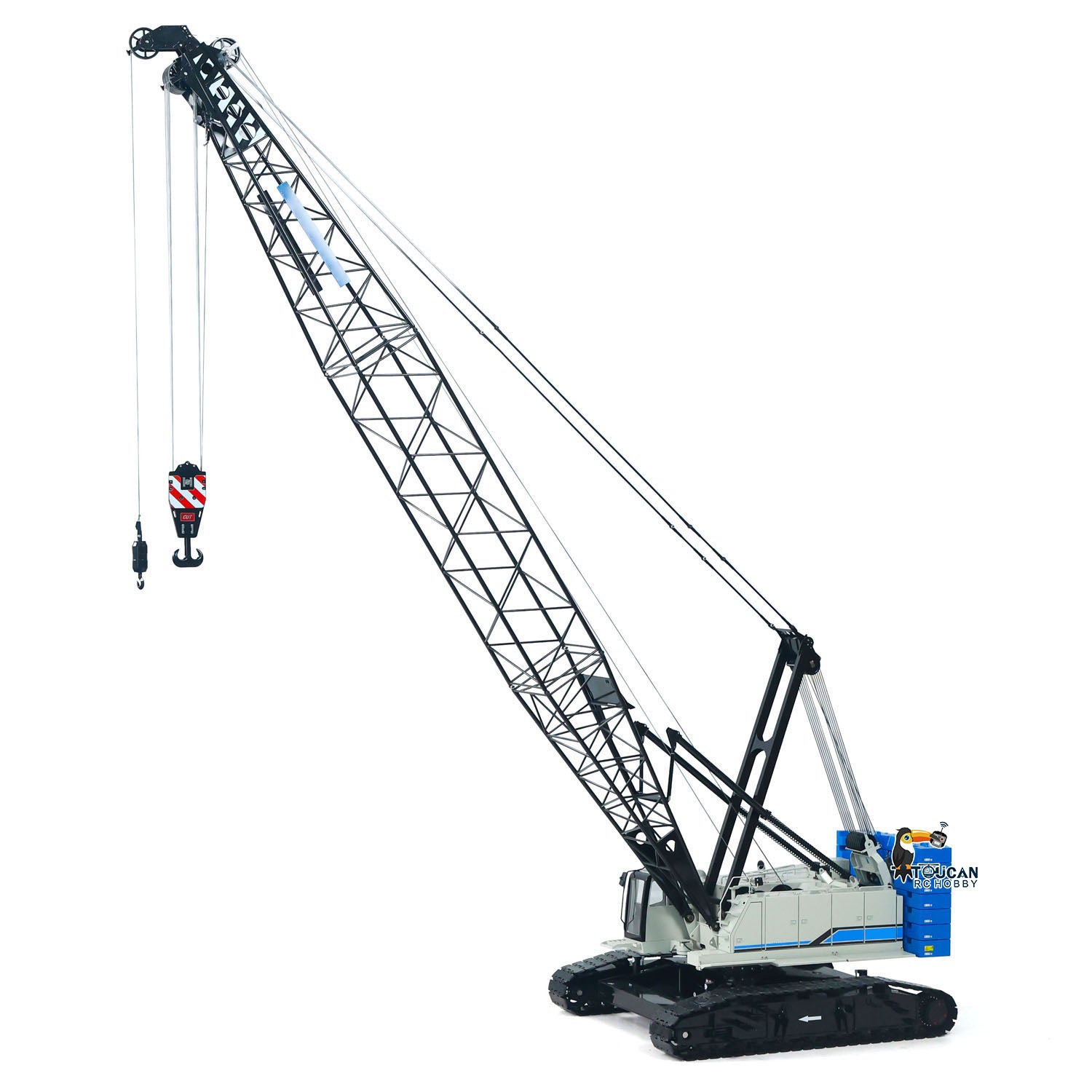

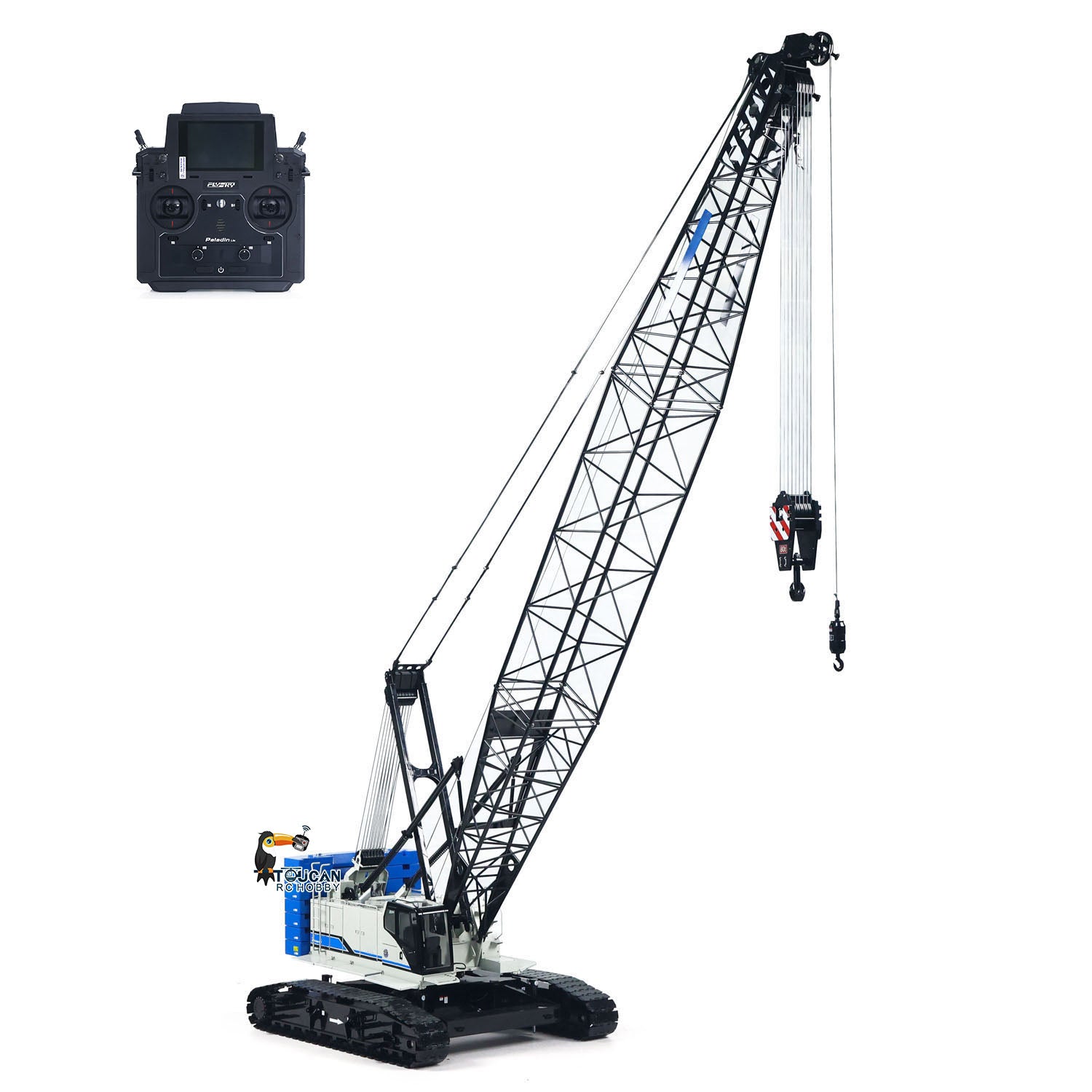

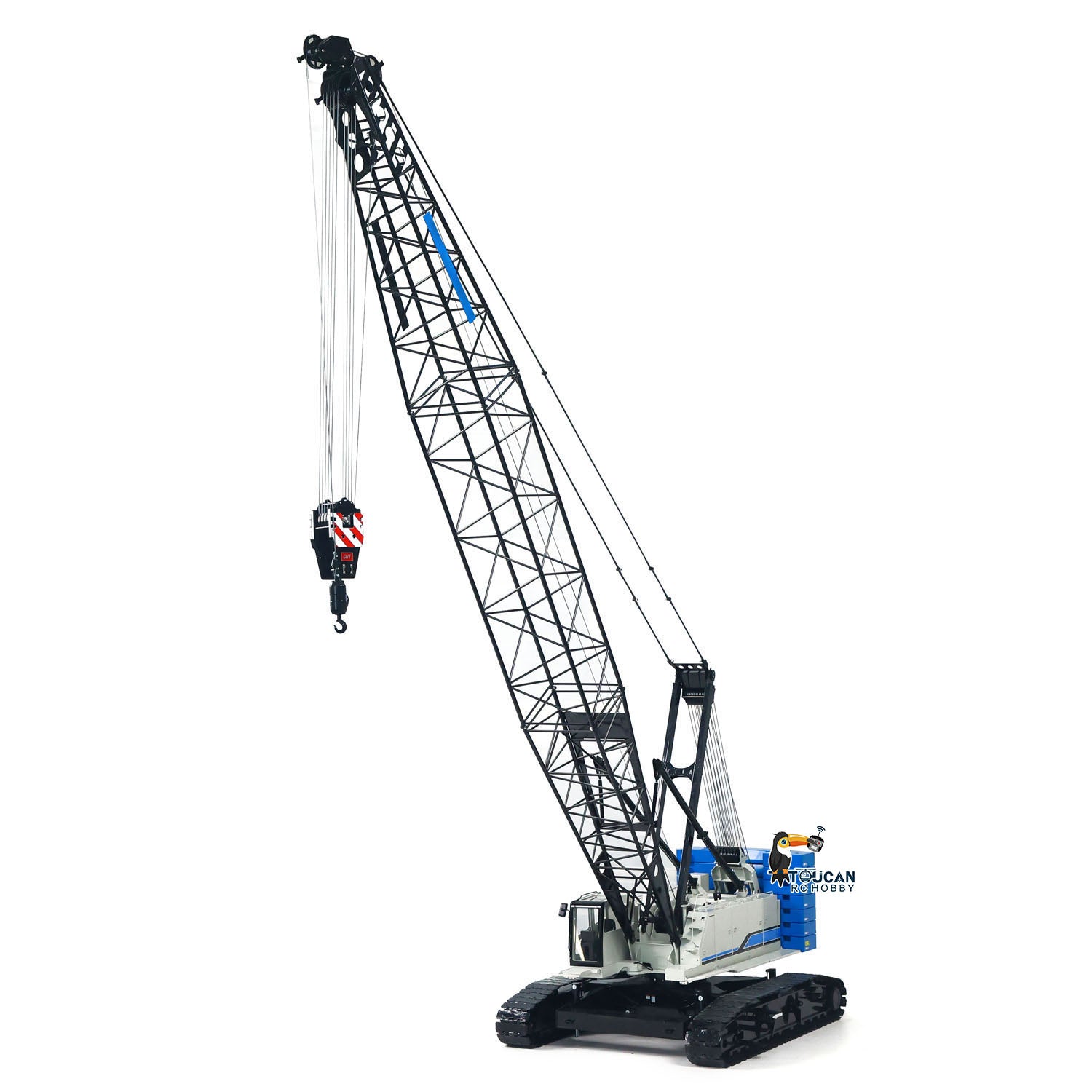

Metal 1/14 RC Hydraulic Crawler Crane C1200 Remote Control Construction Vehicle Flysky PL18 LITE Radio Brushless Motor Battery

#Specification:
Manufacturer: CUTModel
Item Condition: New, Painted and Assembled
Material: Metal, Plastic
Scale: 1/14
Total Weight (kg): 64.5
Lifting Capacity /kg: 45
Upper Works Width /mm (with cab folded): 215
Chassis Width /mm: 458
Ground Clearance /mm (with outriggers extended): 78
Track Height /mm: 99.5
Overall Length /mm (excluding boom): 637.5

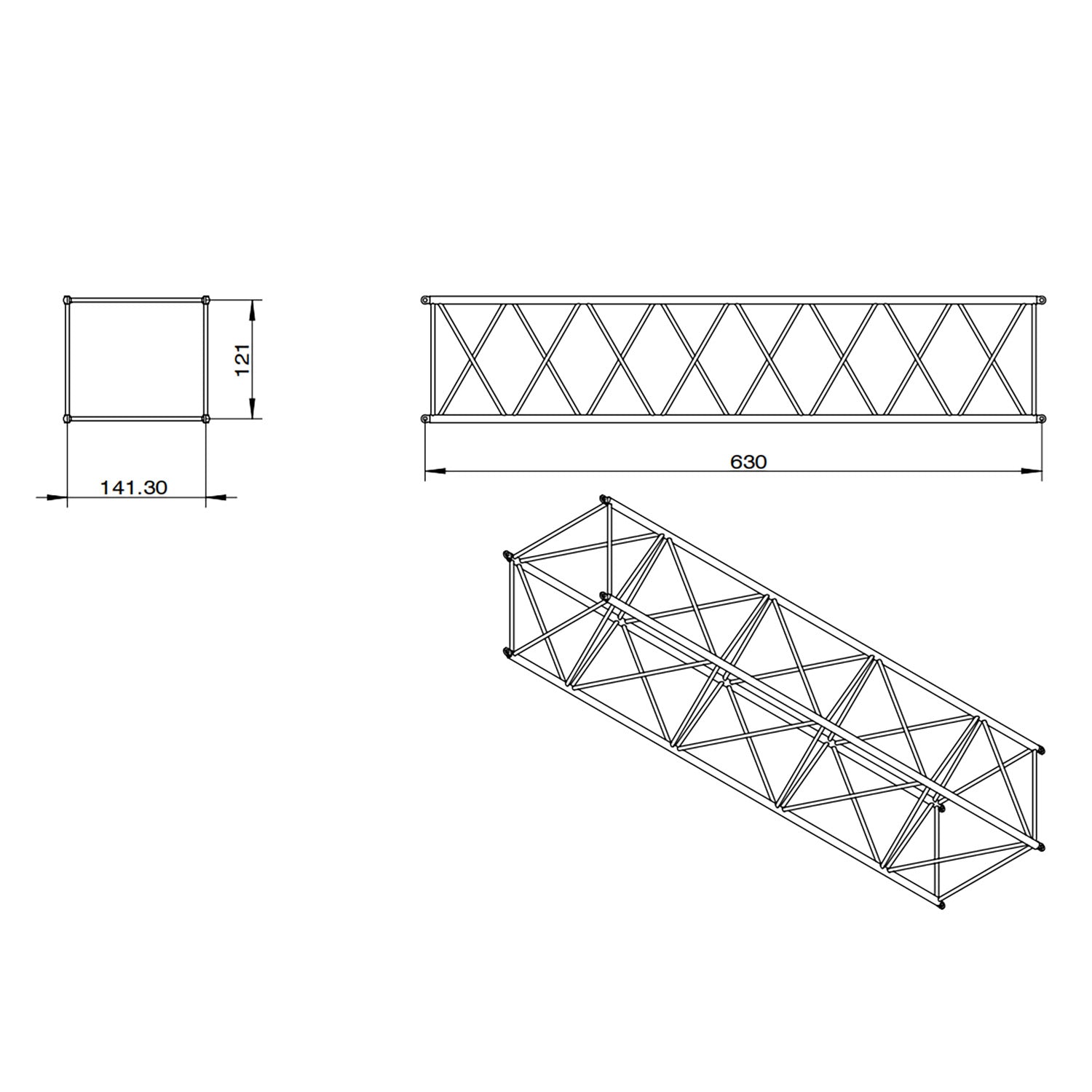

Standard Section Dimensions (L*W*H) /mm: 638 / 149 / 129

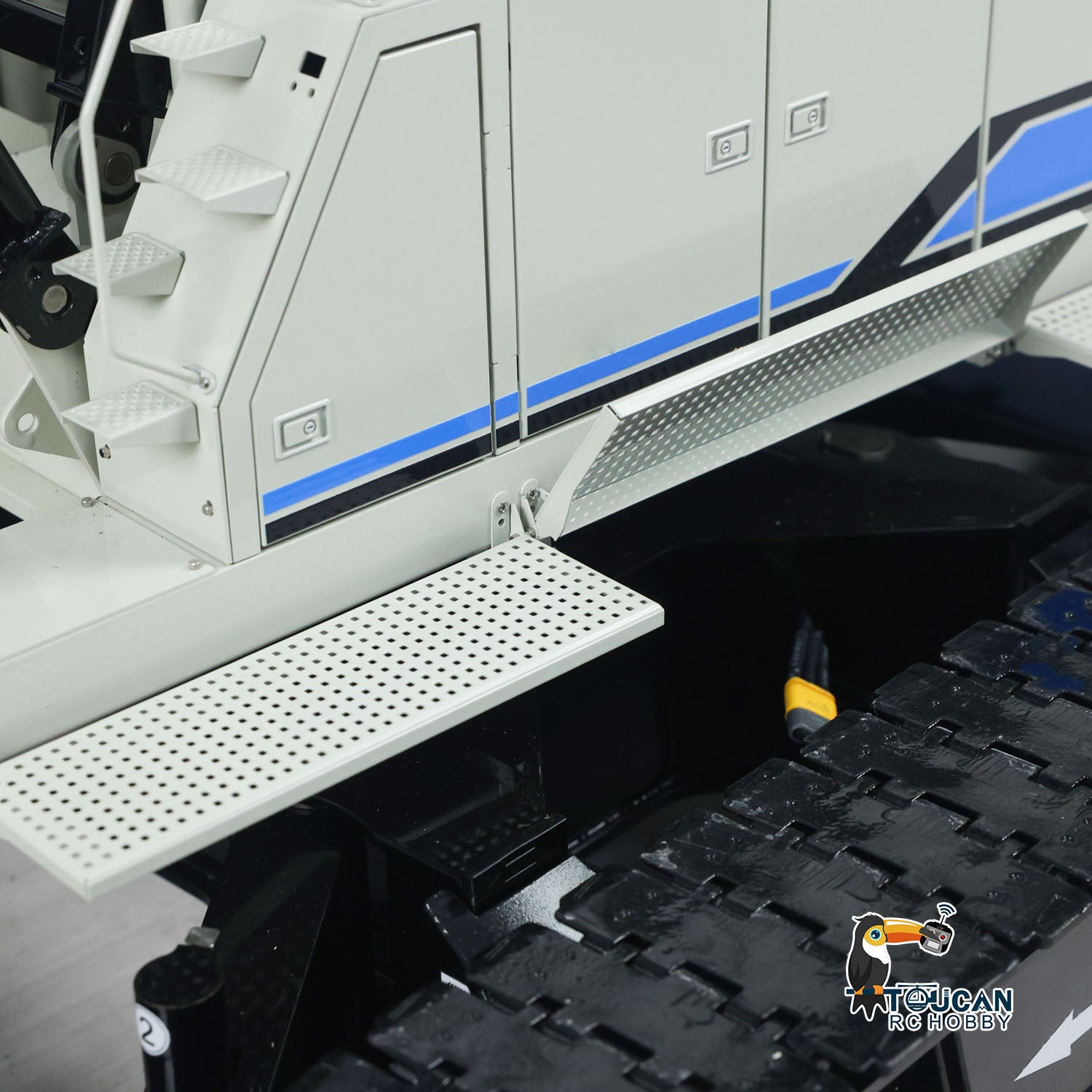

Upper Works Width /mm (with side platforms unfolded): 310
Maximum Chassis Width /mm (with platforms): 514
Cab Roof Height /mm: 272
Track Length /mm: 566
Overall Length /mm (with truss boom lowered): 1614
Counterweight Swing Radius /mm: 354.3
Hydraulic Pump: 500ml/min, within 4MPa
Number of Hydraulic Cylinders: 8
Chassis Lifting Drive: Hydraulic Cylinder
Winch Drive: Planetary Gear Reduction + Brushless Motor
Support Frame Ground Clearance /mm: 32
Boom Luffing Angle /degrees: 103
Single Cylinder Thrust /kg: 17
Rated Pressure /MPa: 3
Max Pressure /MPa: 4
ID: CUT-C1200-CrawlerCrane-RTR-BUW

#The Package Includes:
1/14 RC Hydraulic Crawler Crane Model
ESC
Motor
Servo
Light System
Sound System
Hydraulic System

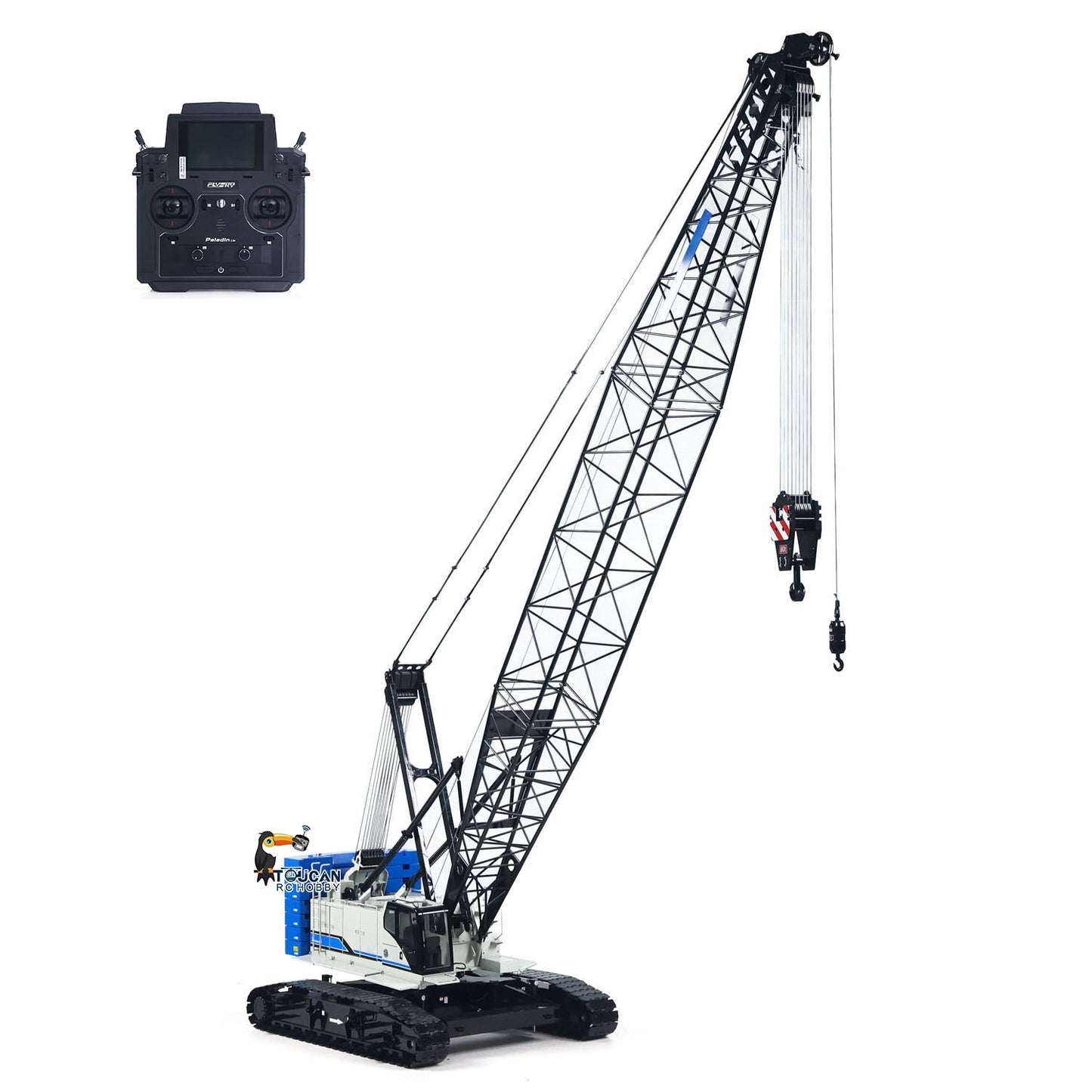

FlySky PL18 LITE Remote Controller and Receiver
Vehicle Battery
Charger
Stickers

#The Package Does Not Include:
Hydraulic Oil

#NOTE:The package option is selected by yourself. There are many upgrade accessories for you, you may choose anything you like!

#Features

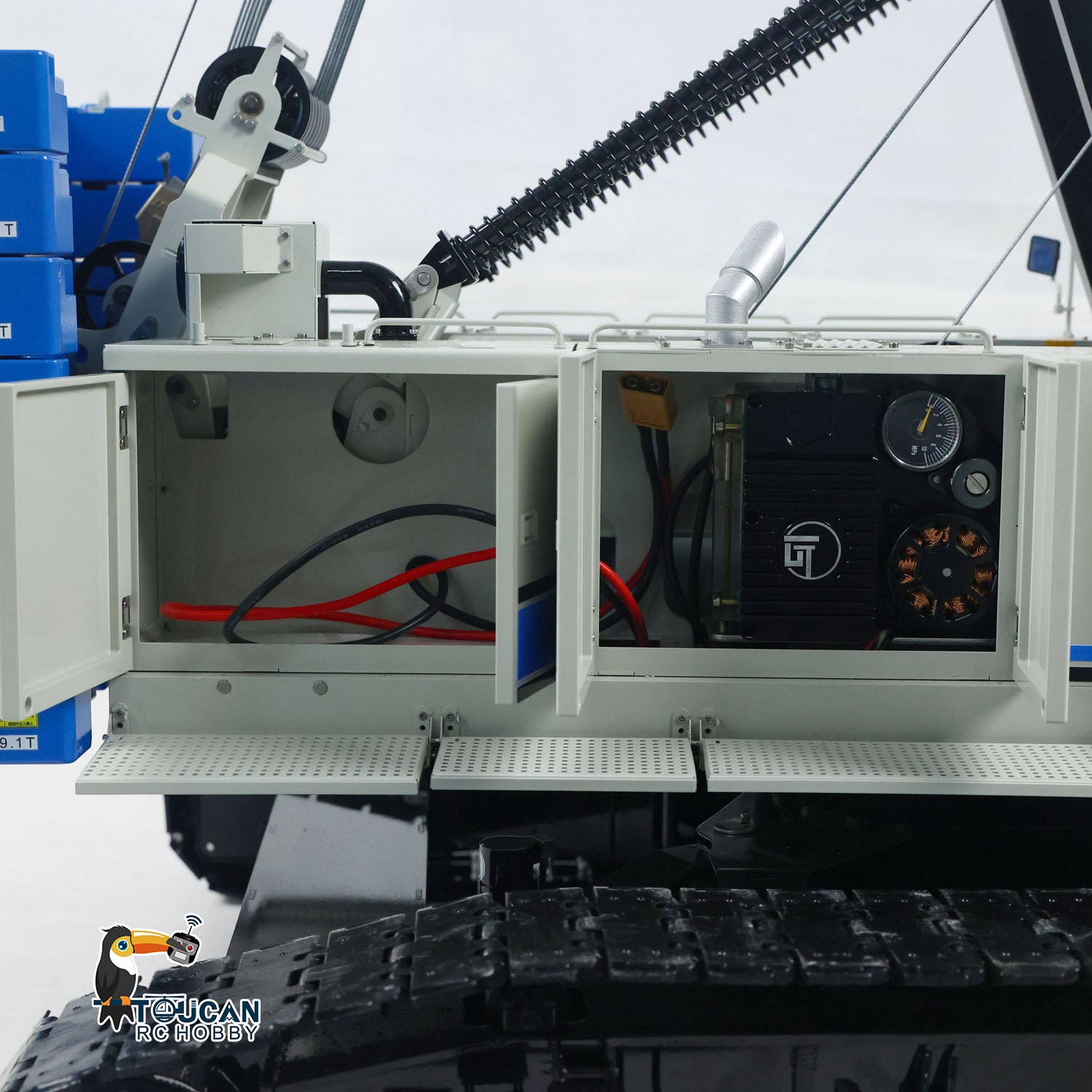

1. Equipped with CUT Model hydraulic pump delivering 500ml/min flow and 4MPa system pressure. The dual valve precisely control 8 hydraulic cylinders, enabling chassis lifting and track detachment via fully proportional hydraulic drive. The included pressure gauge allows real-time system monitoring.

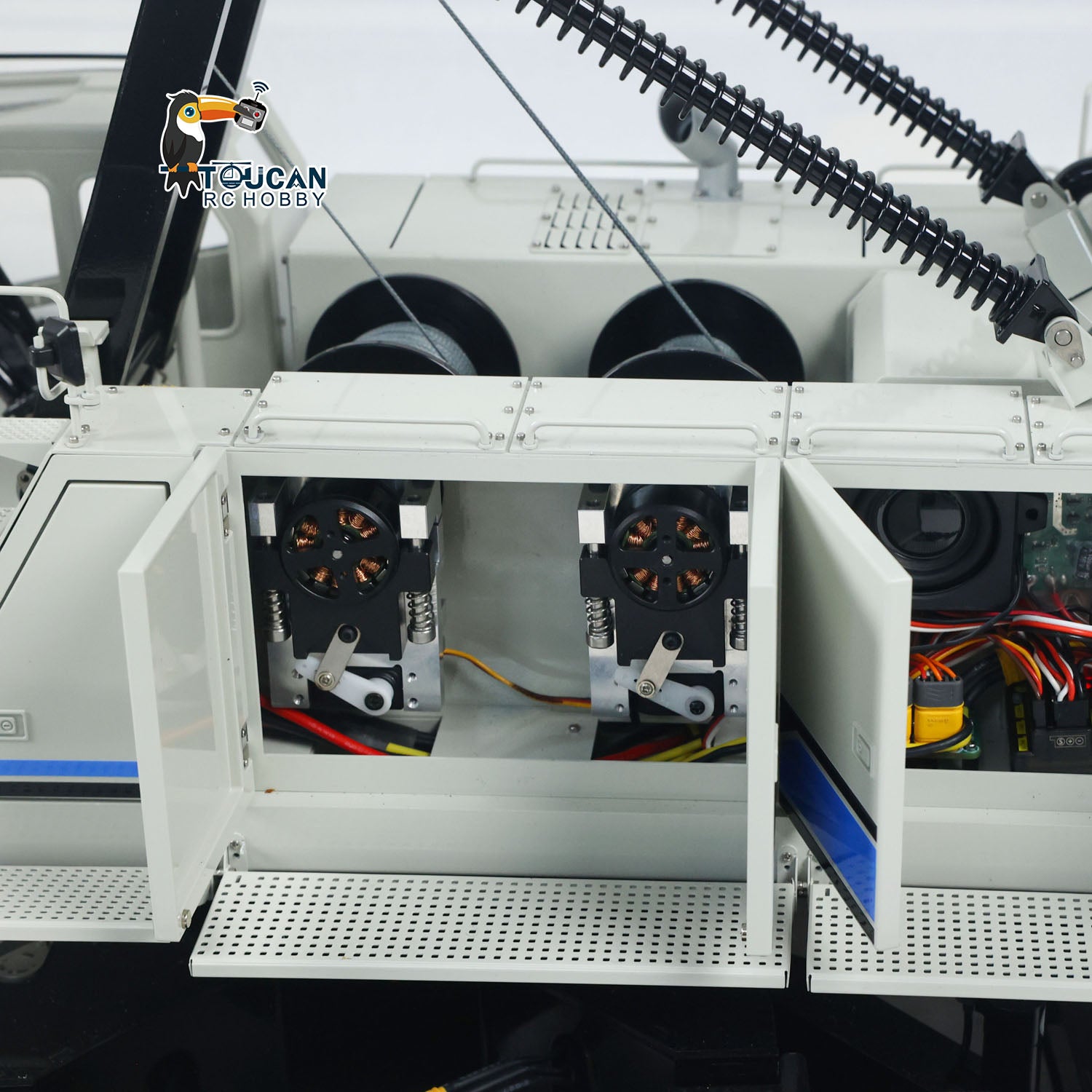

2. Key motion mechanisms utilize planetary gearboxes paired with high-torque brushless motors (winch, travel, boom elevation and depression), ensuring powerful output and reliable continuous operation. Cab and upper structure rotation employ self-locking motors for precise positioning and stable holding.
3. The main frame is built using CNC machining and sheet metal fabrication. It ensures structural integrity for the 64.5kg model while achieving a 45kg lifting capacity, accurately replicating the triangular load-bearing aesthetics of a real construction vehicle structure.
4. Following real-machine logic, the entire model can be disassembled into modules (counterweight, boom, tracks, upper structure). Track modules support hydraulic detachment. This facilitates transportation and offers extensive potential for deep customization, scenario-based setups, and personalized upgrades.

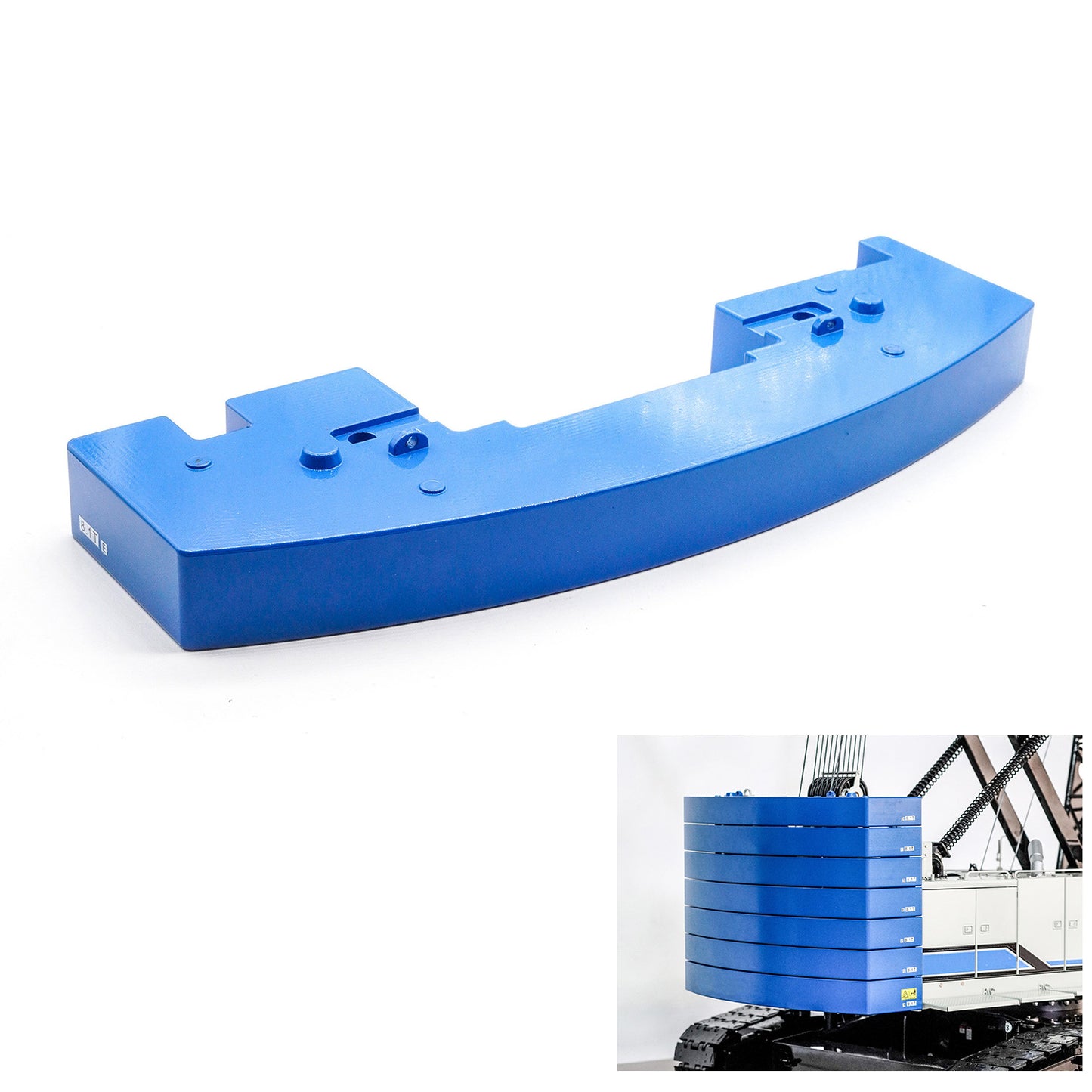

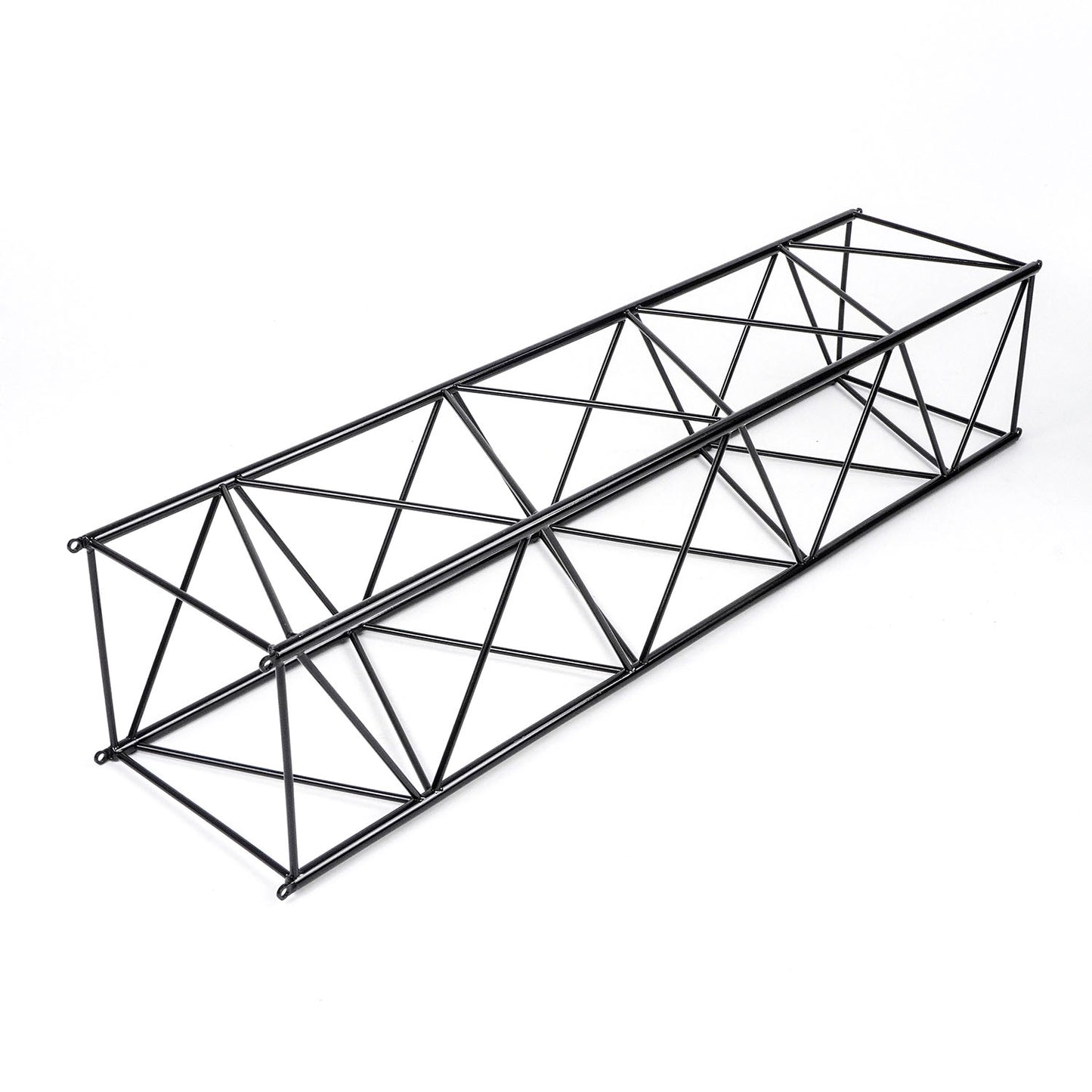

5. The design allows for performance expansion through optional accessories: additional truss sections/tie rods extend boom reach, while extra counterweight blocks enhance maximum load stability, meeting evolving operational challenges.
