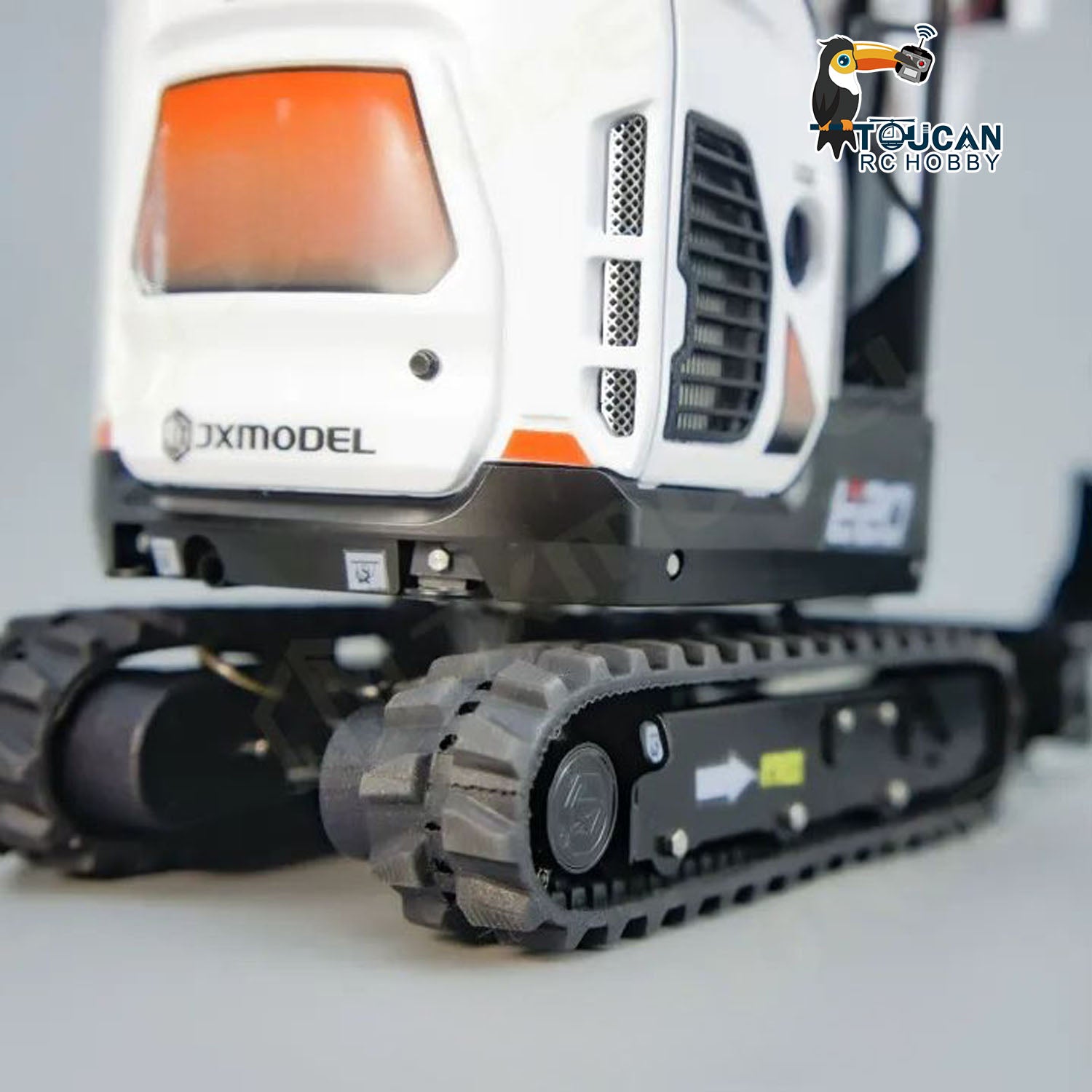

JXModel 1/14 E20 Mini RC Hydraulic Excavator Upgraded Remote Control Digger Simulation Construction Vehicle Models Sounds Light

JXModel 1/14 E20 Mini RC Hydraulic Excavator Upgraded Remote Control Digger Simulation Construction Vehicle Models Sounds Light

JXModel

SKU:JXM-E20-Excavator-RTR-WBK-CX-DZN1

Regular price $1,588.90 USD
Regular price $1,886.90 USD Sale price $1,588.90 USD
Sale Sold out
Shipping calculated at checkout.

This product is a desktop-level excavator model, with a net weight of only about 1.1KG. It is not suitable for digging soil.



Specification:

Manufacturer: JXModel

Item Condition: New, Assembled and Painted

Scale: 1/14

Material: Metal, Plastic

Vehicle Size: About 204*192*73mm

Net Weight: About 1.1KG

ID: JXM-E20-Excavator-RTR-WBK



The Package Includes:

1/14 RC Excavator Model

Motor

Servo

ESC

Hydraulic System with a 4-way Reversing Valve

Lights

Sound System

FlySky I6S Remote Controller and Receiver

Battery



The Package Does Not Include:

Light System

Charger

Hydraulic Oil

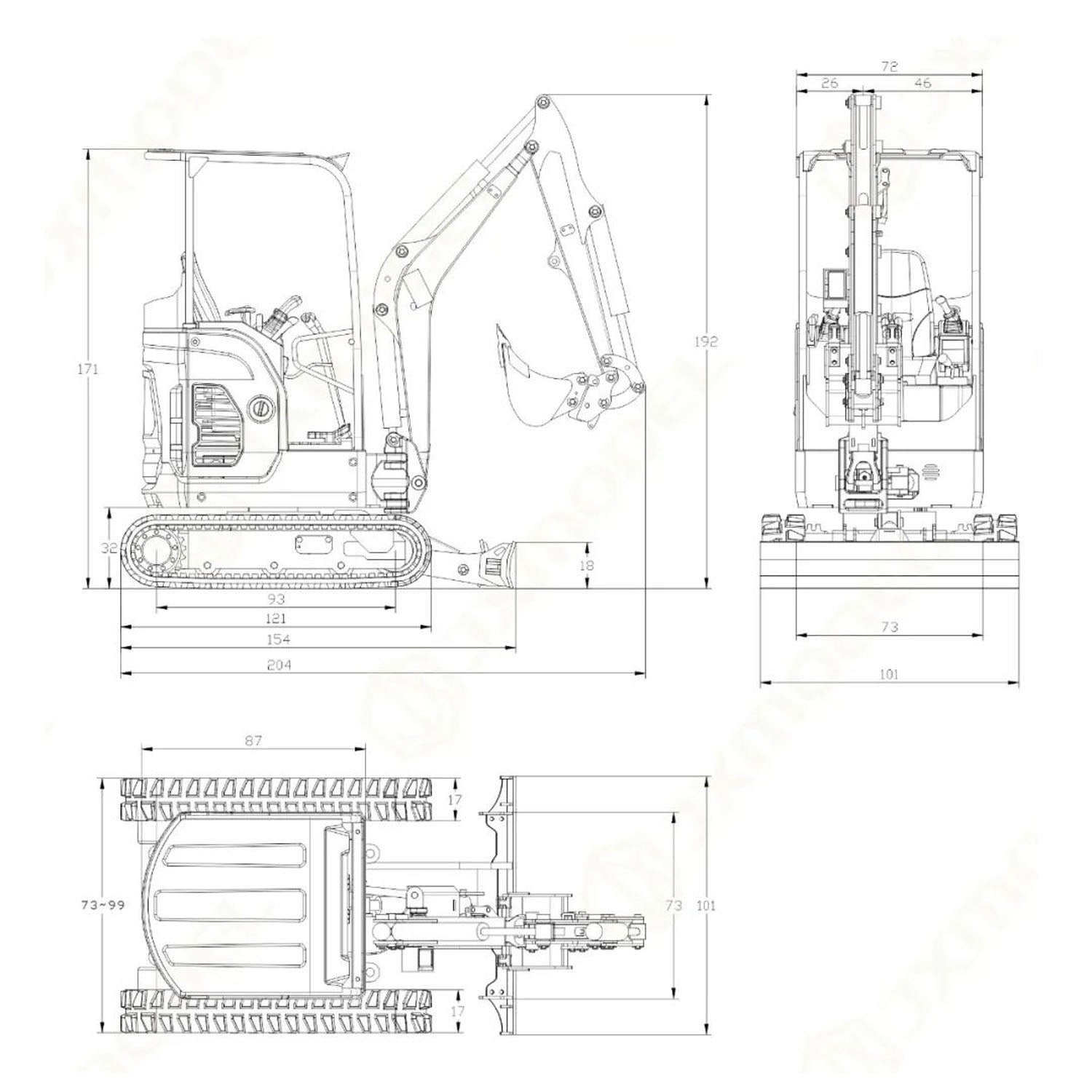

Static Technical Parameters:

- Cab top height above ground/mm: 171

- Platform bottom height above ground/mm: 32

- Total track length/mm: 121

- Wheelbase (center distance between drive wheel and guide wheel)/mm: 93

- Single track width/mm: 17

- Total width with front/rear two tracks extended/mm: 73-99

- Maximum extension length of the entire machine/mm: 429

- Total width of the entire machine with extended push shovel front/rear/mm: 73-101

- Chassis length (from track to front shovel)/mm: 154

- Shovel working face height/mm: 18

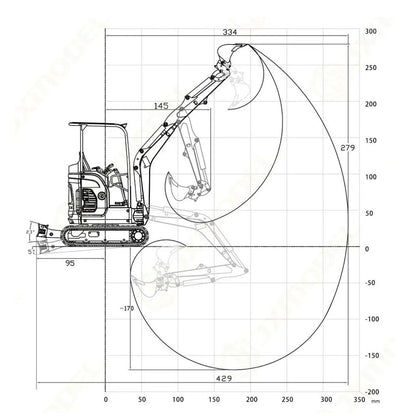

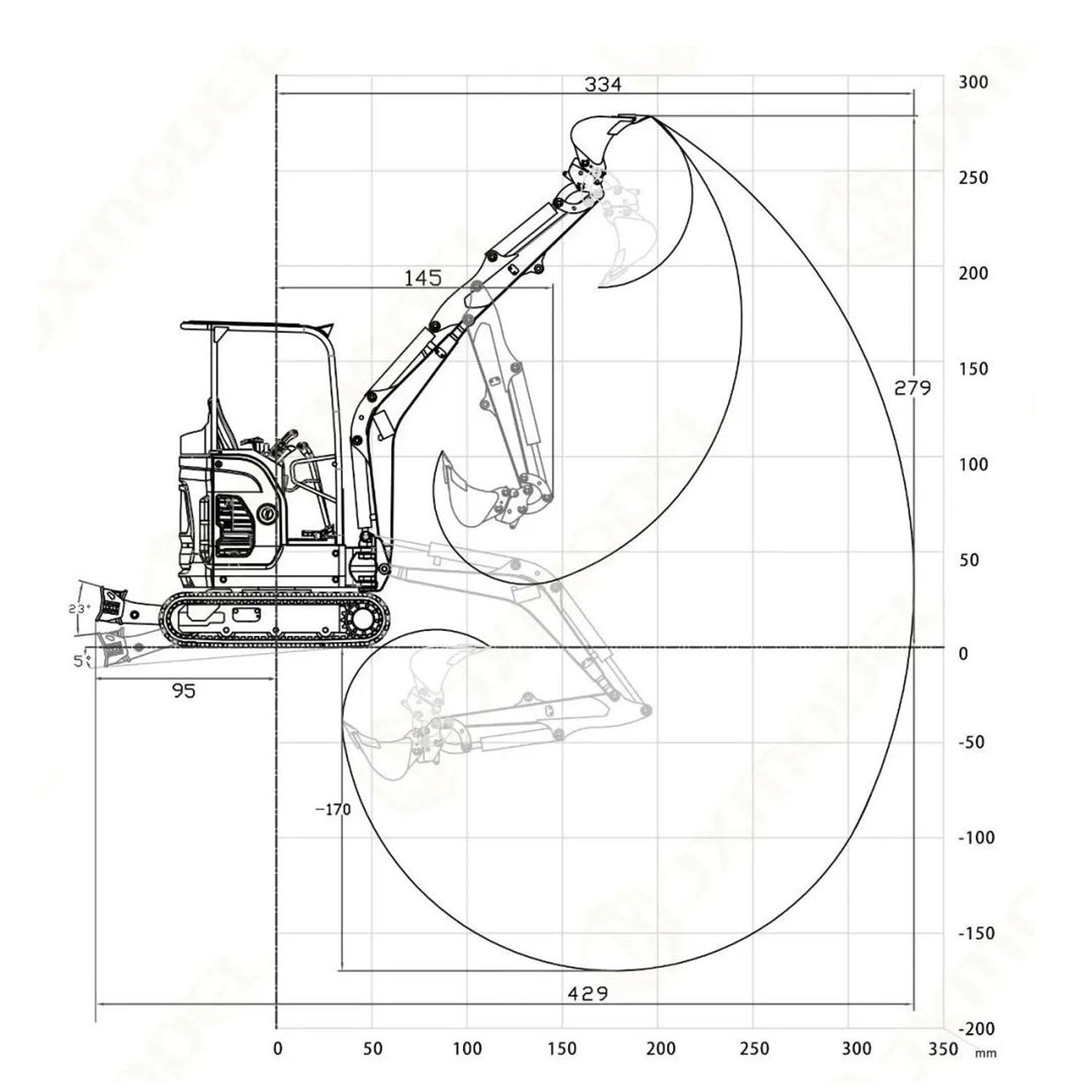

Dynamic Technical Parameters:

- Maximum rotation angle of the shovel/°: 23

- Maximum track lift angle when the shovel is raised/°: 5

- Minimum turning radius during operation/mm: 145

- Maximum turning radius during operation/mm: 334

- Maximum digging height/mm: 279

- Maximum digging depth/mm: -170

- Maximum rotation angle/°: 360+ (infinite rotation)

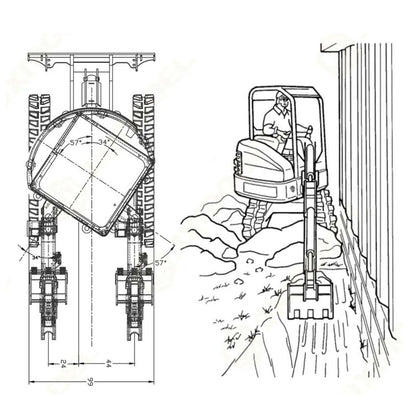

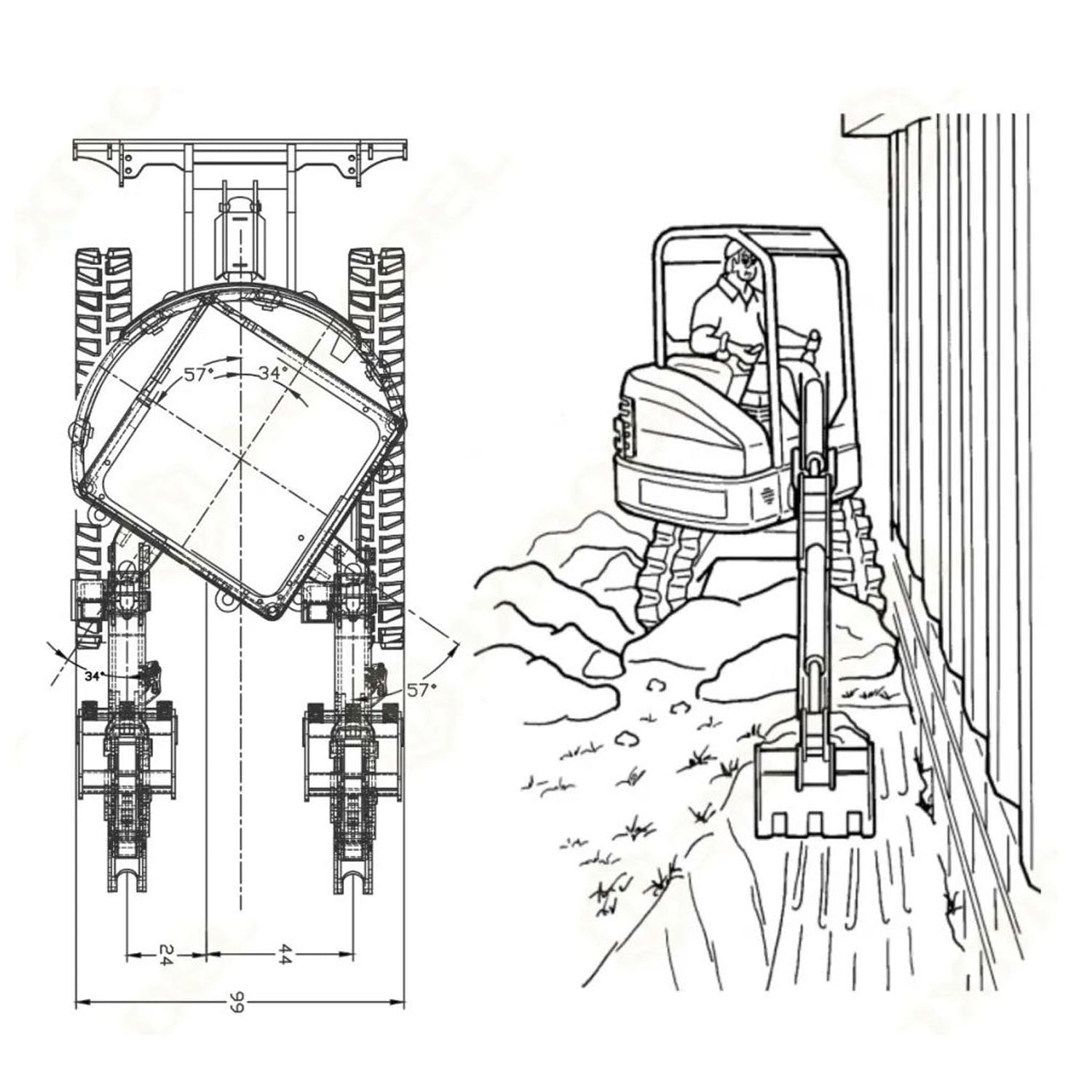

- Main arm horizontal rotation angle/°: Left 34 - Right 57

- Platform rotation speed (r/min): 36

- Platform rotation motor reduction ratio: 1:546

- Walking drive wheel track (r/min): 30

- Walking drive motor reduction ratio: 1:603

- Maximum pressure of hydraulic workstation/mpa: 2

- Rated pressure of hydraulic workstation/mpa: 1.5



Features:

1. Premium Alloy Construction:

   - The entire main body is crafted from high-quality alloy using CNC machining or stainless steel sheet metal.

   - Other components utilize engineering plastics and rubber for durability.



2. Compact and Powerful Design:

   - Remarkably miniaturized, the excavator features an integrated setup with 4-channel valves comes with upgraded 8.4V servos, an oil pump, , radiator cooling fan, hydraulic tank, battery, integrated motherboard, and a sound system with speakers.



3. Portable and Fully Functional:

   - With its miniature dimensions, the excavator offers a complete range of functionalities.

   - Convenient to carry around, it provides desktop-level enjoyment wherever you go.



4. Expandable Features:

   - Designed with reserved interfaces for quick attachment of additional tools and electric accessories.

   - Ongoing releases of compatible attachments for continuous customization.



5. Customized Integrated Motherboard:

   - Highly integrated custom motherboard equipped with illuminating searchlights for enhanced visual appeal.



6. Quick Manual Detachment:

   - Features a manual quick-detach mechanism for efficient and user-friendly operation.



If you have any questions or are not sure whether it is the correct item you want, pls feel free to contact me before purchasing.
